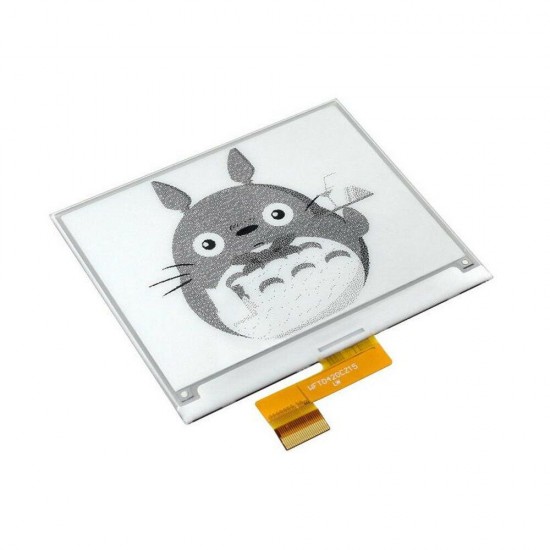

4.2 inch Electronic ink Screen E-paper 400x300 Resolution Black and White Display Module Board

4.2 inch Electronic ink Screen E-paper 400x300 Resolution Black and White Display Module Board
4.2 inch Electronic ink Screen E-paper 400x300 Resolution Black and White Display Module Board
4.2 inch Electronic ink Screen E-paper 400x300 Resolution Black and White Display Module Board
4.2 inch Electronic ink Screen E-paper 400x300 Resolution Black and White Display Module Board
4.2 inch Electronic ink Screen E-paper 400x300 Resolution Black and White Display Module Board
4.2 inch Electronic ink Screen E-paper 400x300 Resolution Black and White Display Module Board
4.2 inch Electronic ink Screen E-paper 400x300 Resolution Black and White Display Module Board
$30.99
Ex Tax: $30.99
  • Stock: In Stock
  • Model: EB0051008
  • SKU: EB0051008
  • Voltage: 3.3V
    Precise details>>
    >
    Documents:

    Sample tutorial: Click here to open: http://www.waveshare.net/w/upload/3/39/E-Paper_code.7z
    Github: Click here to open: https://github.com/waveshare/e-Paper

    Features:

    No backlight is needed, and the display content of the last screen can be kept for a long time after power off
    Very low power consumption, basically only consumes power when refreshing

    Parameter:

    Working voltage: 3.3V
    Communication interface: 3-wire SPI, 4-wire SPI

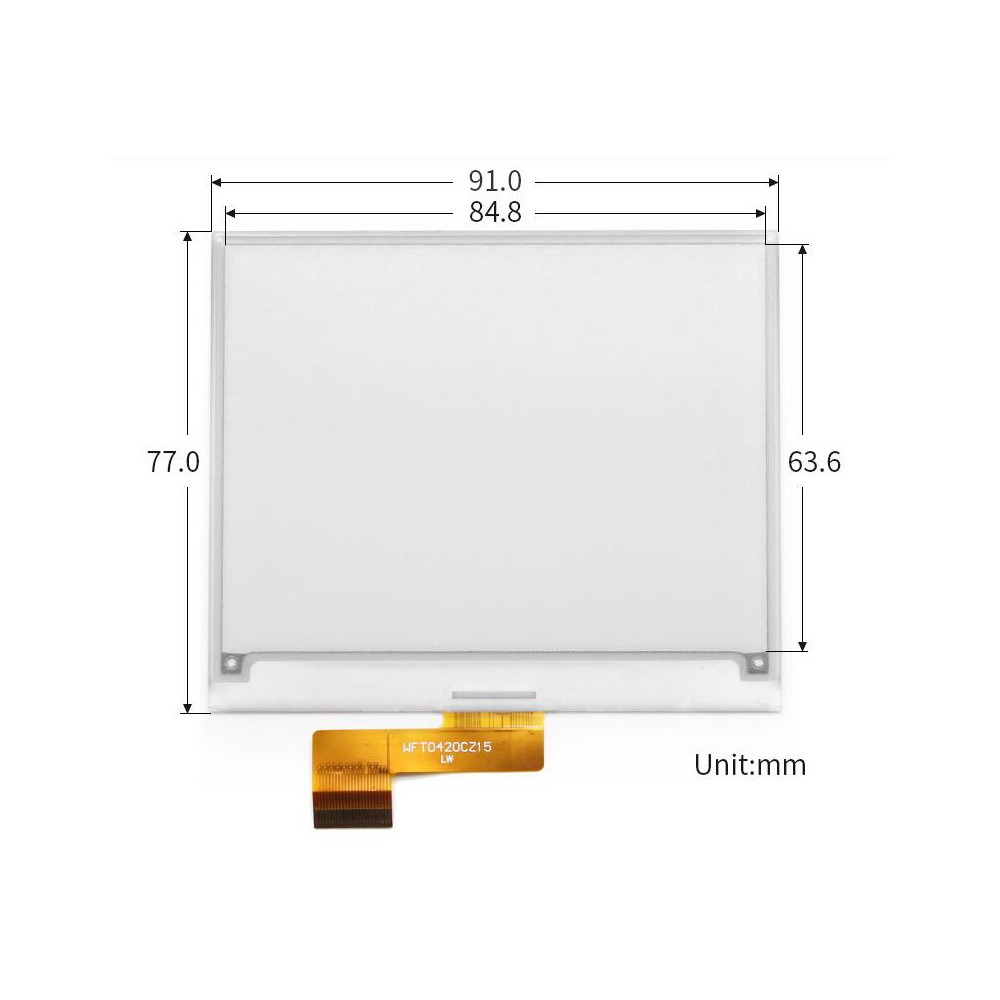

    Dimensions: 90.1mm × 77.0mm × 1.18mm
    Display size: 84.8mm × 63.6mm
    Point distance: 0.212 × 0.212

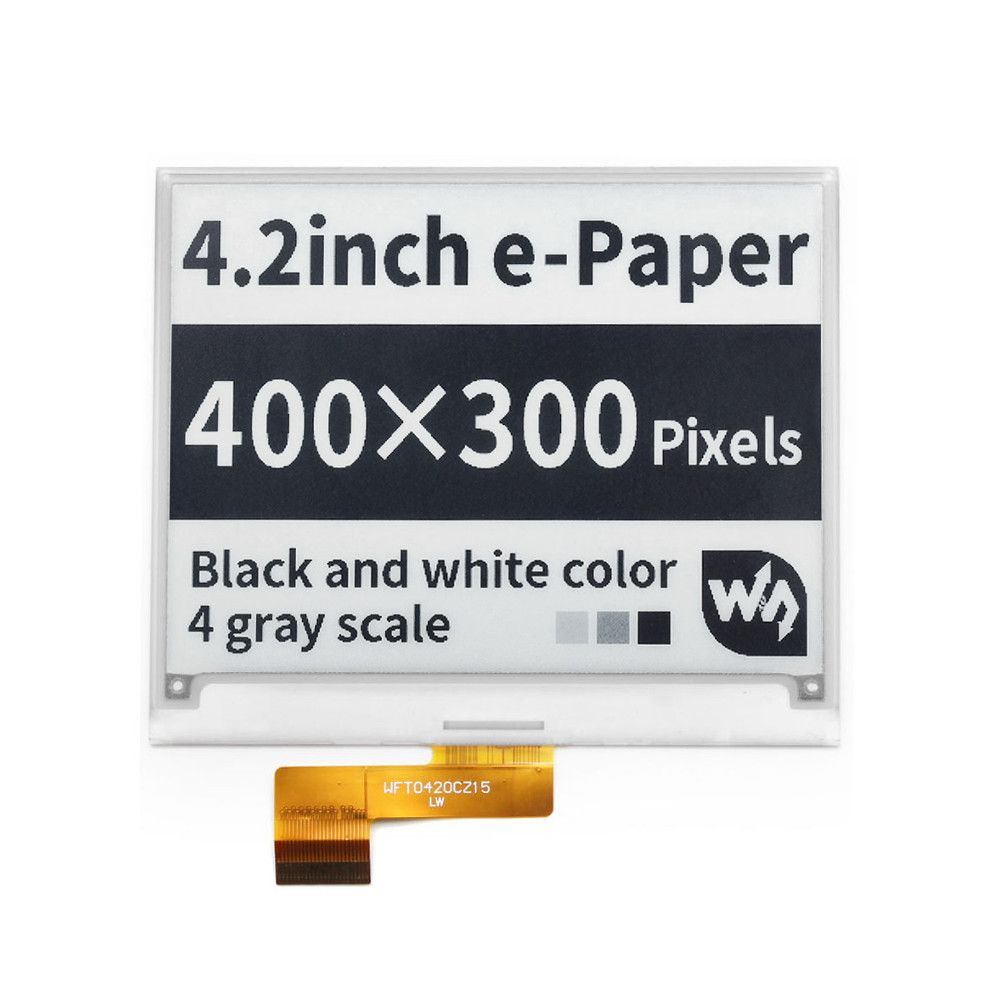

    Resolution: 400 × 300
    Display color: black, white
    Gray level: 2
    Refresh power consumption: 26.4mW(typ.)
    Standby power consumption: <0.017mW
    Viewing angle: >170°

    Package includes:

    1 x Dispaly boasrd
