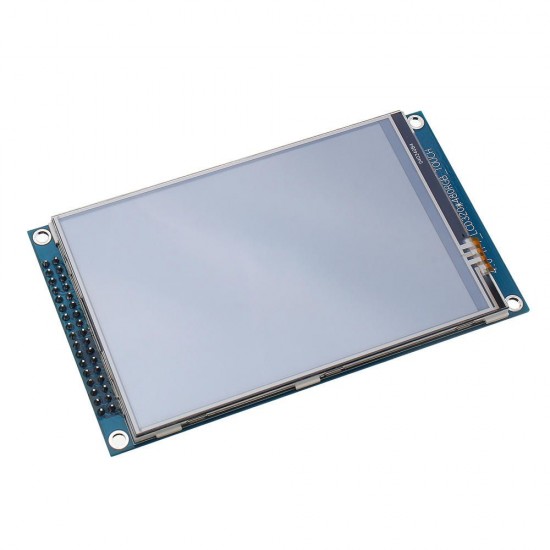

4 Inch TFT LCD Display Module with XPT2046 Touch Color Screen 320*480 ILI9486 Chip
- Stock: In Stock
- Model: EB0050941
- SKU: EB0050941
| PIN No. | Symbol | Descriptions |
| 1 | CS | Screen driver chip select pin, active low |
| 2 | RS | RS = 1 select data RS = 2 select register |
| 3 | WR | Parallel write control pin |
| 4 | RD | Parallel read control pin |
| 5 | RES | Screen reset pin, low level reset |
| 6~13 | D0~D7 | Low 8-bit data line |
| 14~21 | D8~D15 | High 8-bit data line |
| 22,26,27 | GND | Power ground |
| 23 | BLK | Backlight control; default is on, backlight is off when low |
| 24,25 | VCC | Power supply |
| 28 | BL_VDD | Backlight voltage adjustment, default to the screen voltage, can be adjusted |
| 29 | MIS | Touch chip output signal |
| 30 | MOS | Touch chip input signal |
| 31 | PEN | Touch chip interrupt |
| 32 | NC | Hanging |
| 33 | TCS | Touch chip chip select, active low |
| 34 | TCLK | Touch chip clock |
