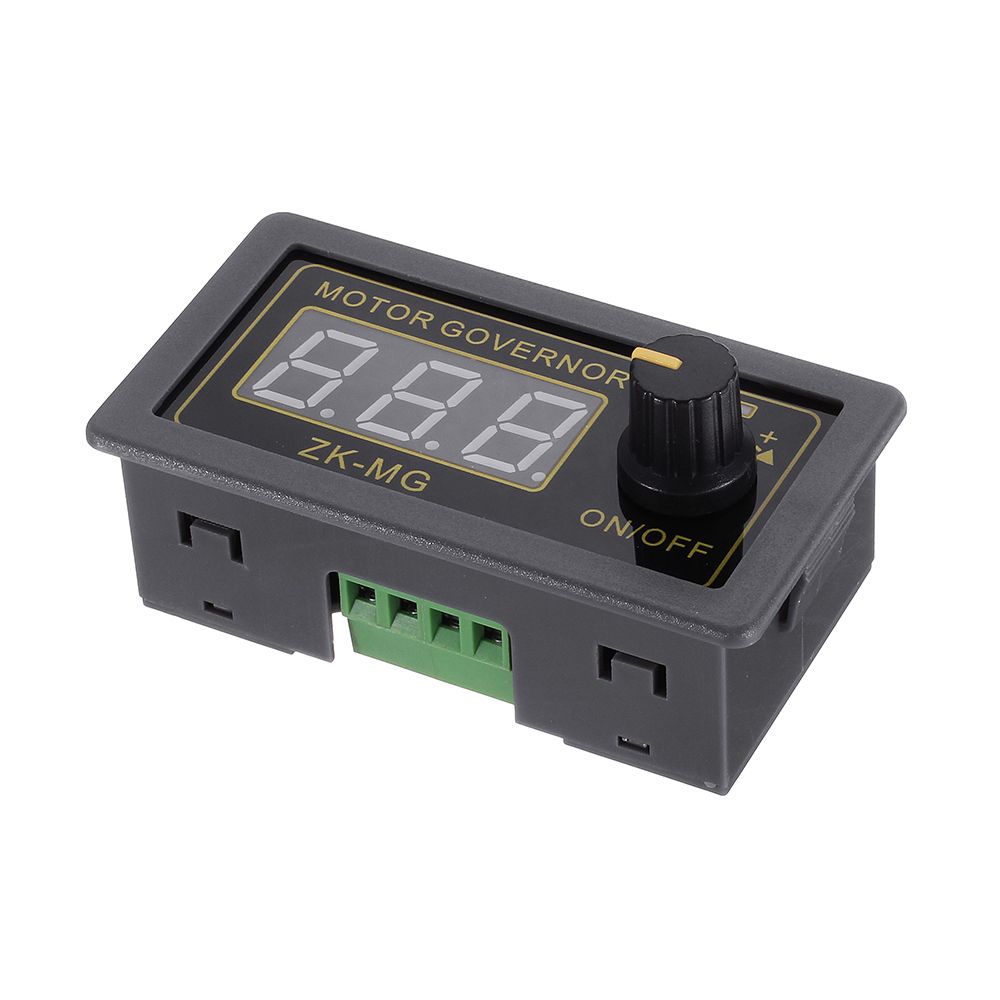

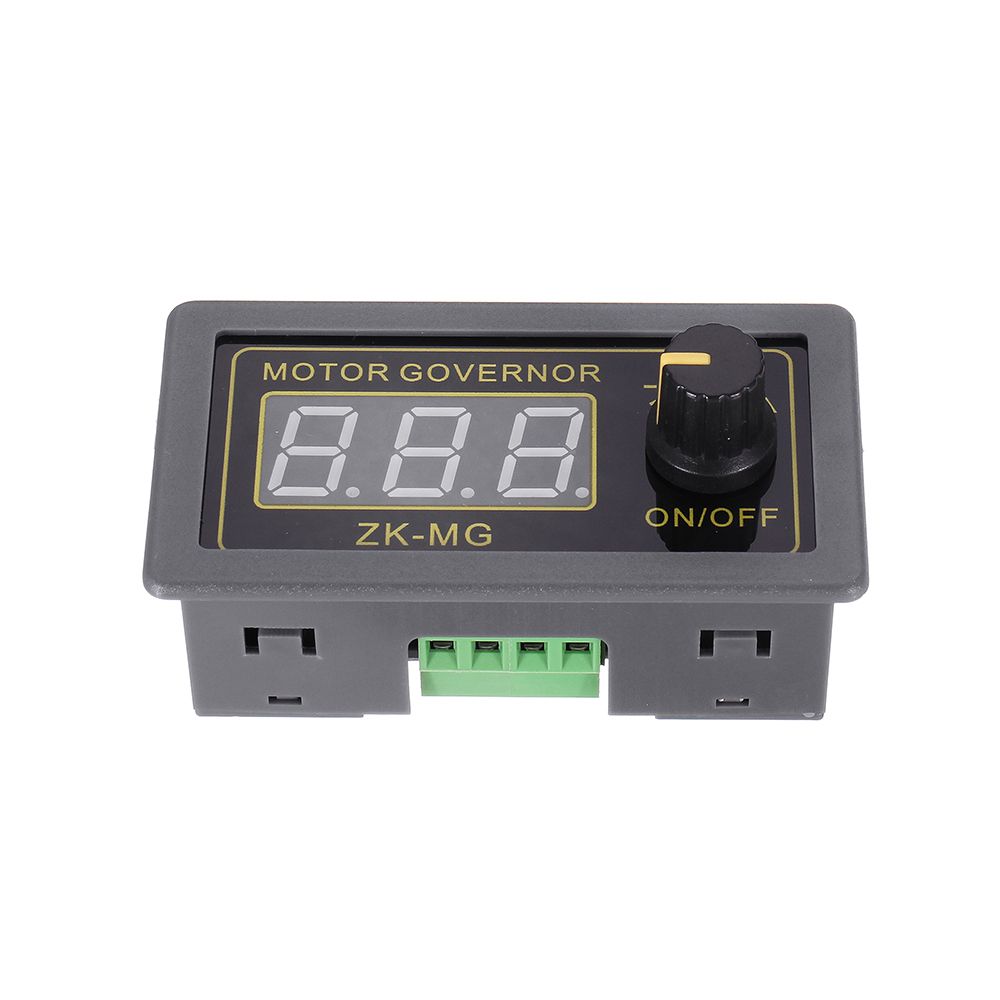

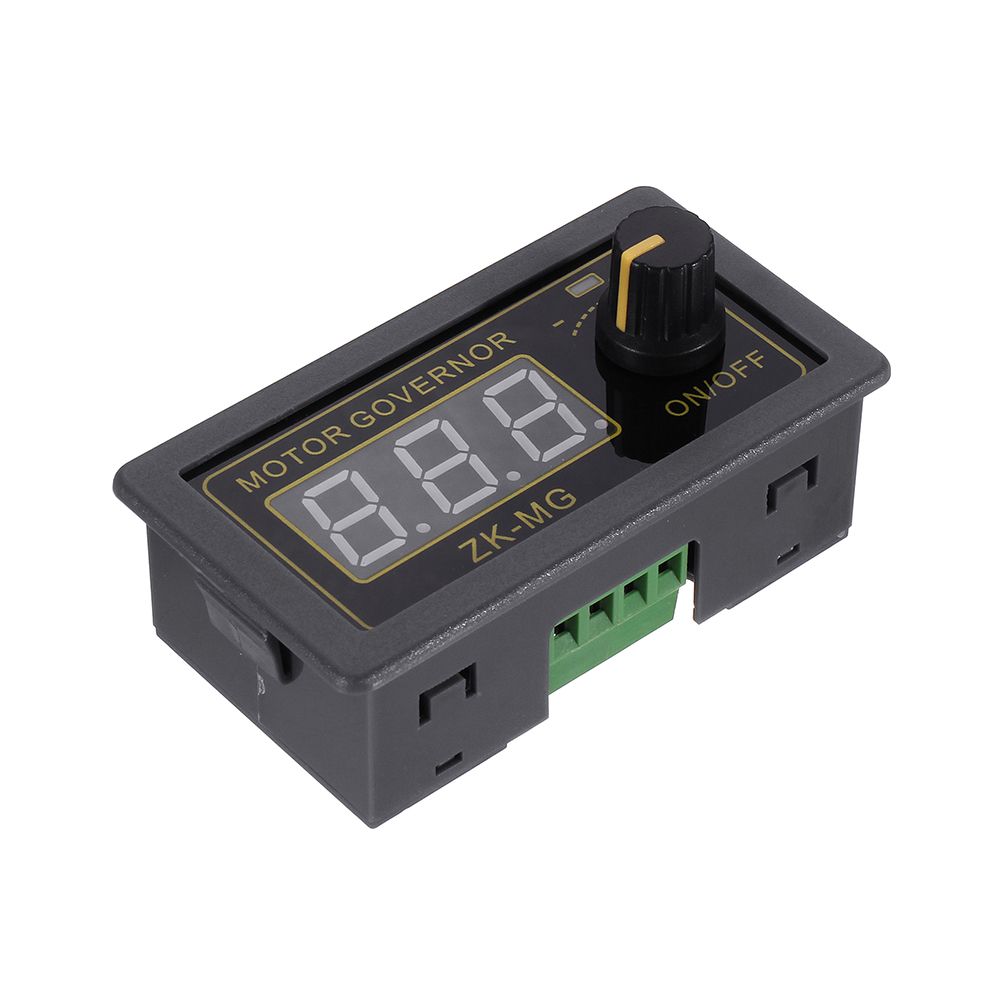

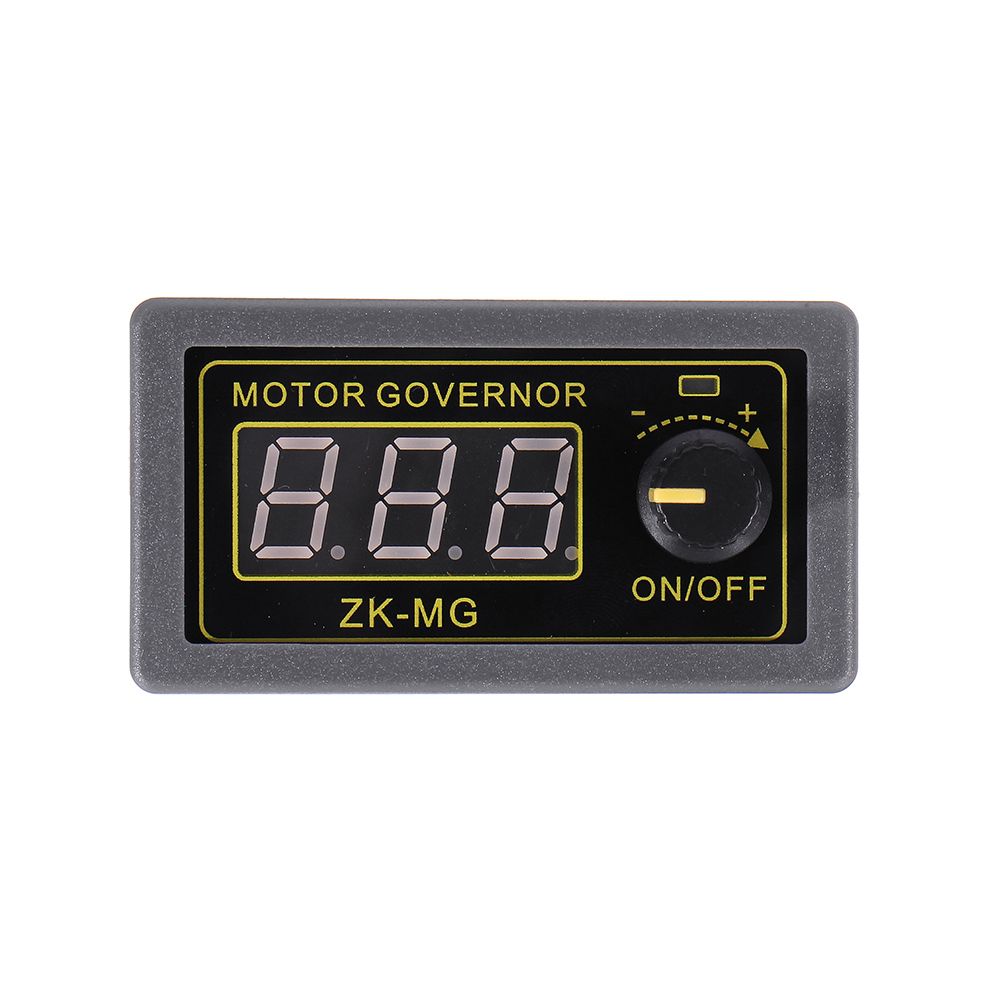

3pcs ZK-MG 5-30V 12V24V 5A High Power PWM DC Motor Speed Controller Digital Display Encoder Duty Cycle Ratio Frequency Switch

Based on 0 reviews. - Write a review

$14.99

Ex Tax: $14.99

Stock: In Stock
Model: EB0044733
SKU: EB0044733

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Features:

1. Equipped with start-stop button, and can be external switch control, to meet various customer control requirements

2. Motor soft start function. When starting the motor, the current increases slowly and there is no shock current, which can effectively protect the motor and prolong its service life

3. Duty cycle, duty cycle upper and lower limits and working frequency can be set to facilitate customers to operate and use their motors according to their working characteristics.

4. Digital encoder knob adjusts motor speed, which is more accurate and consistent than ordinary potentiometer.

5. With standard 5135 instrument shell, convenient for customer installation.

Specifications:

Model: ZK-MG

Material: Plastic+Metal

Color: Black

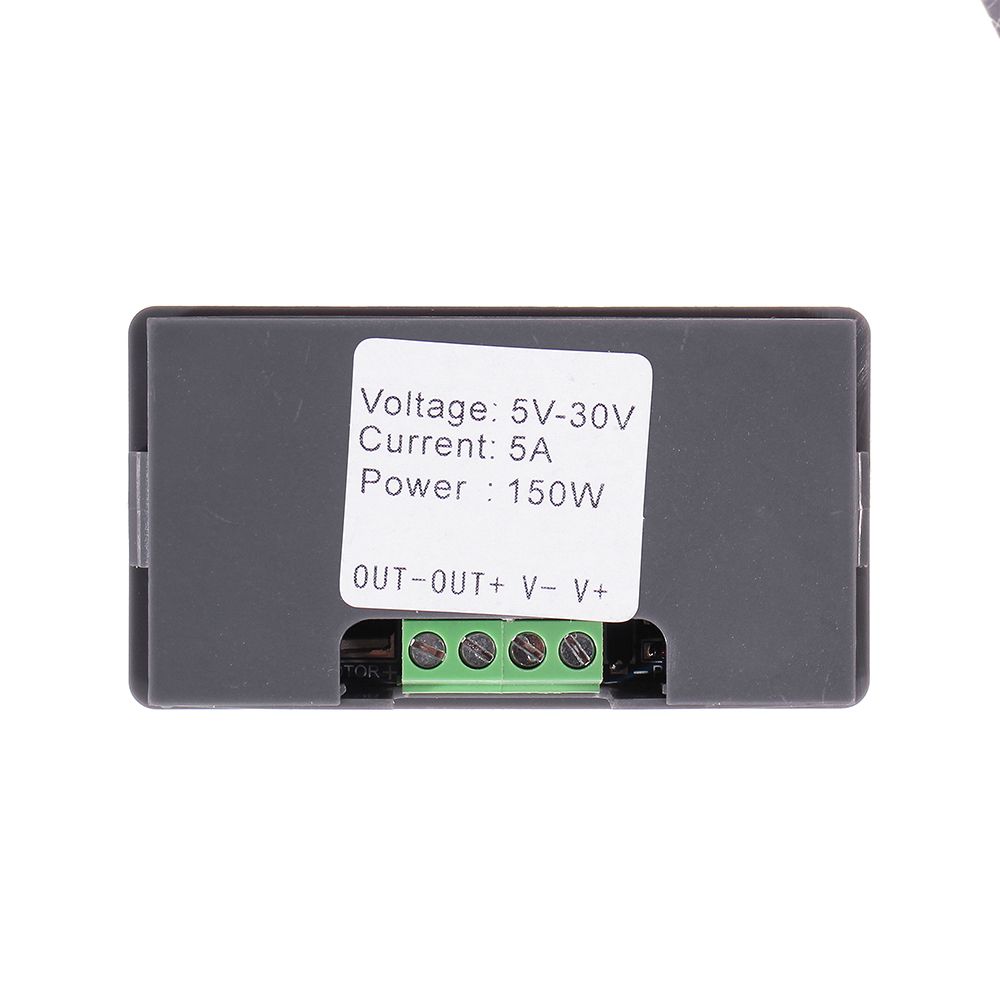

Working voltage: DC5V~30V, input anti-reverse connection protection

Rated current: 5A maximum current 15A

Maximum power: 150W

Working frequency: 1KHz~99KHz adjustable, 1KHz step, default frequency of 20KHz, the accuracy of about 1%

Duty cycle: 0-100%, 1% step

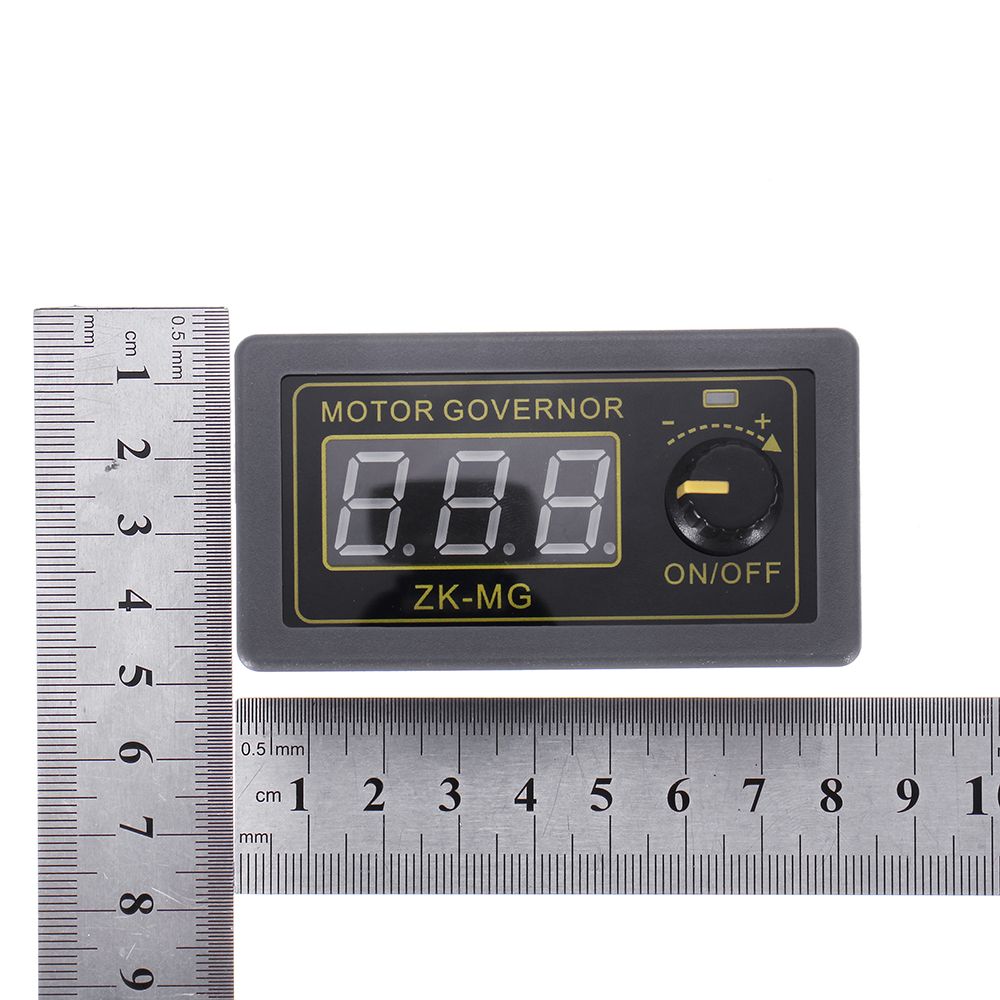

Product size: 76x43x26mm/2.96x1.68x1.01in

Product weight: 41g/1.44oz

Package Size: 100x50x50mm/3.9x1.95x1.95in

Package Weight: 64g/2.24oz

General Box Package

Package Included:

3 x DC Motor Controller PWM
