3pcs RX531 433MHz Lead-free Environment-friendly Wireless Receiver Module High Sensitivity Super Heterodyne Super Anti-jamming 2.2V-5V DC

Based on 0 reviews. - Write a review

$7.04

Ex Tax: $7.04

Stock: In Stock
Model: EB0045382
SKU: EB0045382

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Features:

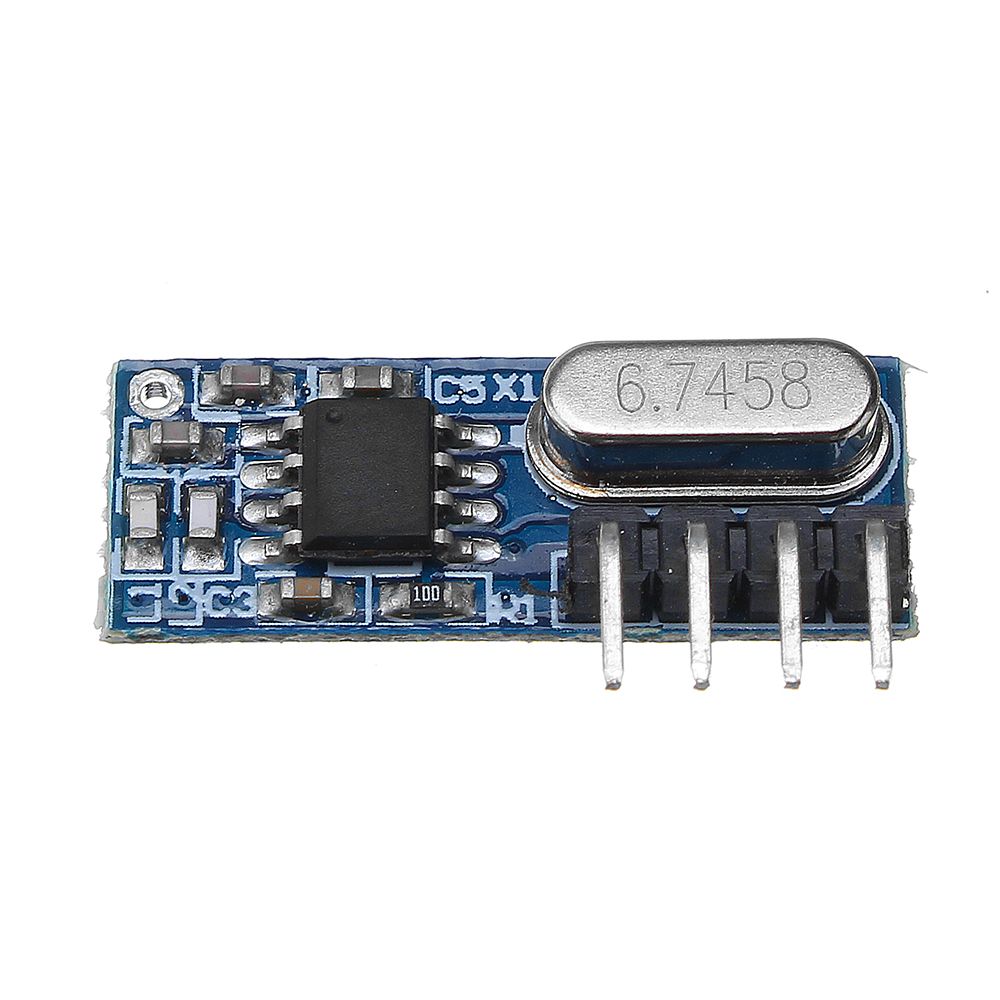

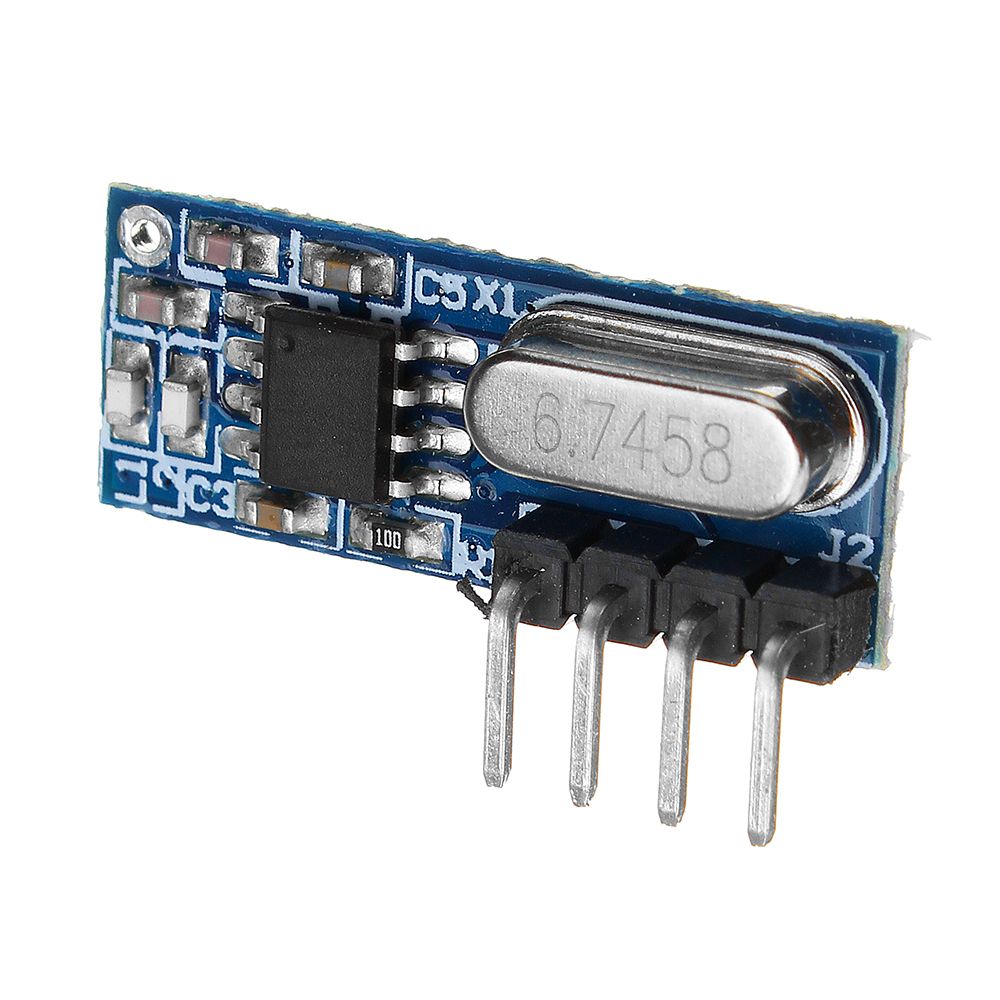

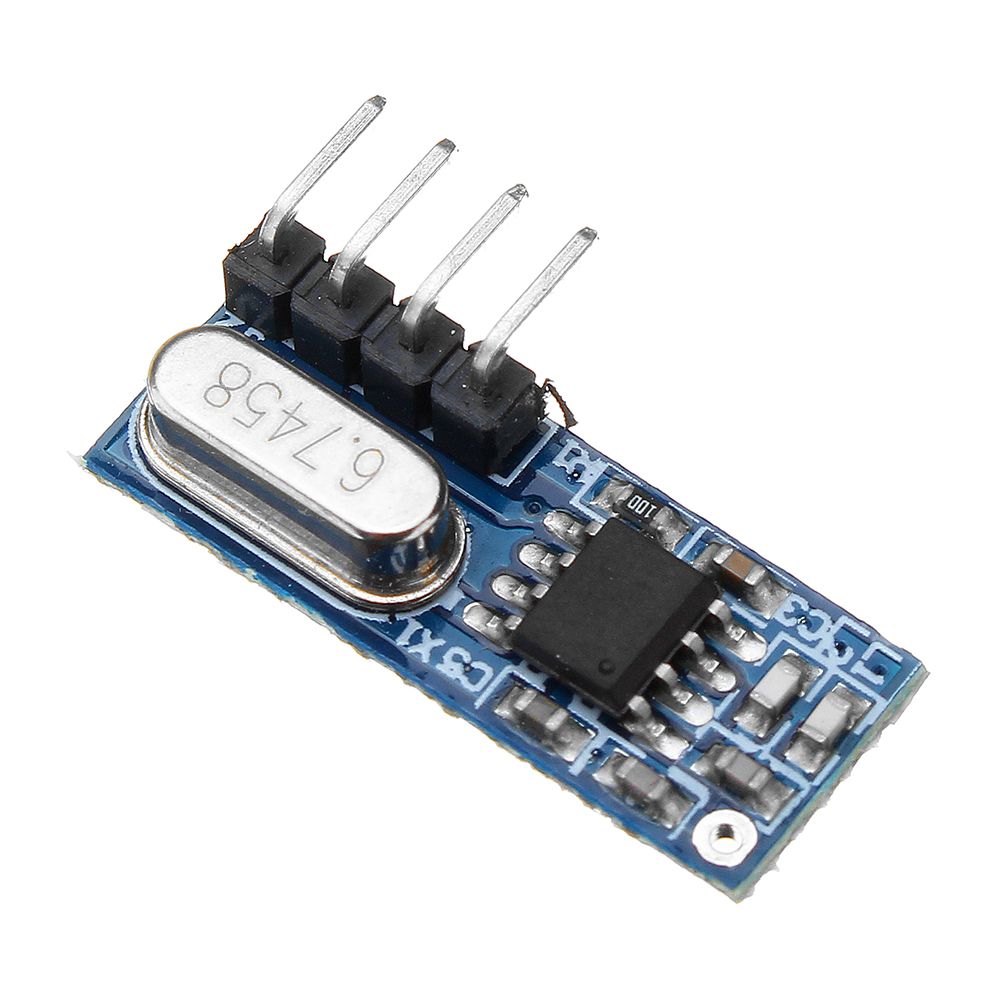

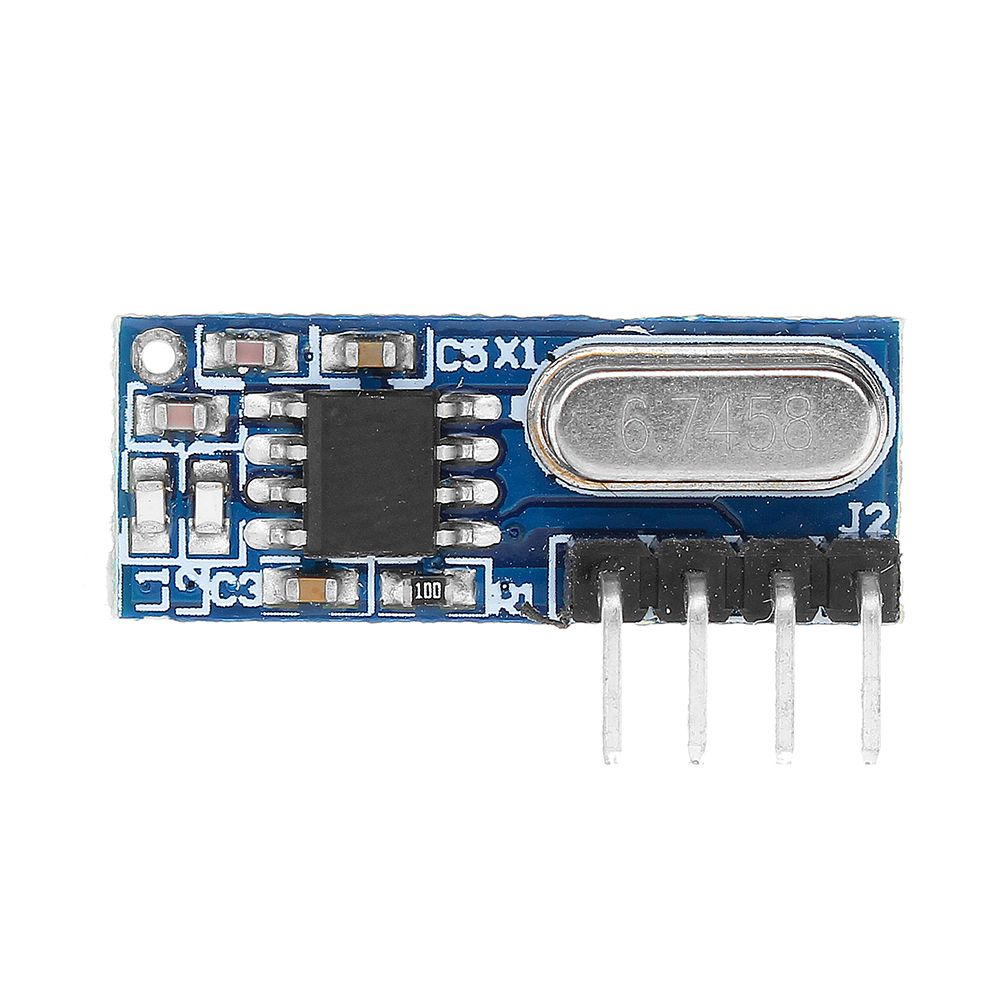

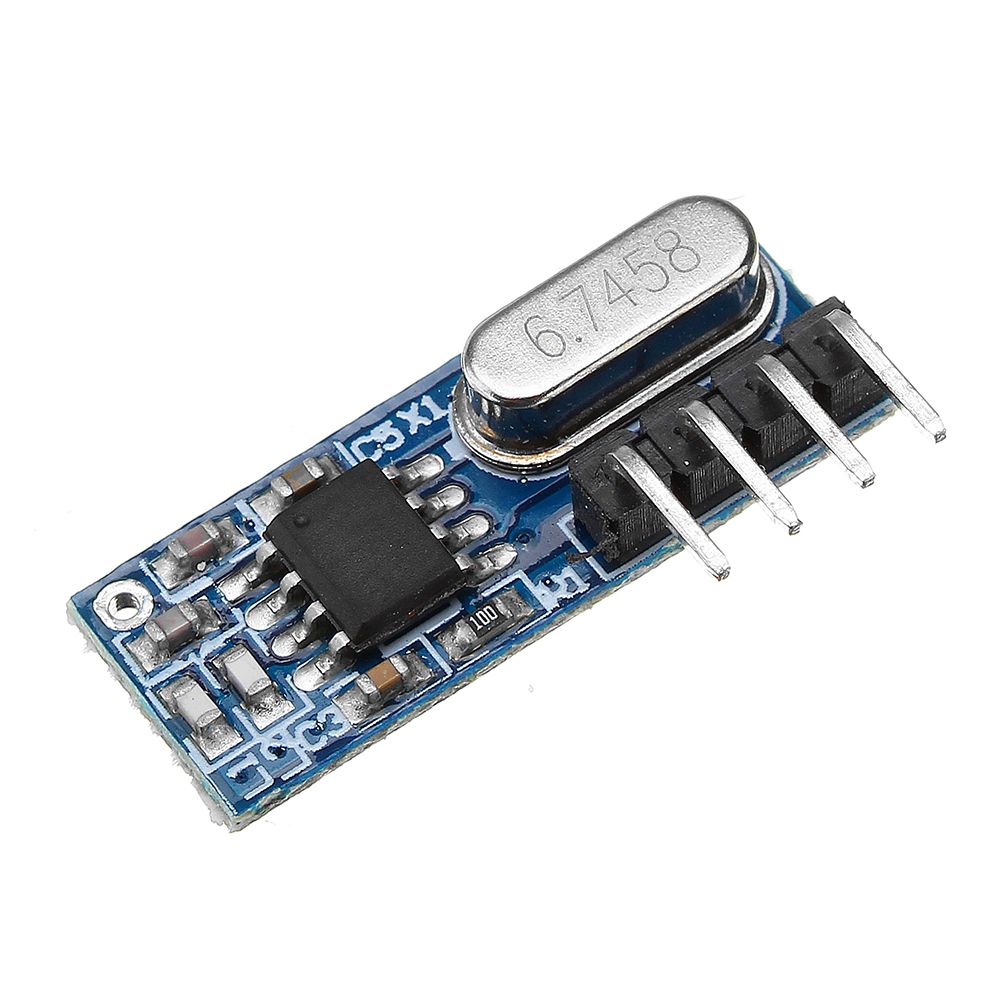

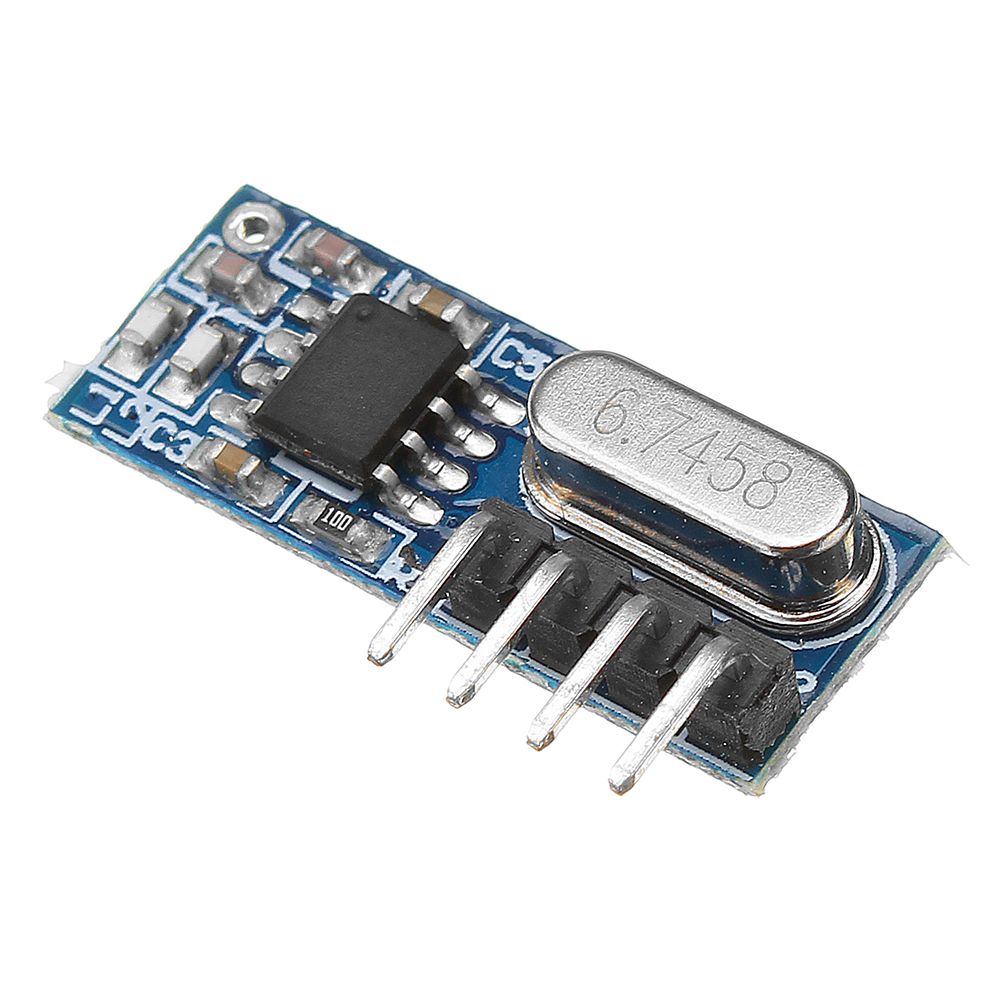

The RX531 receiving module is a wireless receiving module based on the super-disturbing interference chip WL531R. It is a UHF ASK receiving and demodulating machine that supports ASK and OOK modulation. The receiver module has high sensitivity (-112dBm) and a high dynamic range (greater than 60dB). The module uses a highly integrated chip, built-in front-end low-noise amplifier, mixer, filter, frequency synthesizer and other circuits, which can optimize the signal to a large extent.

- Support ASK/OOK modulation mode, the receiving sensitivity reaches -112dBm;

- Adopt environmentally friendly materials and production and processing technology, can pass ROHS environmental certification

- Good selectivity and stray radiation suppression, easy to pass CE/Fcc international certification;

- Good local oscillator radiation suppression capability, multiple receiver modules can work together (ie, single-shot and multi-receipt) without interfering with each other, and use together does not affect the receiving distance;

Operating frequency: 433.92 MHz, bandwidth about ± 150KHz;

Power supply voltage input range: 2.2V-5.0V;

Temperature range: -40-85 ° C

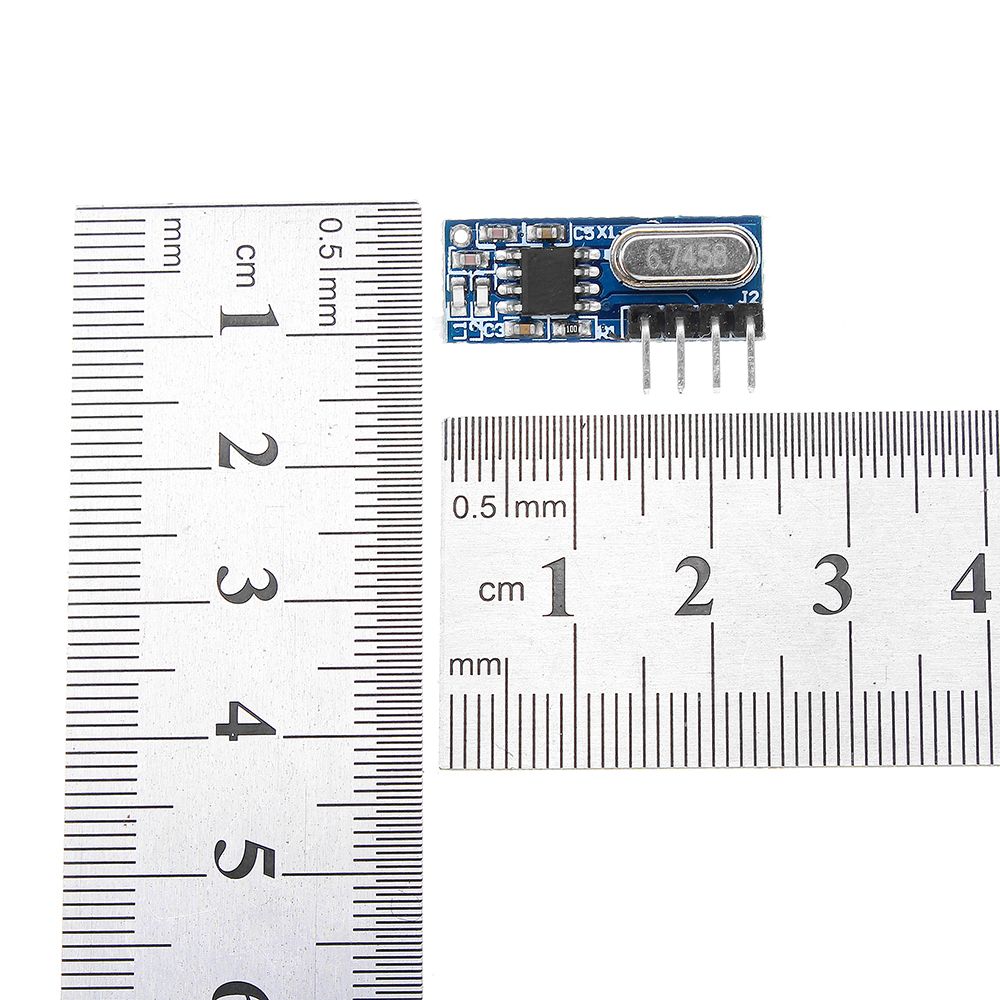

Size: 23.5 × 9 × 1mm

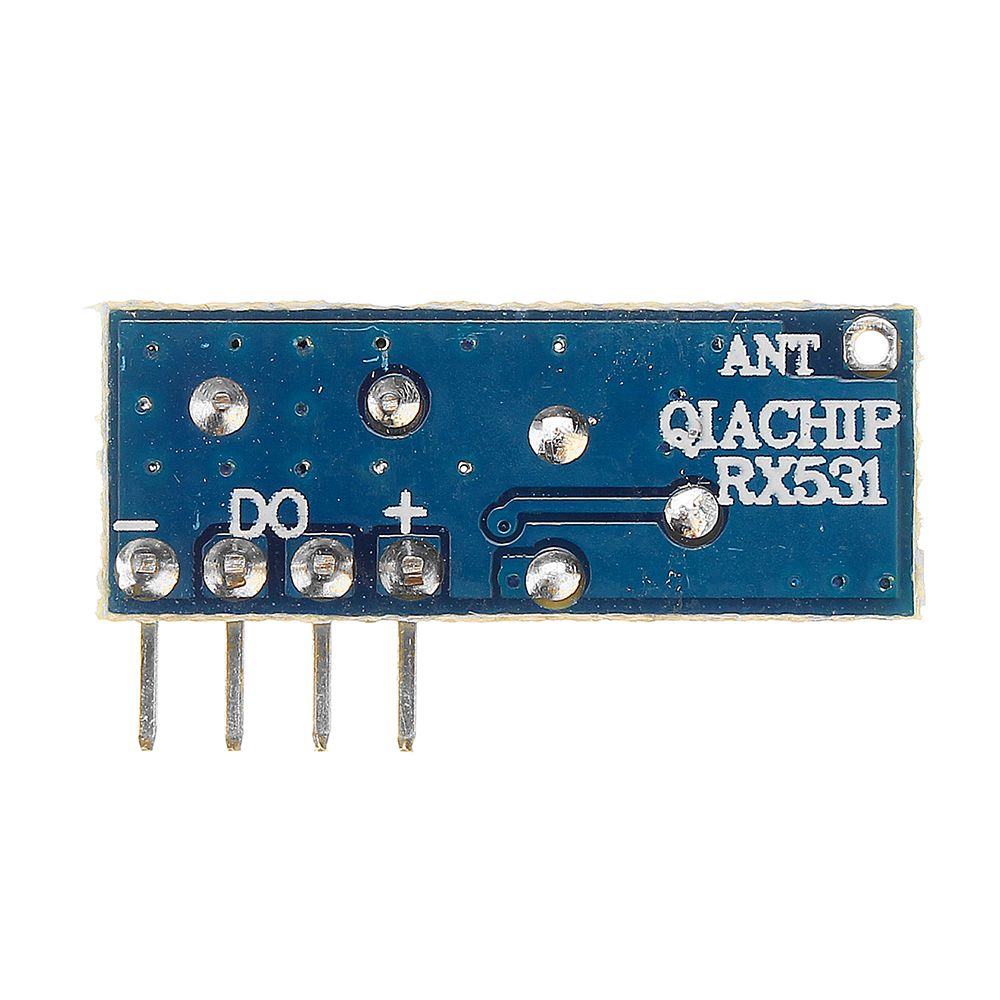

Number	symbol	name	Description
1	ANT	Antenna pin	RF signal output, directly connected to the antenna
2	GND	Power ground pin	Power ground, can be connected to the antenna housing shield
3	DO	Data output pin	When the module receives the carrier of the corresponding frequency, the pin outputs a high level;
4	DO	Data output pin	When the module does not receive the carrier of the corresponding frequency, this pin outputs a non-standard square wave.
5	GND	Power ground pin	Power ground

Application Range:

- Motor type strong dry resistance

- Wireless power switch, socket

- Remote control curtains, access control, electric vehicles

- Security, monitoring system

- Hotel room control

- Smart home products

Package Included:

3 x 433MHz Lead-free Environment-friendly Wireless Receiver Module
