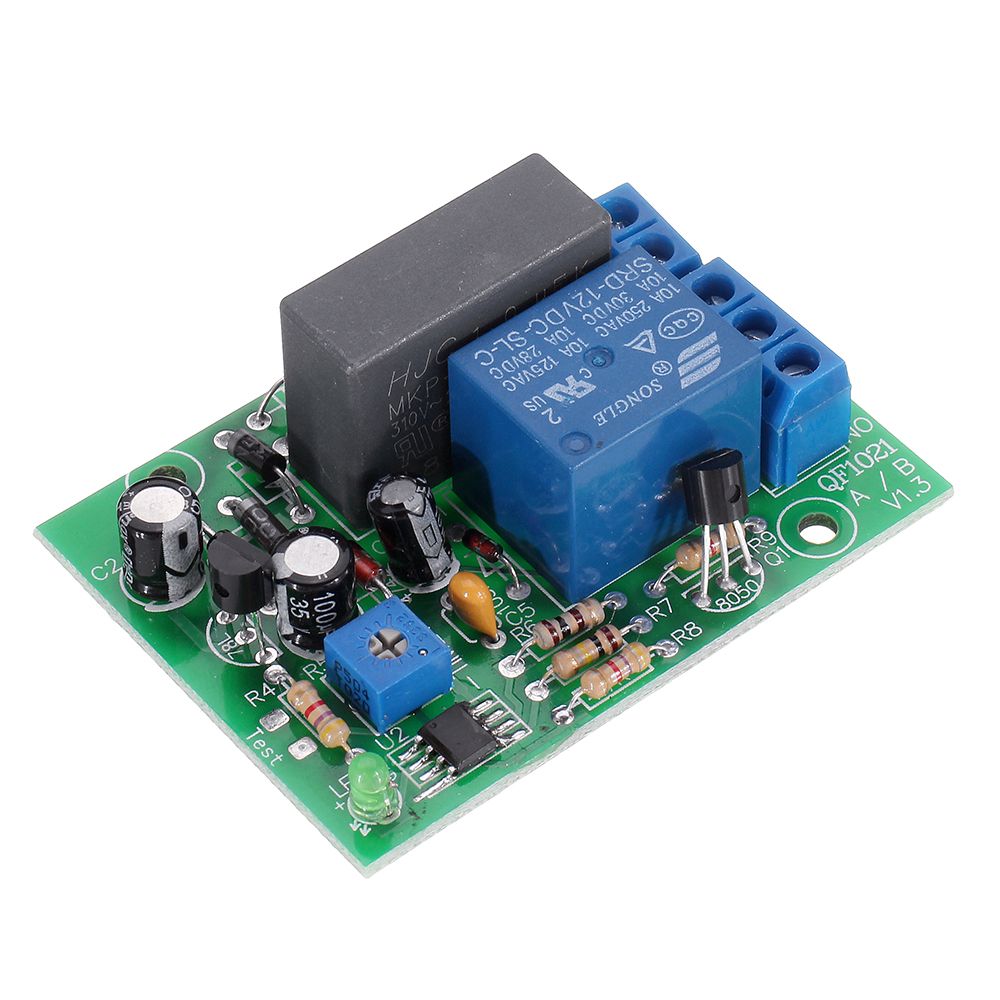

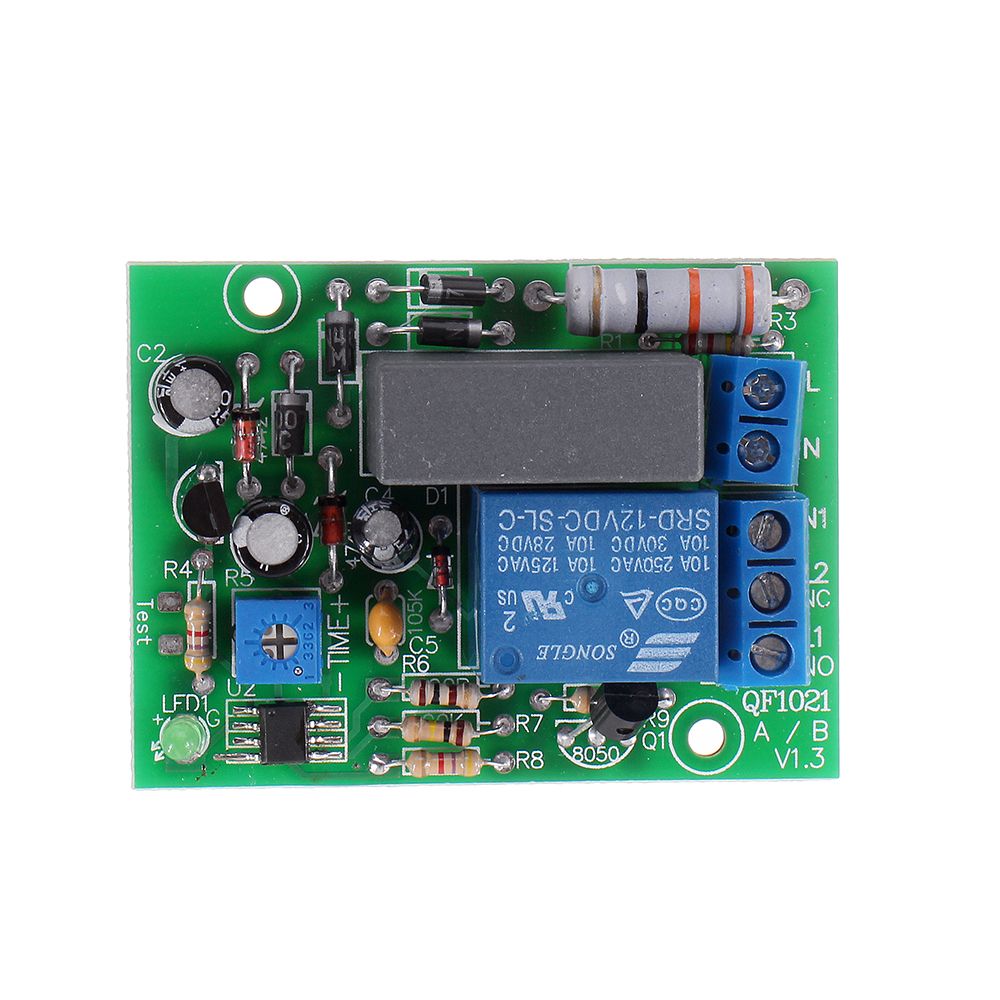

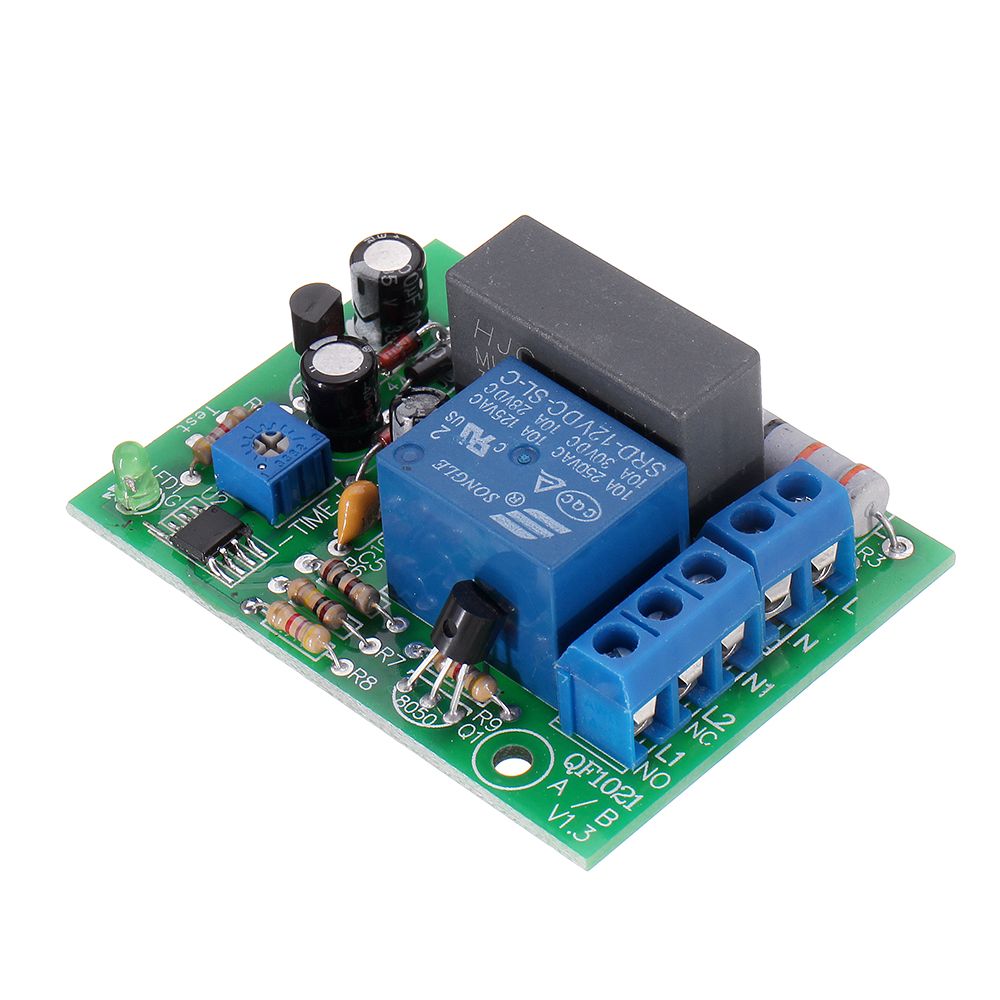

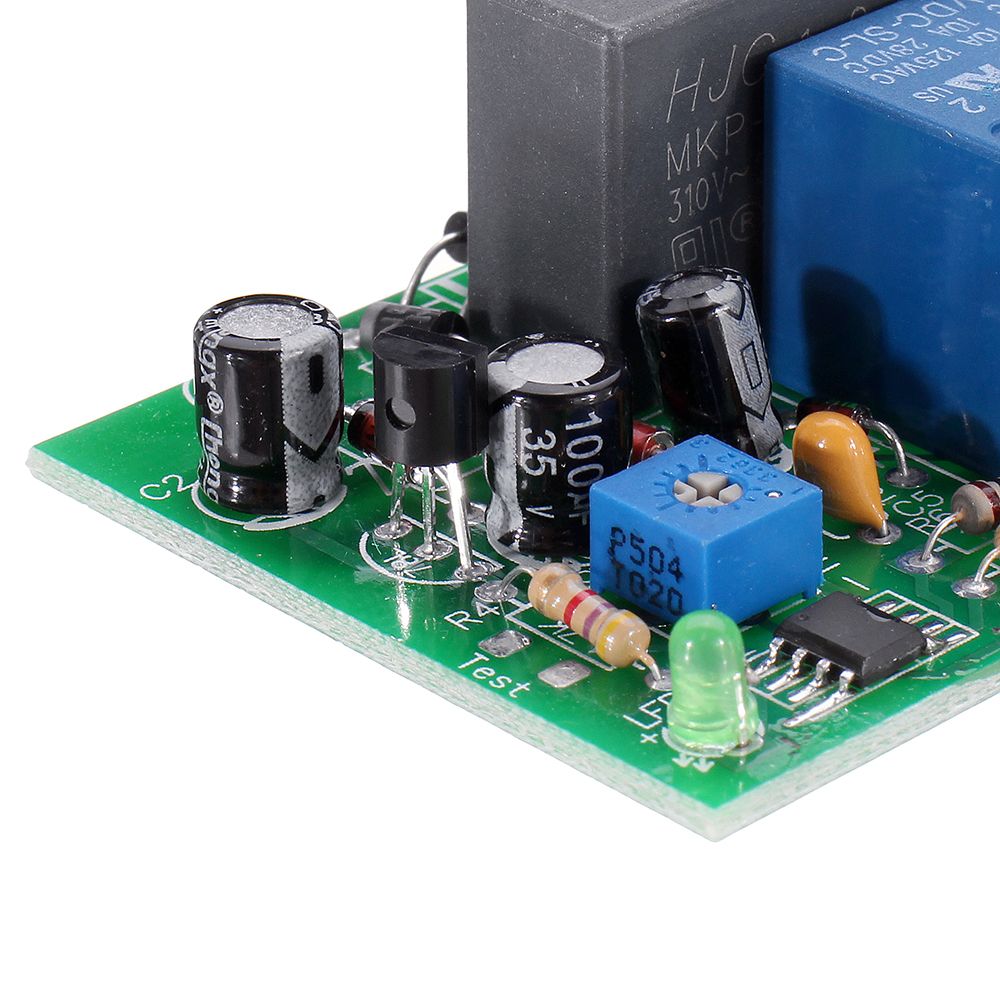

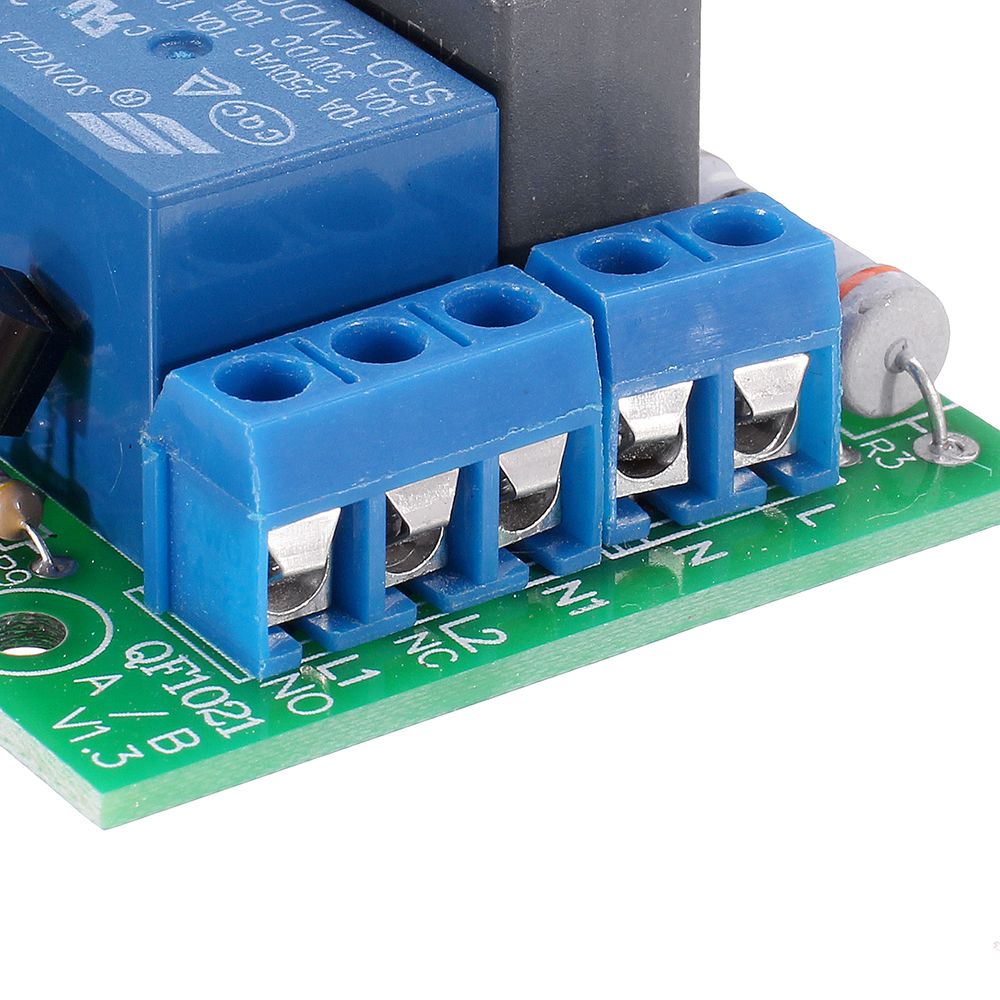

3pcs QF1021-A-10M 0-10Min Adjustable 220V Time Delay Relay Module Timer Delay Switch Timed Off with Overcharge Protection

3pcs QF1021-A-10M 0-10Min Adjustable 220V Time Delay Relay Module Timer Delay Switch Timed Off with Overcharge Protection
3pcs QF1021-A-10M 0-10Min Adjustable 220V Time Delay Relay Module Timer Delay Switch Timed Off with Overcharge Protection
3pcs QF1021-A-10M 0-10Min Adjustable 220V Time Delay Relay Module Timer Delay Switch Timed Off with Overcharge Protection
3pcs QF1021-A-10M 0-10Min Adjustable 220V Time Delay Relay Module Timer Delay Switch Timed Off with Overcharge Protection
3pcs QF1021-A-10M 0-10Min Adjustable 220V Time Delay Relay Module Timer Delay Switch Timed Off with Overcharge Protection
3pcs QF1021-A-10M 0-10Min Adjustable 220V Time Delay Relay Module Timer Delay Switch Timed Off with Overcharge Protection
3pcs QF1021-A-10M 0-10Min Adjustable 220V Time Delay Relay Module Timer Delay Switch Timed Off with Overcharge Protection
3pcs QF1021-A-10M 0-10Min Adjustable 220V Time Delay Relay Module Timer Delay Switch Timed Off with Overcharge Protection
3pcs QF1021-A-10M 0-10Min Adjustable 220V Time Delay Relay Module Timer Delay Switch Timed Off with Overcharge Protection
3pcs QF1021-A-10M 0-10Min Adjustable 220V Time Delay Relay Module Timer Delay Switch Timed Off with Overcharge Protection
3pcs QF1021-A-10M 0-10Min Adjustable 220V Time Delay Relay Module Timer Delay Switch Timed Off with Overcharge Protection
3pcs QF1021-A-10M 0-10Min Adjustable 220V Time Delay Relay Module Timer Delay Switch Timed Off with Overcharge Protection
3pcs QF1021-A-10M 0-10Min Adjustable 220V Time Delay Relay Module Timer Delay Switch Timed Off with Overcharge Protection
$12.99
Ex Tax: $12.99
  • Stock: In Stock
  • Model: EB0045713
  • SKU: EB0045713
Features:

- Relay load capacity up to 10A250V
- 3W metal oxide film resistor, withstand voltage
- Double Zener to improve stability
- Using single chip delay, time precision
- QF1021-A-10M: (Time out -off) Turns on immediately after power-on, the delay is automatically disconnected, up to 10 minutes

Specifications:

Delay adjustment resolution: 100 levels, that is, the minimum range of 100 minutes can be adjusted to 1 minute, 1 minute per division.
Delay error: 2%
Standby power consumption: 1.0W
Load capacity: 10A250V (General motor can be connected to 800W or less, please take the starting current as the standard)

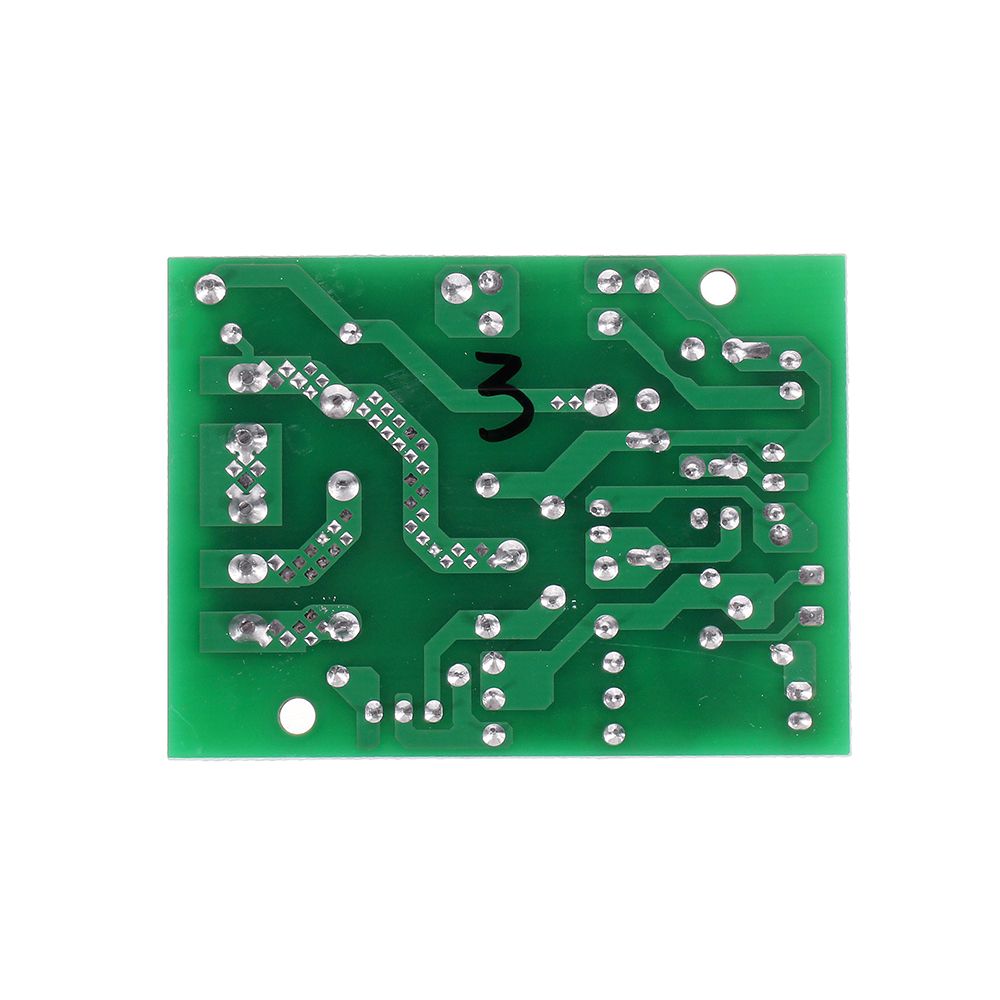

PCB size: 58mm * 43mm, height <20mm

Applications:

Home appliances, lighting delay modification, factory equipment delay control.

Warmly Noted:

The whole board is equipped with 220V voltage. It is necessary to pay attention to safety during installation and debugging to avoid personal injury from electric shock.

Package Incldued:

3 x QF1021-A-10M 0-10Min Adjustable 220V Time Delay Relay Module
