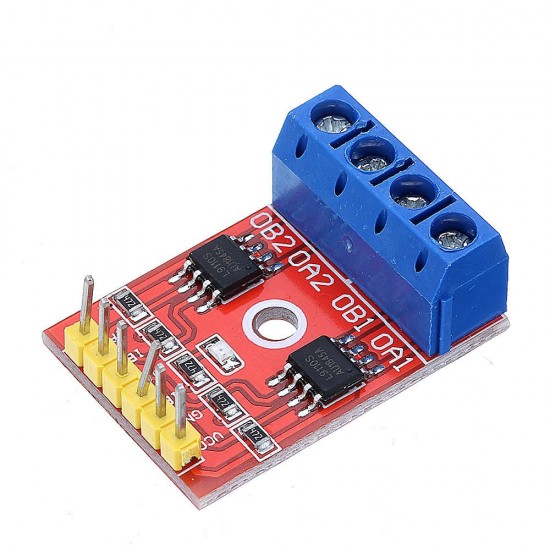

3pcs L9110S H-bridge Dual DC Stepper Motor Driver Board Stepper Motor Module L9110

Based on 0 reviews. - Write a review

$7.99

Ex Tax: $7.99

Stock: In Stock
Model: EB0048708
SKU: EB0048708

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Introduction:

Two the L9110S motor control chip Onboard

The module can simultaneously drive two DC motors or a 4-wire 2-phase stepper motor

The module input voltage: 2.5-12V

The 800mA continuous current output capability per channel

Feature:

1. Low static work current

2. Power supply voltage: DC2.5-12V

3. Each channel has 800mA continuous current output

4. Low saturation pressure drop

5. TTL/CMOS output level compatible can be connected directly to the CPU

6. Output built-in clamping diode, apply to the perceptual load

7. Control and drive integrate into IC

8. Have pin high-pressure protection function

9. Working temperature: 0-80 °C

Instructions:

VCC external 2. 5V-12V voltage, GND external GND

IA1 external MCU 10 port

IB1 external MCU 10 port

IA2 external MCU 10 port

IB2 external MCU 10 port

0A1, 0B1 are connected to 2 pins of DC motor, no direction

0A2, 0B2 are connected to 2 pins of DC motor, no direction

Turn on VCC, the GND module power indicator is on.

IA1 input high level, IB1 input low level, [0A1 0B1] motor forward

IA1 input low level, IB1 input high level, [0A1 0B1] motor reverse

IA2 input high level, IB2 input low level, [0A2 0B2] motor forward

IA2 input low level, IB2 input high level, [0A2 0B2] motor reverse

Package includes:

3 x Stepper Motor Driver Board
