3pcs Hall Effect Magnetic Sensor with Analog & Digital Output Module for Arduino - products that work with official for Arduino boards

Based on 0 reviews. - Write a review

$11.99

Ex Tax: $11.99

Stock: In Stock
Model: EB0045581
SKU: EB0045581

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Feature:

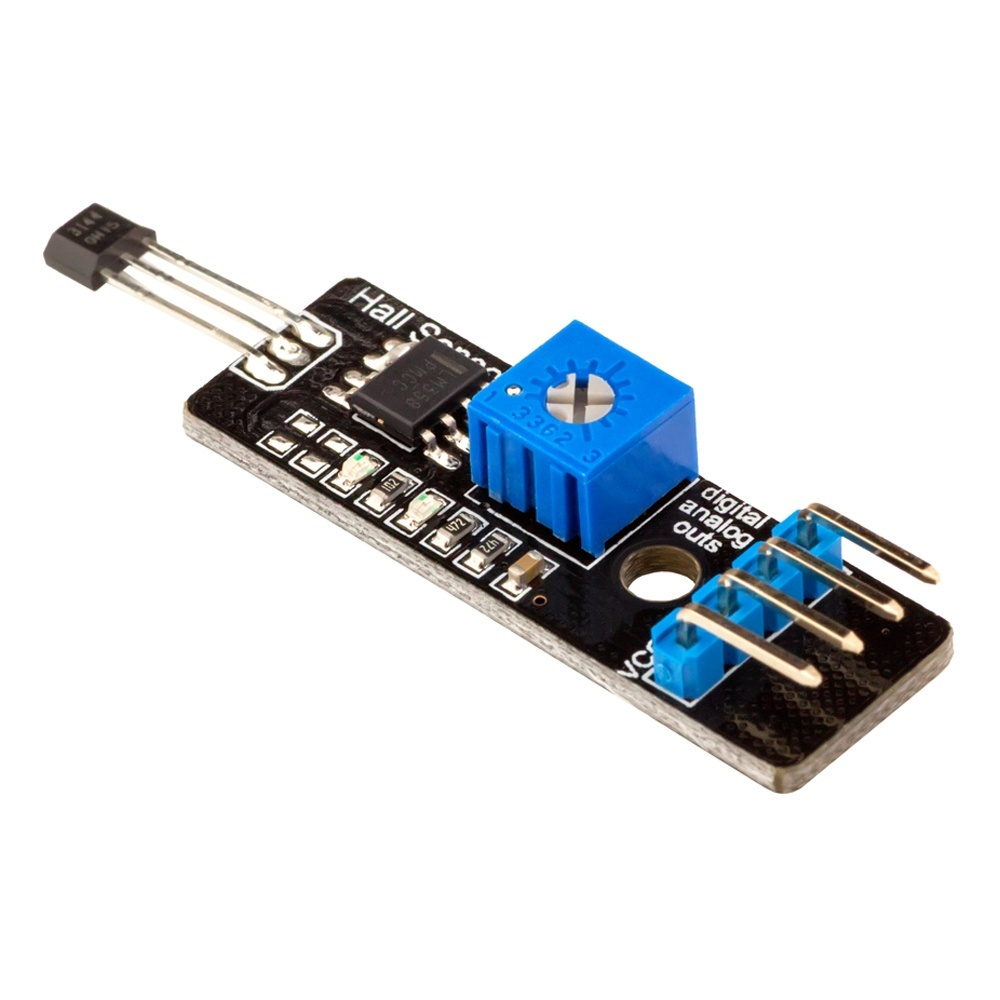

The Hall Effect Magnetic Sensor can be used for detect the presence (or absence!) of nearby objects such as magnets.

If no magnetic field is present, the signal line of the sensor is HIGH (on digital out). If a magnetic field is presented to the sensor, the signal line goes LOW (on digital out), at the same time the LED (blue) on the sensor lights up.

The distance detection to a magnetic object can be adjusted via the potentiometer on board.

It also has the Analog output, to determine the magnitude of a magnetic field or the distance to an object.

The polarity of the magnetic field is of influence to the switching action. The front side of the sensor needs the opposite polarity as the back of the sensor to switch on.

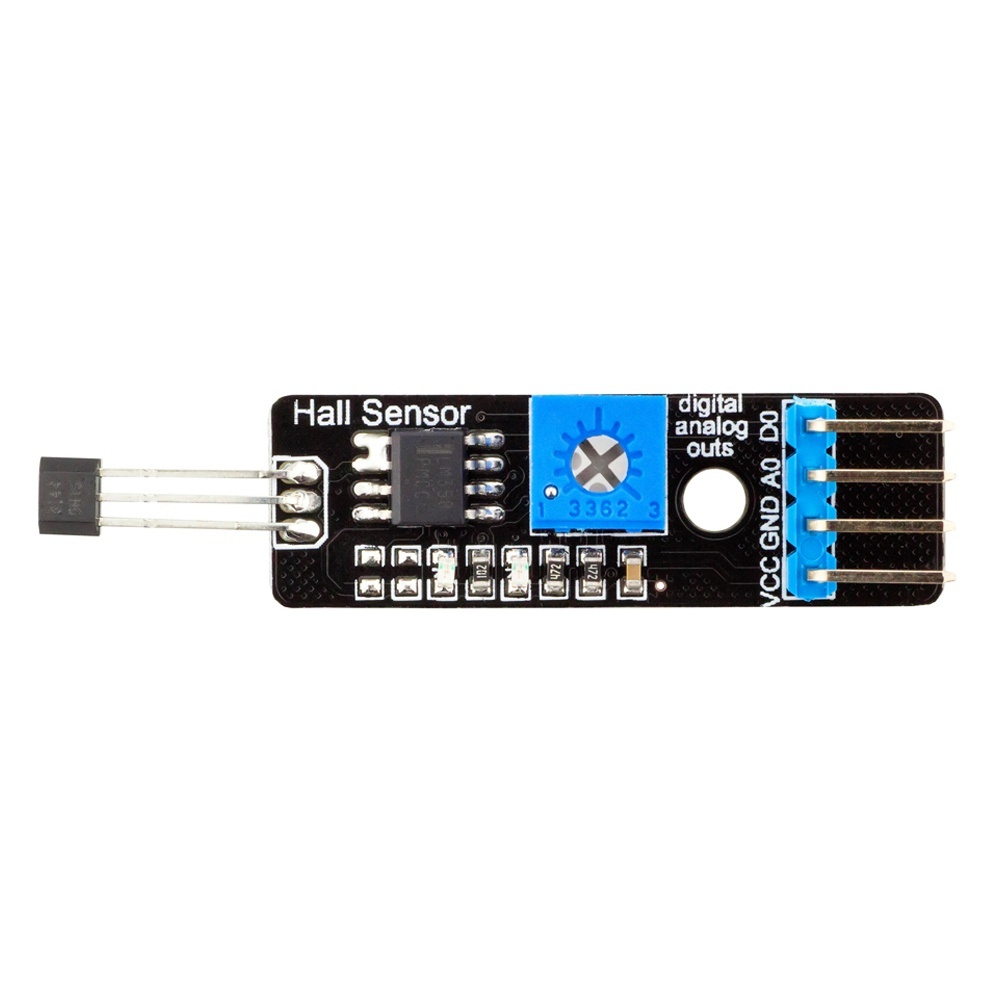

Connection:

GND = to GND

VCC = to 5V

DO = to any Digital P/O

AO = to any Analog In

Documents:

Dimensional drawing: Click here to open

Pinout: Click here to open

Schematic: Click here to open

Package includes:

3 x Hall Effect Magnetic Sensor

Sketch (for Arduino):

#define SENSOR = 3; // define the Hall (magnetic) sensor Digital I/O#define LED = 13; // LED D13 void setup (){ pinMode (LED, OUTPUT) ; // LED on D13 pinMode (SENSOR, INPUT) ; // Hall (magnetic) sensor on D3} void loop (){ if (digitalRead (SENSOR) ==LOW) // read seonsor and when the Hall sensor detects a magnetic field Arduino LED lights up { digitalWrite (Led, HIGH); } { digitalWrite (Led, LOW); }}
