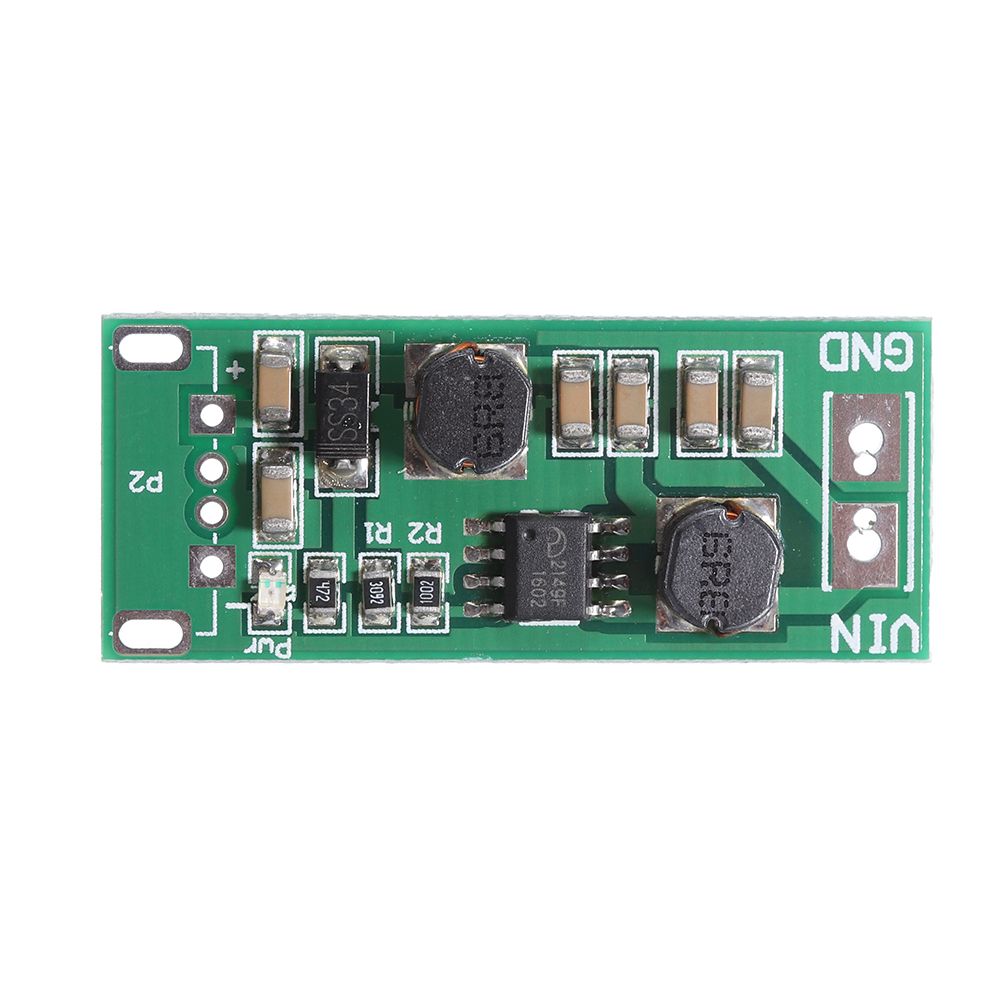

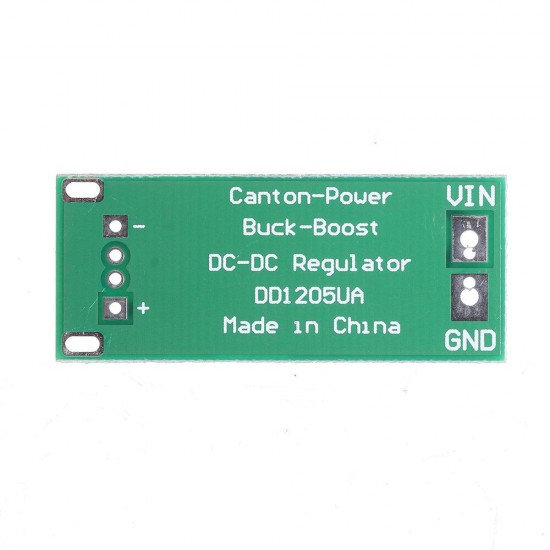

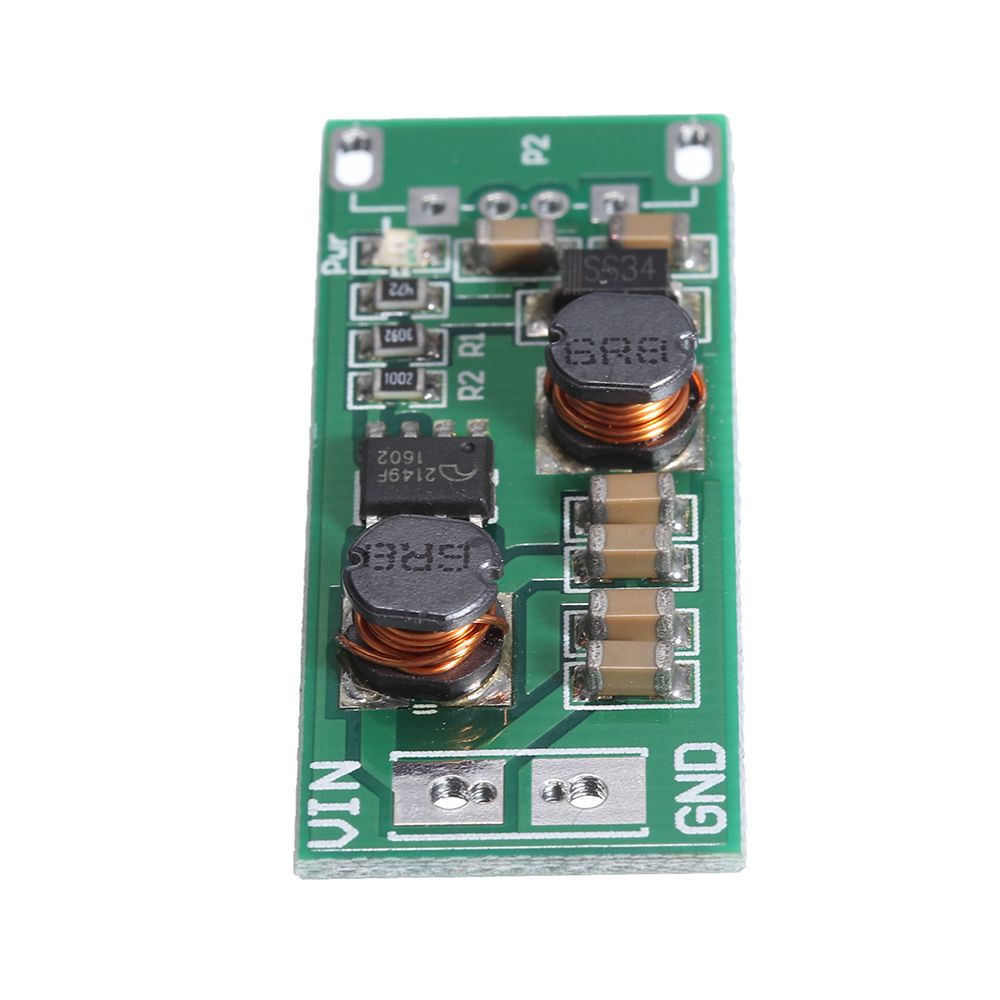

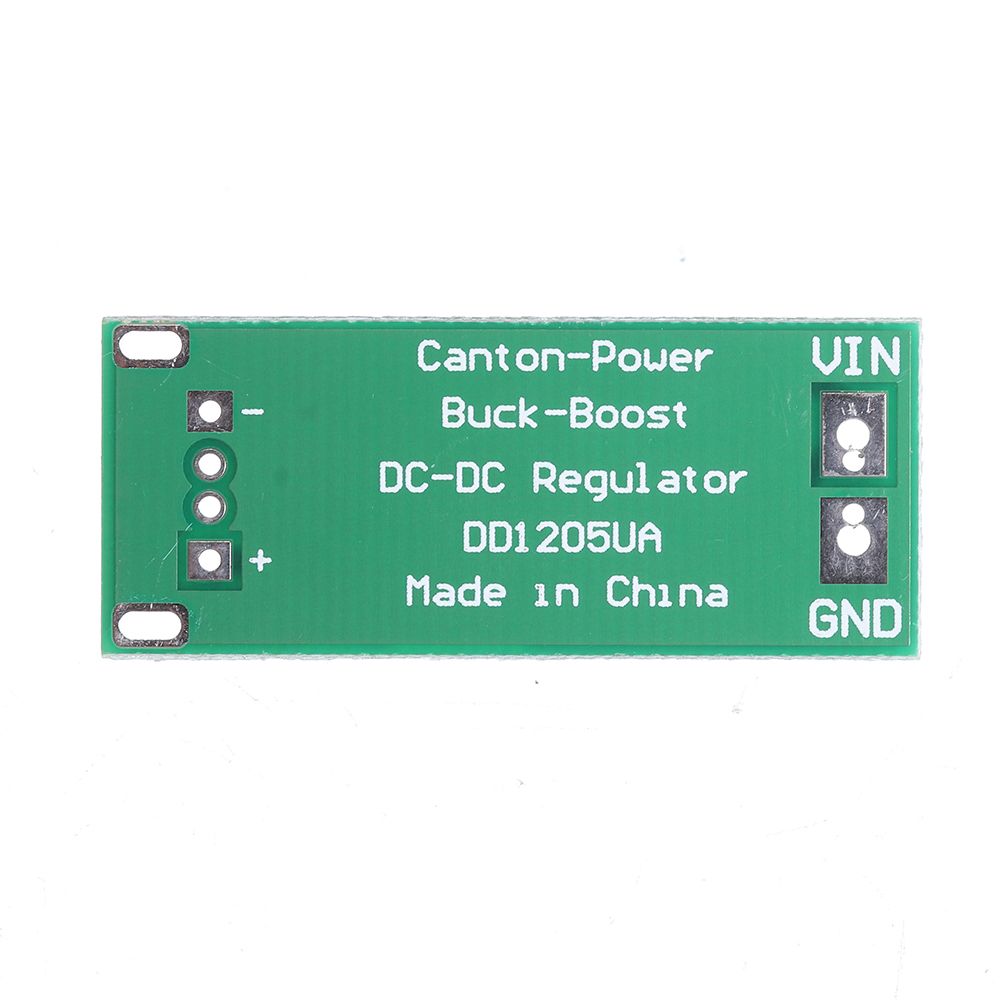

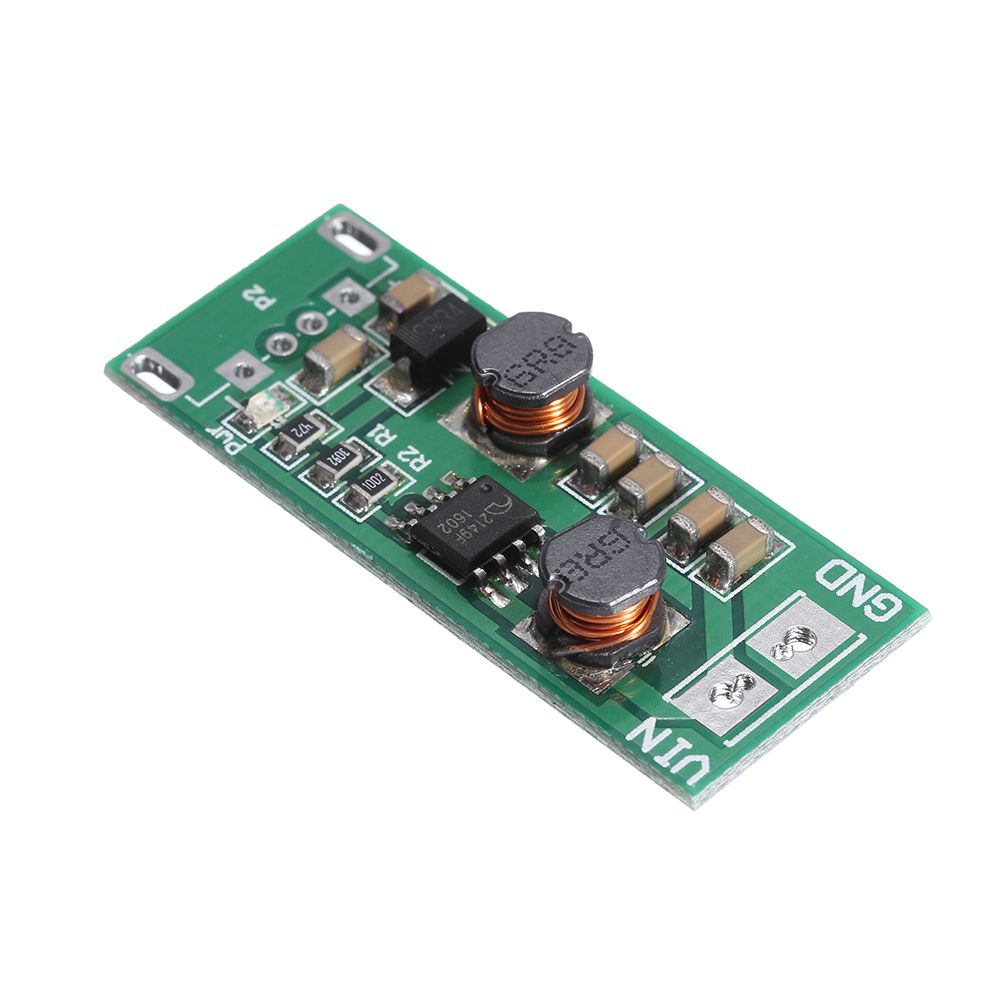

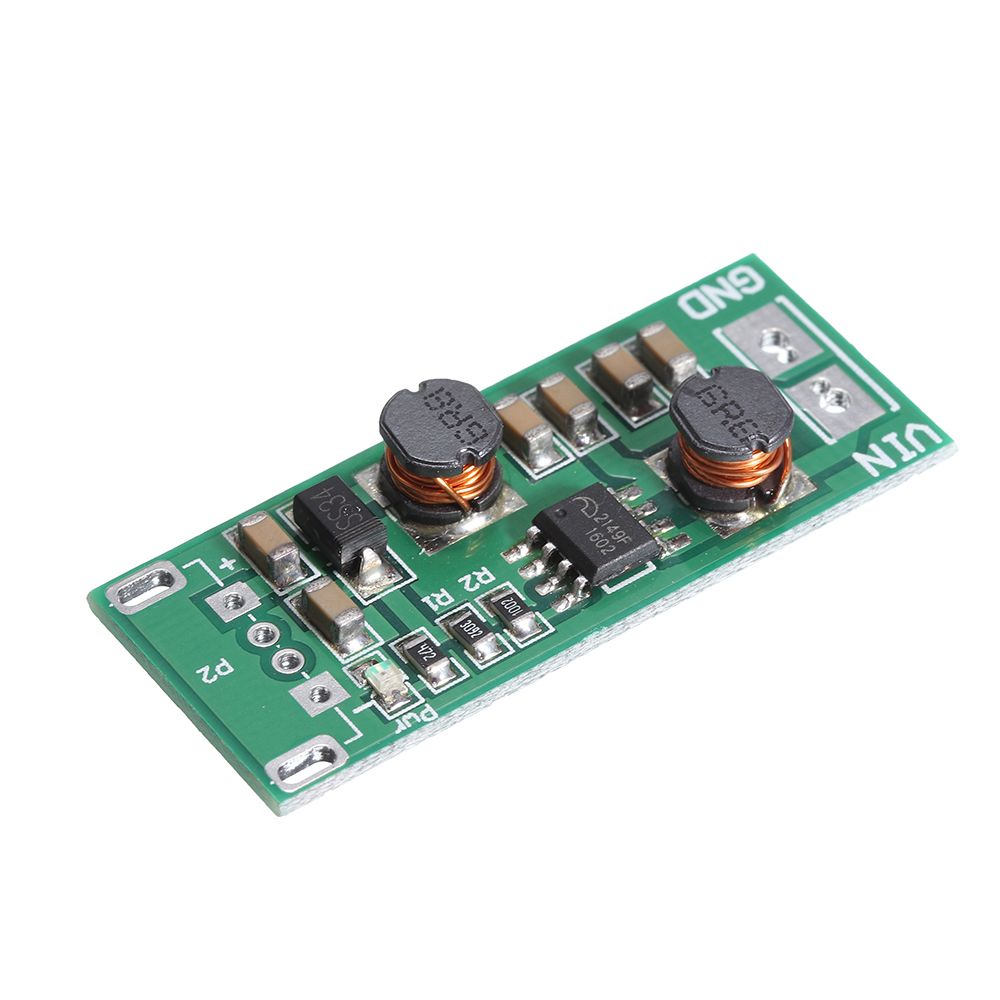

3pcs DD1205UA DC to DC 1.5V 3V 3.3V 3.7V 6V to 5V DC Buck Boost Converter Step Up Down Voltage Converter Module

3pcs DD1205UA DC to DC 1.5V 3V 3.3V 3.7V 6V to 5V DC Buck Boost Converter Step Up Down Voltage Converter Module
3pcs DD1205UA DC to DC 1.5V 3V 3.3V 3.7V 6V to 5V DC Buck Boost Converter Step Up Down Voltage Converter Module
3pcs DD1205UA DC to DC 1.5V 3V 3.3V 3.7V 6V to 5V DC Buck Boost Converter Step Up Down Voltage Converter Module
3pcs DD1205UA DC to DC 1.5V 3V 3.3V 3.7V 6V to 5V DC Buck Boost Converter Step Up Down Voltage Converter Module
3pcs DD1205UA DC to DC 1.5V 3V 3.3V 3.7V 6V to 5V DC Buck Boost Converter Step Up Down Voltage Converter Module
3pcs DD1205UA DC to DC 1.5V 3V 3.3V 3.7V 6V to 5V DC Buck Boost Converter Step Up Down Voltage Converter Module
3pcs DD1205UA DC to DC 1.5V 3V 3.3V 3.7V 6V to 5V DC Buck Boost Converter Step Up Down Voltage Converter Module
3pcs DD1205UA DC to DC 1.5V 3V 3.3V 3.7V 6V to 5V DC Buck Boost Converter Step Up Down Voltage Converter Module
3pcs DD1205UA DC to DC 1.5V 3V 3.3V 3.7V 6V to 5V DC Buck Boost Converter Step Up Down Voltage Converter Module
3pcs DD1205UA DC to DC 1.5V 3V 3.3V 3.7V 6V to 5V DC Buck Boost Converter Step Up Down Voltage Converter Module
3pcs DD1205UA DC to DC 1.5V 3V 3.3V 3.7V 6V to 5V DC Buck Boost Converter Step Up Down Voltage Converter Module
$12.99
Ex Tax: $12.99
  • Stock: In Stock
  • Model: EB0044890
  • SKU: EB0044890
Description:

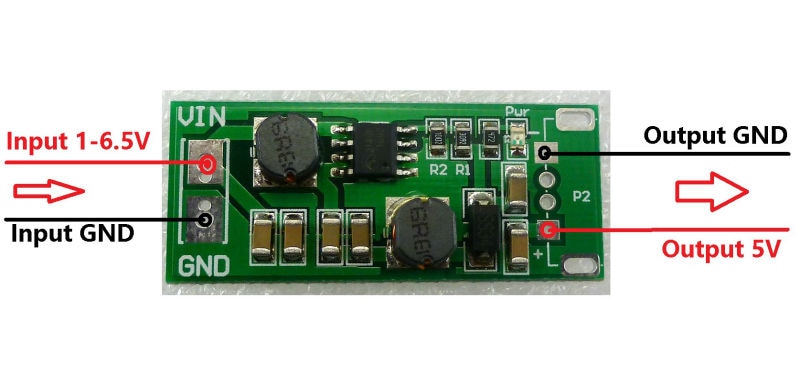

Input voltage DC 1 ~ 6V, output DC 5V(+-6%)
The maximum input voltage can not exceed 6.5V
Short-term maximum output current : 12000mA
Long time maximum output current: 1000mA
Auto Buck-Boost Converter Module working frequency 1MHZ.efficiency 60%-85% .
Operating temperature : -25~+85 Degrees Celsius
Storage temperature : -45~+125 Degrees Celsius
Size : 38mm x 16mm x 5.7mm
Weight : 3g

3pcs-DD1205UA-DC-to-DC-15V-3V-33V-37V-6V-to-5V-DC-Buck-Boost-Converter-Step-Up-Down-Voltage-Converte-1661953

3pcs-DD1205UA-DC-to-DC-15V-3V-33V-37V-6V-to-5V-DC-Buck-Boost-Converter-Step-Up-Down-Voltage-Converte-1661953


Applications:

Battery powered equipment
Wireless Module,NRF24L01 CC1101 CC2500 etc.
MCU Development Board,AVR PIC FPGA/CPLD STM32
Arduiuo UNO3 mega2560 due Breadboard for Raspberry Pi
LED Lighting
Wireless communication equipment
Audio equipment
Digital cameras,GPS,wireless transceiver
Portable devices

Attention:

1. Input voltage can not be greater than the maximum input.
2. Output power can not be greater than the maximum load for a long time.
3. Input power must be greater than the output power, because the power consumption of the module itself.

Package Included:

3 x 1.5V 3V 3.3V 3.7V 6V to 5V DC Buck Boost Converter
