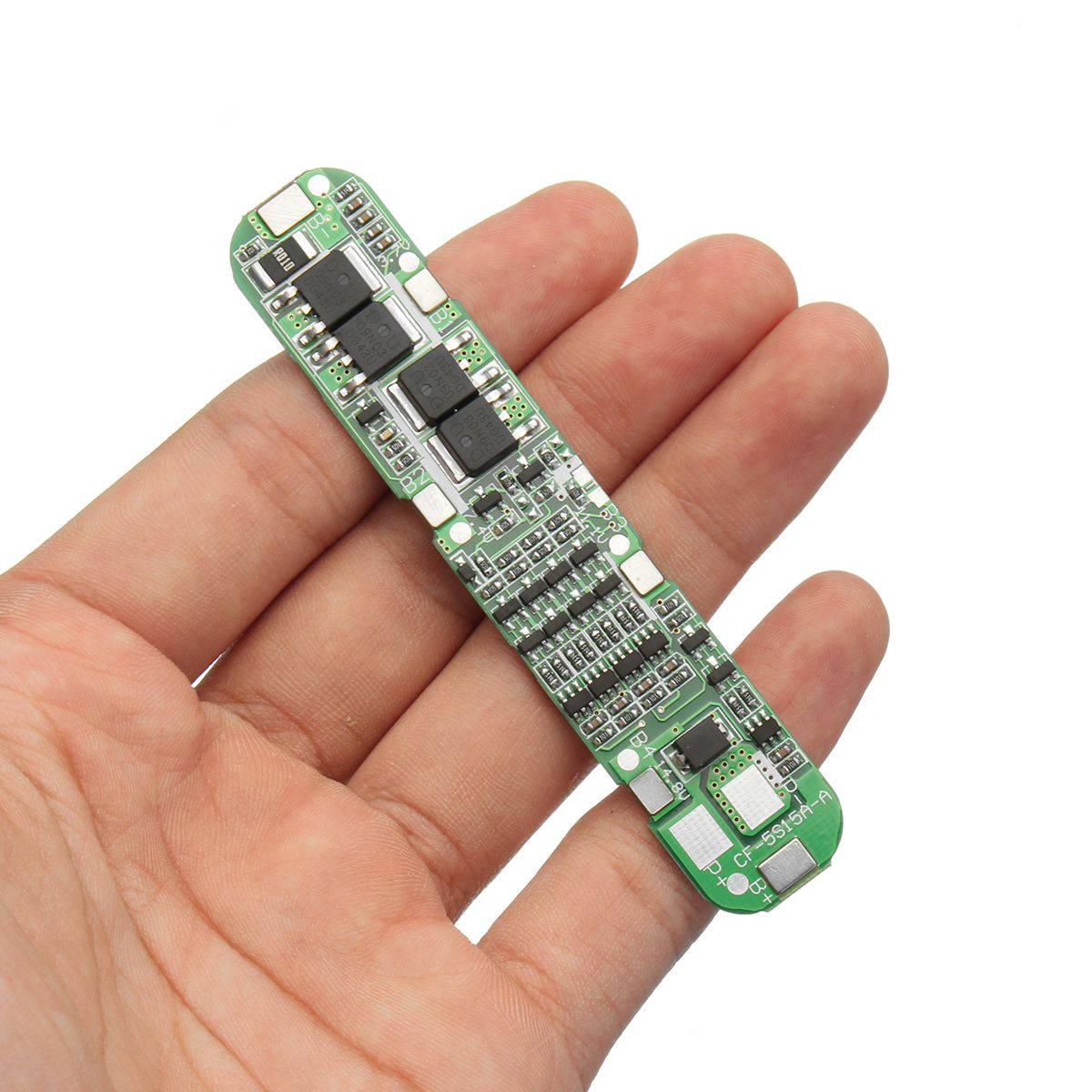

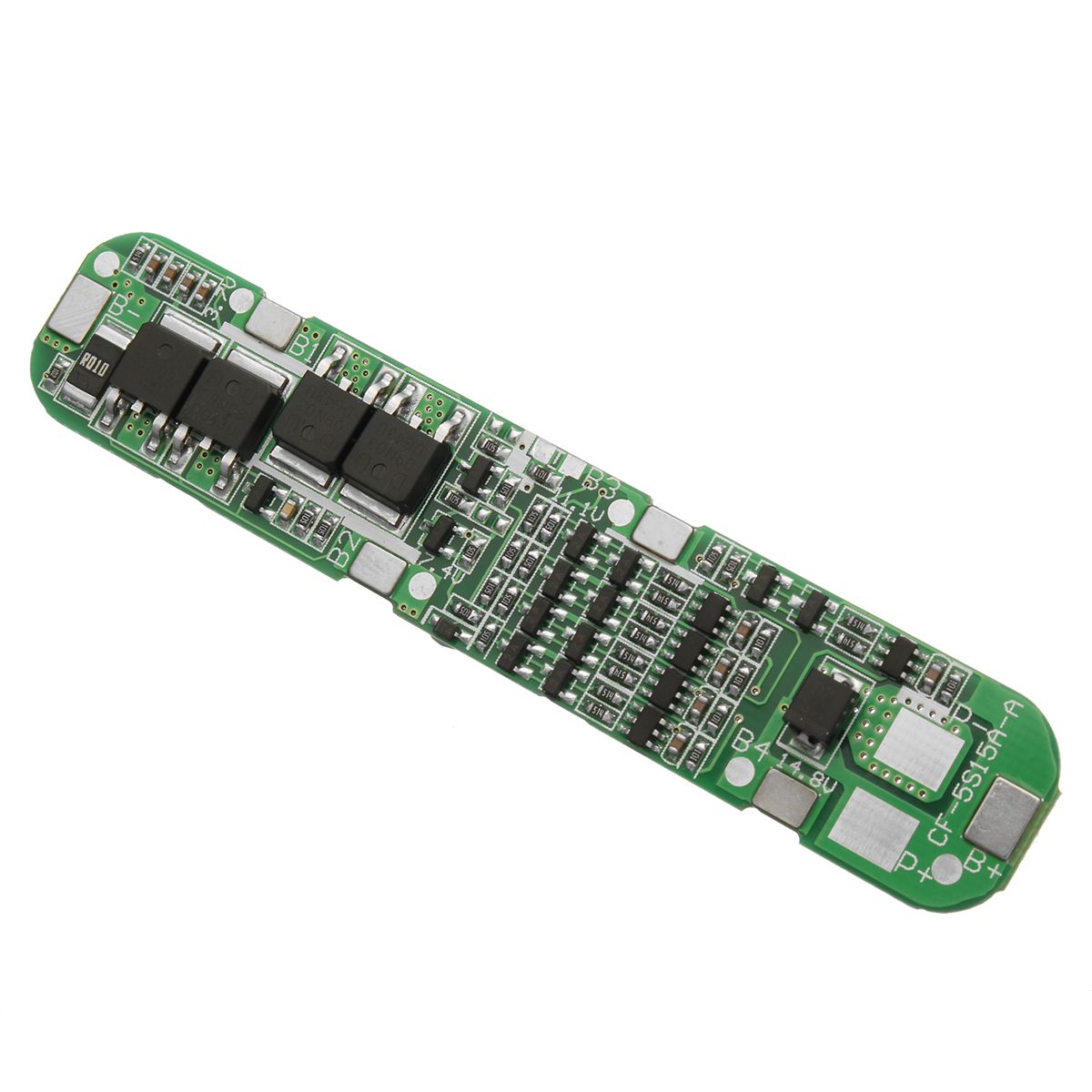

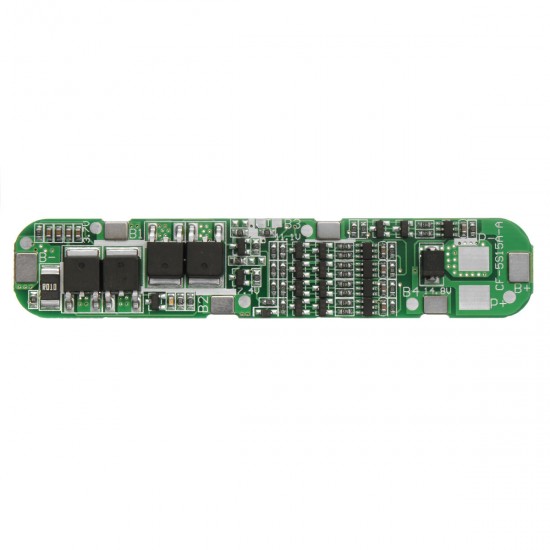

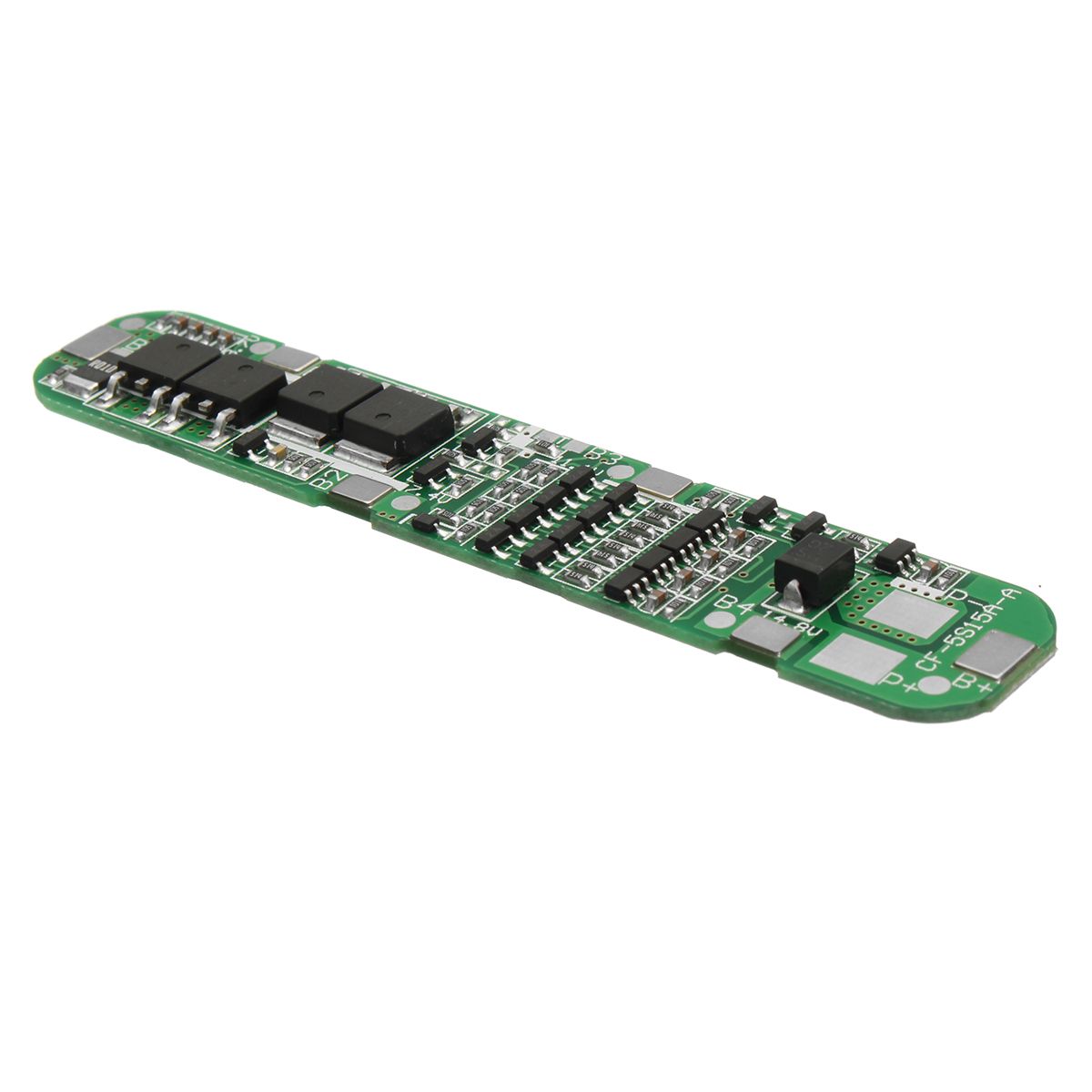

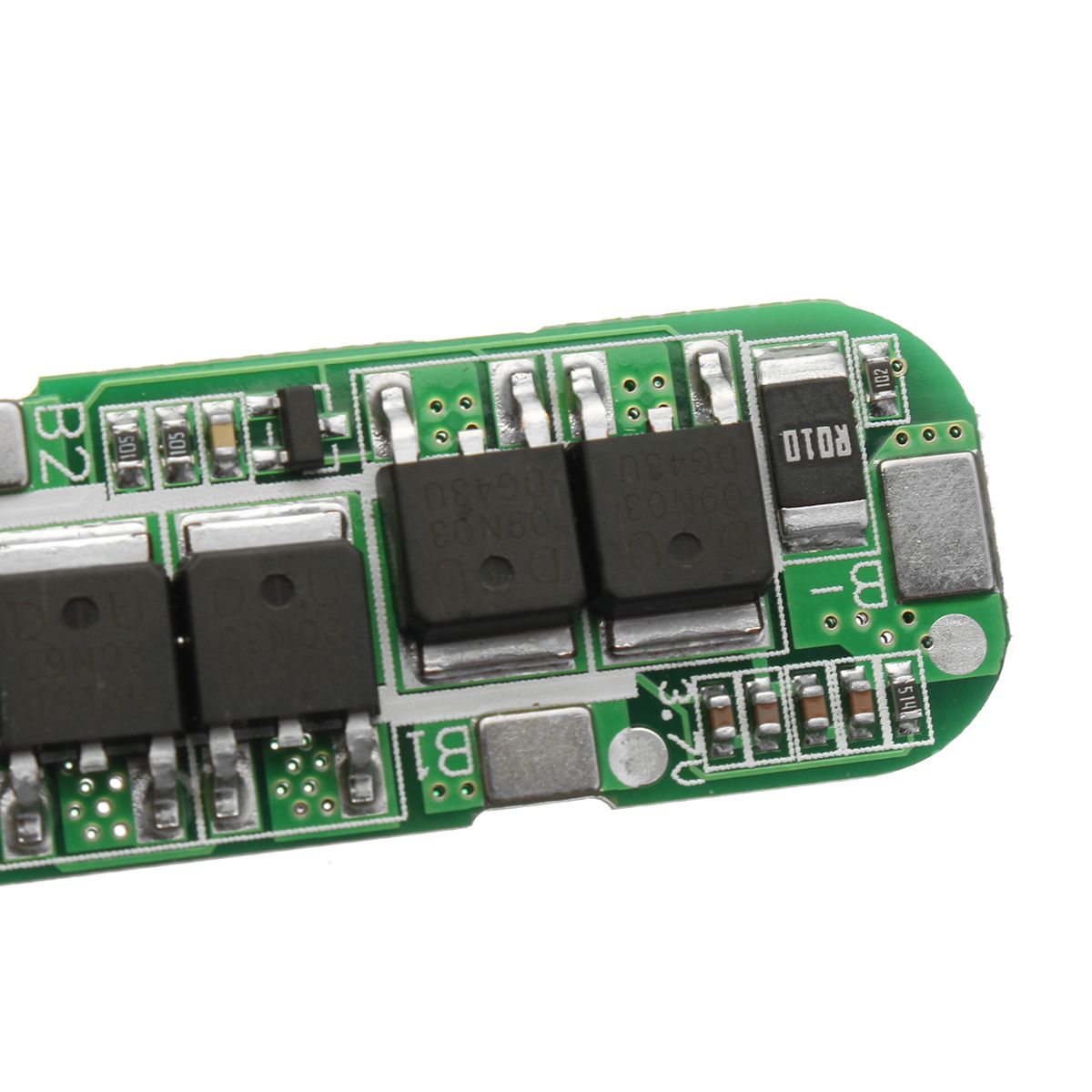

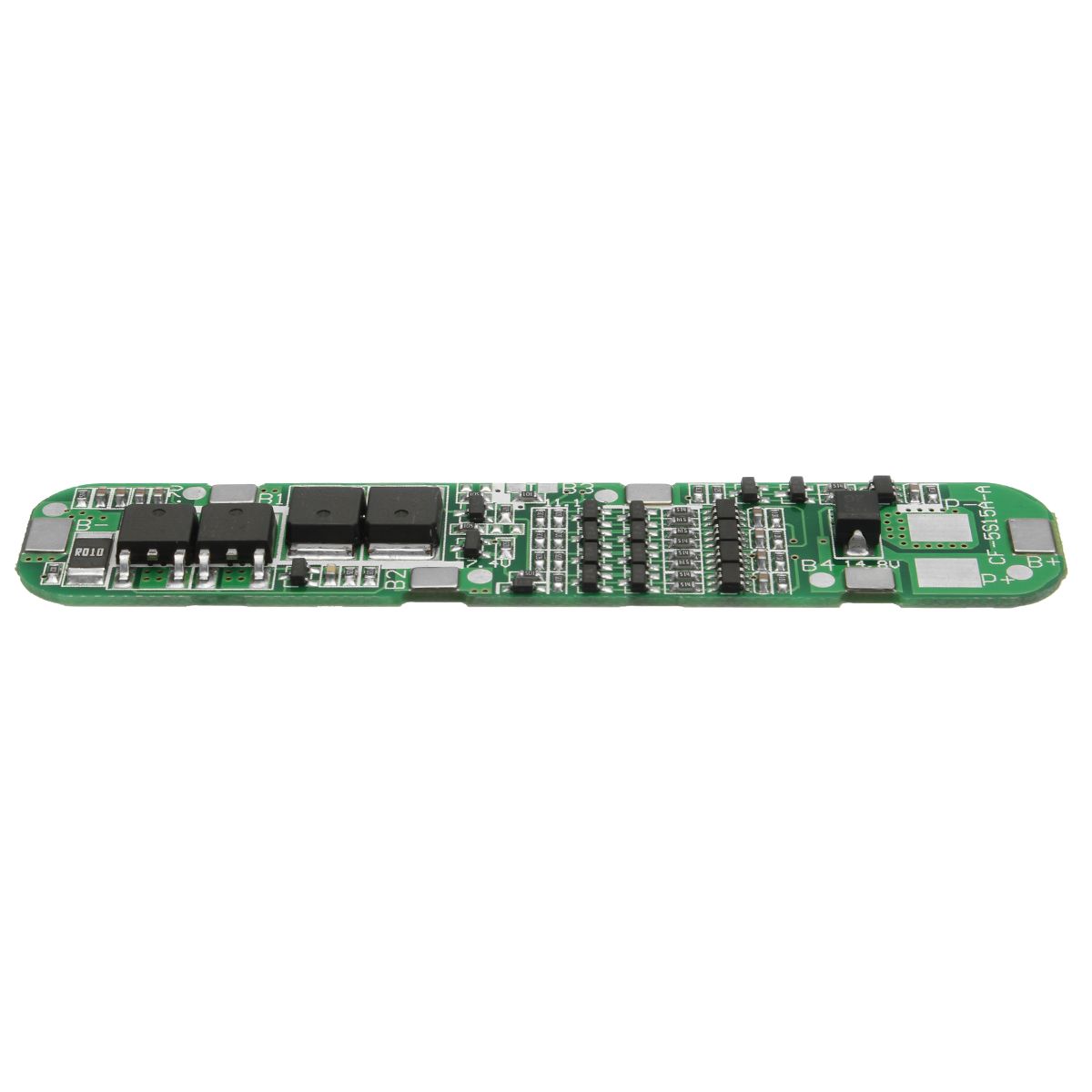

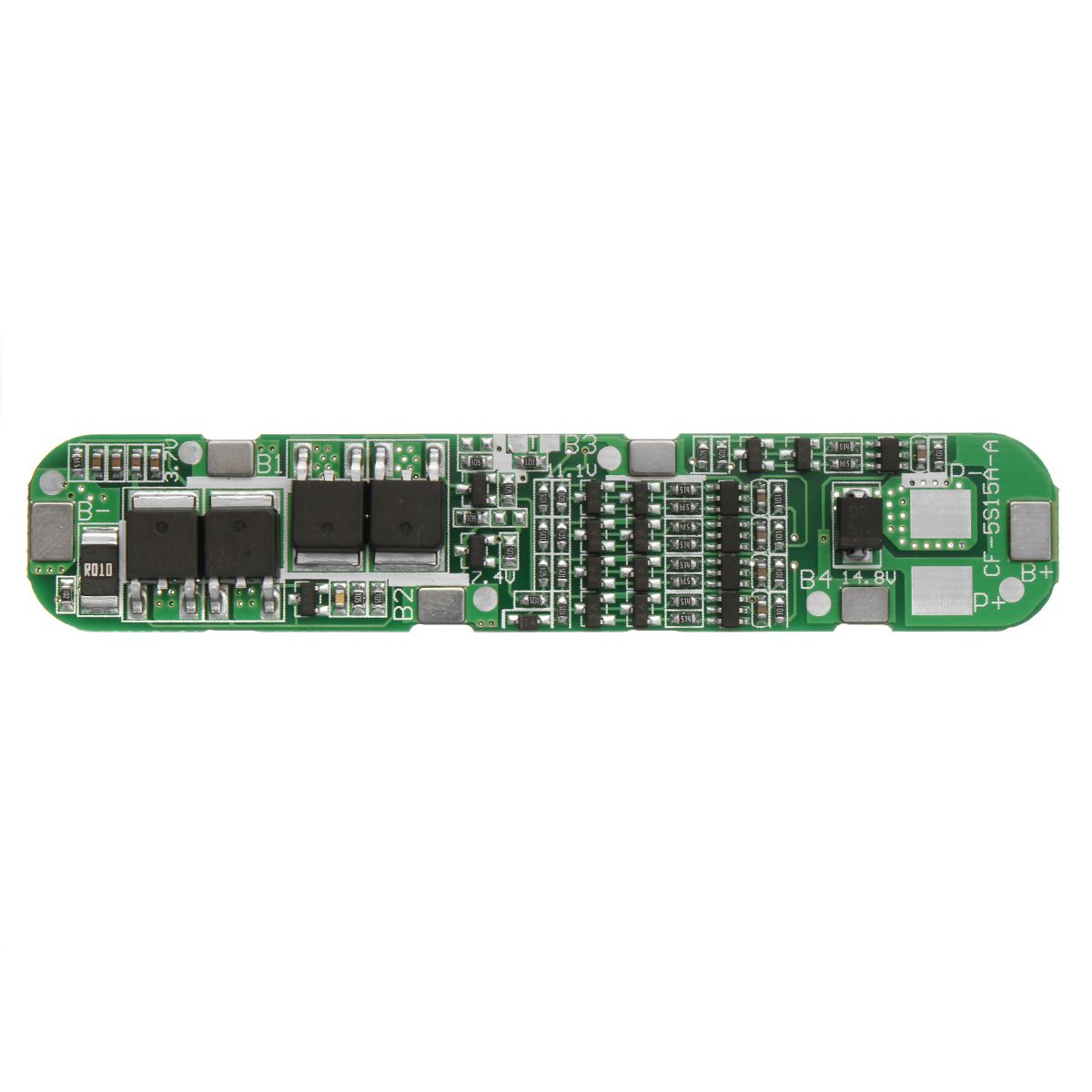

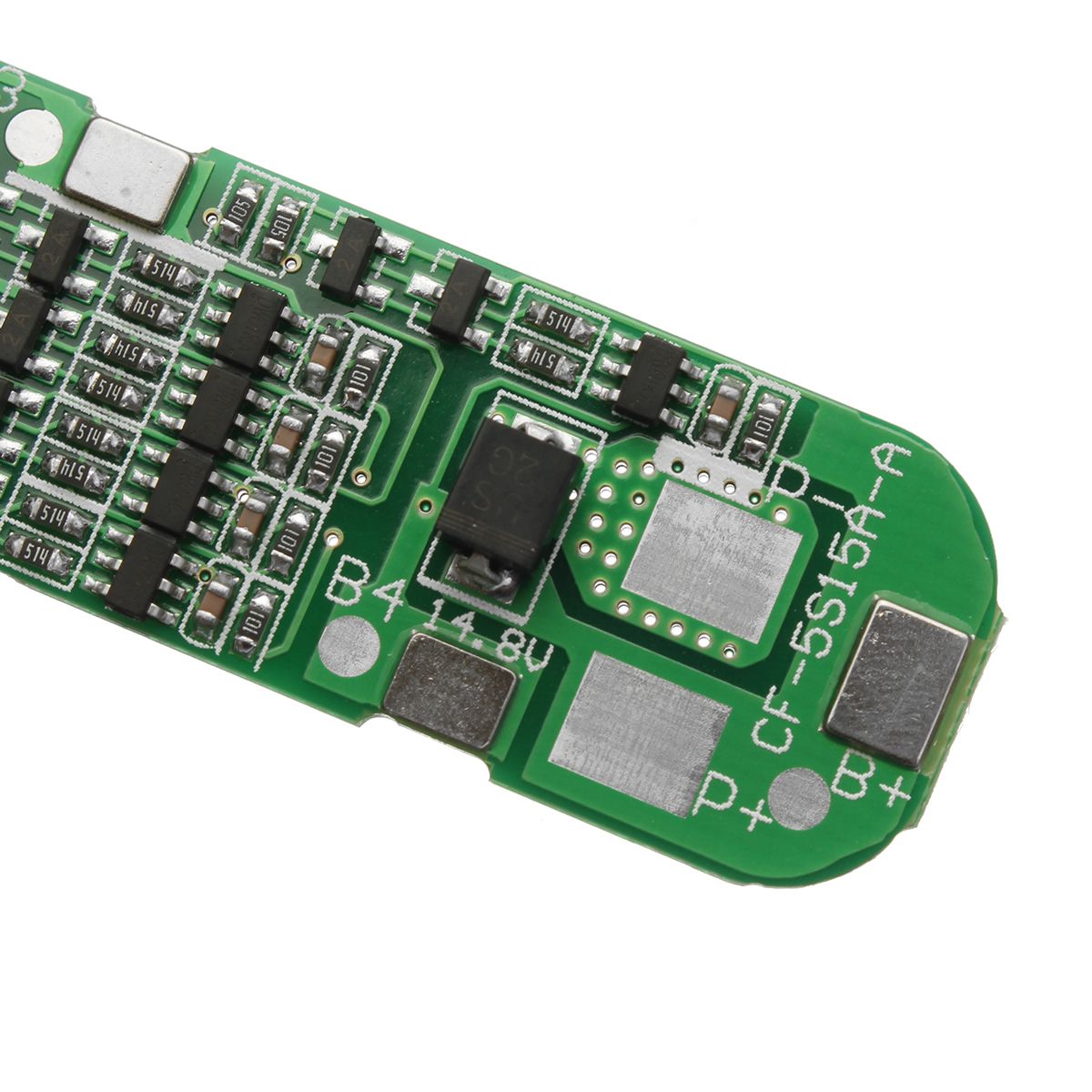

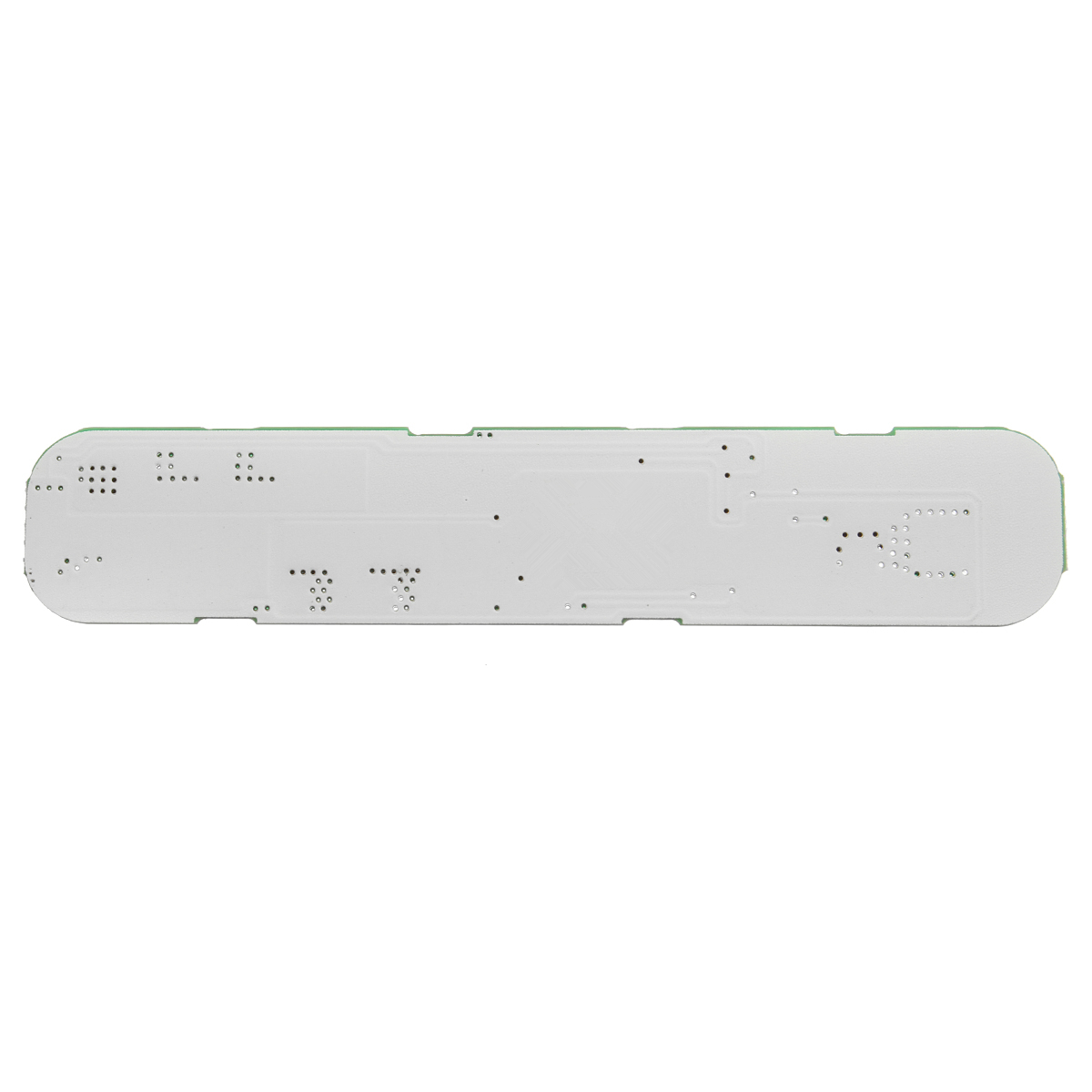

3pcs 5S 15A Li-ion Lithium Battery Protection Board For 18.5V Cell
- Stock: In Stock
- Model: EB0046365
- SKU: EB0046365
Description:
Color: Silver & Green & Black
Size: 87*16mm
Application:
For lithium battery
Detailed Parameter:
| Detail | Specifications | unit | |
| Discharge | Continuous discharge current | 15(max) | A |
| Instantaneous discharge current | 25 | A | |
| Charge | Charge voltage | 21 | V |
| Charging current | 15(max) | A | |
| Overcharge Protect | Over-charge detect | 4.28±0.05 | V |
| Protect delay | 0.5 | S | |
| Over-charge release | 4.28±0.05 | V | |
| Balance | Detect voltage | / | V |
| Release voltage | / | V | |
| Balance current | / | mA | |
| Over-discharge Protect | Over-discharge detect | 2.55±0.08 | V |
| Over-discharge detect delay | 0.1 | S | |
| Release voltage | 2.9±0.1 | V | |
| Short-circuit Protect | Protect condition | Cut load | |
| Detect delay | 250 | uS | |
| Release condition | Cut load | ||
| Over-current Protect | Detect voltage | 150 | mV |
| Detect delay | 9 | MS | |
| Current detect | 30±3 | A | |
| Release condition | Cut load | ||
| Temperature Protect | / | / | ℃ |
| Resistance | Inner | ≤20 | mΩ |
| Self-consumption | Working current | ≤30 | uA |
| Sleep current (when over-charge) | ≤10 | uA | |
| Working Temperature | Range | -30/+80 |
℃ |
Package included:

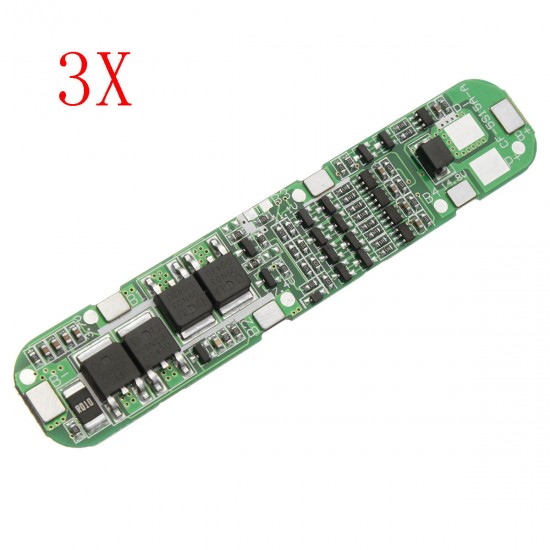

3 x Battery Protection Board
