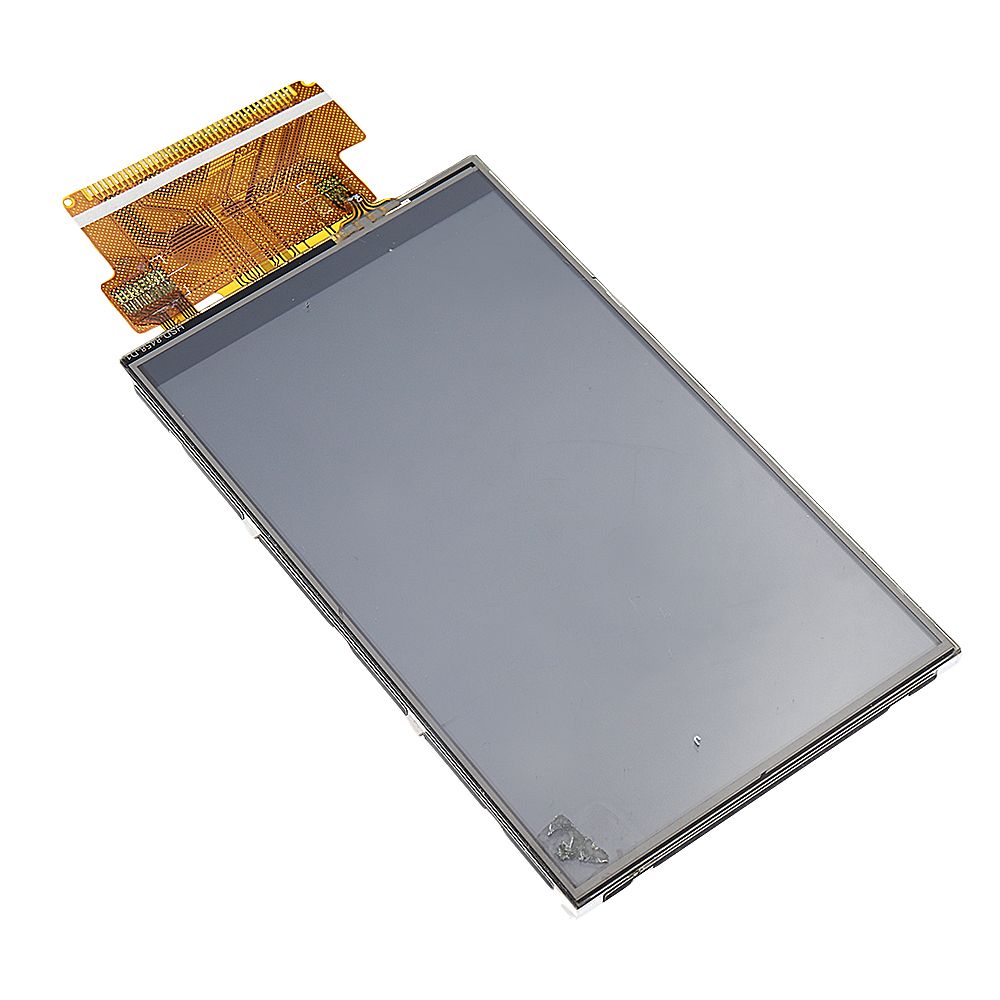

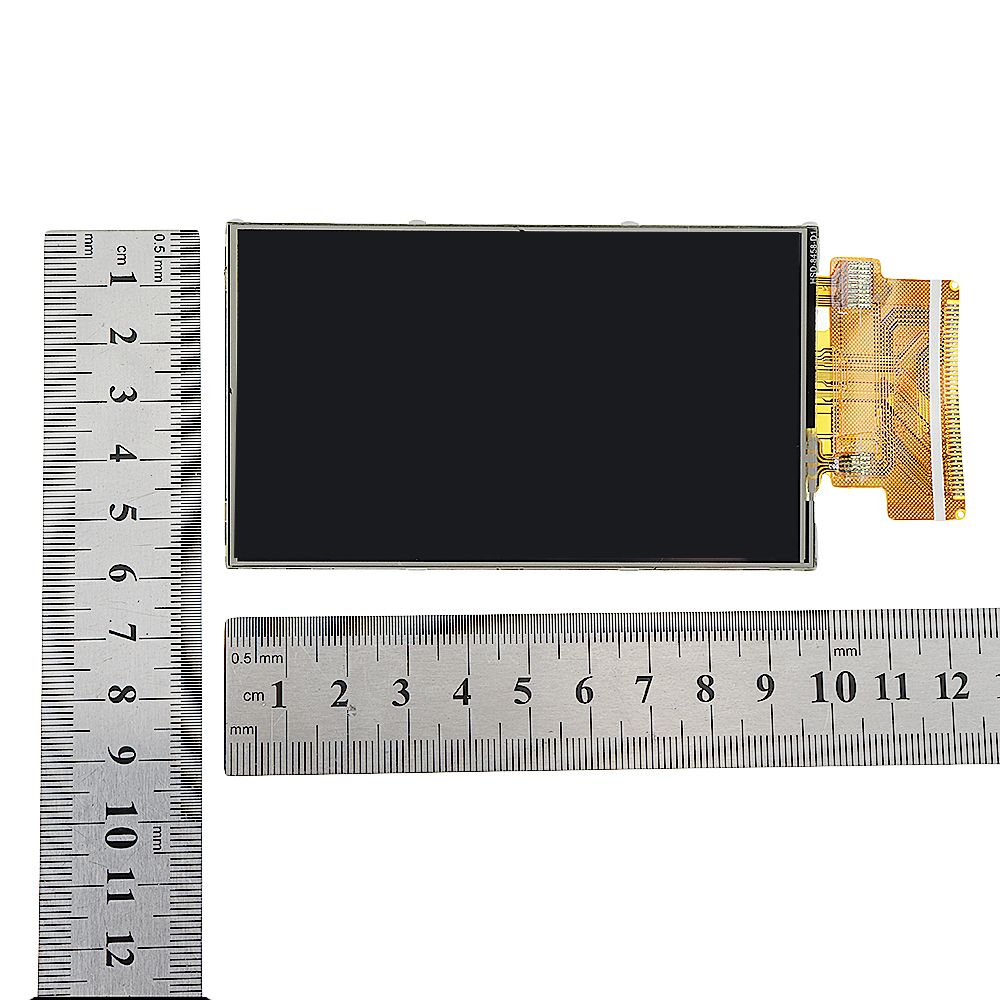

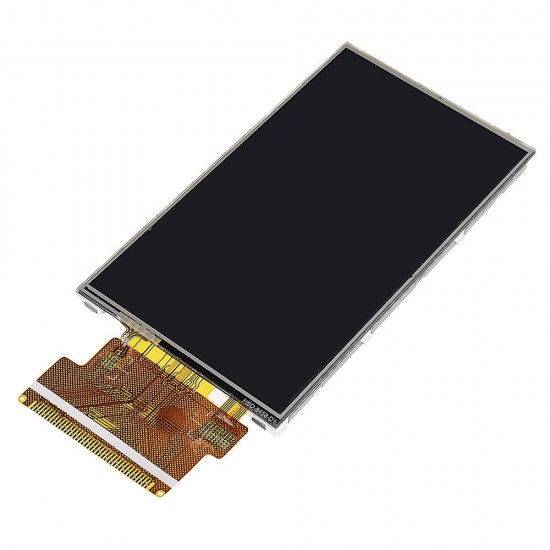

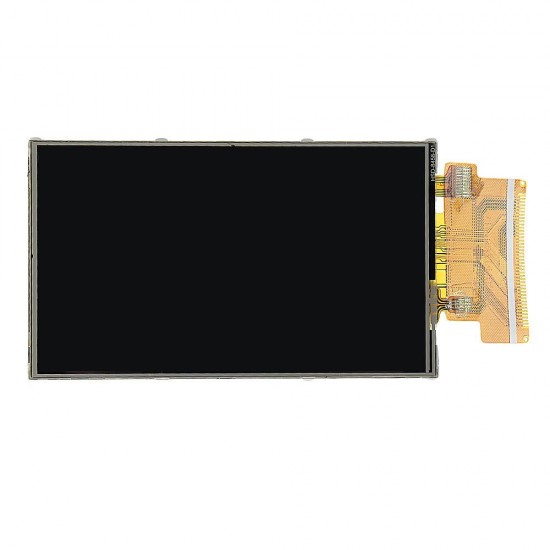

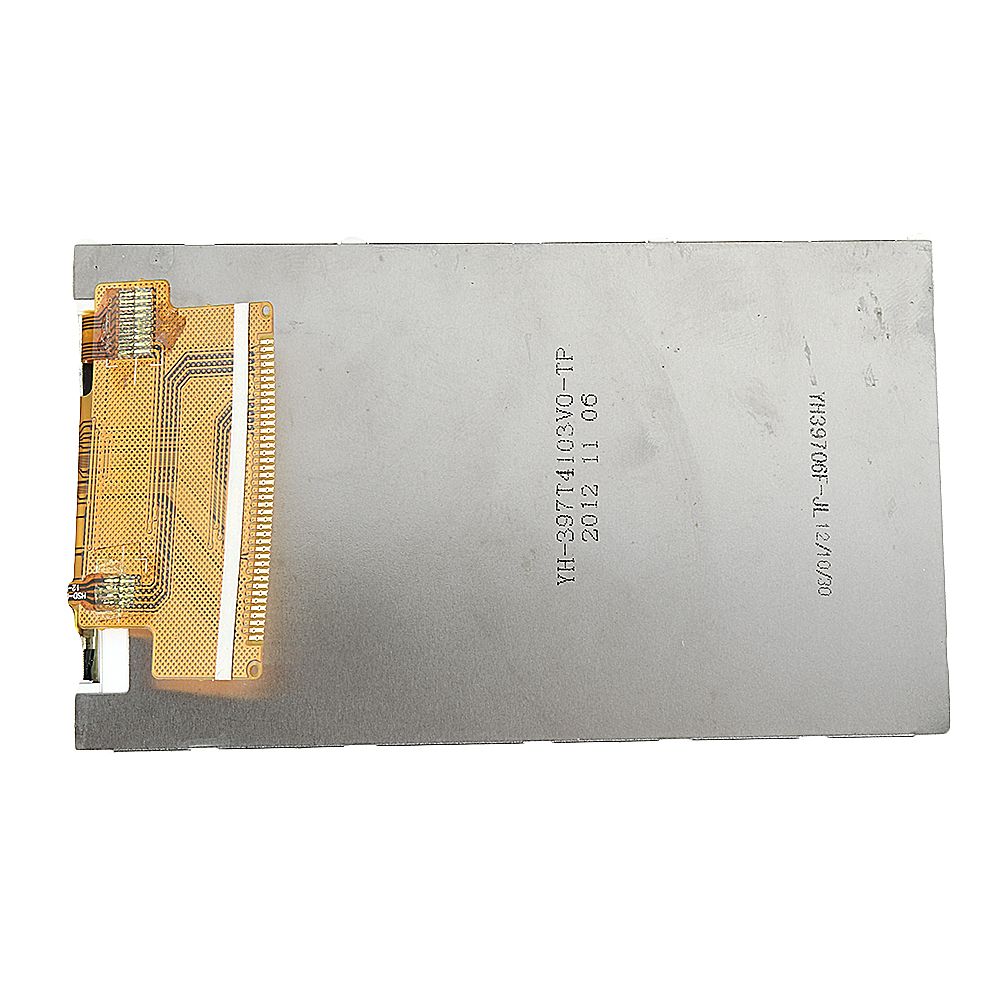

3pcs 3.97 Inch 4 Inch 41Pin TFT LCD Color Screen 240*400 Display Bare Board With Touch MCU 8-bit Support MCU Driver
- Stock: In Stock
- Model: EB0051032
- SKU: EB0051032
| 1 | GND | 21 | NC |
| 2 | TP | 22 | DB7 |
| 3 | TP | 23 | DB6 |
| 4 | TP | 24 | DB5 |
| 5 | TP | 25 | DB4 |
| 6 | NC | 26 | DB3 |
| 7 | VCI | 27 | DB2 |
| 8 | IOVCC | 28 | DB1 |
| 9 | TE | 29 | DB0 |
| 10 | CS | 30 | RESET |
| 11 | RS | 31 | NC |
| 12 | WR | 32 | NC |
| 13 | RD | 33 | GND |
| 14 | NC | 34 | LEDK |
| 15 | NC | 35 | LEDK |
| 16 | NC | 36 | LEDK |
| 17 | NC | 37 | LEDK |
| 18 | NC | 38 | LEDK |
| 19 | NC | 39 | LEDK |
| 20 | NC | 40 | LEDA |
| 41 | GND |
| IM2 | IM1 | IM0 |
| 0 | 1 | 1 |
Package includes:
3 x Bare LCD Screen
