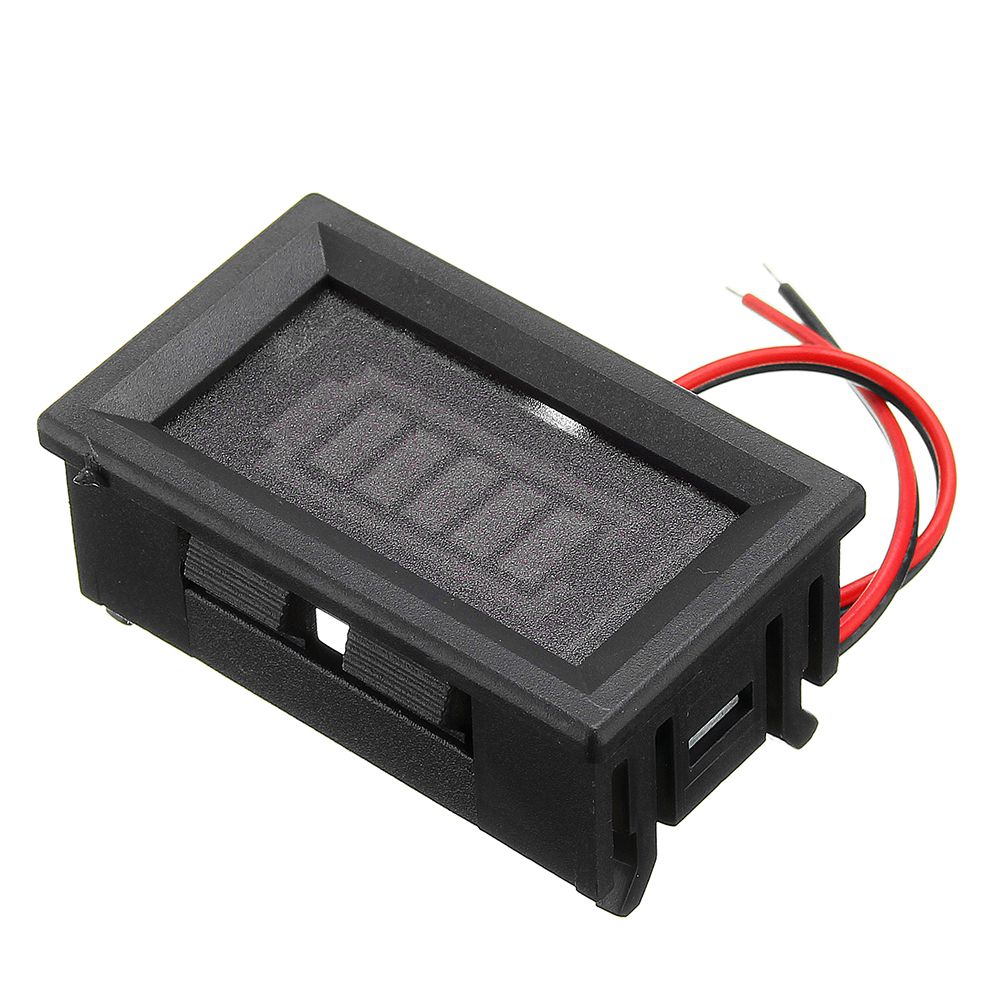

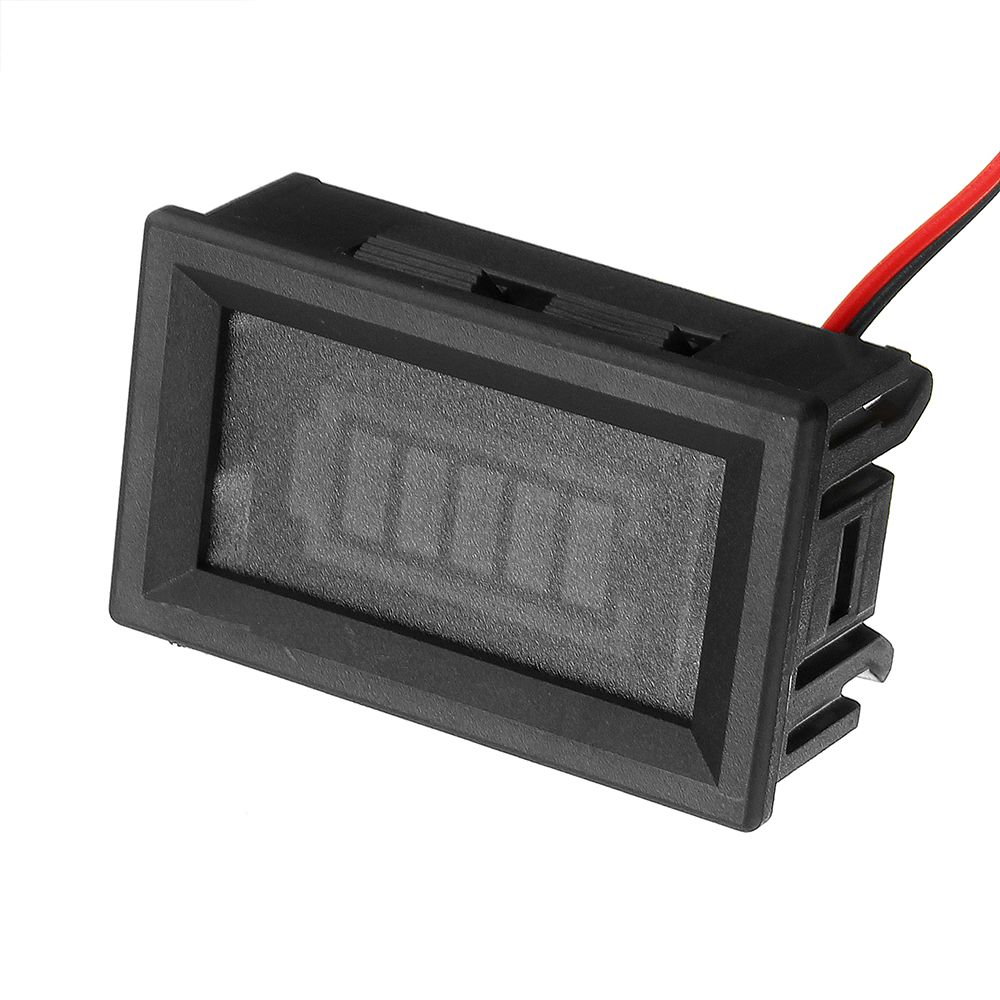

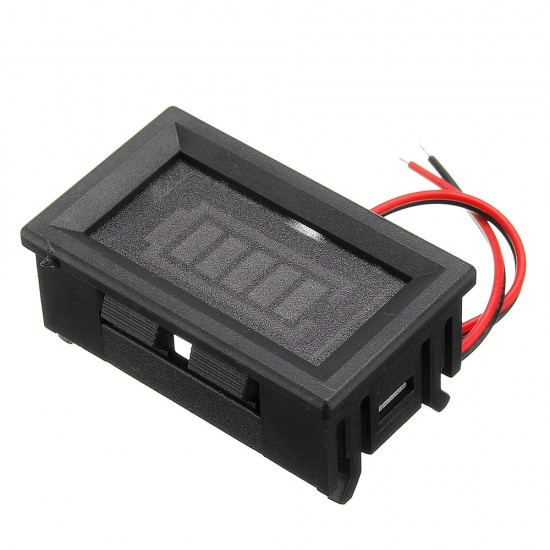

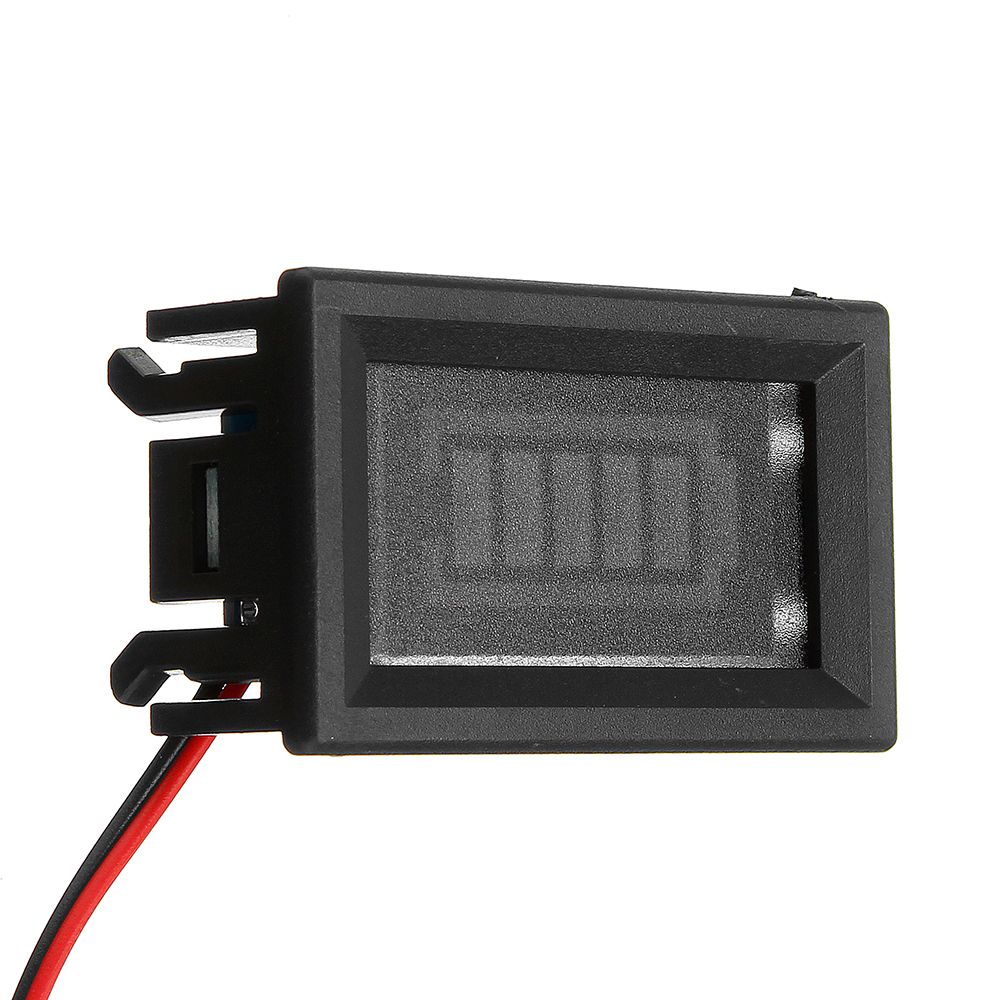

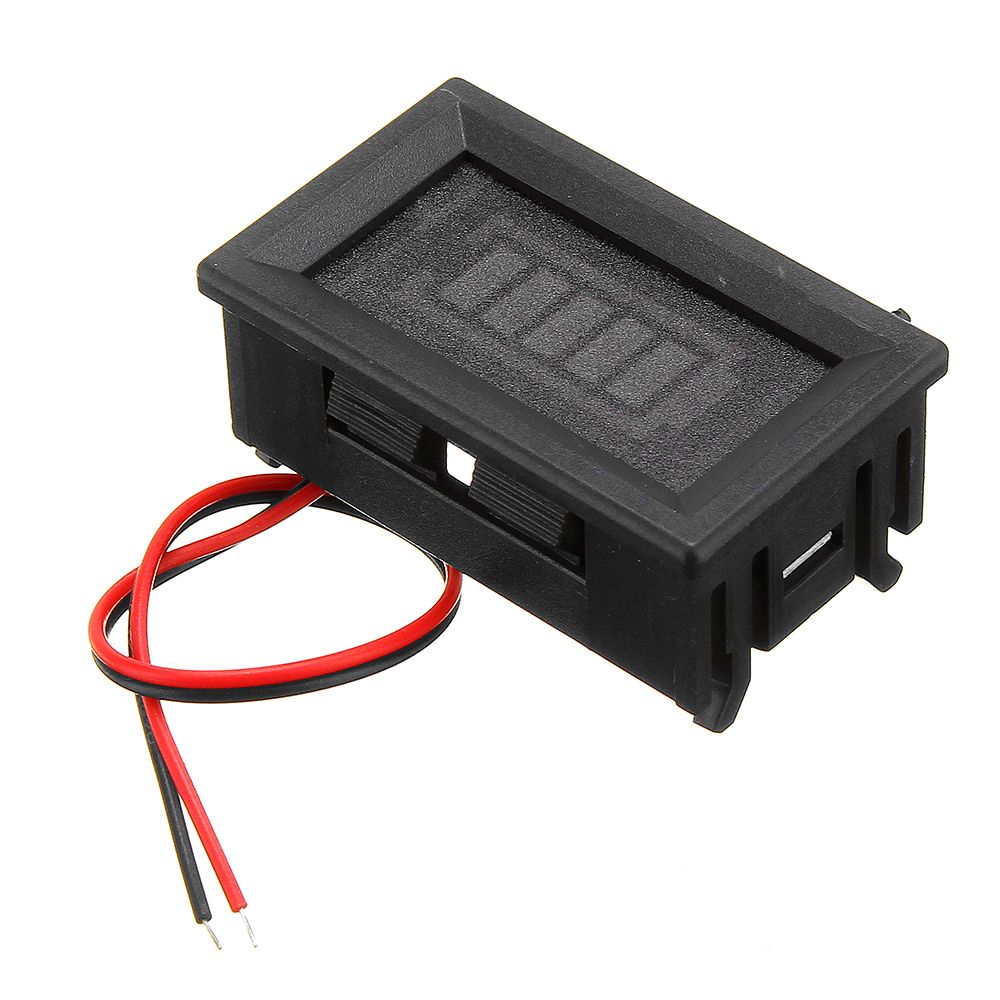

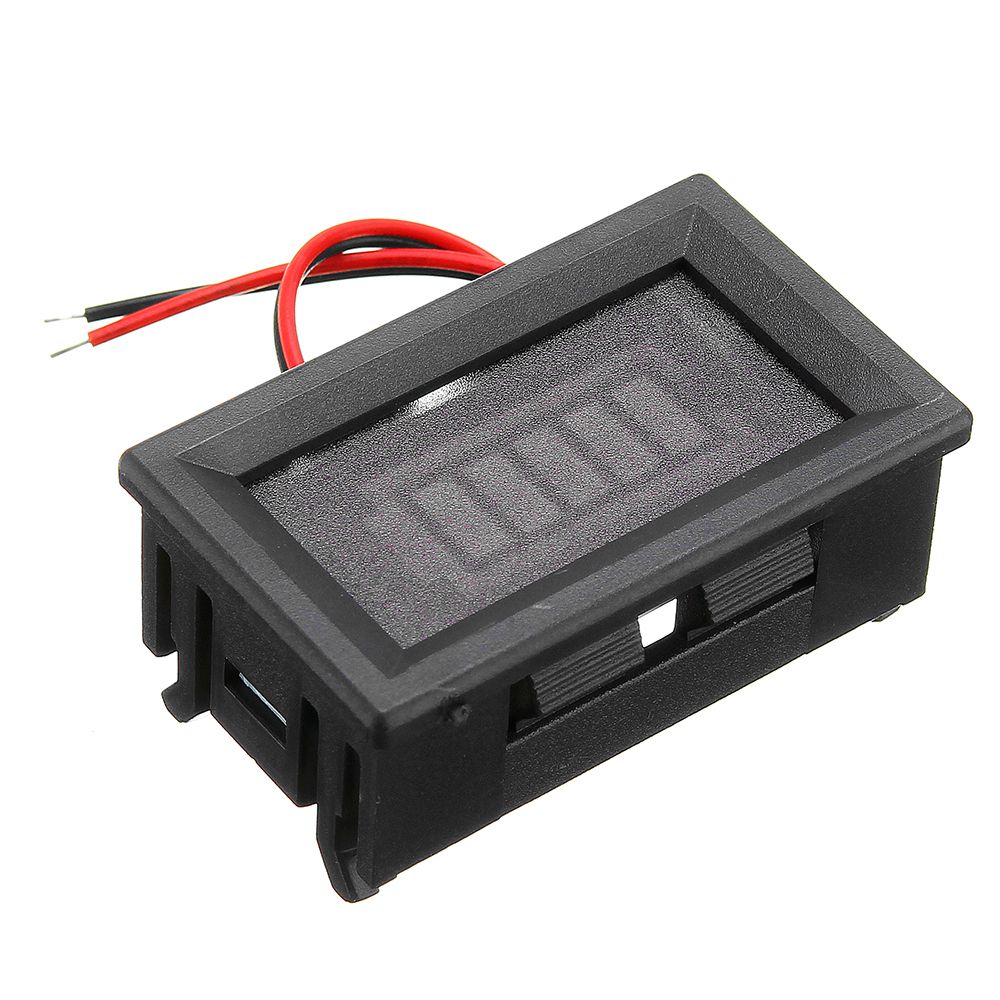

3pcs 12V Lead-acid Battery Capacity Indicator Power Measurement Instrument Tester With LED Display

Based on 0 reviews. - Write a review

$11.99

Ex Tax: $11.99

Stock: In Stock
Model: EB0045906
SKU: EB0045906

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Specifications:

Work Current:5-15mA (with backlight)

Work Voltage:6-12V

Energy Resolution:1%

Voltmeter Accuracy :1%

Using Temperature Range: -20- 70degrees

Operating humidity:10-80%(non-condensing)

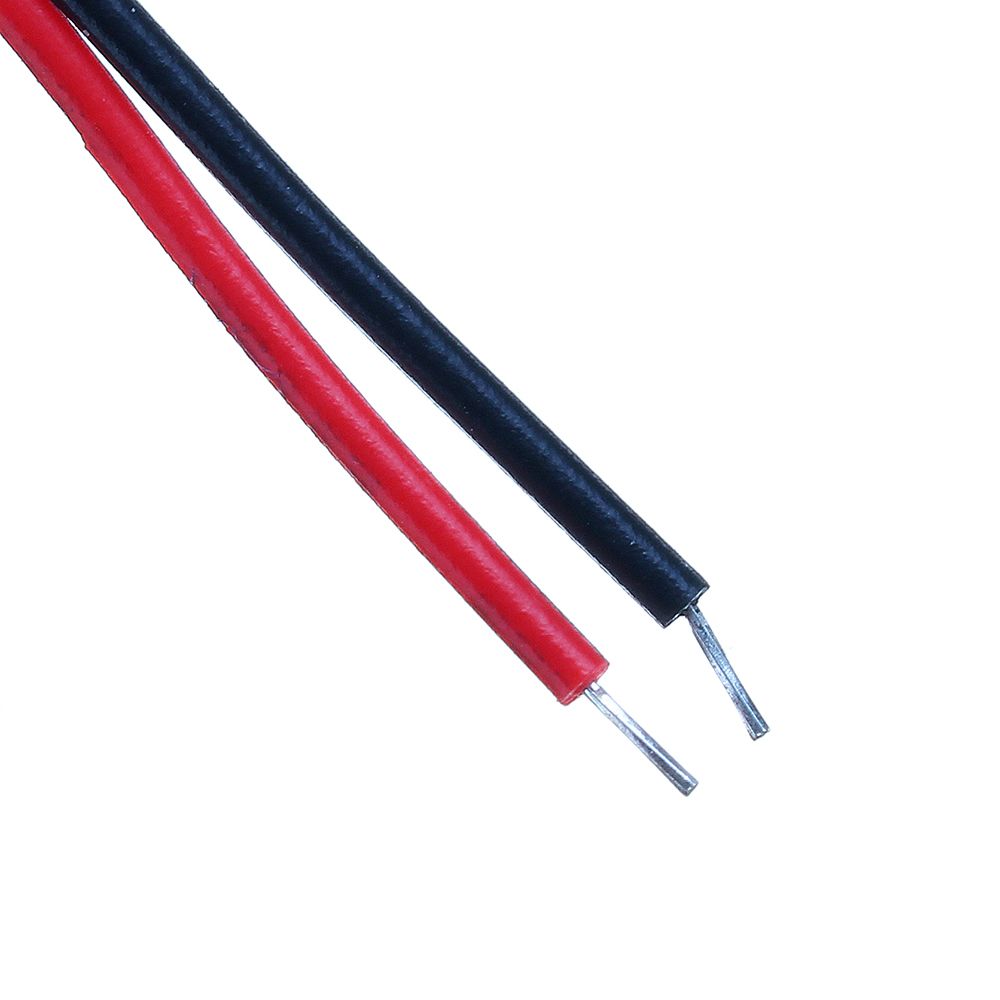

Black wire connect negative electrode

Red wire connect positive

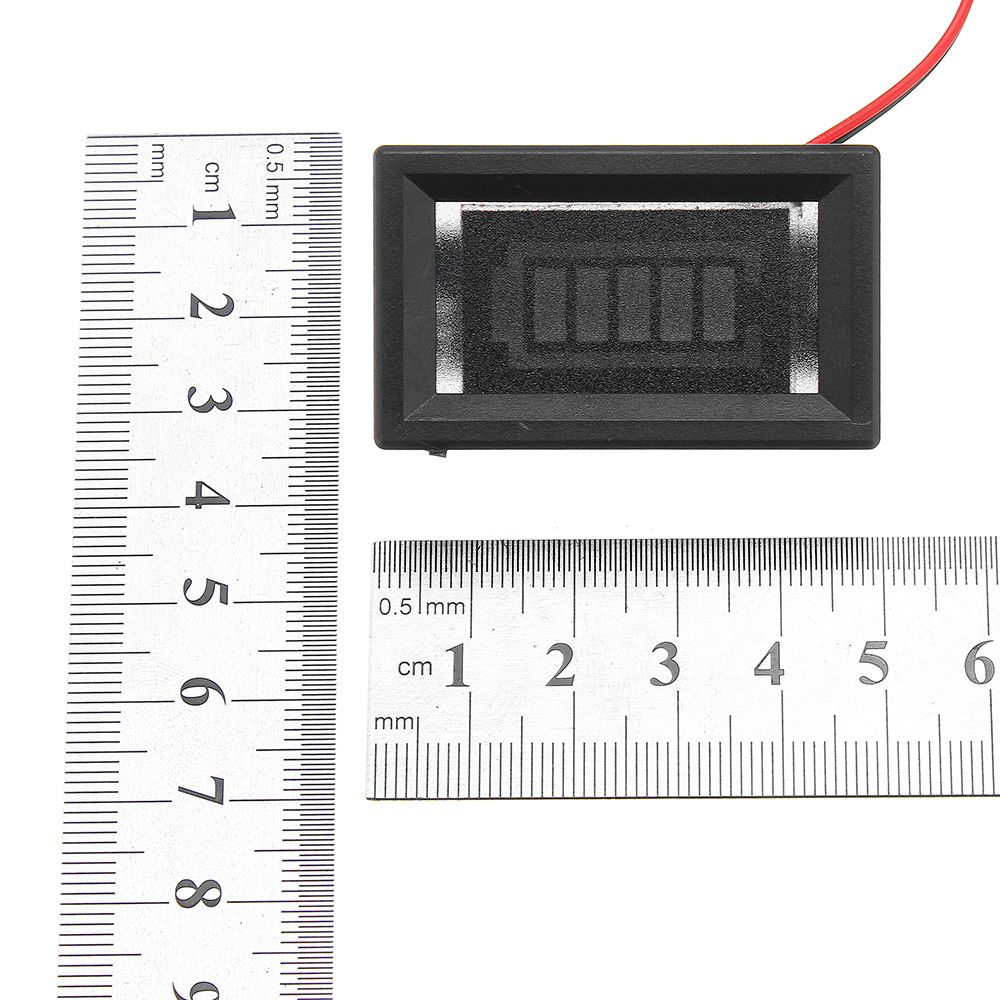

External dimension:48×29×21 mm

Hole Dimensions :45.5×26.5 mm

How to Use:

1. Pull the white button on the backside for about 3s until it shows “1-U” and release it. Pull it again for 1s it shows “2-b” and release it. Pull it again for another 1s it shows “3-c” and release it. Pull it again for another 1s it shows “4-d”.

2. When it shows “1-U”, pull the white button for 3s then you can adjust the voltage admeasuring apparatus. Pull it for a longer time, the voltage goes up. Then pull it for another longer time, the voltage goes down. Do it again and again. To save and exit Automatically after the screen is twinkling.

3. When it shows “2-b”, you can change the type of battery.

12V: 1pc 12V Lead-acid battery

3.7V: 1pc 3.7V Lithium polymer battery

3.2V: 1pc 3.2V Lithium iron phosphate battery

1.2V: 1pc 1.2V NiMH battery

4.When it shows “3-c”, you can adjust the number of batteries

Please refer to the following:

12V Lead-acid battery: 1-8pcs

3.7V Lithium polymer battery: 2-28pcs

3.2V Lithium iron phosphate battery: 3-32pcs

1.2V NiMH battery: 10-70pcs

5. When it shows “4-d”, you can adjust the display mode. “V” is voltage mode. “%” is percentage mode. “V %” is voltage& percentage cycle mode.

Capacity Display Parameters:

Battery voltage > 11.2V, 1 grid

Battery voltage > 12V, 2 grid lights

Battery voltage > 12.5V, 3 grid lights

Battery voltage > 13.3V, 4 grid lights

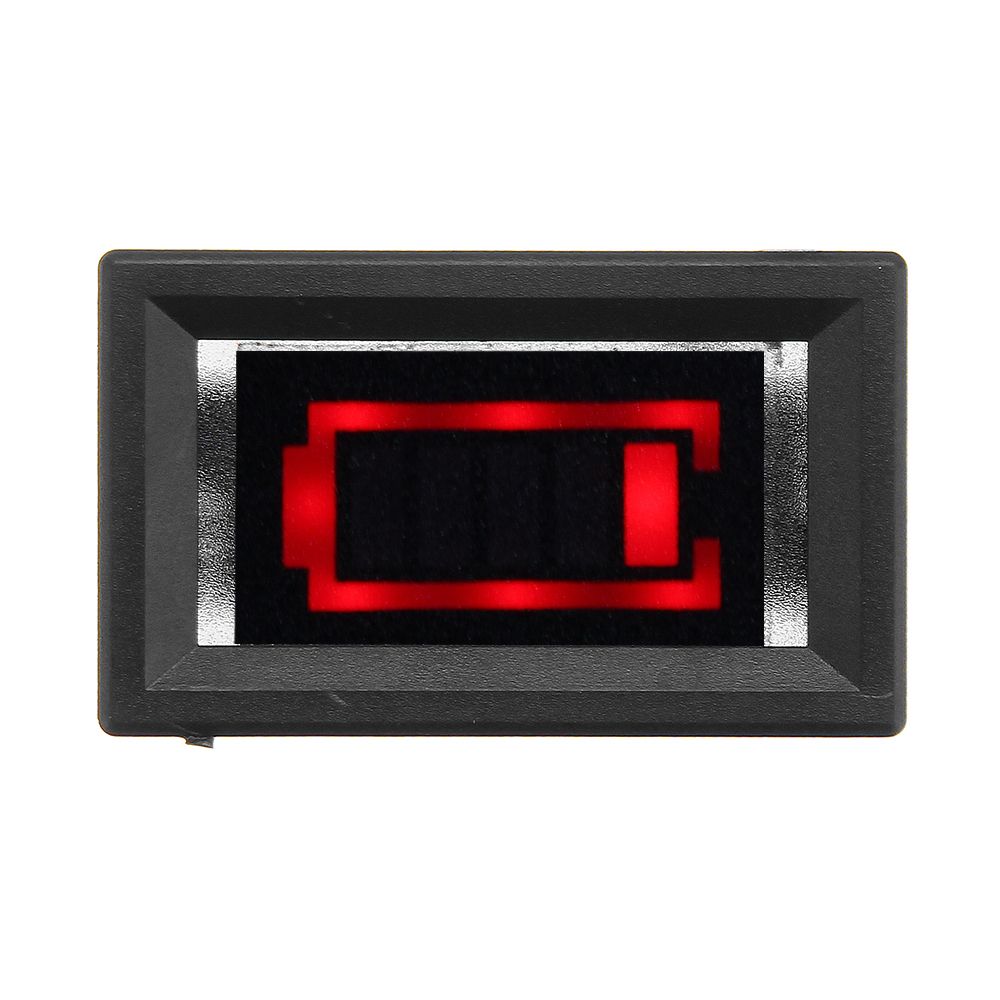

When the battery voltage is < 11.2V, all four grids are turned off, which means you need to charge the battery right away.

Package Included:

3 x 12V Digital Battery Capacity Tester
