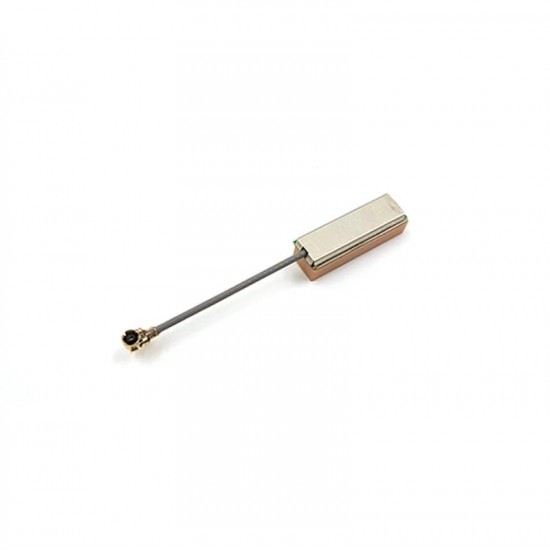

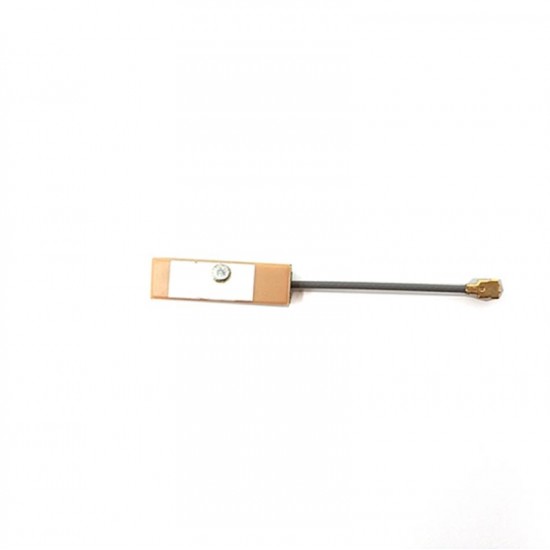

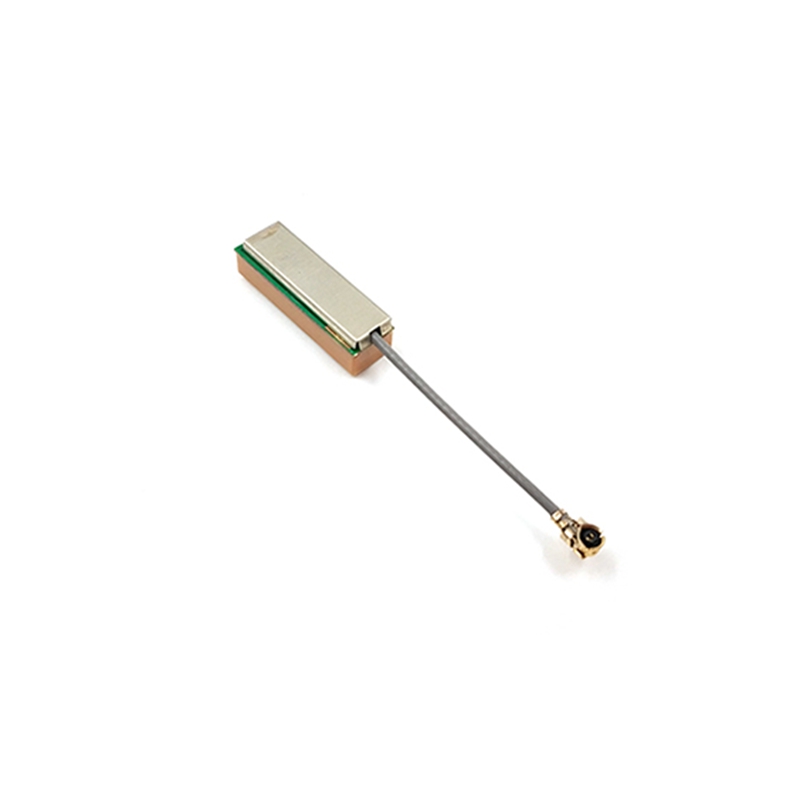

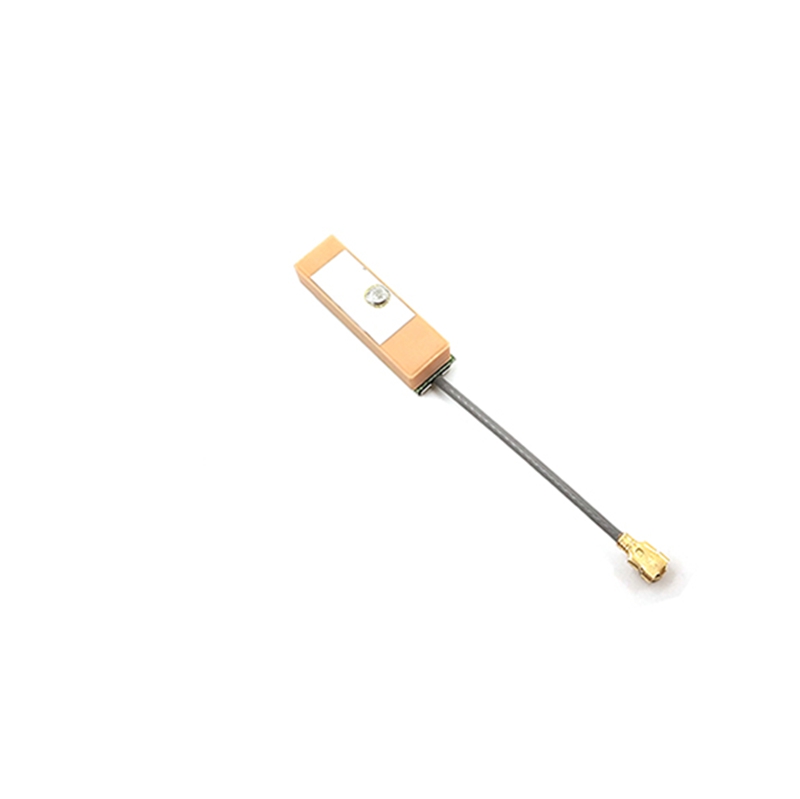

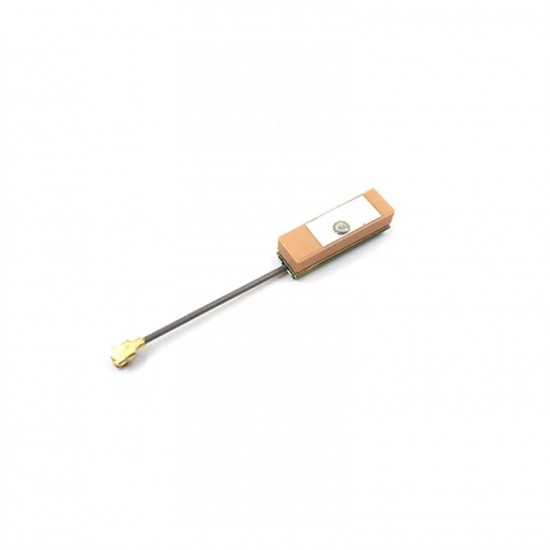

3cm 20*6*4mm 1st-IPEX 28dB High Gain RHCP Ceramic GPS Active Antenna BT-206 For RC Drone

3cm 20*6*4mm 1st-IPEX 28dB High Gain RHCP Ceramic GPS Active Antenna BT-206 For RC Drone
3cm 20*6*4mm 1st-IPEX 28dB High Gain RHCP Ceramic GPS Active Antenna BT-206 For RC Drone
3cm 20*6*4mm 1st-IPEX 28dB High Gain RHCP Ceramic GPS Active Antenna BT-206 For RC Drone
3cm 20*6*4mm 1st-IPEX 28dB High Gain RHCP Ceramic GPS Active Antenna BT-206 For RC Drone
3cm 20*6*4mm 1st-IPEX 28dB High Gain RHCP Ceramic GPS Active Antenna BT-206 For RC Drone
3cm 20*6*4mm 1st-IPEX 28dB High Gain RHCP Ceramic GPS Active Antenna BT-206 For RC Drone
3cm 20*6*4mm 1st-IPEX 28dB High Gain RHCP Ceramic GPS Active Antenna BT-206 For RC Drone
3cm 20*6*4mm 1st-IPEX 28dB High Gain RHCP Ceramic GPS Active Antenna BT-206 For RC Drone
3cm 20*6*4mm 1st-IPEX 28dB High Gain RHCP Ceramic GPS Active Antenna BT-206 For RC Drone
3cm 20*6*4mm 1st-IPEX 28dB High Gain RHCP Ceramic GPS Active Antenna BT-206 For RC Drone
3cm 20*6*4mm 1st-IPEX 28dB High Gain RHCP Ceramic GPS Active Antenna BT-206 For RC Drone
$4.51
Ex Tax: $4.51
  • Stock: In Stock
  • Model: EB001542
  • Dimensions: 20.00mm x 6.00mm x 7.00mm
  • SKU: EB001542
3cm 20*6*4mm 1st-IPEX 28dB High Gain RHCP Ceramic GPS Active Antenna BT-206 For RC Drone


Description
Model : BT-206
Frequency : 1575.42MHz
Band Width : 10MHZ
Gain : 28dB
Polarization : RHCP
Impedance : 50Ω
Stationary Wave : ≤1.5
Axial Ratio : 3db
Size : 20*6*7mm

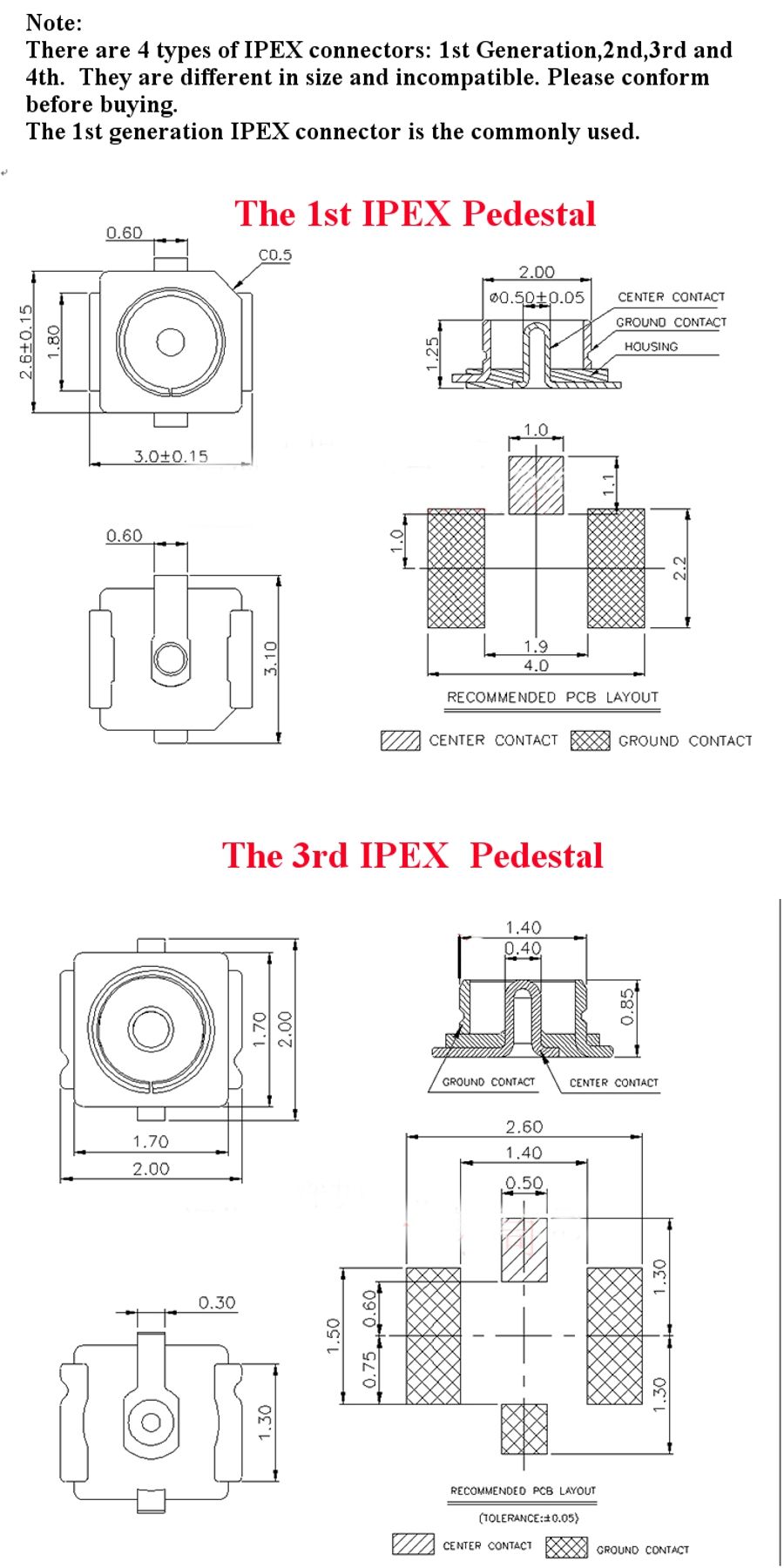

Connector : 1st IPEX port
Cable : 1.13
Wire Length : 3cm
Weight : 3g
Working Temp. : -40℃-80℃
Operating humidity : 10%-95%
Storage Temperature : -45℃-85℃
Storage Humidity : 10%-95%
Woltage : 2.8V-3.6V
Current : 10mA

Package Included
1 x GPS Antenna



3cm-2064mm-1st-IPEX-28dB-High-Gain-RHCP-Ceramic-GPS-Active-Antenna-BT-206-For-RC-Drone-1312499


3cm-2064mm-1st-IPEX-28dB-High-Gain-RHCP-Ceramic-GPS-Active-Antenna-BT-206-For-RC-Drone-1312499

3cm-2064mm-1st-IPEX-28dB-High-Gain-RHCP-Ceramic-GPS-Active-Antenna-BT-206-For-RC-Drone-1312499
