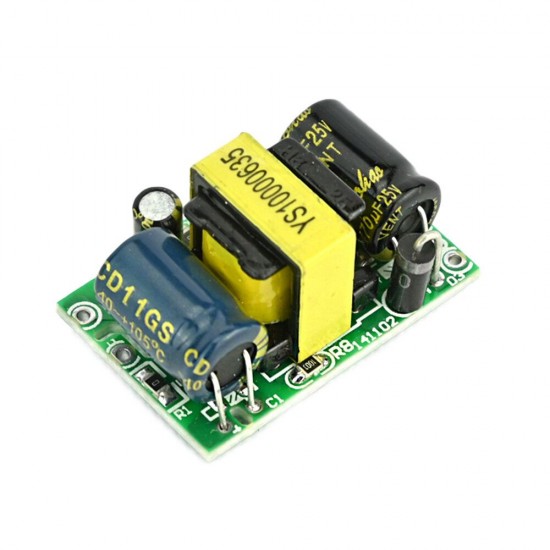

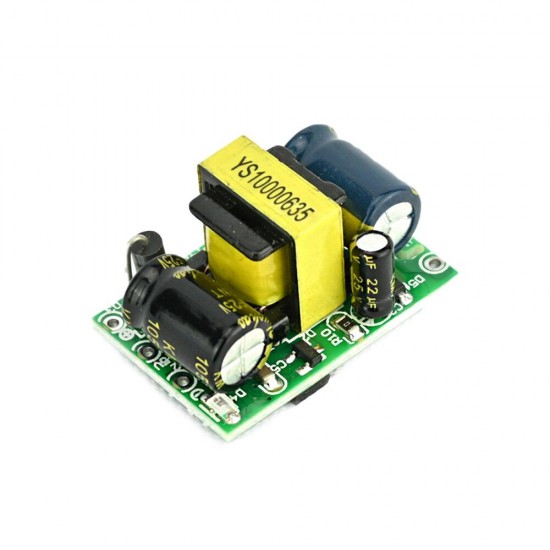

3Pcs YS-U5S5W AC to DC 5V 800mA Switching Power Supply Module AC to DC Converter 4W Regulated Power Supply
- Stock: In Stock
- Model: EB0044928
- SKU: EB0044928
>>>Manual: Click here to open<<<
Specifications:
| Model | YS-U5S5W | |
| Output characteristics | Output voltage | 5V |
| Rated current | 0.8A | |
| Current range | 0-1A | |
| Ripple | <60mVp-p | |
| Output accuracy | ±1% | |
| Voltage regulation rate | <±1% | |
| Load regulation rate | ±1.2% | |
| Rated power | 4W | |
| Adjustable output range | / | |
| Setup, rise, hold time | 500ms、80ms、80ms/220VAC | |
| Input characteristics | Input voltage range | AC100-264V |
| Input current | <0.2A | |
| Frequency range | 47Hz-63Hz | |
| Effectiveness | 75% | |
| Start impact circuit | COLD START<30AA/230VAC | |
| Leakage current | <2mA/220VAC | |
| Protection characteristics | Over power protection | 150-170% rated power, automatic recovery after fault removal |
| Overvoltage protection | DC OUT >150% | |
| Output short circuit protection | Intermittent power interruption to eliminate short-circuit power recovery | |
| Environmental parameters | Working temperature, humidity | -20℃ to +60℃@100%LOAD,+60℃LOAD:20%-90%RH |
| Storage temperature and humidity | -40℃ to +105℃ 10%-95%RH | |
| Safety and EMC standards | EMI. Safety standards | / |
| Withstand voltage | I/P-O/P:1KVAV 1min | |
| Insulation resistance | I/P-O/P;500VDV/100M Ohms | |

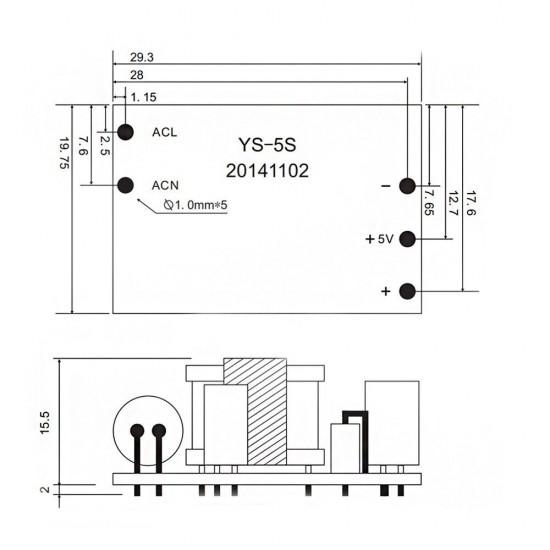

| Other | Dimensions (length x width x height) | 29.5*20*17mm |
| Weight | 9.8g(1pcs) | |
Package Included:
3 x YS-U5S5W AC to DC 5V 800mA Switching Power Supply Module
