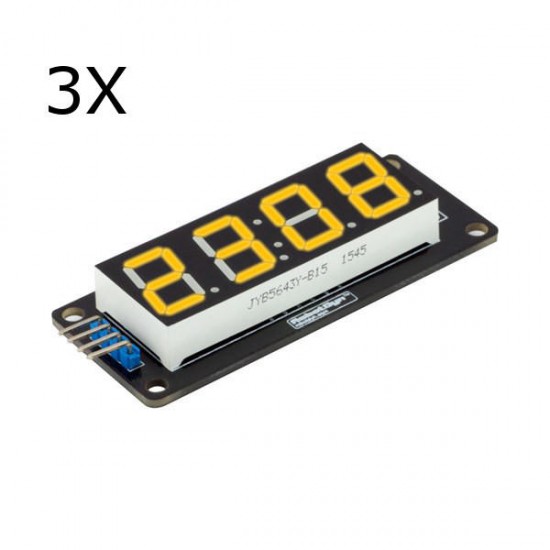

3Pcs 0.56 Inch Yellow LED Tube 4-Digit 7-segments Display Module

3Pcs 0.56 Inch Yellow LED Tube 4-Digit 7-segments Display Module
3Pcs 0.56 Inch Yellow LED Tube 4-Digit 7-segments Display Module
3Pcs 0.56 Inch Yellow LED Tube 4-Digit 7-segments Display Module
3Pcs 0.56 Inch Yellow LED Tube 4-Digit 7-segments Display Module
3Pcs 0.56 Inch Yellow LED Tube 4-Digit 7-segments Display Module
3Pcs 0.56 Inch Yellow LED Tube 4-Digit 7-segments Display Module
3Pcs 0.56 Inch Yellow LED Tube 4-Digit 7-segments Display Module
$17.99
Ex Tax: $17.99
  • Stock: In Stock
  • Model: EB0050357
  • SKU: EB0050357
>
Feature:

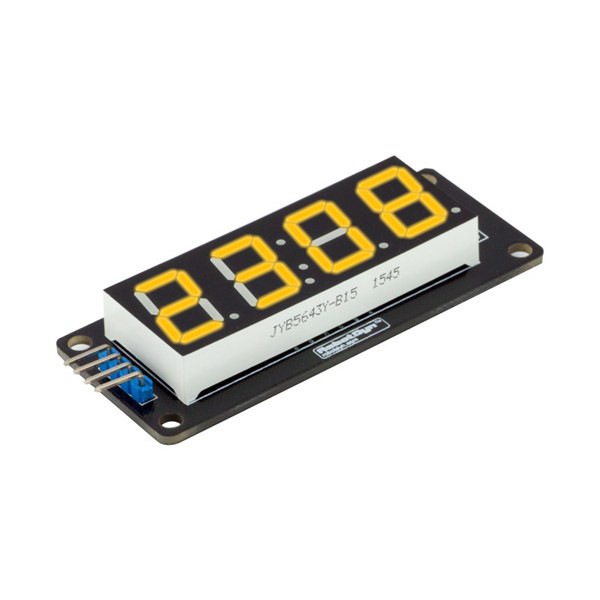

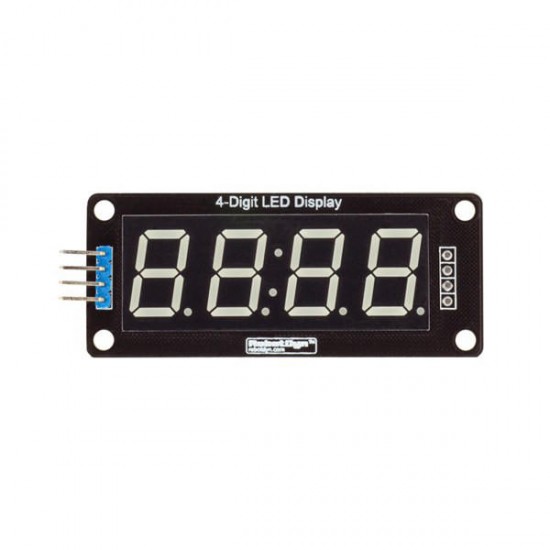

This is a basic, 4-digit 7-segment display module
The display features double points in midle.
The decimal point per digit not active.

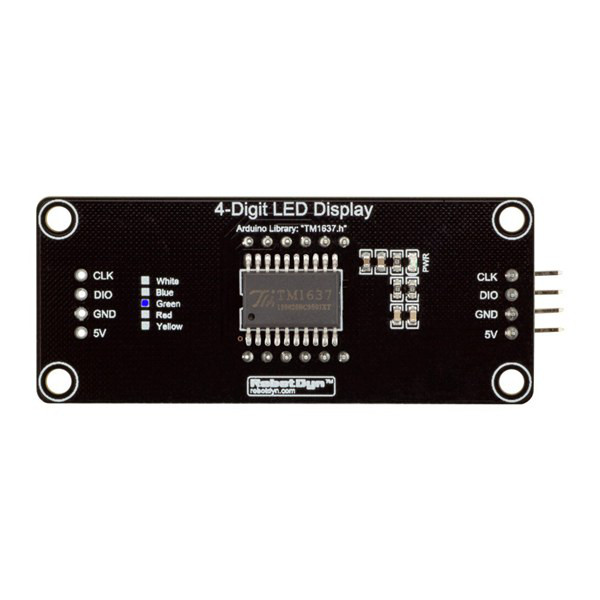

Module connecting to digital I/O on 2 pins.
For use library: TM1637.h
Color: Yellow

Package includes:

3 x Yellow LED Display Tube Module









Example1

/*

Clock example example (Extended class example)

Display a clock on the display. For this demo you can add a speed multiplier to make the clock run faster. For a real clock you want to use a delay of 1 min or even use a Real Time Clock module (RTC)

The circuit:
* connect TM1637 pin CLK to pin D4
* connect TM1637 pin DIO to pin D5
* connect TM1637 pin Vcc to pin 5V
* connect TM1637 pin GND to pin GND

*/



// include the SevenSegmentTM1637 library

#include "SevenSegmentTM1637.h"
#include "SevenSegmentExtended.h"



/*

initialize global TM1637 Display object

* The constructor takes two arguments, the number of the clock pin and the digital output pin:
* SevenSegmentTM1637(byte pinCLK, byte pinDIO);

*/



const byte PIN_CLK = 4; // define CLK pin (any digital pin) const byte PIN_DIO = 5; // define DIO pin (any digital pin)
SevenSegmentExtended display(PIN_CLK, PIN_DIO);

const unsigned int clockSpeed = 10000; // speed up clock for demo



// run setup code

void setup() {

Serial.begin(9600); // initializes the Serial connection @ 9600 baud
display.begin(); // initializes the display
display.setBacklight(100); // set the brightness to 100 %
delay(1000); // wait 1000 ms

};



// run loop (forever)

void loop() {

byte hours = 14; // initialize hours
byte minutes = 39; // initialize minutes

for ( ; hours < 24; hours++) {   // count hours up to 24

for ( ; minutes < 60; minutes++) {   // count minutes up to 59

display.printTime(hours, minutes, true); // display time
delay(60000 / clockSpeed); // clock delay ms

};
minutes = 0; // reset minutes

};

};

Example2

#include "TM1637.h"; // include the TM1637 library
TM1637 display(2, 3); // initialize the library for pins 2, 3

void setup(){

display.init(); // Start display
display.set(7); // Setup brightness 0 to 7
int8_t Disp[4]; // Dimension of digits

}

void loop(){

Disp[0] = 1; // Write digits to dimension
Disp[1] = 2;
Disp[2] = 3;
Disp[3] = 4;
display.display(Disp); // Show dimension(digits) to display

}
