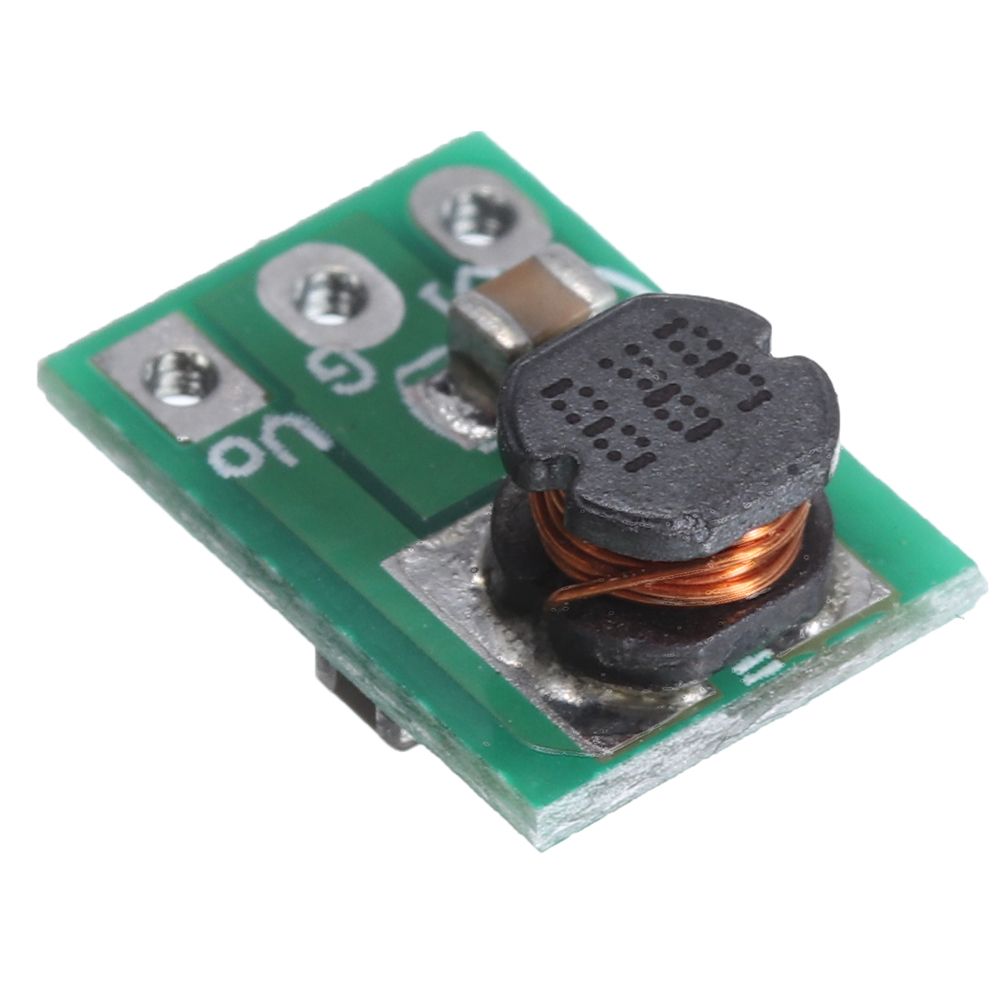

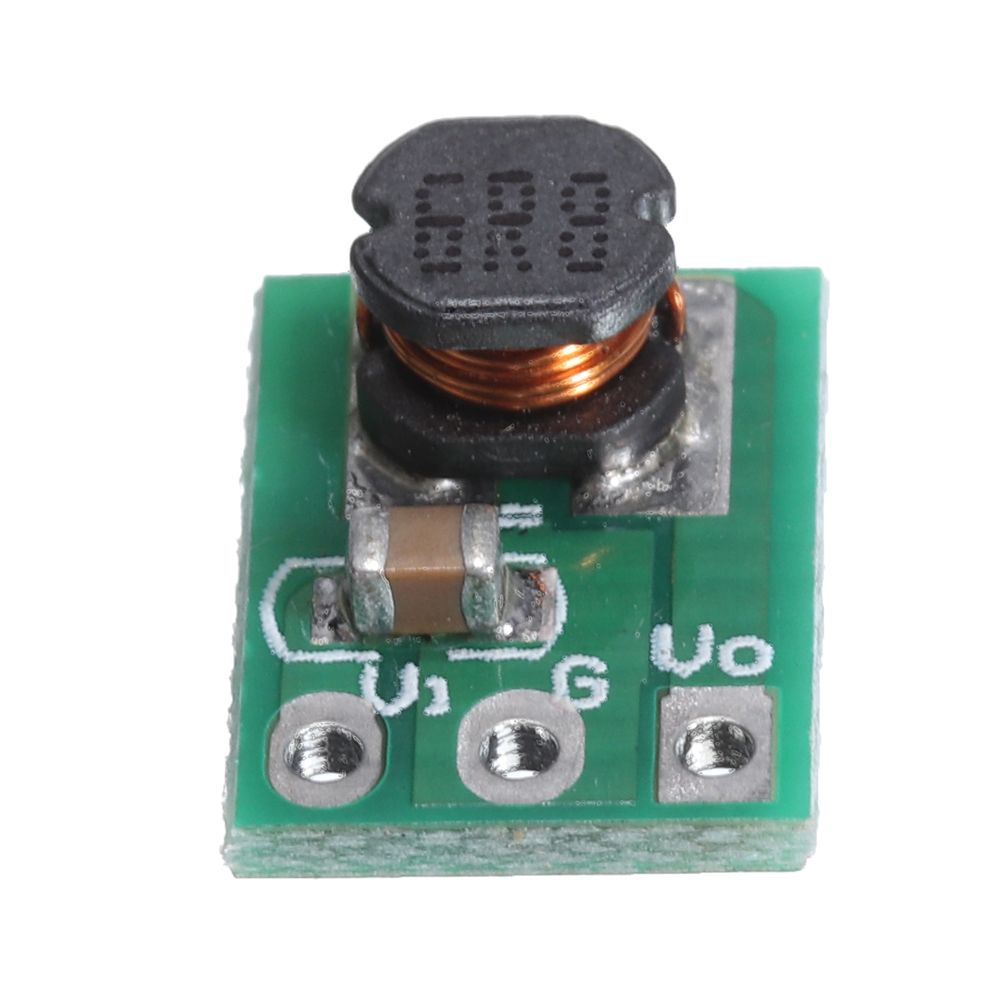

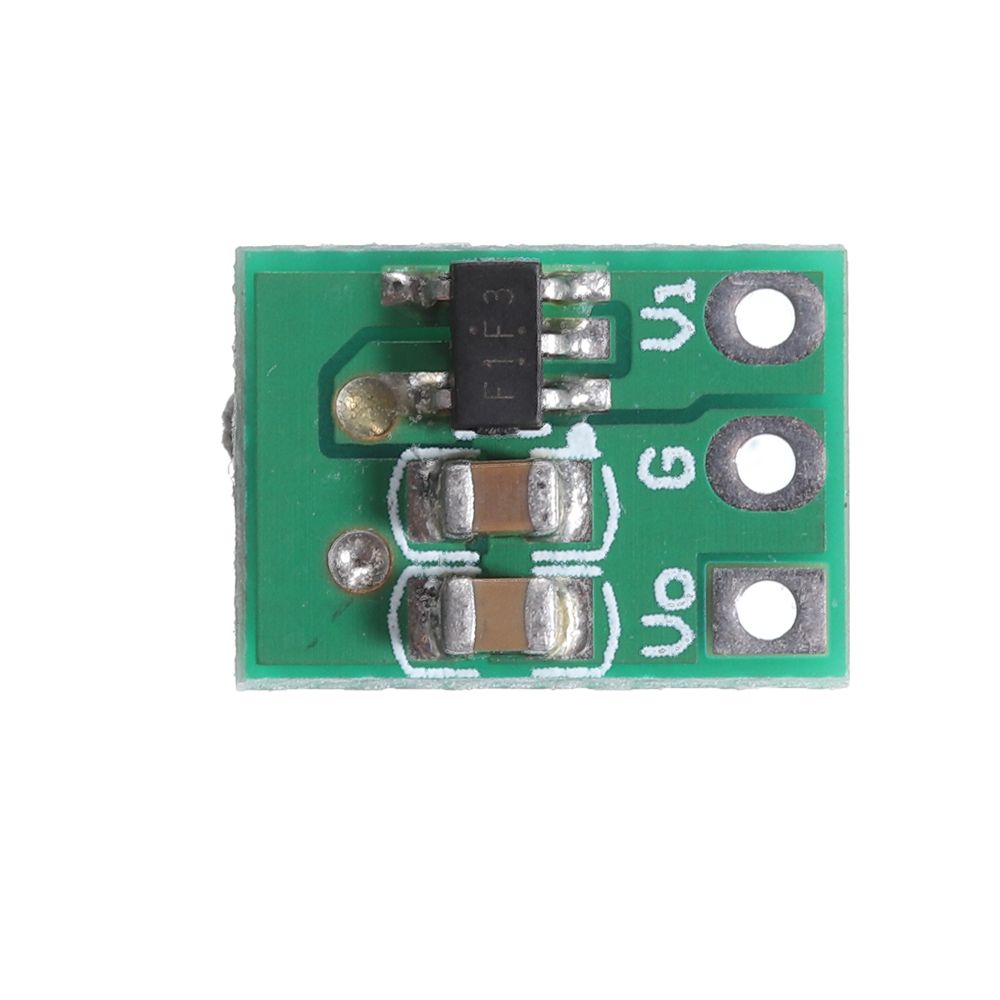

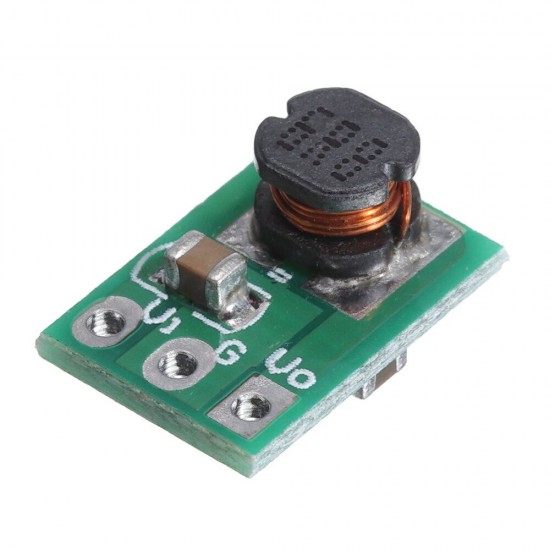

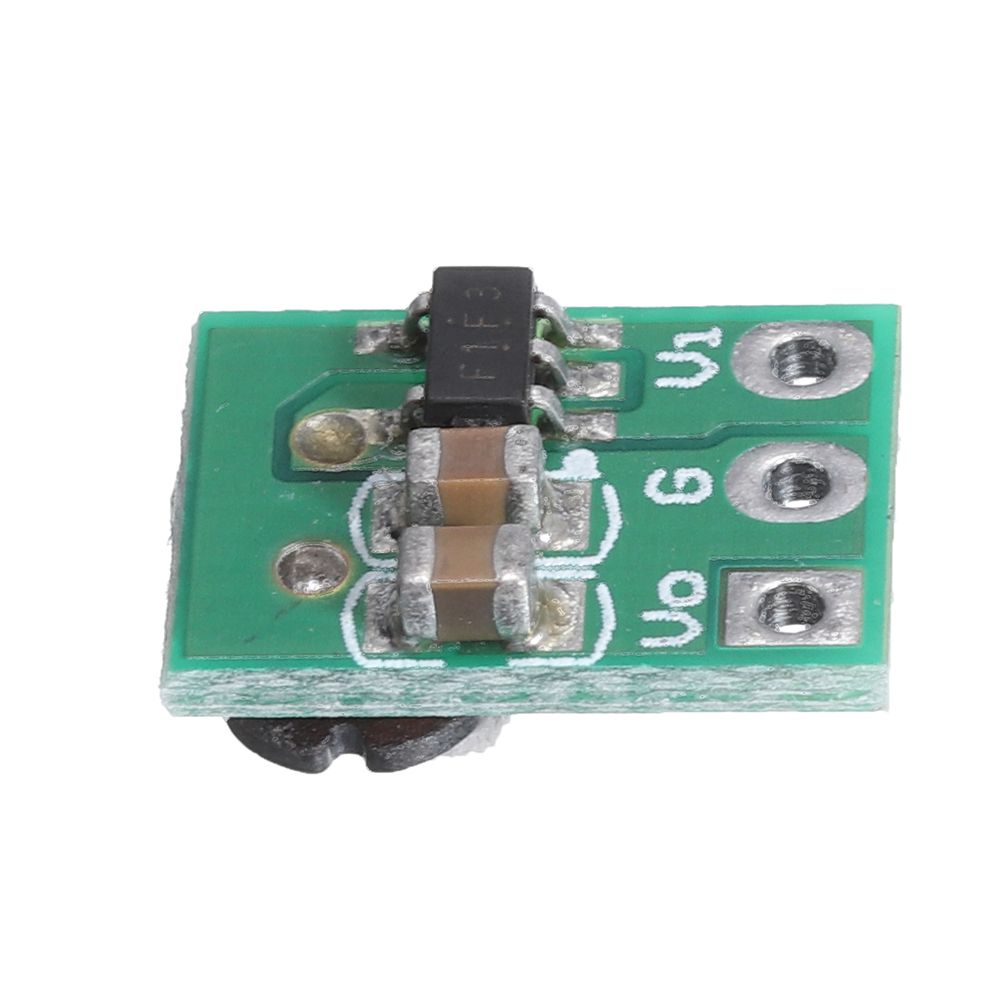

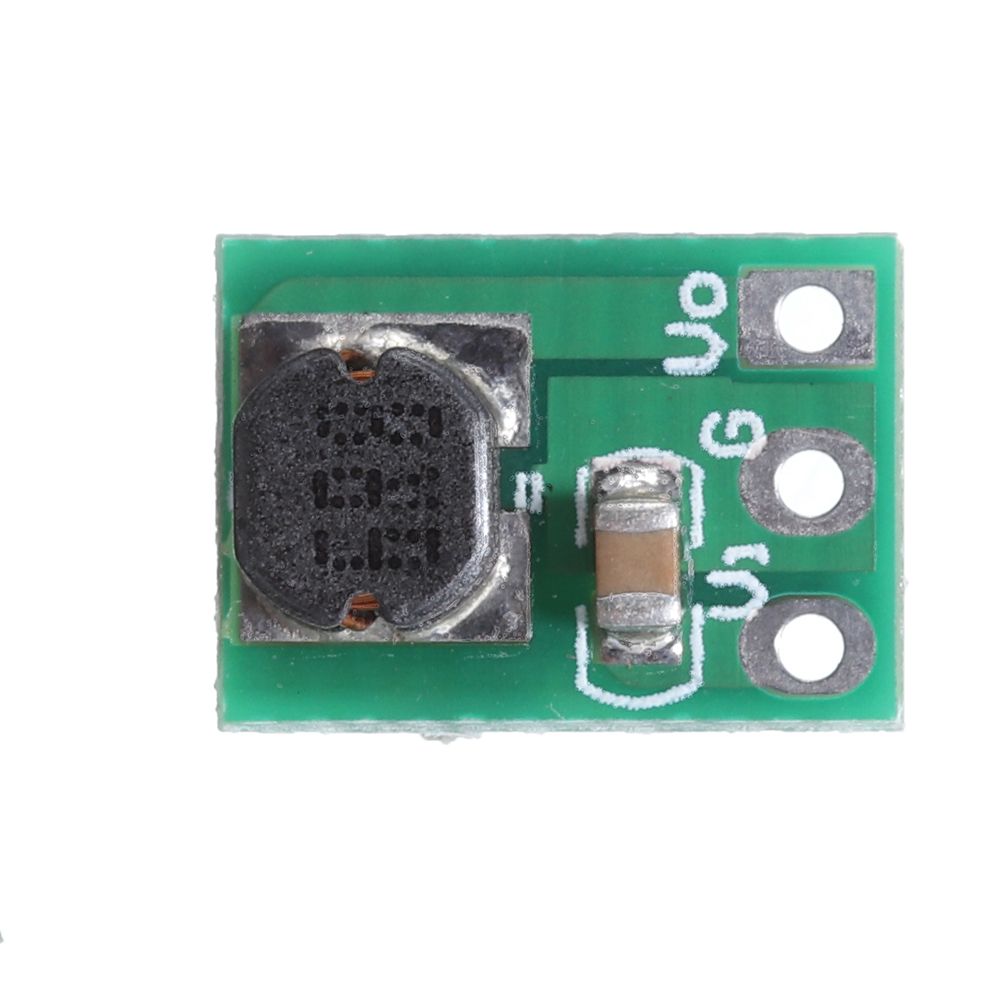

30pcs DD0503MB DC to DC Converter Module 3.7V 4.2V 4.5V 5V 6V to 3.3V Step Down Module Buck Regulator

Based on 0 reviews. - Write a review

$41.99

Ex Tax: $41.99

Stock: In Stock
Model: EB0044888
SKU: EB0044888

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description:

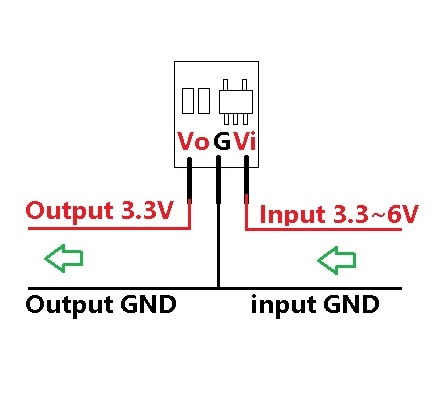

Input voltage 3.3-6V, output 3.3V (deviation +-4%)

Long time mAximum output current 510mA

Short time mAximum output current 710mA

Conversion efficiency : 80-93%

DC-DC Buck Step-down module working frequency 1.2MHZ.

Operating ambient temperature : -40~+85 Degrees Celsius

Size 10.8x 7.7 x 5.6mm

The mAximum input voltage can not exceed 6.5V

INPUT 3.7V/600mA; OUTPUT 3.3V/550mA

INPUT 4V/600mA; OUTPUT 3.3V/610mA

INPUT 4.2V/580mA; OUTPUT 3.3V/600mA

INPUT 4.5V/550mA; OUTPUT 3.3V/620mA

INPUT 5V/470mA; OUTPUT 3.3V/590mA

INPUT 6V/370mA; OUTPUT 3.3V/550mA

Applications:

Wifi Module:ESP8266

Bluetooth module : HC-05 HC-06

Wireless UART module : HC-11 HC-12

wireless module : CC1101 CC2500 Nrf24l01+

3-3.5V led lights

Model aircraft fpv camera

Attention:

1. Input voltage can not be greater than the mAximum input.

2. Output power can not be greater than the mAximum load for a long time.

3. Input power must be greater than the output power, because the power consumption of the module itself.

Package Included:

30 x DC to DC Converter Module 3.7V 4.2V 4.5V 5V 6V to 3.3V Step Down Module
