30pcs CD74HC4067 16-Channel Analog Digital Multiplexer PCB Board Module for Arduino - products that work with official Arduino boards

Based on 0 reviews. - Write a review

$20.99

Ex Tax: $20.99

Stock: In Stock
Model: EB0048429
SKU: EB0048429

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Specifications:

1.2V to 6V operation

2.“On” resistance: 70 Ohms @ 4.5V

3.6ns break-before-make @ 4.5V

4.Wide operating temperature range: -50℃ to 125℃

Features:

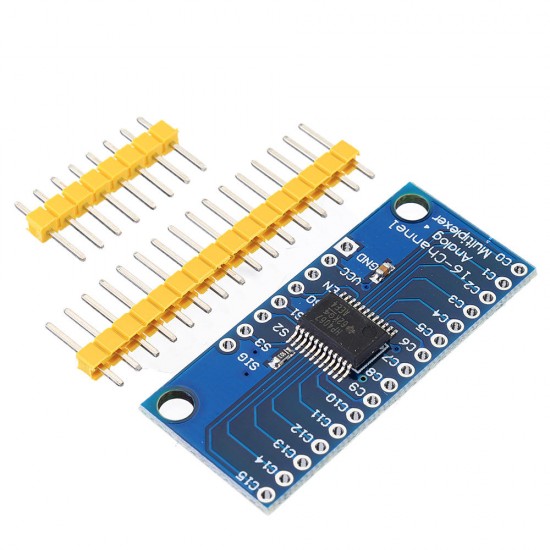

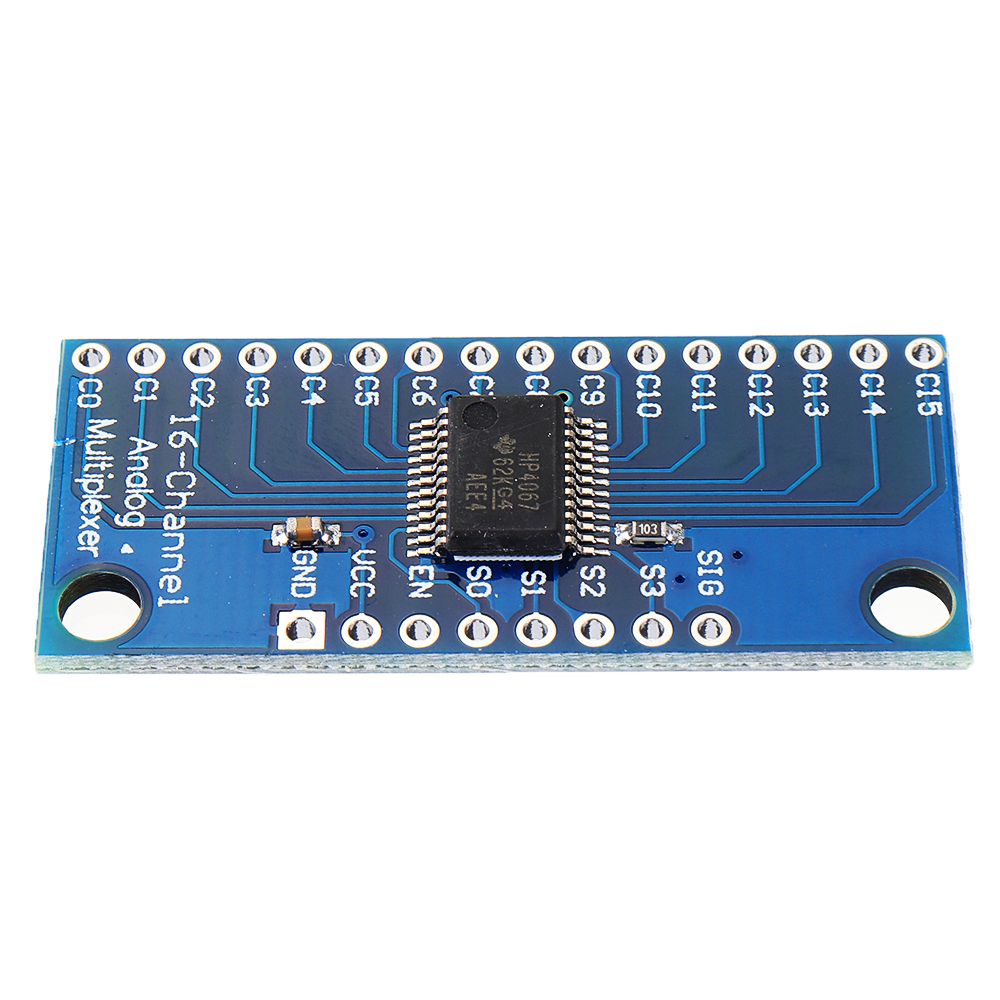

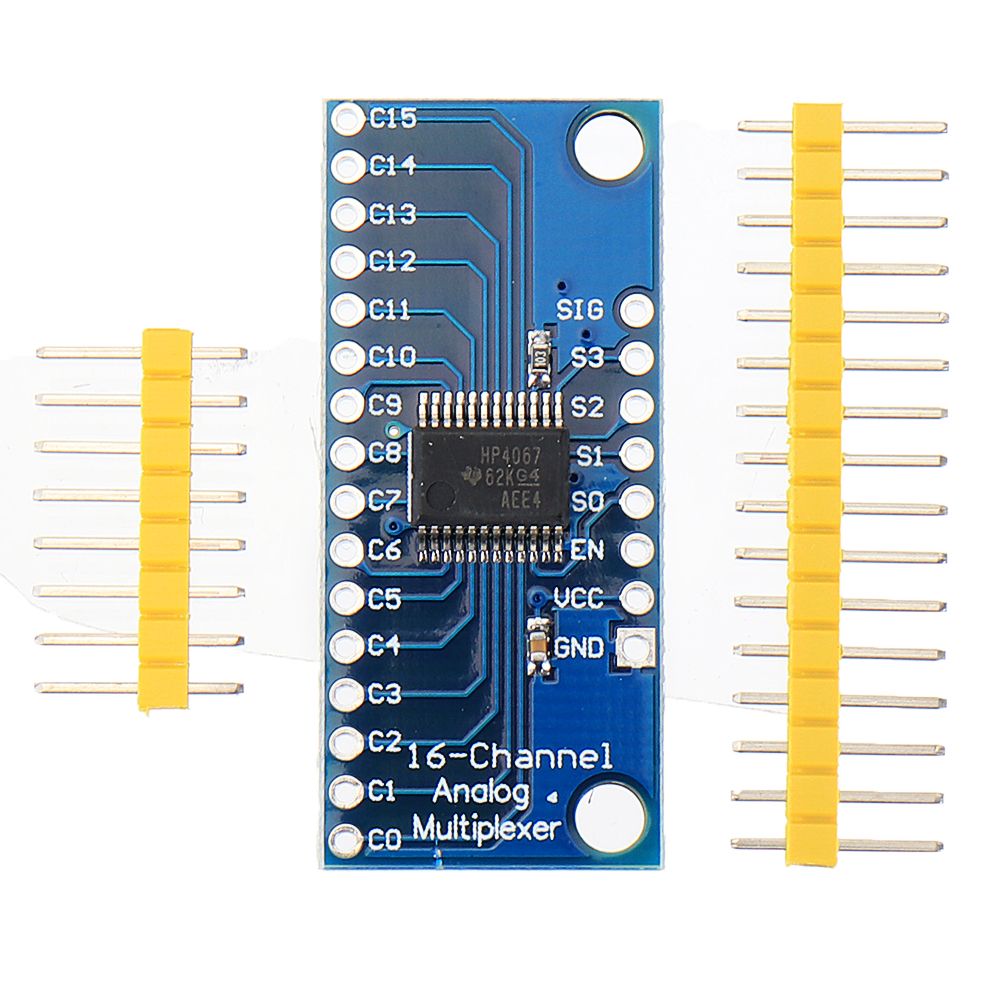

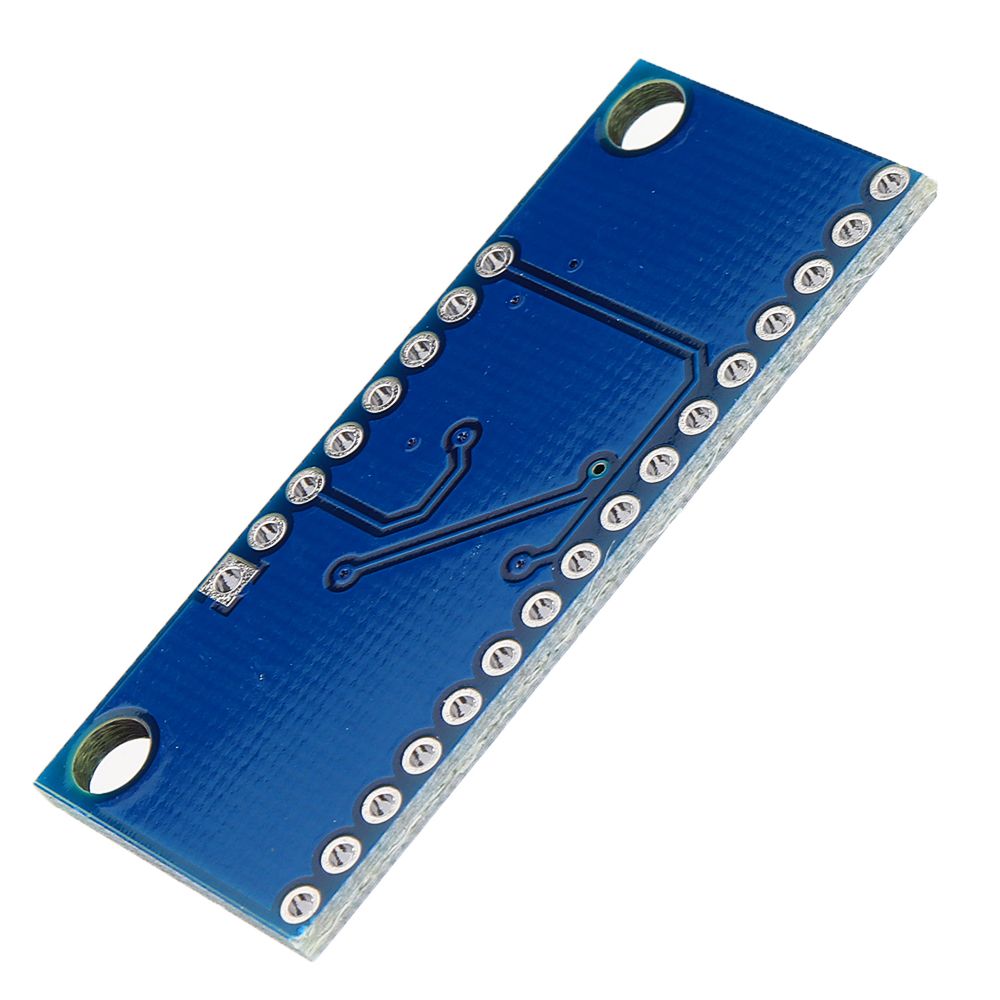

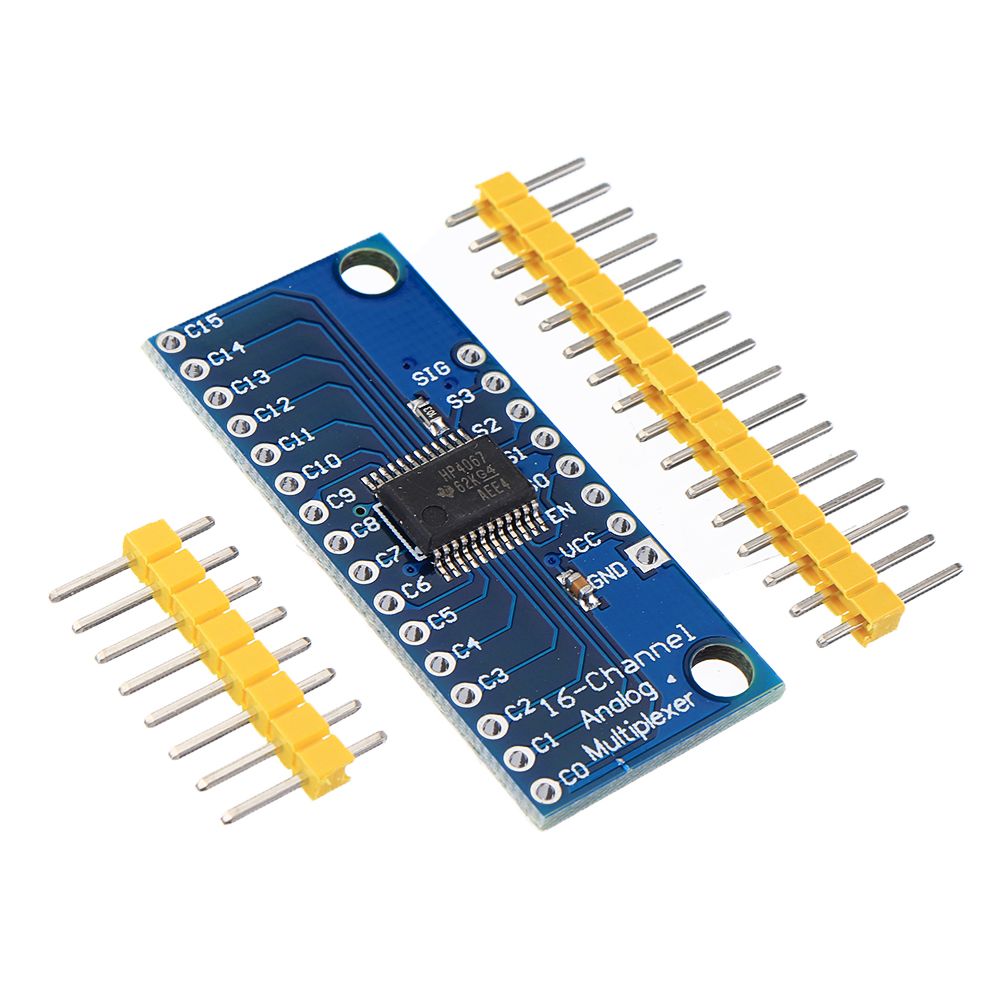

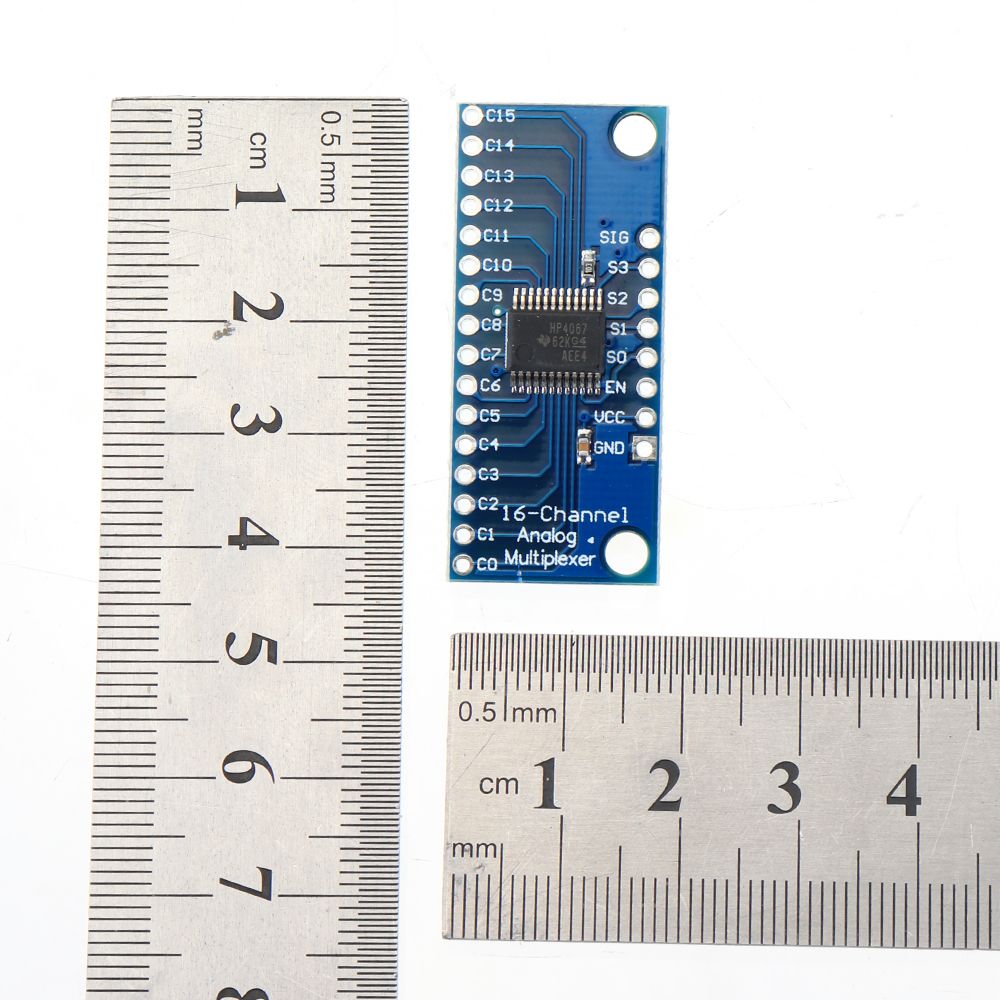

- This is a pcb board for the very handy 16-Channel Analog/Digital Multiplexer/Demultiplexer CD74HC4067.

- This chip is like a rotary switch - it internally routes the common pin

to one of 16 channel pins (CHANxx).

- It works with both digital and analog signals (the voltage can't be higher than VCC),and the connections function in either direction.

- To control it, connect 4 digital outputs to the chip's address select pins (S0-S3),and send it the binary address of the channel you want.

- This allows you to connect up to 16 sensors to your system using only 5 pins!

- You can use it to pipe TTL-level serial data to or from multiple devices.

For example, you could use it to connect the TX pins of 16 devices to one RX pin on your microcontroller.

You can then select any one of those 16 devices to listen to.

If you want two-way communications, you can add a second board to route

your microcontroller's TX line to 16 device's RX lines.

By using multiple boards, you can create similar arrangements for I2C, SPI, etc.

The internal switches are bidirectional, support voltages between ground and VCC,

have low “on” resistance and low “off” leakage, and to prevent crosstalk, perform “break-before-make” switching.

The board also breaks out the chip's “enable” pin, which when driven high,

will completely disconnect the common pin (all switches “off”).

Package Included:

30 x CD74HC4067 16-Channel Analog Digital Multiplexer
