30pcs CA-888 Super LCD Power Supply Board Universal Power Module Display Power Supply Module for 15-21 Inch LCD

Based on 0 reviews. - Write a review

$30.99

Ex Tax: $30.99

Stock: In Stock
Model: EB0049364
SKU: EB0049364

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Overview:

LCD power board damage a large proportion. One of the power to drive the chip, high-power power switch,sampling resistor damage is the most common, because of these component models, variety,often because there is no same spare parts, and can not be repaired.The module has: wiring is simple, easy to install, save time, improve the success rate of maintenance and so on.Encountered the maintenance problems of friends may wish to consider the development of this under a universal power supply module.to solve the 15-21-inch LCD monitor power supply maintenance problems

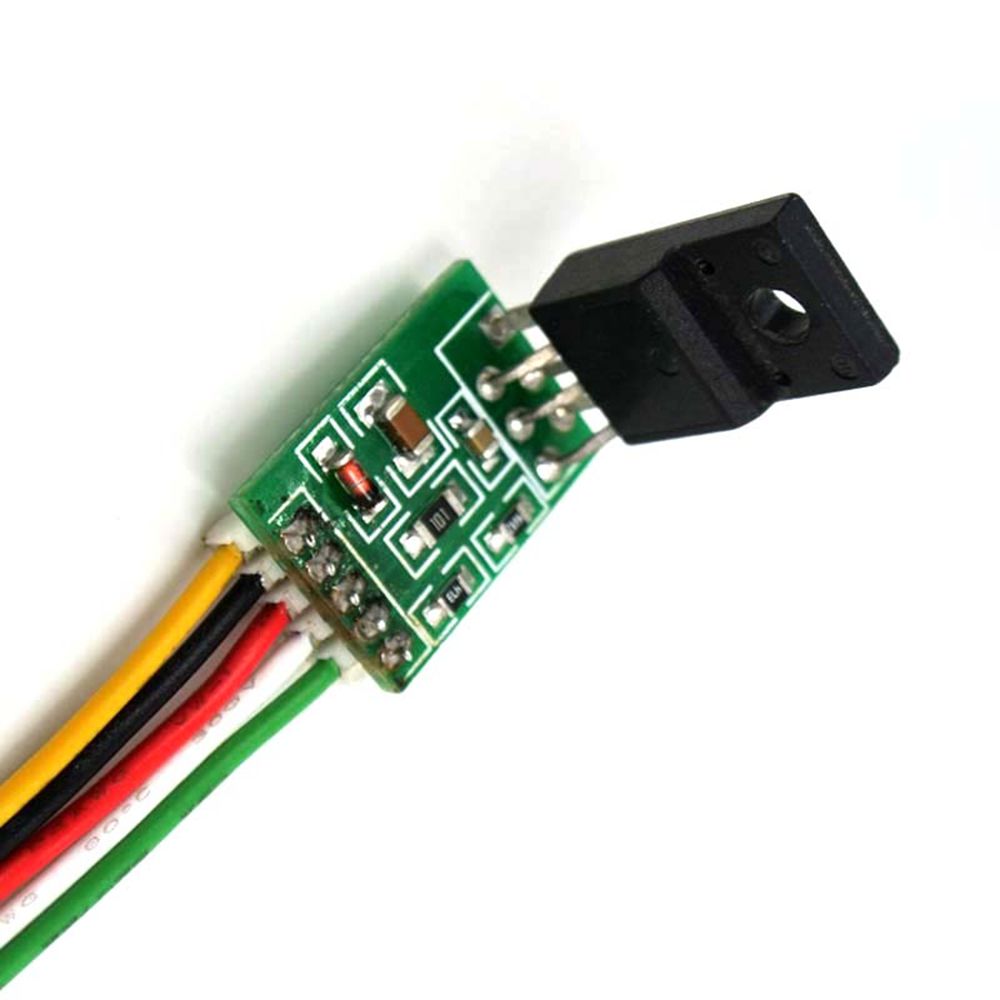

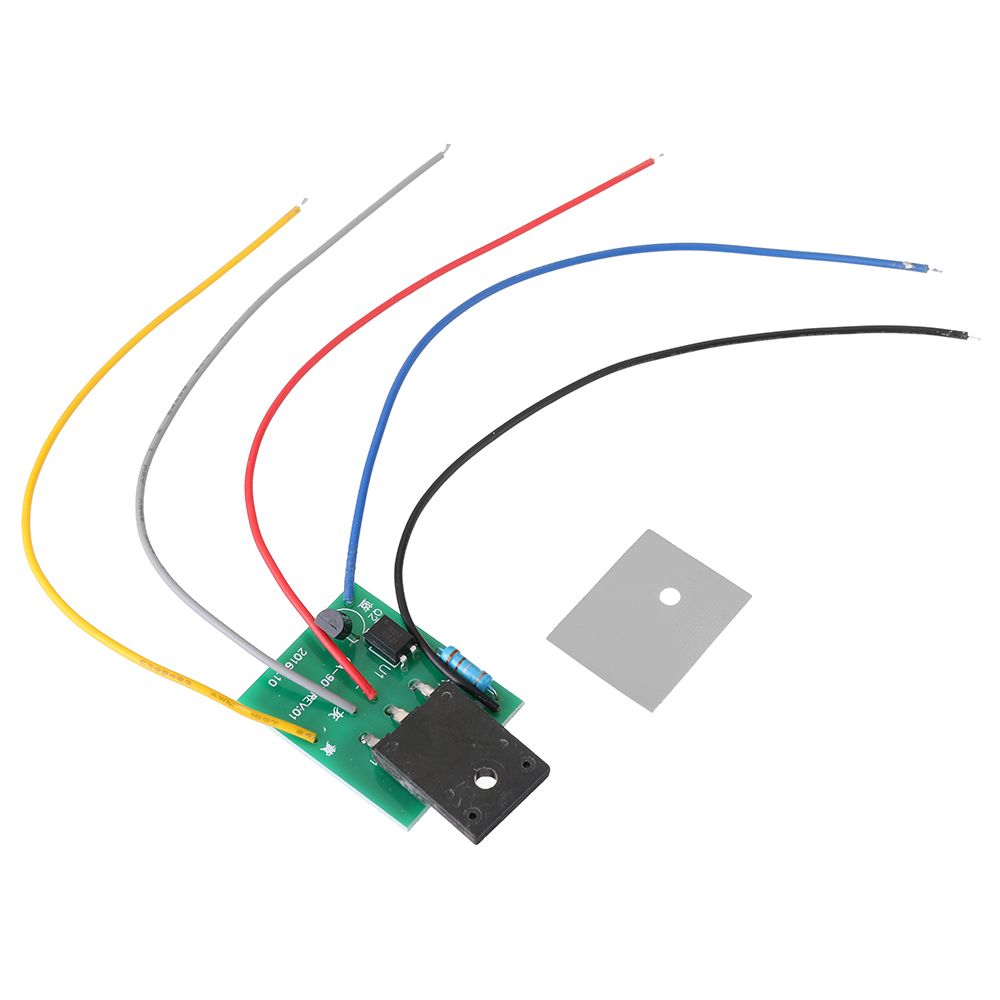

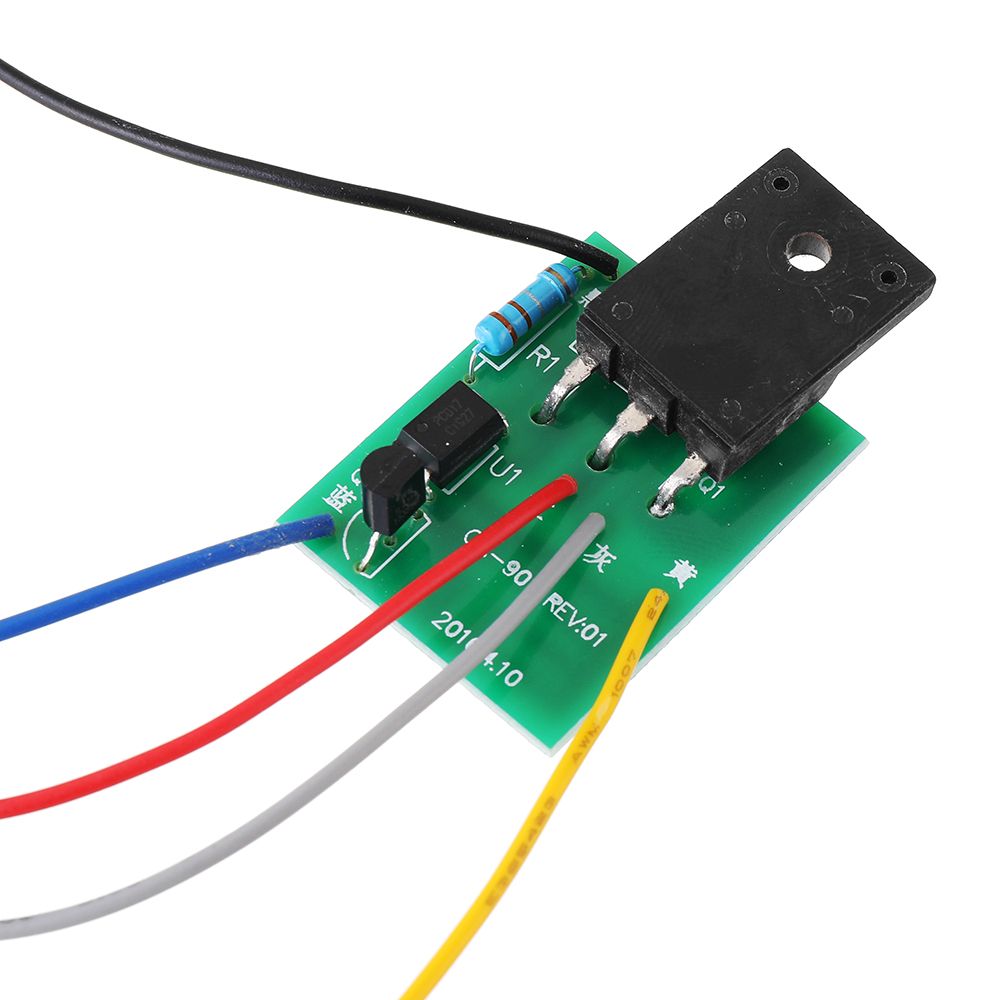

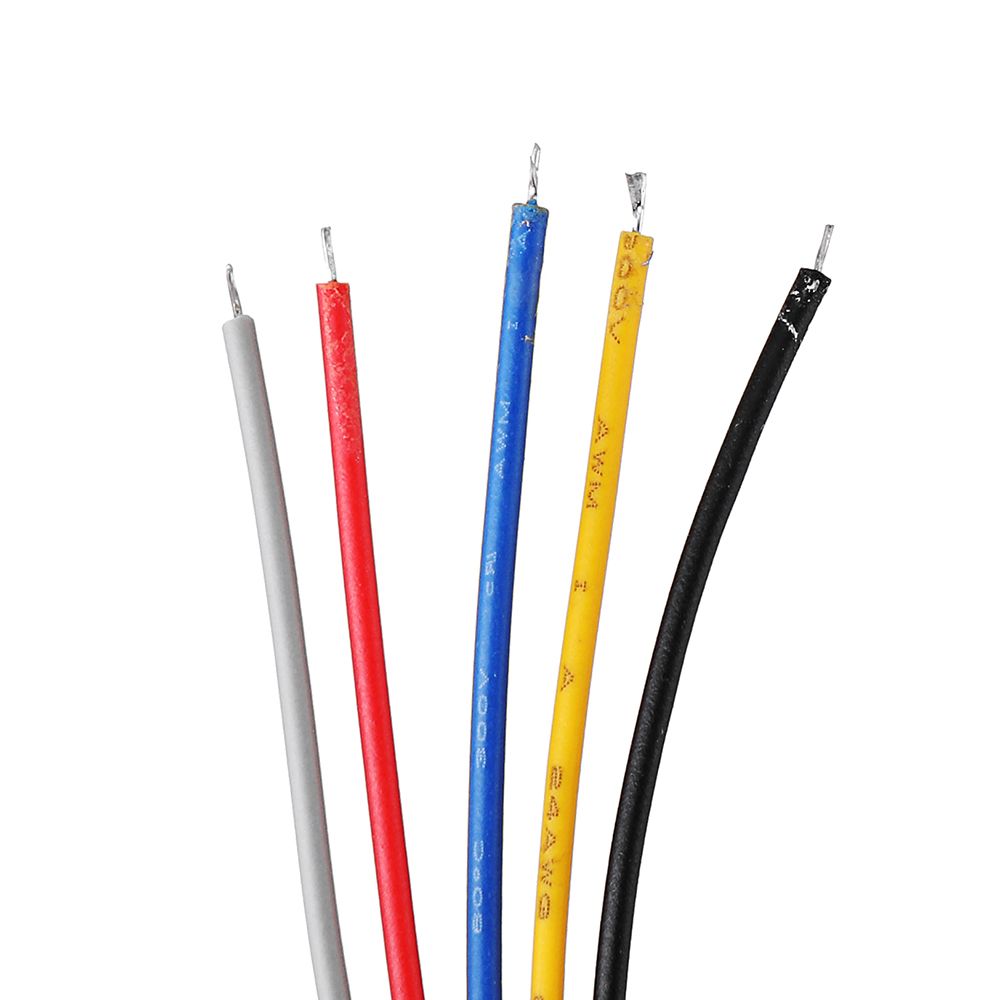

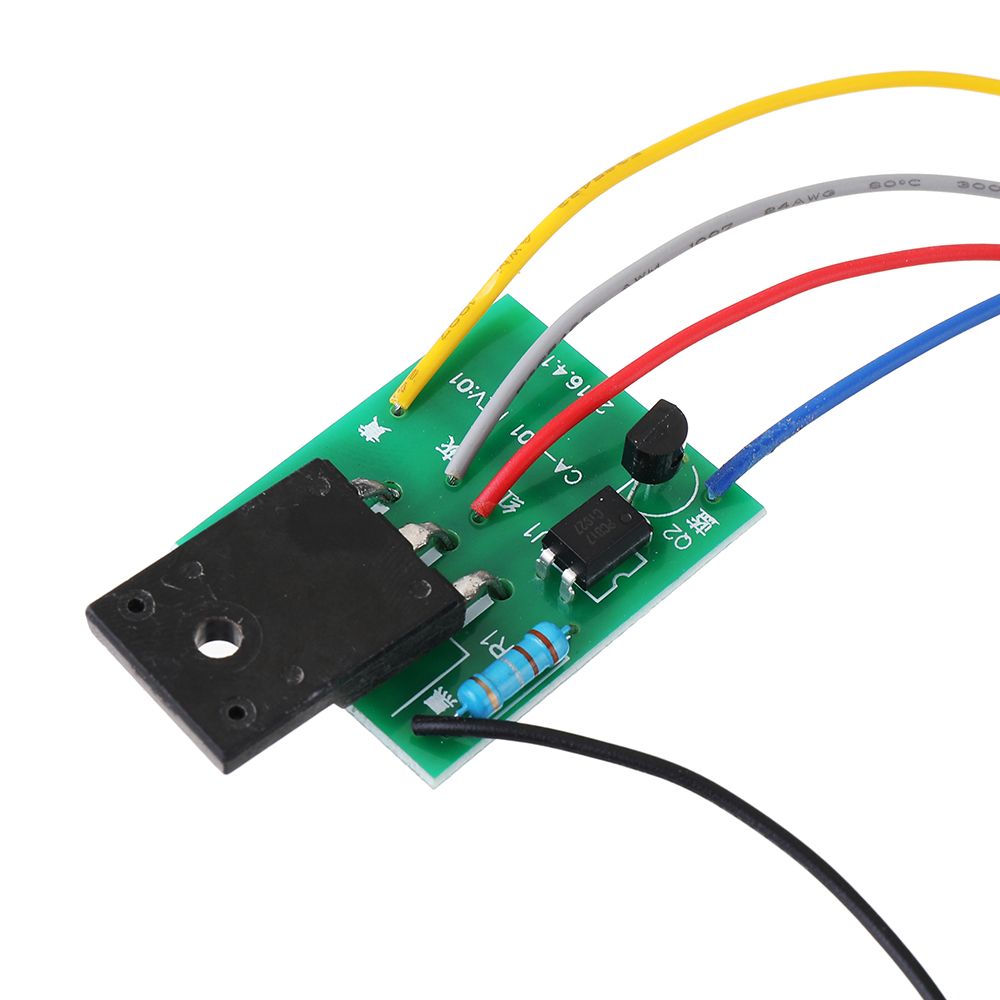

Pin Definition:

1PIN yellow line: DRAIN, power control side, then the original high-power MOS power supply D-pole.Generally the middle of the power switch tube feet

2PIN black line or powder line: GND, module ground 300v, then the negative capacitor, the same line can be.Directly connected to a large filter capacitor negative

3PIN red line: VCC, the module power supply side, then the feedback winding terminal rectifier capacitor after the positive,continuous power supply, the voltage between 12-18V.

4PIN white line: FB, voltage feedback, then optocoupler 4 feet, please check the optocoupler 3 feet heat, not heat,then put the optocoupler short to the hot ground, while the 4-pin peripheral circuit disconnected.

5PIN green line: start start pin, then 300 v capacitor positive Customers must be optimistic about the specific connection method after modification, do not blindly random access.

Use :

1. Remove the original power supply chip on the board (usually 8 feet), and the switch (mos tube)

2. Check the 300v capacitor, as well as the capacitance of the load side of the package there is no drum, a problem on the first replacement

3. Check the load side there is no short circuit, ad board, high voltage board

4. Connect the module to the corresponding line, and carefully check that there is no wrong, if wrong can cause the module burst

5. Installed in the original location of the radiator, pay attention to insulation, not short-circuit

6. Power, measuring voltage is not the output, there is no output, then check the cause.

Package Included:

30 x CA-888 Super LCD Power Supply Board Universal
