30pcs 1CH Channel Relay Module 5V For 250VAC/60VDC 10A Equipment Device for Arduino - products that work with official for Arduino boards

Based on 0 reviews. - Write a review

$44.99

Ex Tax: $44.99

Stock: In Stock
Model: EB0046464
SKU: EB0046464

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Feature:

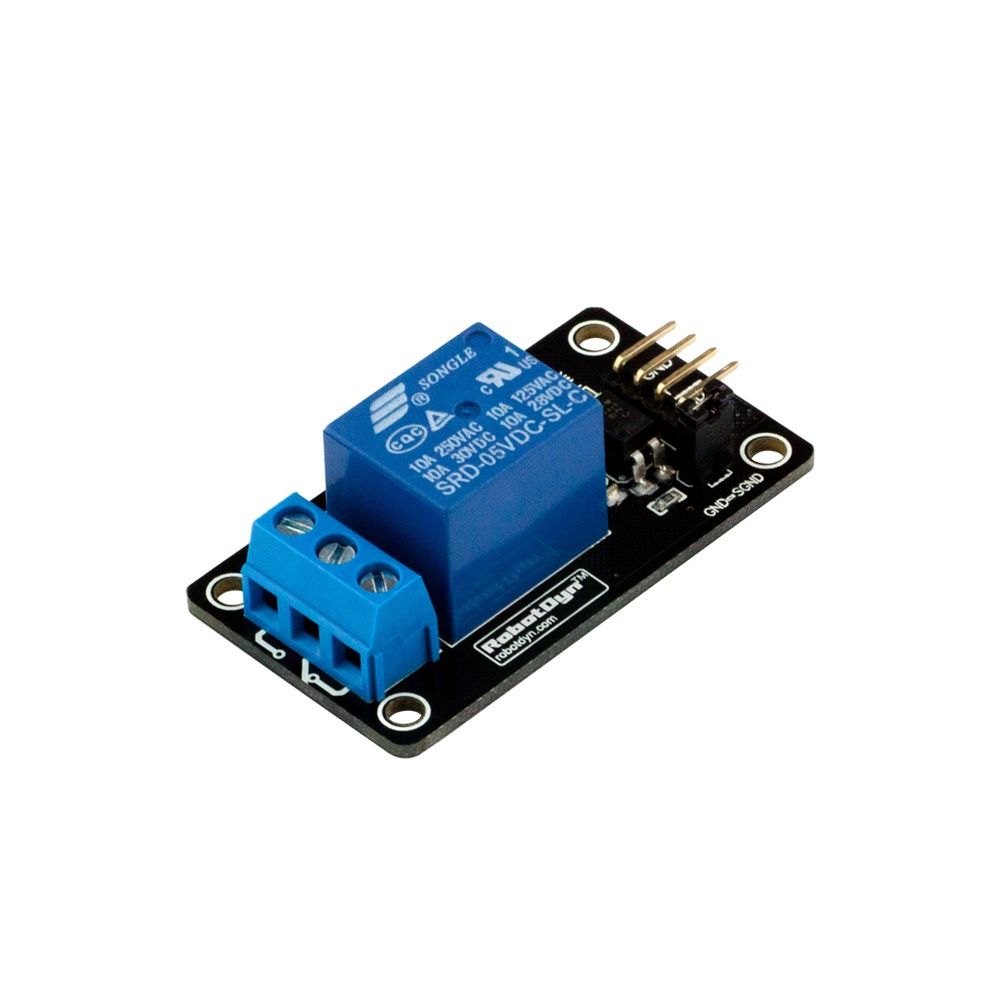

This is 1 channel Relay module, can able to control various appliances, and other equipment with a current not more 10A (250VAC/60VDC).

It can be controlled directly by microcontroller: Raspberry, AVR, PIC, DSP or TTL logic.

For control of module need power 5V and logic operation 5V.

For isolate the microcontroller from the relay, we added optocoupler.

Now with this configuration, the microcontroller doesn’t have any physical connection with the relay, it just uses the LED light of the Optocoupler IC to activate the relay.

This solution saves your microcontroller from a high voltage for VAC/VDC.

Documents:

Dimensional drawing: Click here to open

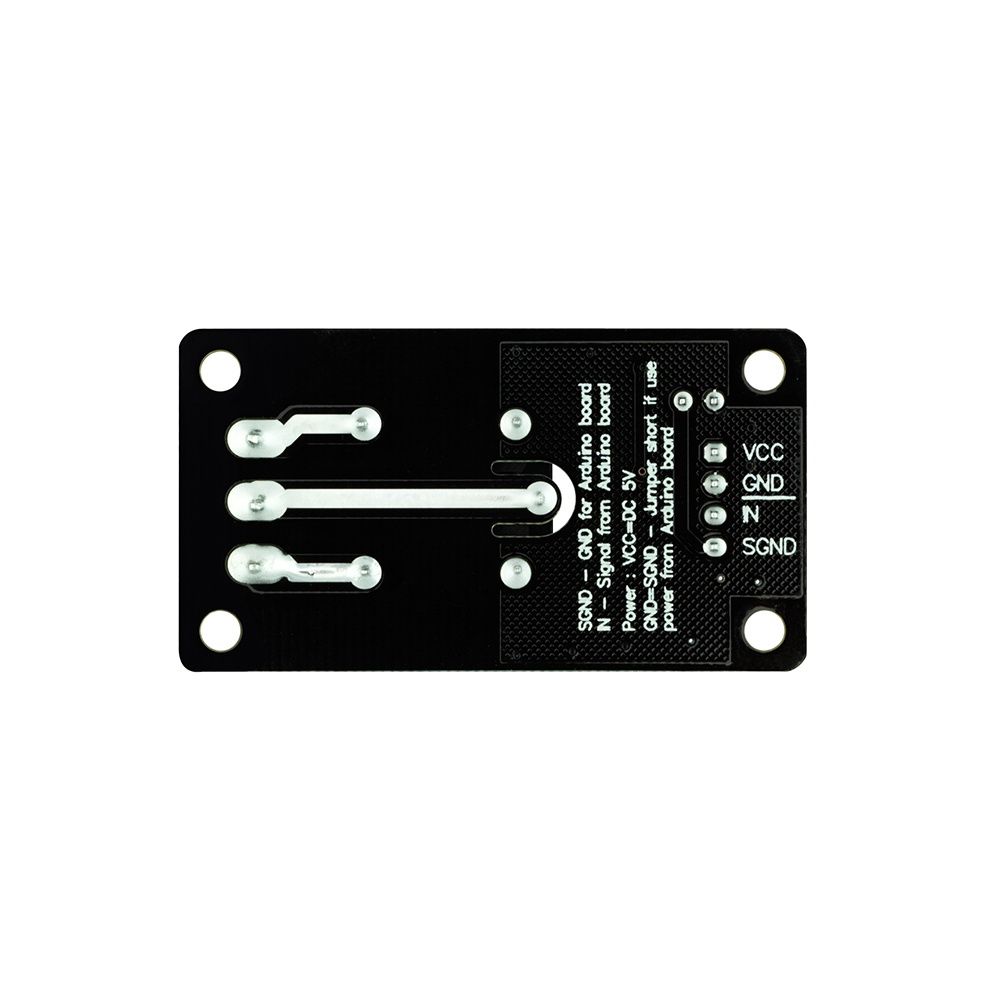

Pinout: Click here to open

Schematic: Click here to open

Package included:

30 x 5V Relay module
