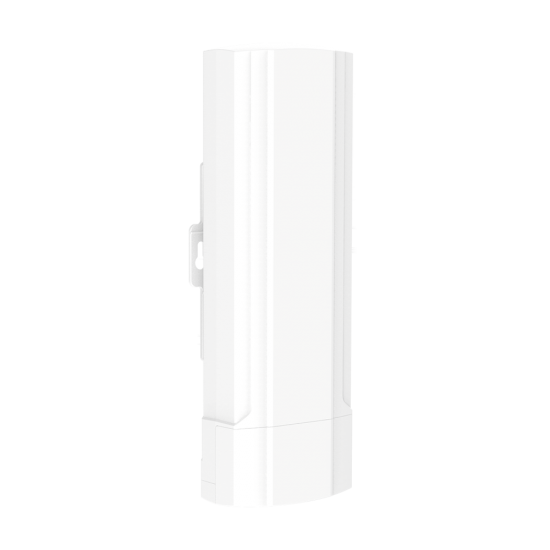

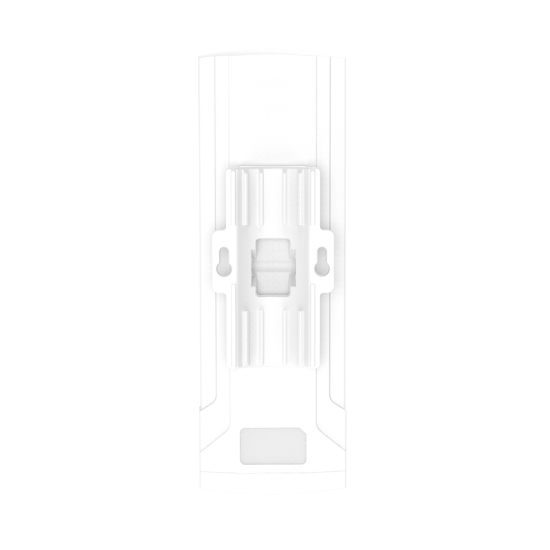

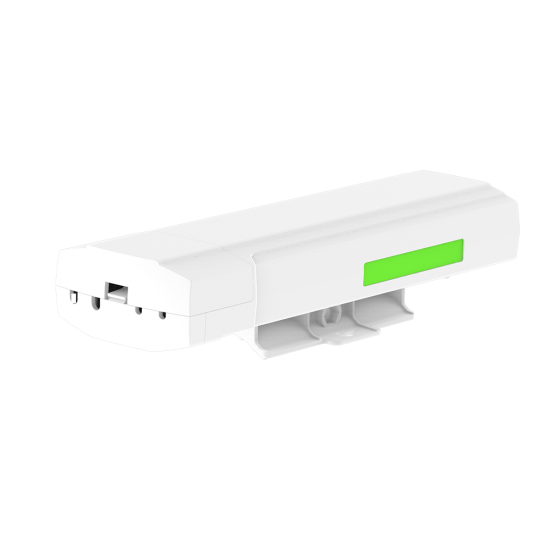

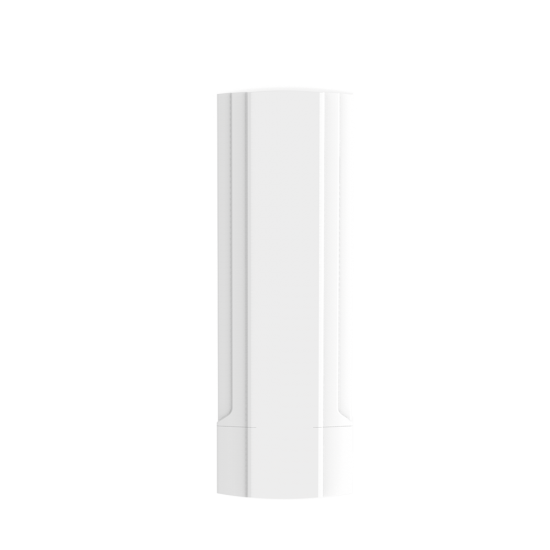

300M Outdoor Wireless AP Network Bridge WiFi Booster Amplifier Full Coverage Industrial AP for Shopping Mall Hotel Campus
- Stock: In Stock
- Model: EB0030163
- SKU: EB0030163
Specifications:
Hardware specifications | |
Model | AP80Q |
Flash | 16MB |
Memory | 128MB |
Working frequency band | 2.4G- 2.483G |
Transport protocol | 802.11b/g/n, MIMO |
Transmission speed | 2.4G: 300Mbps |
Modulation mode | OFDM= BPSK,QPSK, 16-QAM, 64-QAM; DSSS= DBPSK, DQPSK, CCK |
Wireless power | 11n@MCS7: 23± 2dBm , @MCS0: 26± 2dBm 11g @ 54M: 24 ± 2dBm , @ 6M: 27± 2dBm 11b@11M: 26 ± 2dBm, @ 1M: 27 ± 2dBm |
Receiving sensitivity | 11n: -70dBm@MCS7, -88 dBm @MCS0 11g: -72dBm@54Mbps, -90 dBm @6Mbps 11b: -85dBm@11Mbps, -94 dBm @1Mbps |
EVM | 802.11n:≤-28dB 802.11g: ≤-25 dB 802.11b:≤-10dB |
Frequency offset(ppm) | ±20ppm |

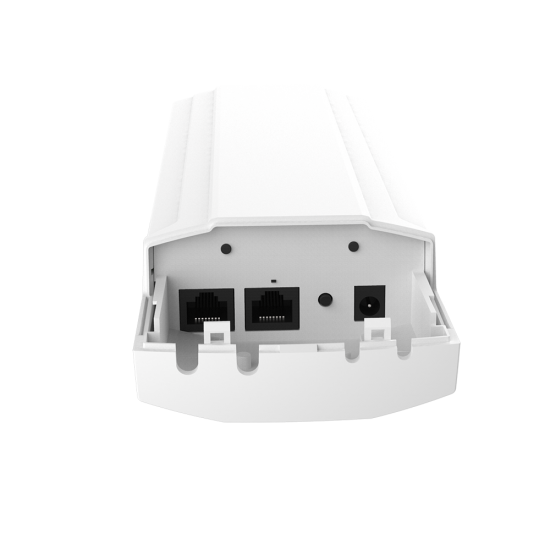

Interface | 1 * 10/100Mbps adaptive LAN port 1 * 10/100Mbps adaptive LAN /WAN port; poe 24V, 1.0A 1 * DC injector, 12V/1.5A 1 * Reset button |
Operation mode | Wireless AP, Gateway, WISP, WiFi Repeater |
Reset key | Reset key (press and hold for 1 second to recover the factory default configuration) |
Status indicator | SYS light, WIFI light, WAN port light, LAN port light |
Antenna | Built in 2.4G omnidirectional antenna; gain: 5dBiantennas; gain: 5dBi |
Protection safety level | IP65 |
Working power | < 10W |
Product size | 257mm * 87mm * 38mm |
Work environment | Working temperature: -40 ° C ~ 55 ℃ Storage temperature: - 40 ° C ~ 70 ° C Humidity: 5% ~ 95% (no condensation) |
Features:
- Professional outdoor shell, up to IP65, dustproof, waterproof, no fear of wind and rain.
- Industrial grade CPU, wide temperature - 40 ~ + 70 ℃, continuous and stable operation.
- Support 64+ multi-user access to the Internet at the same time.
- Two 5dBi high gain omnidirectional antennas.
- With POE power supply and remote reset functions.
Package Includes:
1 * 300Mbps dual band wireless AP
1 * Adapter
1 * Network cable
1 * Instruction manual(The English manual is electronic version)
1 * Warranty card
1 * Setting accessory
