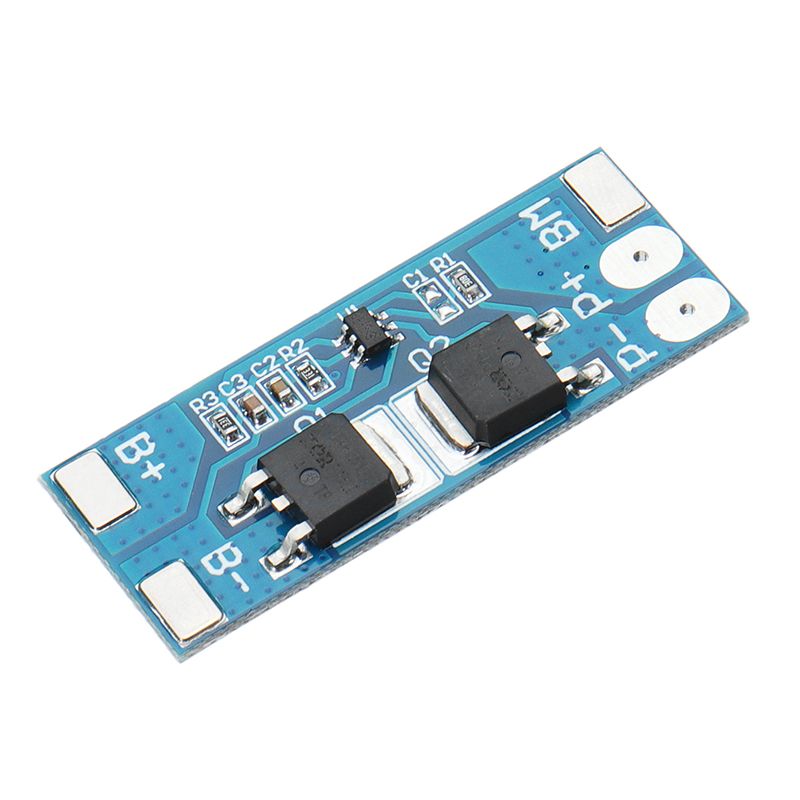

2S 7.4V 8A Peak Current 15A 18650 Lithium Battery Protection Board With Over-Charge Discharge Protection Function

2S 7.4V 8A Peak Current 15A 18650 Lithium Battery Protection Board With Over-Charge Discharge Protection Function
2S 7.4V 8A Peak Current 15A 18650 Lithium Battery Protection Board With Over-Charge Discharge Protection Function
2S 7.4V 8A Peak Current 15A 18650 Lithium Battery Protection Board With Over-Charge Discharge Protection Function
2S 7.4V 8A Peak Current 15A 18650 Lithium Battery Protection Board With Over-Charge Discharge Protection Function
2S 7.4V 8A Peak Current 15A 18650 Lithium Battery Protection Board With Over-Charge Discharge Protection Function
2S 7.4V 8A Peak Current 15A 18650 Lithium Battery Protection Board With Over-Charge Discharge Protection Function
2S 7.4V 8A Peak Current 15A 18650 Lithium Battery Protection Board With Over-Charge Discharge Protection Function
2S 7.4V 8A Peak Current 15A 18650 Lithium Battery Protection Board With Over-Charge Discharge Protection Function
2S 7.4V 8A Peak Current 15A 18650 Lithium Battery Protection Board With Over-Charge Discharge Protection Function
2S 7.4V 8A Peak Current 15A 18650 Lithium Battery Protection Board With Over-Charge Discharge Protection Function
2S 7.4V 8A Peak Current 15A 18650 Lithium Battery Protection Board With Over-Charge Discharge Protection Function
2S 7.4V 8A Peak Current 15A 18650 Lithium Battery Protection Board With Over-Charge Discharge Protection Function
2S 7.4V 8A Peak Current 15A 18650 Lithium Battery Protection Board With Over-Charge Discharge Protection Function
2S 7.4V 8A Peak Current 15A 18650 Lithium Battery Protection Board With Over-Charge Discharge Protection Function
2S 7.4V 8A Peak Current 15A 18650 Lithium Battery Protection Board With Over-Charge Discharge Protection Function
2S 7.4V 8A Peak Current 15A 18650 Lithium Battery Protection Board With Over-Charge Discharge Protection Function
2S 7.4V 8A Peak Current 15A 18650 Lithium Battery Protection Board With Over-Charge Discharge Protection Function
$6.99
Ex Tax: $6.99
  • Stock: In Stock
  • Model: EB0046577
  • SKU: EB0046577
  • Number of Strings: 2S
    Precise details>>
    Description:

    Model: HX-2S-01
    Type: Voltage Regulator
    Dissipation Power: 50W
    Supply Voltage: 8.4V
    Application: 18650 lithium battery
    Overcharge voltage range: 4.25-4.35v±0.05V
    Over-discharge voltage range: 2.5-3.0v±0.05V
    Working current: 0-5A
    Working temperature: -40---+50 °C
    Instantaneous current: 6-7A
    Storage conditions: -40-- +80 ° C
    Quiescent current: less than 5uA
    Effective life: more than 50,000 hours
    Internal resistance: less than 300mΩ
    Short circuit protection: protection, charge recovery

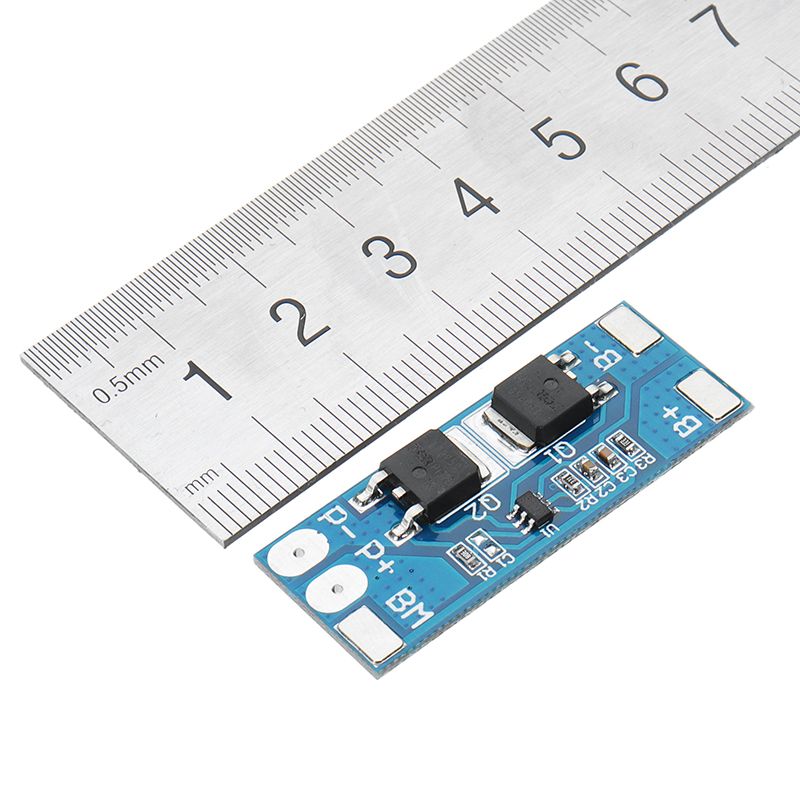

    Size: 38*8*2.6mm

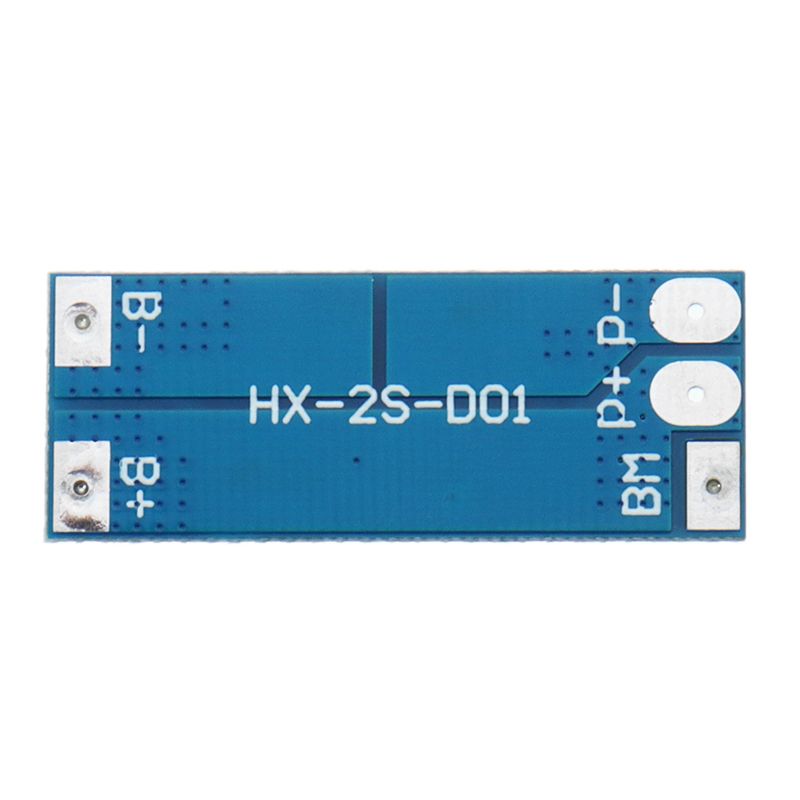

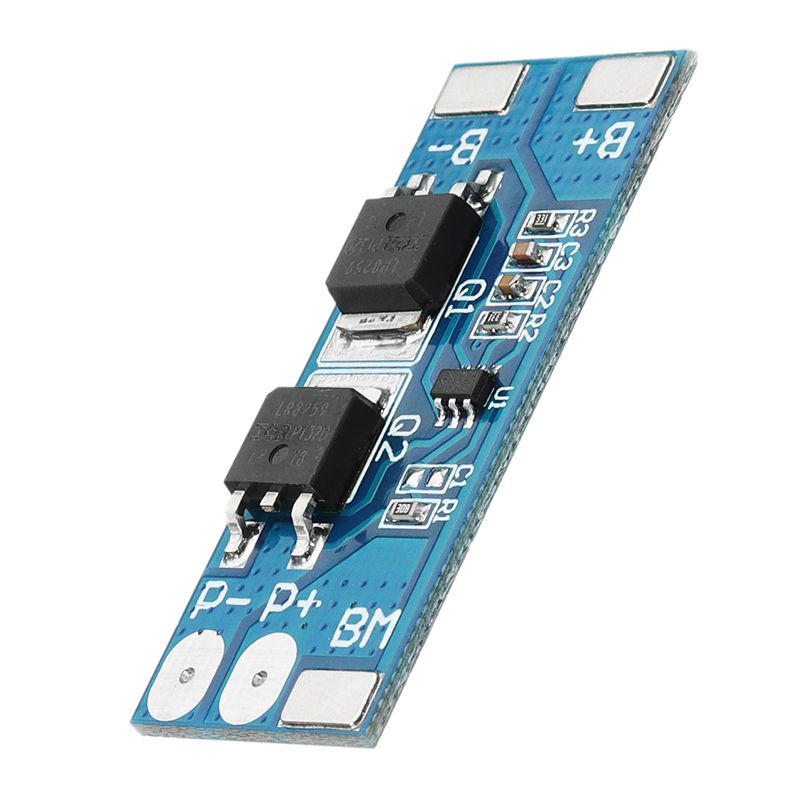

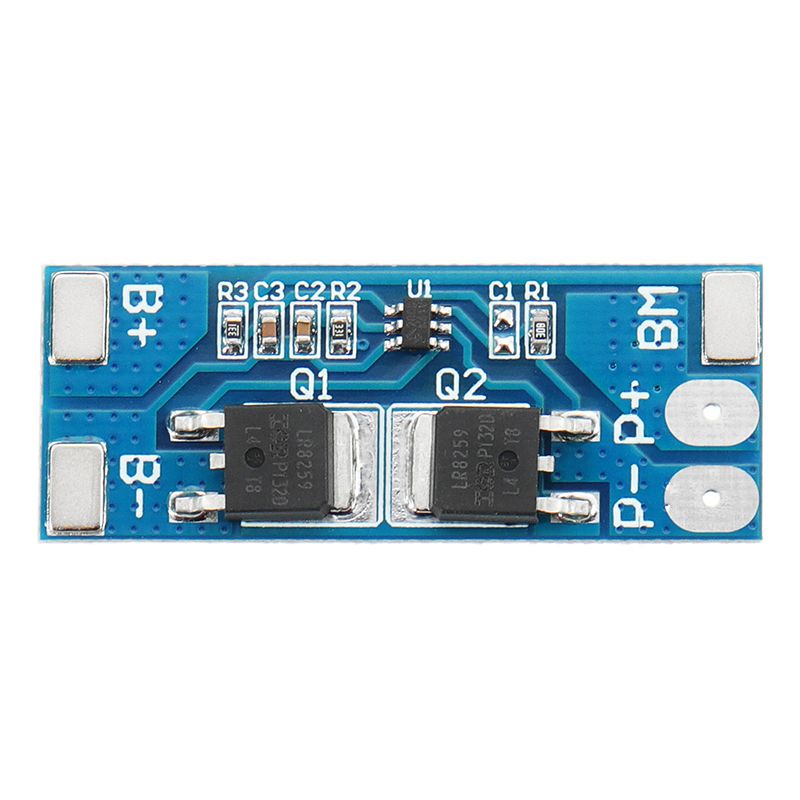

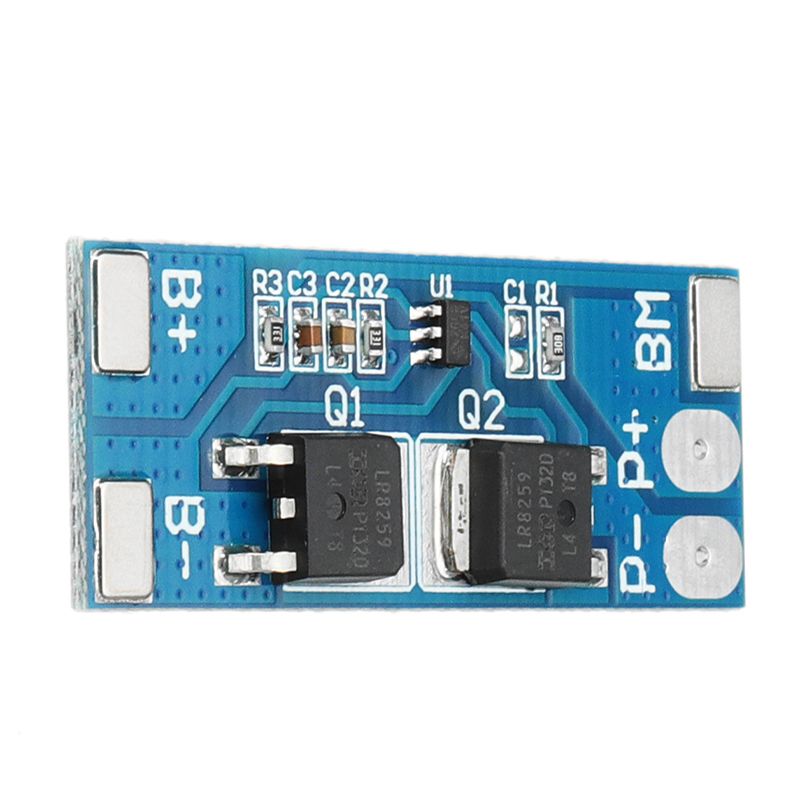

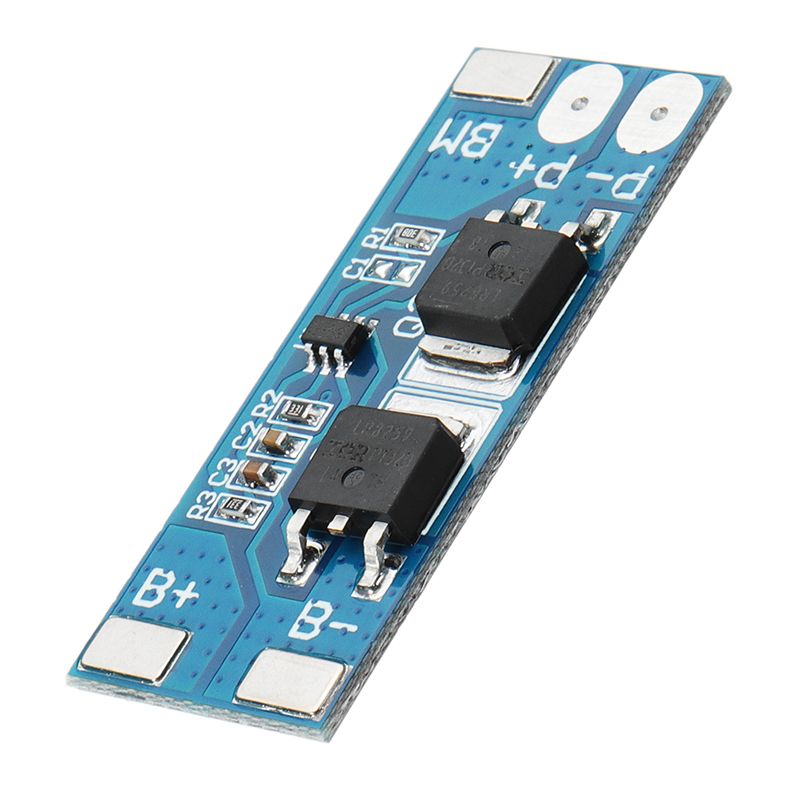

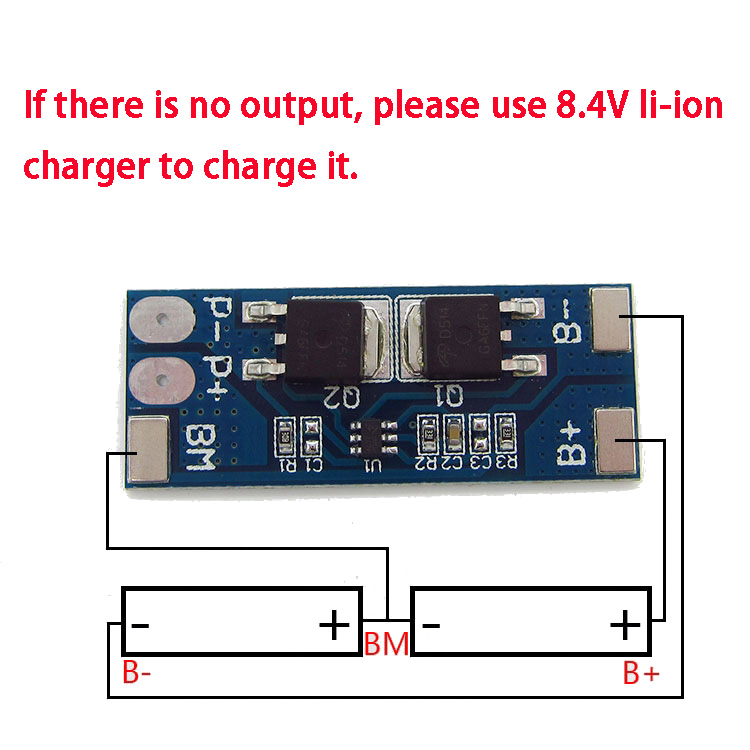

    Solder joint description:

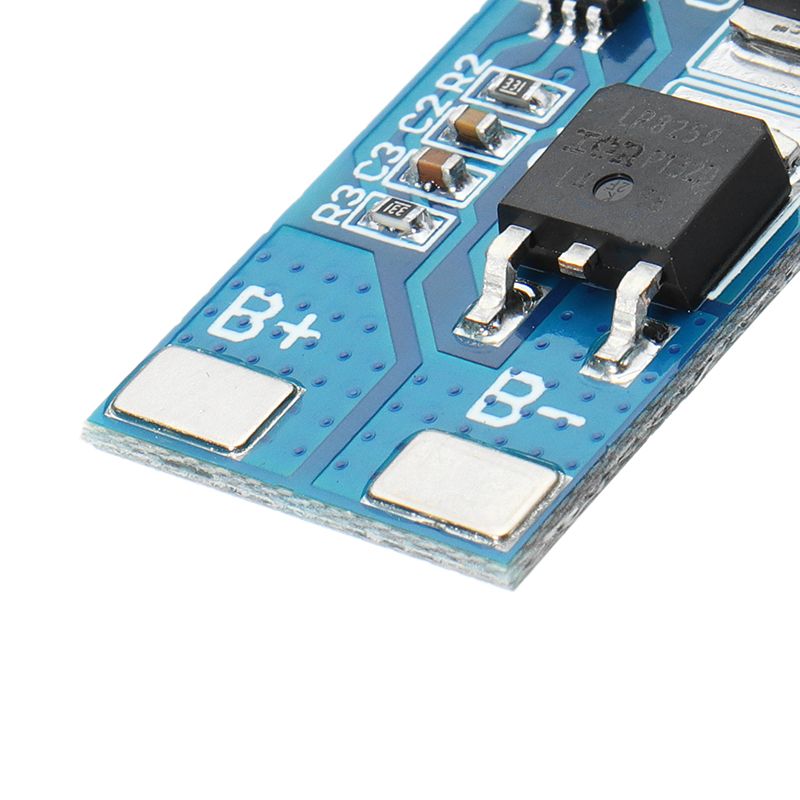

    B+: Connect the battery positive pole;
    B-: Connect the battery negative pole;
    MB: Connect the connection point between battery 1 and battery 2;
    P+: charging/discharging terminal positive (common terminal/discharge terminal shared);
    P-: Connect the negative terminal of the charge/discharge terminal (common to the charge terminal/discharge terminal).

    Package included:

    1 x 2S 8A lithium battery protection board
