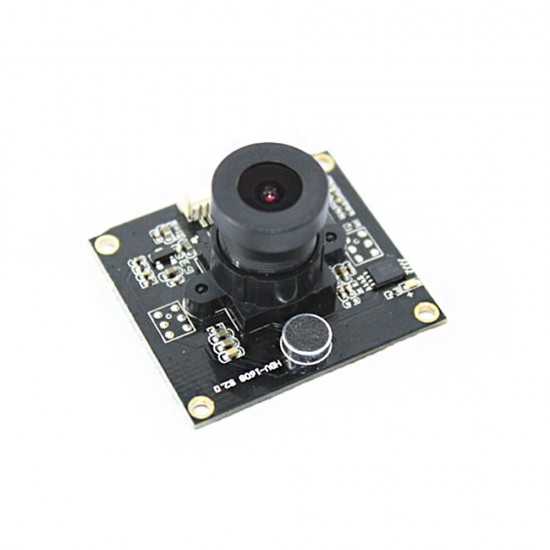

2MP OV2643 Wide Angel Lens 120 Degree Mini COMS Camera Module with Microphone
- Stock: In Stock
- Model: EB0049316
- SKU: EB0049316
Specifications:
| Model No. | HBVCAM-1609 S1.0 |
| Model Size | 35mm × 31.5mm × 18.5mm±0.5MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power supply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 400 mW |
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linuxwith uvc |
| Sensor | OV2643 (1/4” ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 1600*1200 |
| Sensitivity | 1250mv /(lux-sec) |
| Pixel Size | 2.2μm x 2.2μm |
| Maximum Image Transfer Rate | MJPEG 320x240 30FPS / YUY2 320x240 30FPS |
| S/N Ratio | 39B |
| Max Dynamic Range | 62B |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | NO |
| Lens Construction | 4G+R |
| F/No | 2.0 |
| EFL | 2.6 mm |
| FOV | 90° |
| TV Distortion | <-50% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
| USB cable | 50CM 1M 2M 3M |
Package Included:

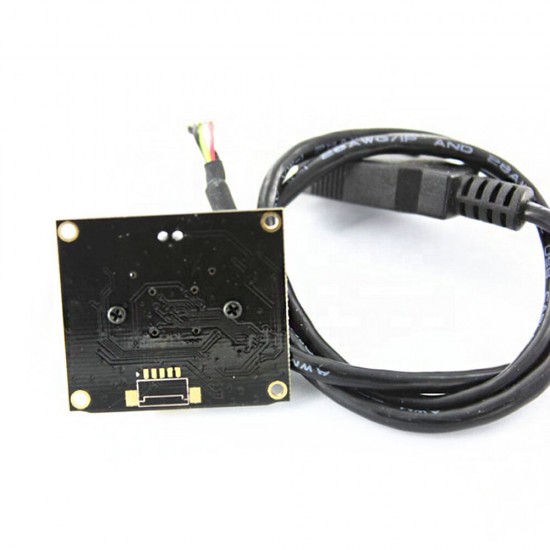

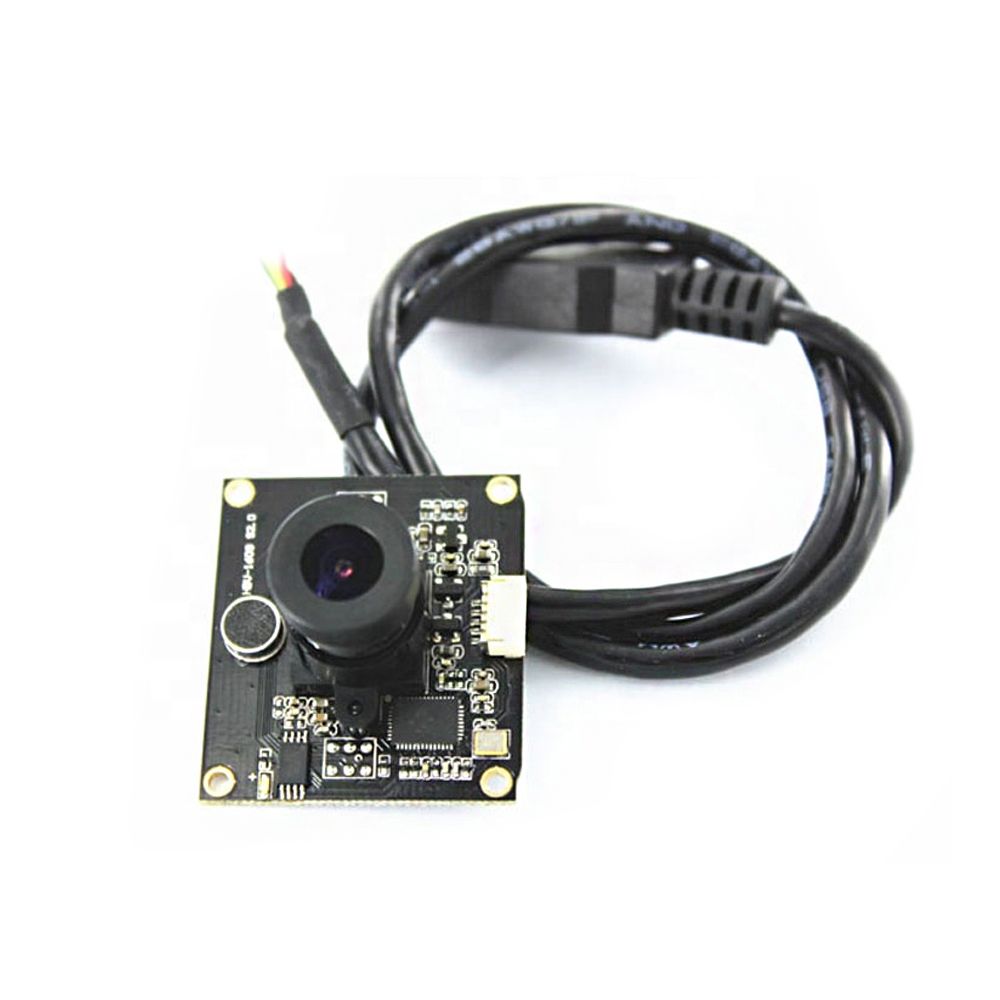

1 x 2MP OV2643 120 Degree Mini COMS Camera Module
1 x USB Cable
Note:
A. Purchase quantity ≥20, support lens replacement
B. Purchase quantity ≥500, support customization
1. First explain the specific parameter requirements of the product you need, the more detailed the better.
2. Provide product size structure diagram, PIN angle definition, etc.
