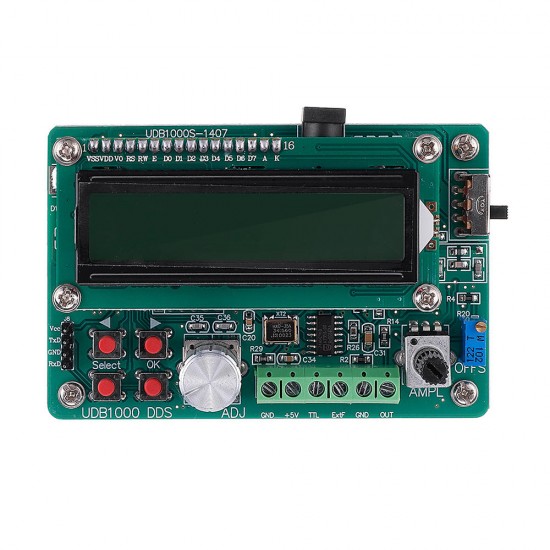

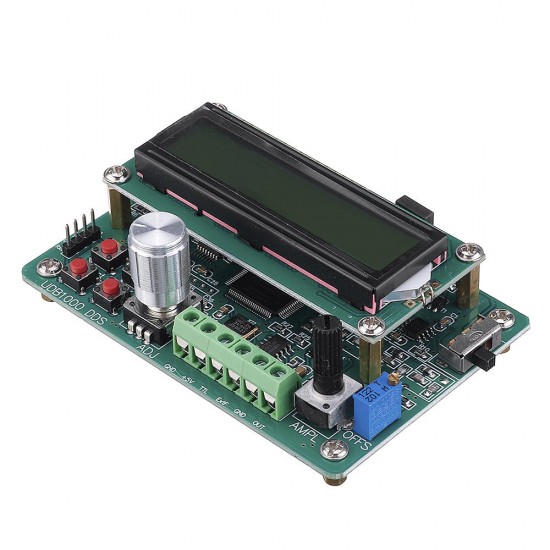

2MHz UDB1002S DDS Signal Generator LCD1602 Sweep Function Source Sine Triangle Sawtooth Wave

Based on 0 reviews. - Write a review

$44.99

Ex Tax: $44.99

Stock: In Stock
Model: EB0047362
SKU: EB0047362

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description:

This is a complete DDS signal source, Adopts DC5V power supply, can output the sine wave, square wave (Duty cycle Can be adjusted from1% -99%), triangle wave and sawtooth wave and various function waveform, maximum output can reach up to 10 Vpp, frequency range from 0.01 Hz-2 MHz. Resolution for 10 MHz, with TTL synchronization output and 60 MHz frequency meter.

Specifications:

* MAX Frequency: 2MHz

* Wave form: Sine wave, square wave, triangle wave and sawtooth wave

* Max output: 10Vpp(no-load)

* Otput Resistance: 50Ω±10%

* DC bias: ±5V

* Duty cycle: 1%-99%

* Display: LCD1602

* Output frequency range:

* sine wave: 0.01Hz-2MHz

* Square-wave: 0.01 Hz - 1MHz (the valid range)

* Triangle wave: 0.01 Hz - 1MHz (the valid range)

* Sawtooth wave: 0.01 Hz ~ 1MHz (the valid range)

* Resolution: 0.01 Hz

* Frequency stability: + 1 x 10-6

* Frequency error: + 5 x 10-6

* Sine wave distortion degree: < 1% (benchmark frequency 1kHz)

* Triangle wave linearity: 0.01 Hz ~ 100 KHZ 98%; 95%, 100 KHZ ~ 1MHz;

* Square-wave rising and falling time: < 30ns

* TTL output: TTL level: Vp - p. 3 p, Take 20TTL load load capacity

* The external measurement functions:

* Frequency range: 60MHz~1Hz

* Vpp - signal amplitude: 0.5 20Vpp

* Storage and append the: has 10 groups with v function parameters storage

Package includes:

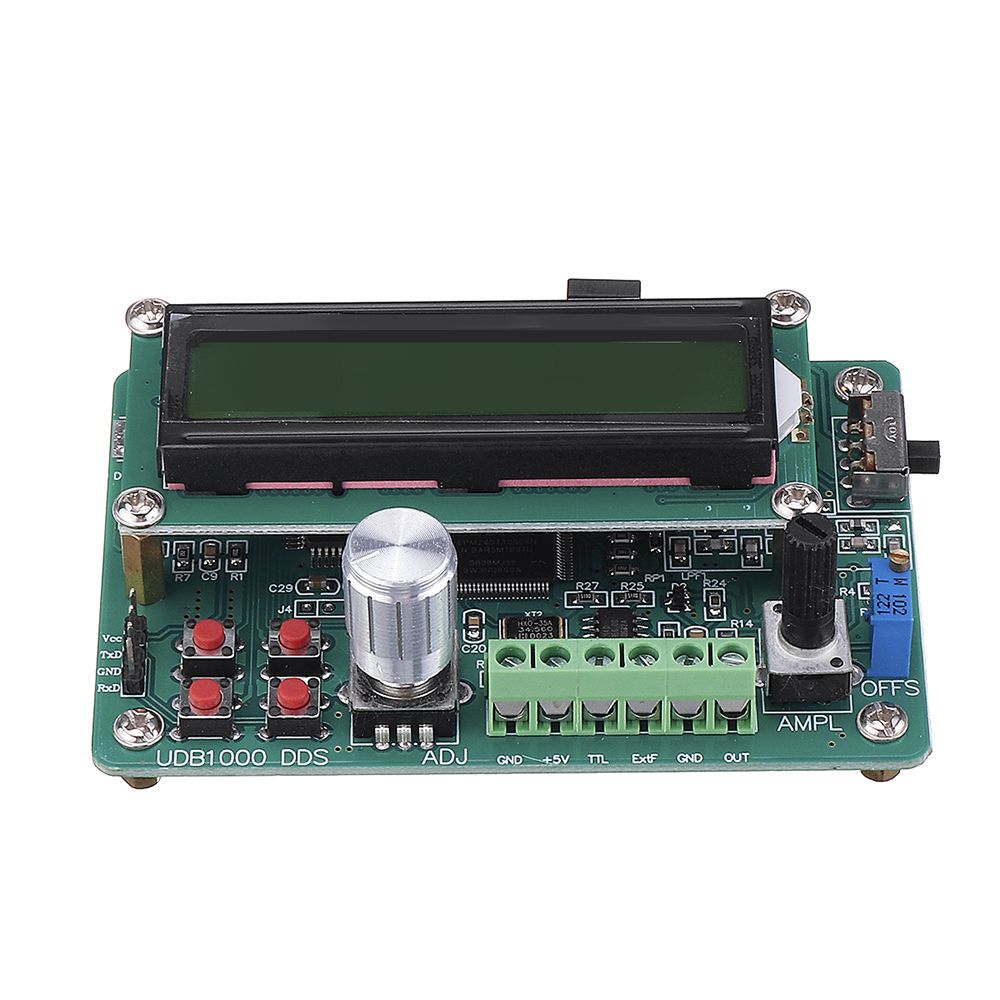

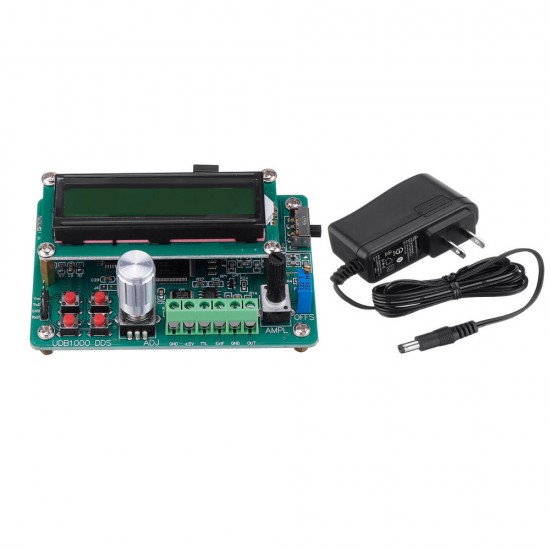

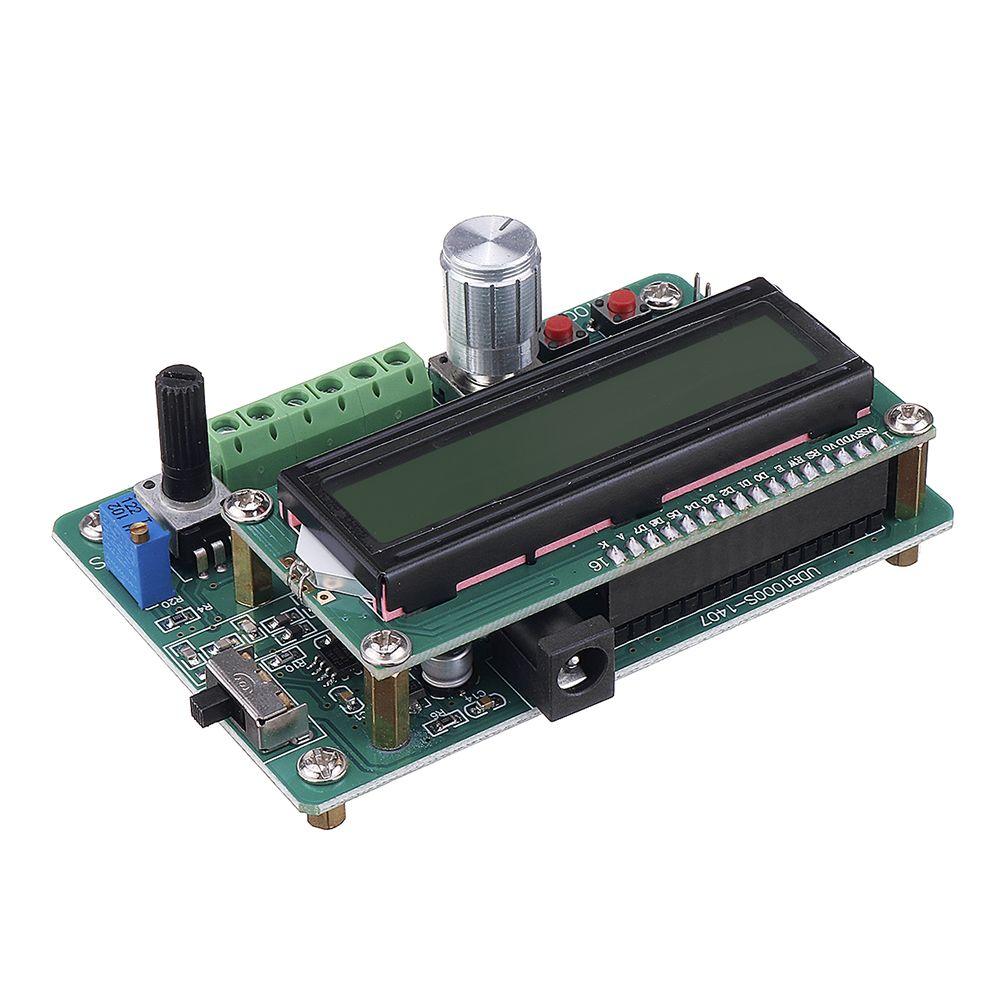

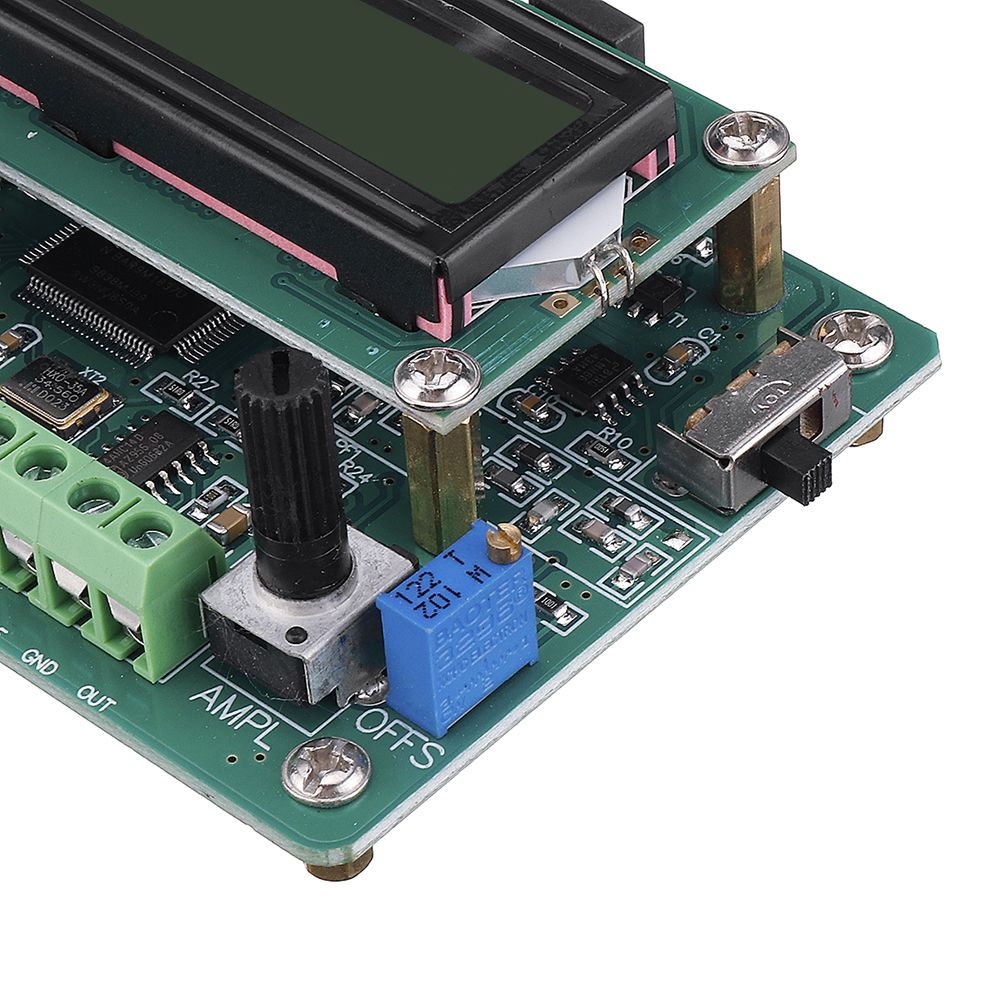

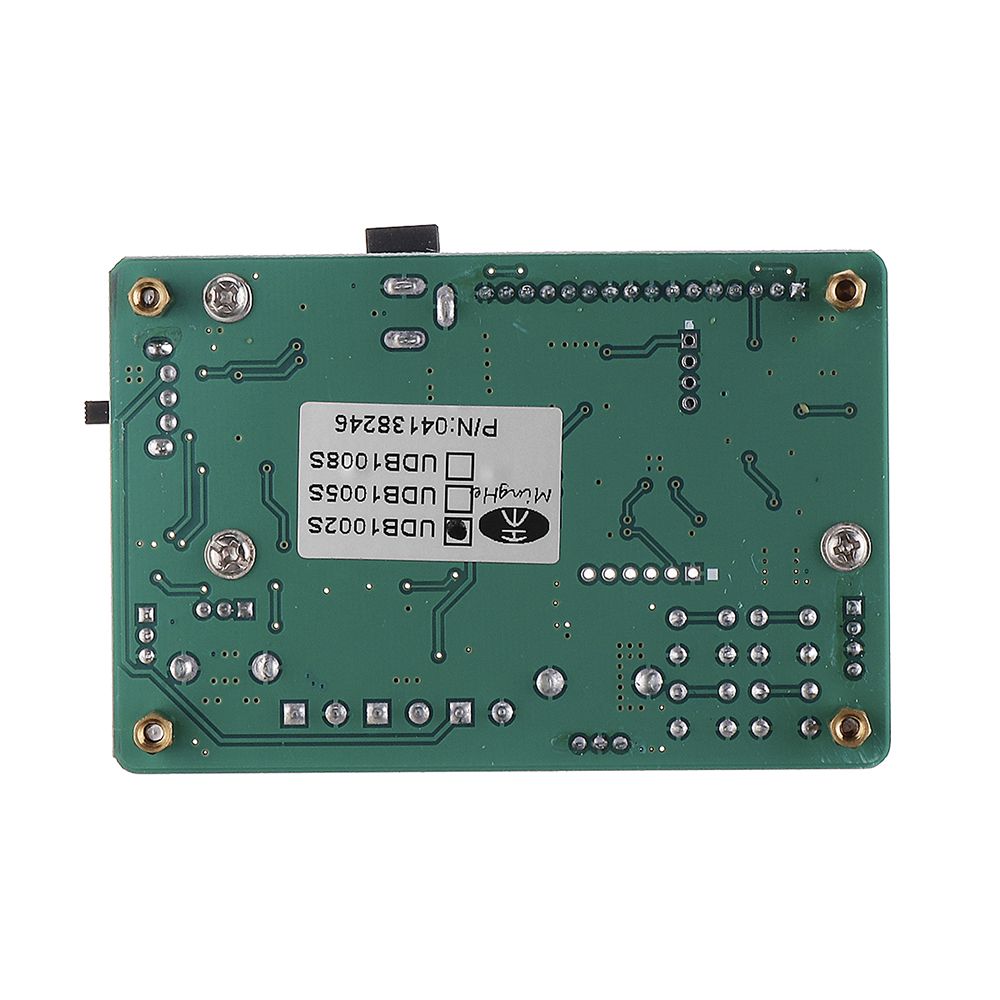

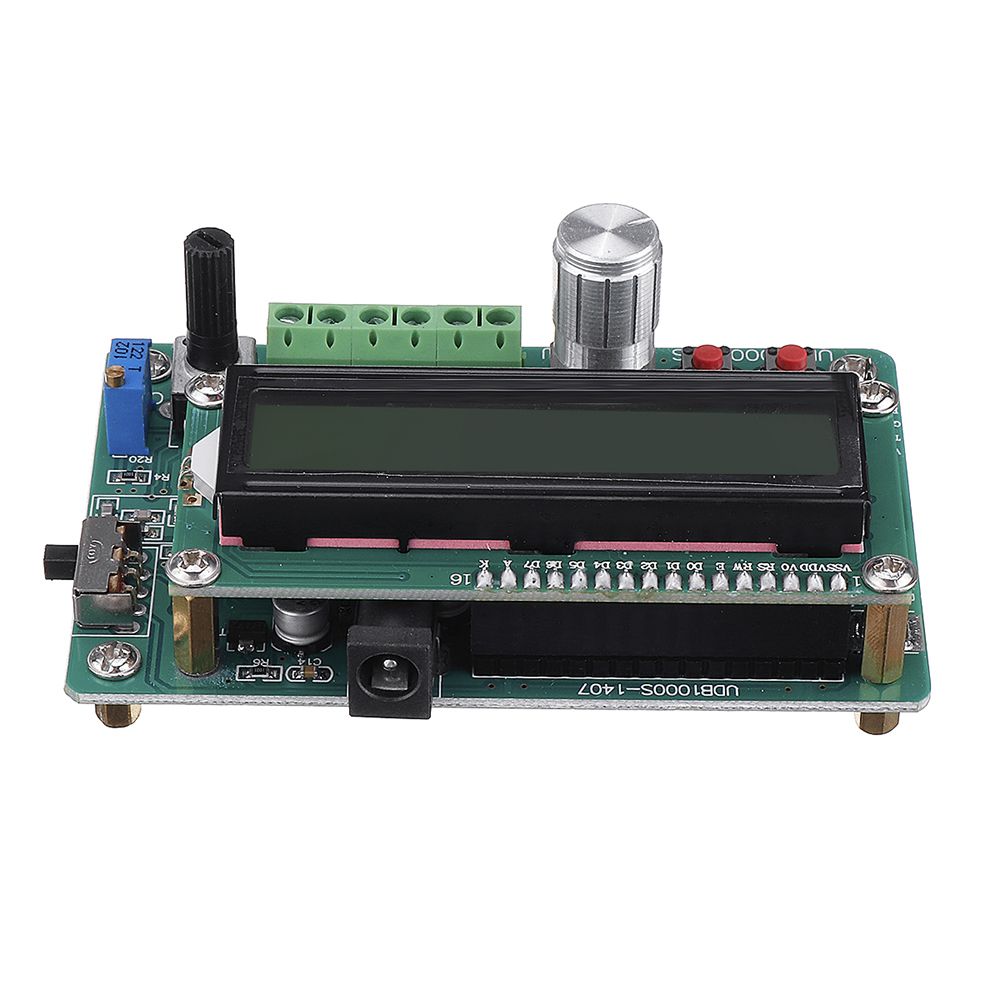

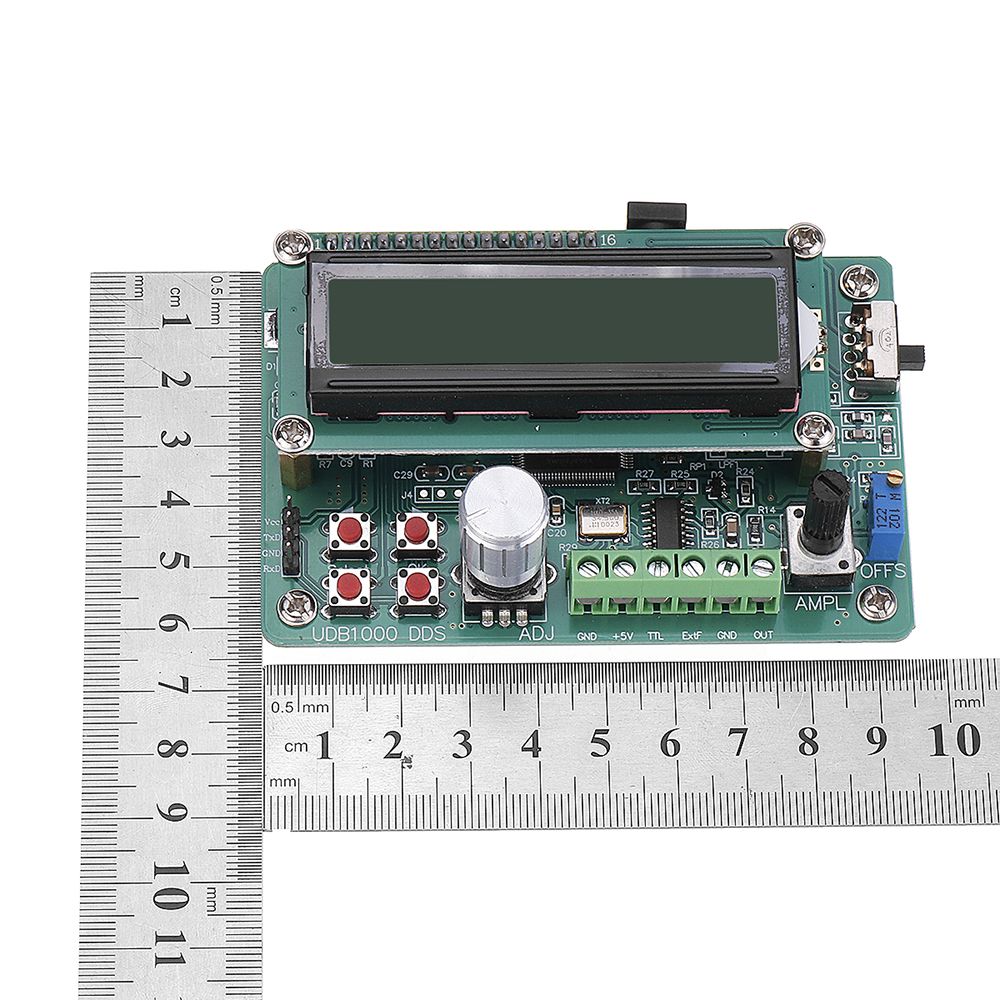

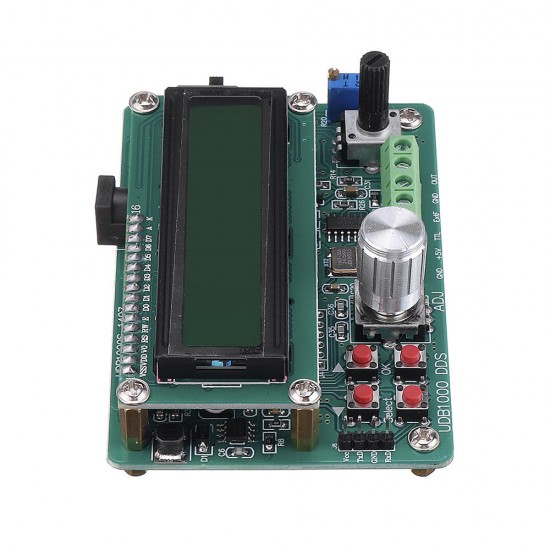

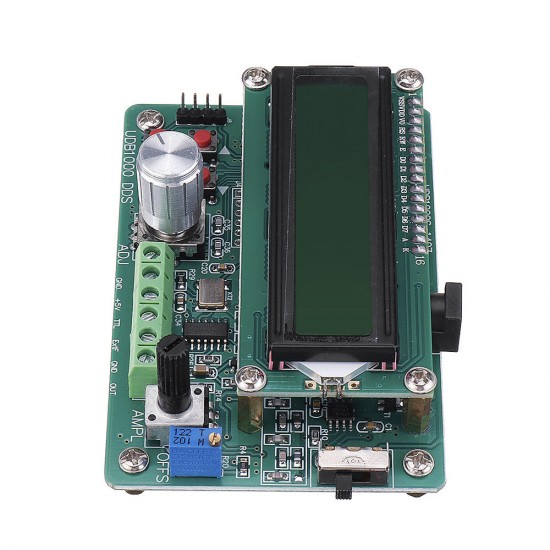

1 x DDS Function Signal Generator

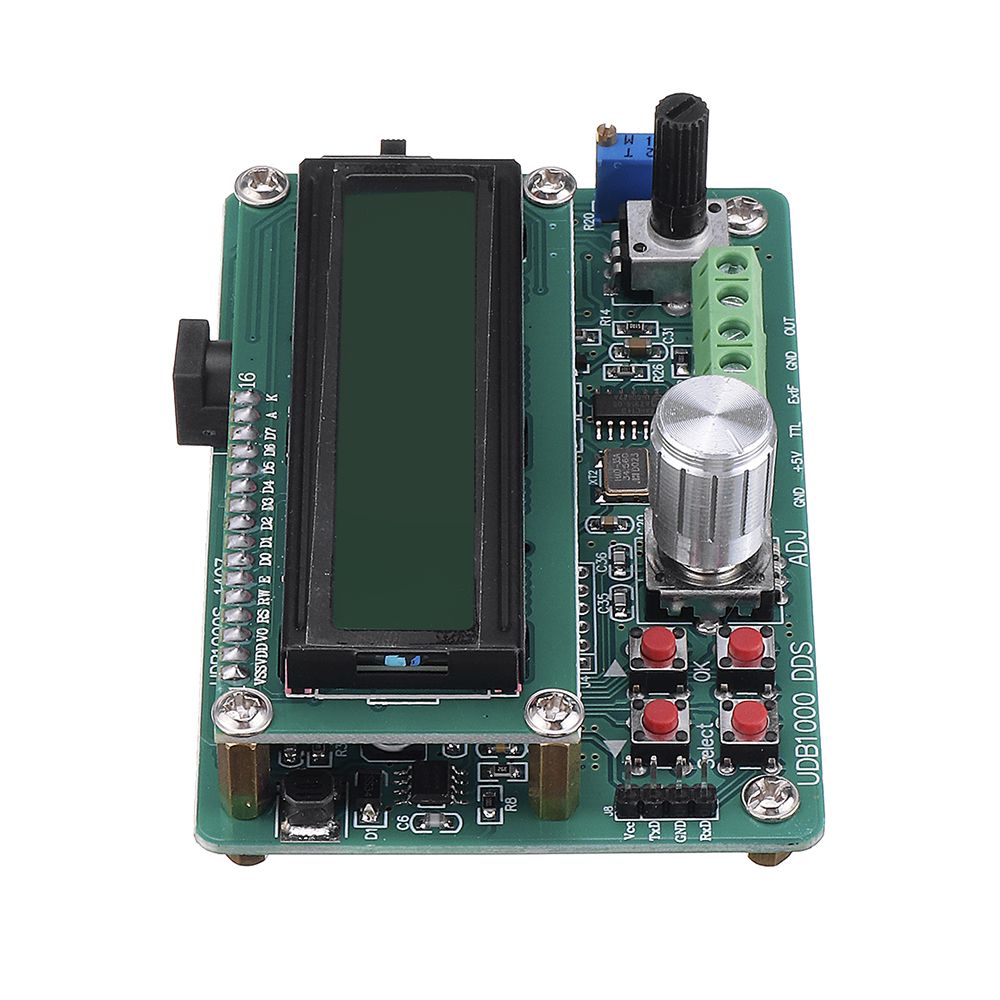

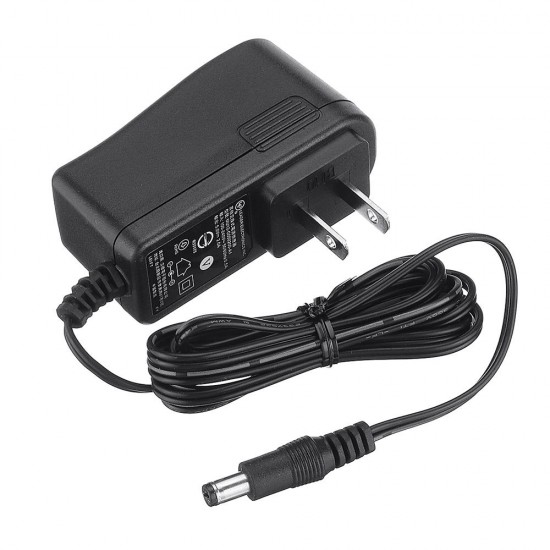

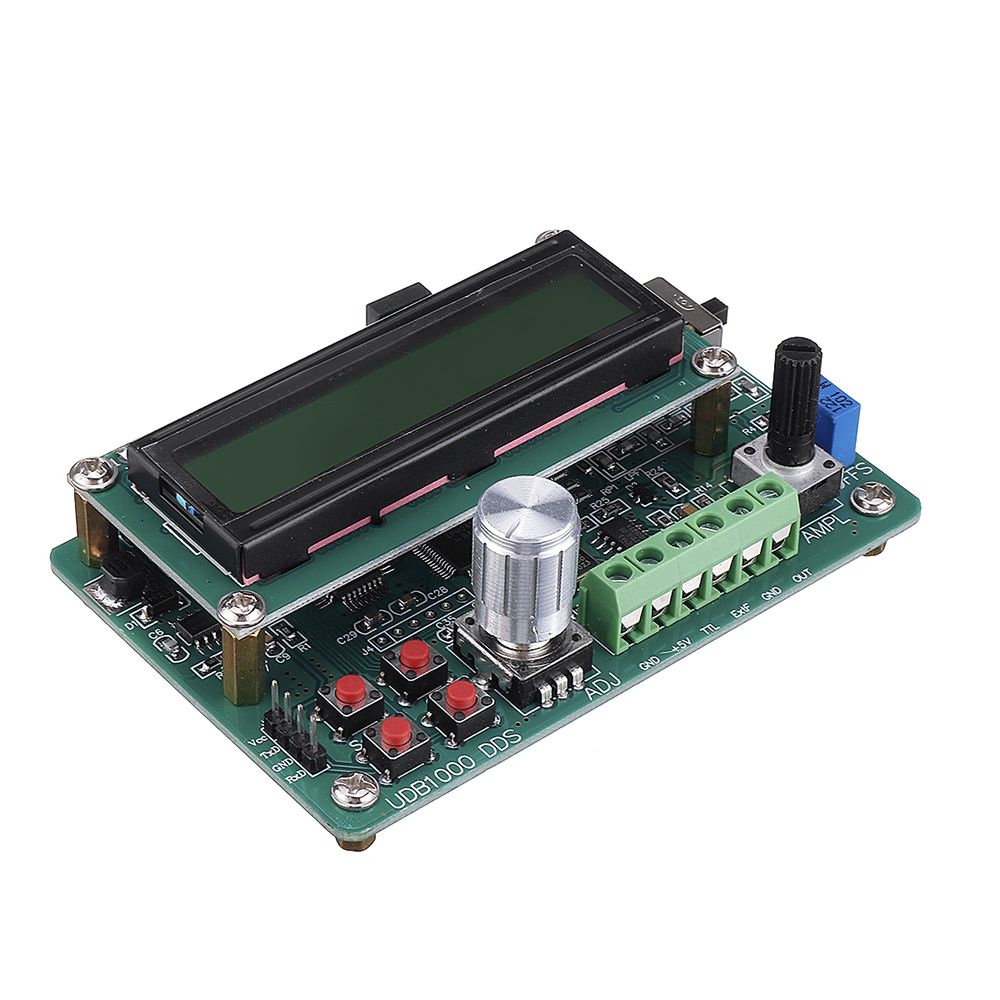

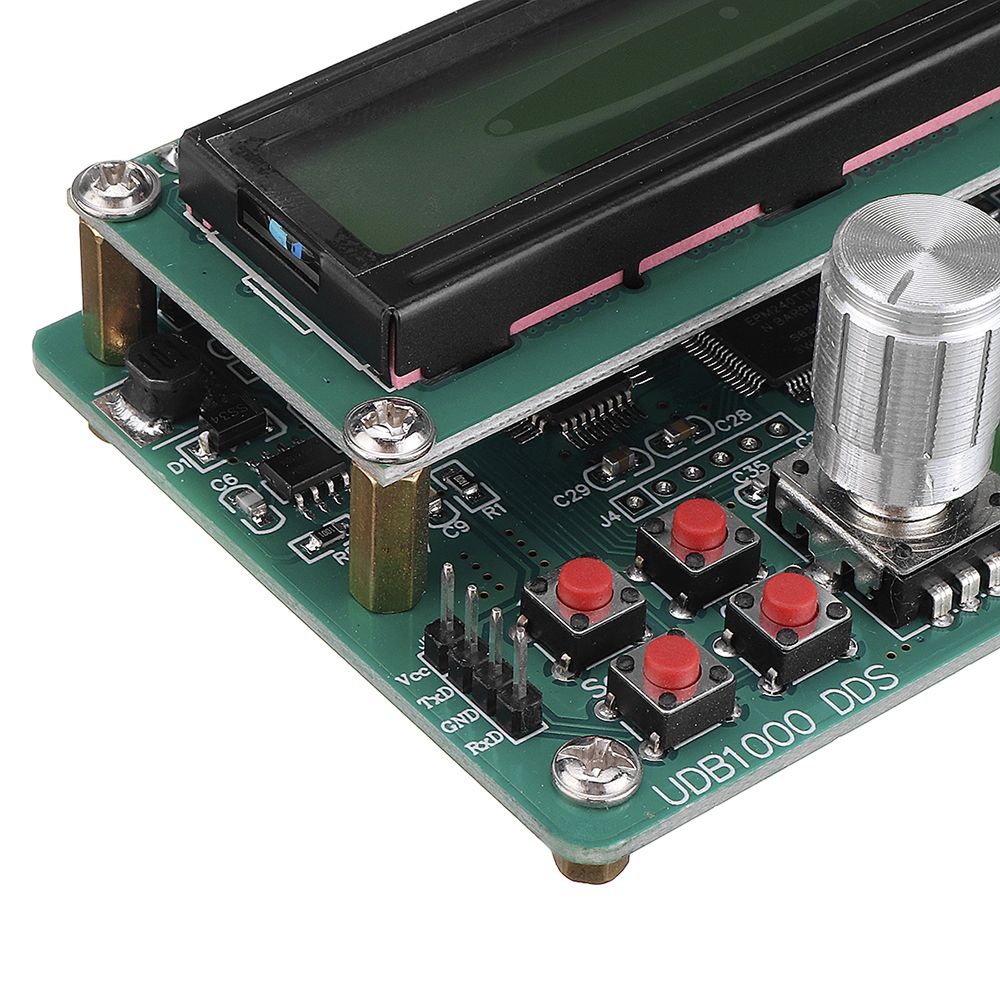

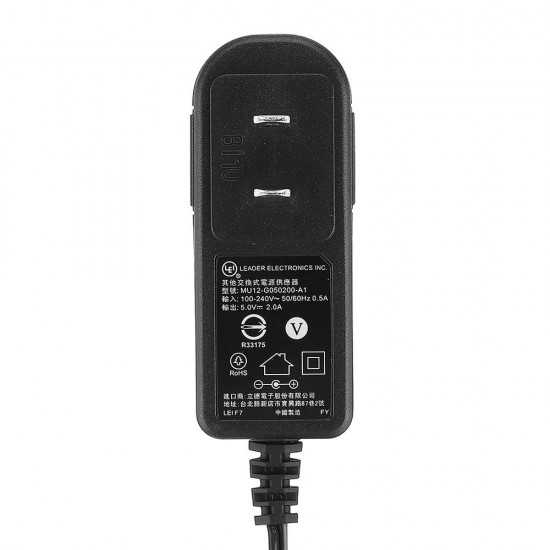

1 x 5V Power Supply
