20pcs IO15B01 6A DC 3V 3.3V 3.7V 5V Electronic Switch Latch Bistable Self-locking Trigger Module Board for LED Motor Driver Solar Lithium Battery

20pcs IO15B01 6A DC 3V 3.3V 3.7V 5V Electronic Switch Latch Bistable Self-locking Trigger Module Board for LED Motor Driver Solar Lithium Battery
20pcs IO15B01 6A DC 3V 3.3V 3.7V 5V Electronic Switch Latch Bistable Self-locking Trigger Module Board for LED Motor Driver Solar Lithium Battery
20pcs IO15B01 6A DC 3V 3.3V 3.7V 5V Electronic Switch Latch Bistable Self-locking Trigger Module Board for LED Motor Driver Solar Lithium Battery
20pcs IO15B01 6A DC 3V 3.3V 3.7V 5V Electronic Switch Latch Bistable Self-locking Trigger Module Board for LED Motor Driver Solar Lithium Battery
20pcs IO15B01 6A DC 3V 3.3V 3.7V 5V Electronic Switch Latch Bistable Self-locking Trigger Module Board for LED Motor Driver Solar Lithium Battery
20pcs IO15B01 6A DC 3V 3.3V 3.7V 5V Electronic Switch Latch Bistable Self-locking Trigger Module Board for LED Motor Driver Solar Lithium Battery
20pcs IO15B01 6A DC 3V 3.3V 3.7V 5V Electronic Switch Latch Bistable Self-locking Trigger Module Board for LED Motor Driver Solar Lithium Battery
20pcs IO15B01 6A DC 3V 3.3V 3.7V 5V Electronic Switch Latch Bistable Self-locking Trigger Module Board for LED Motor Driver Solar Lithium Battery
20pcs IO15B01 6A DC 3V 3.3V 3.7V 5V Electronic Switch Latch Bistable Self-locking Trigger Module Board for LED Motor Driver Solar Lithium Battery
20pcs IO15B01 6A DC 3V 3.3V 3.7V 5V Electronic Switch Latch Bistable Self-locking Trigger Module Board for LED Motor Driver Solar Lithium Battery
20pcs IO15B01 6A DC 3V 3.3V 3.7V 5V Electronic Switch Latch Bistable Self-locking Trigger Module Board for LED Motor Driver Solar Lithium Battery
20pcs IO15B01 6A DC 3V 3.3V 3.7V 5V Electronic Switch Latch Bistable Self-locking Trigger Module Board for LED Motor Driver Solar Lithium Battery
20pcs IO15B01 6A DC 3V 3.3V 3.7V 5V Electronic Switch Latch Bistable Self-locking Trigger Module Board for LED Motor Driver Solar Lithium Battery
$40.99
Ex Tax: $40.99
  • Stock: In Stock
  • Model: EB0045022
  • SKU: EB0045022
Description:

Falling edge - triggered. Initial state after power no voltage output, once triggered, output terminal output the power supply votage, after once again trigger the output terminal no voltaged output, and so on.
Low standby power consumption, high output power.

Specifications:

Power supply voltage: DC 2.5V-6V
Standby current: less than 10uA
Driver IC is Dual P-channel MOSFET MEM2313,Maximum drive current is 6A
Allowing continuous output current:
5A(5V-6V)
4A(3.7V-5V)
2A(2.5V-3.7V)
Pin pitch:  2.54mm.

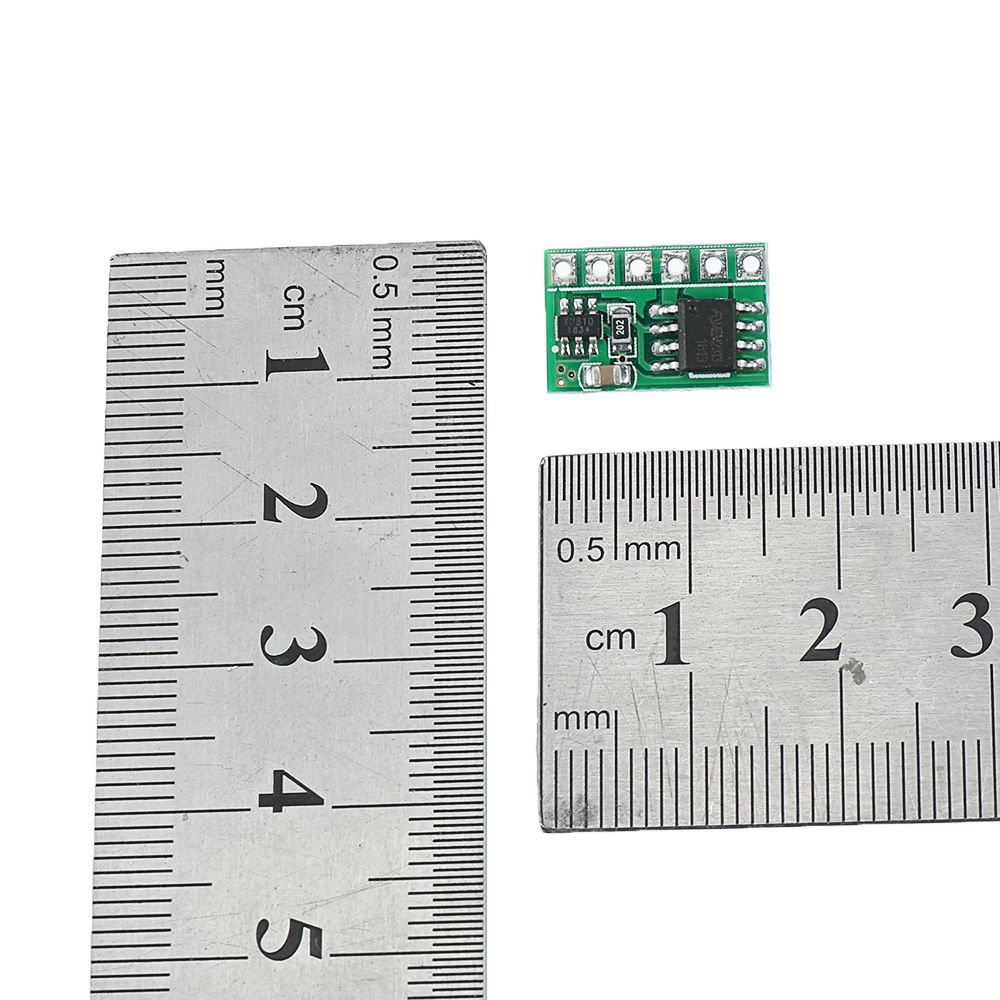

Size: 15.5 x 10 x 2.5mm

Note:

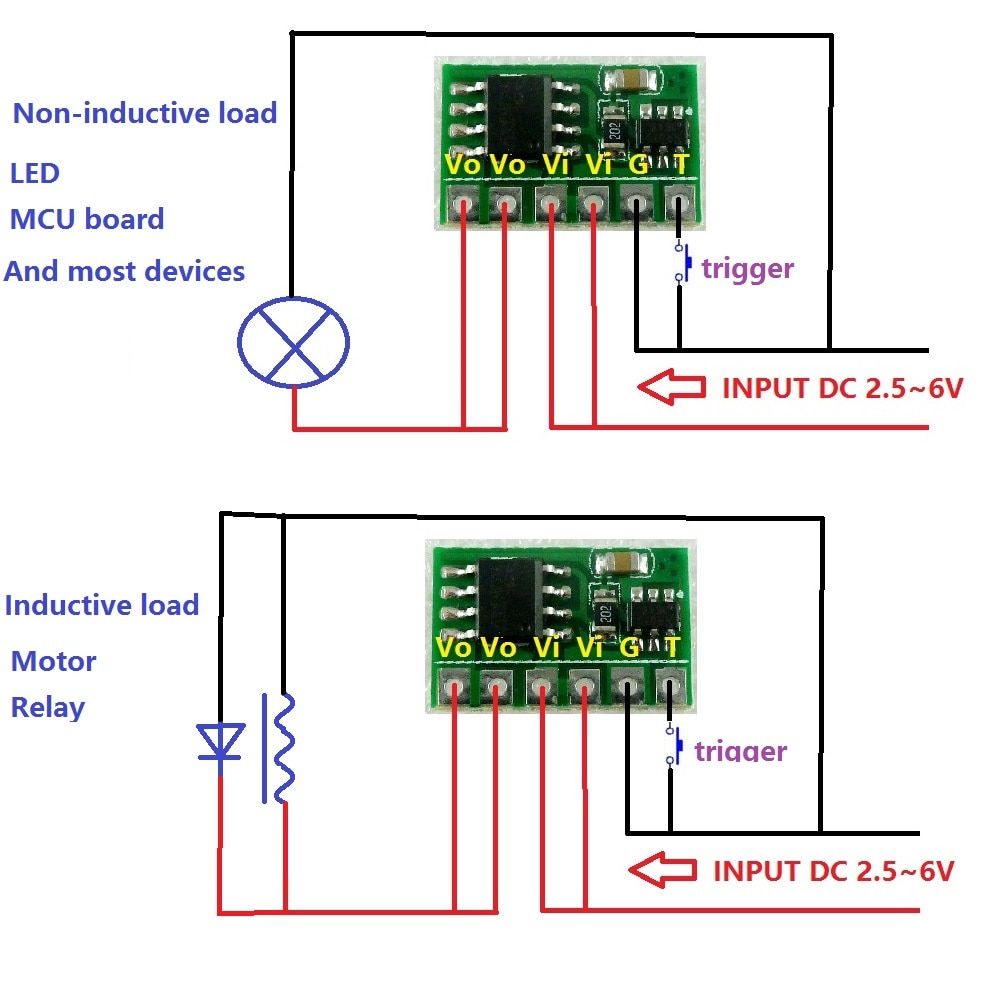

Inductive load, the load to the appropriate freewheeling diode in parallel to avoid damaged to the switching elements of the circuit.

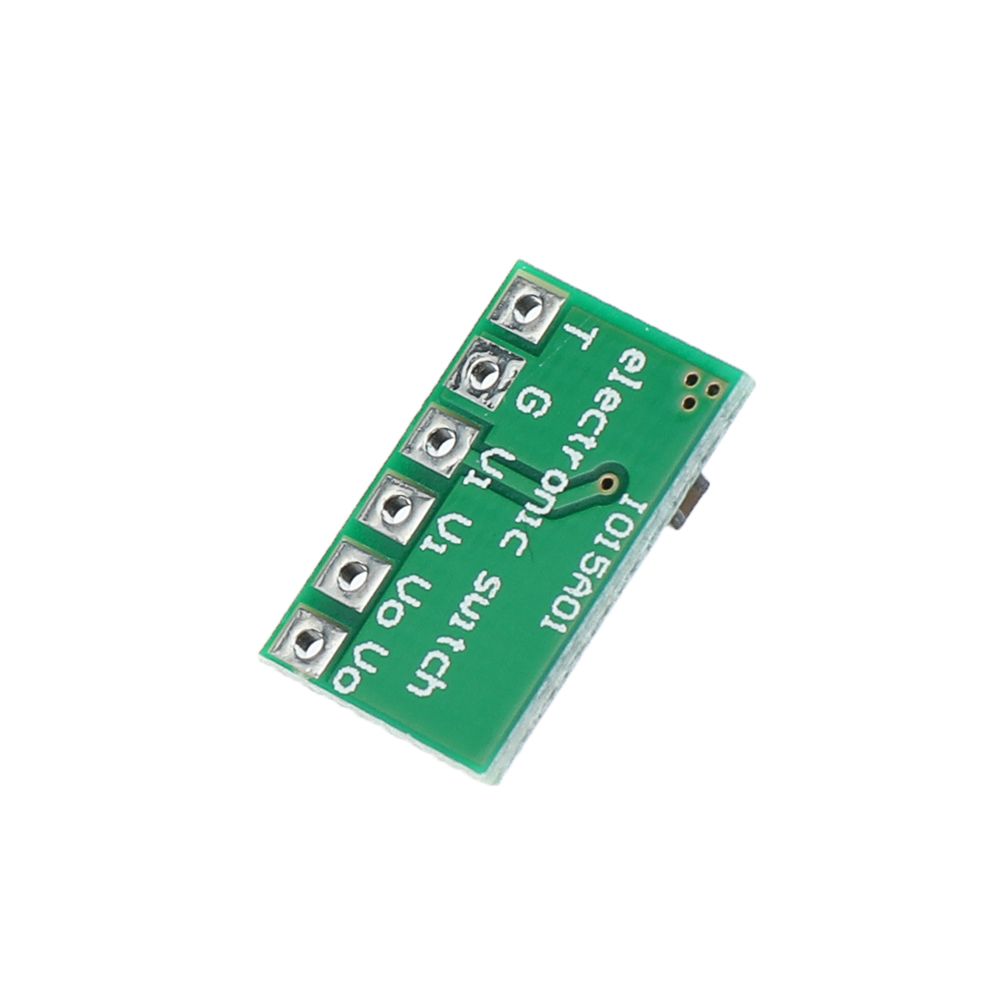

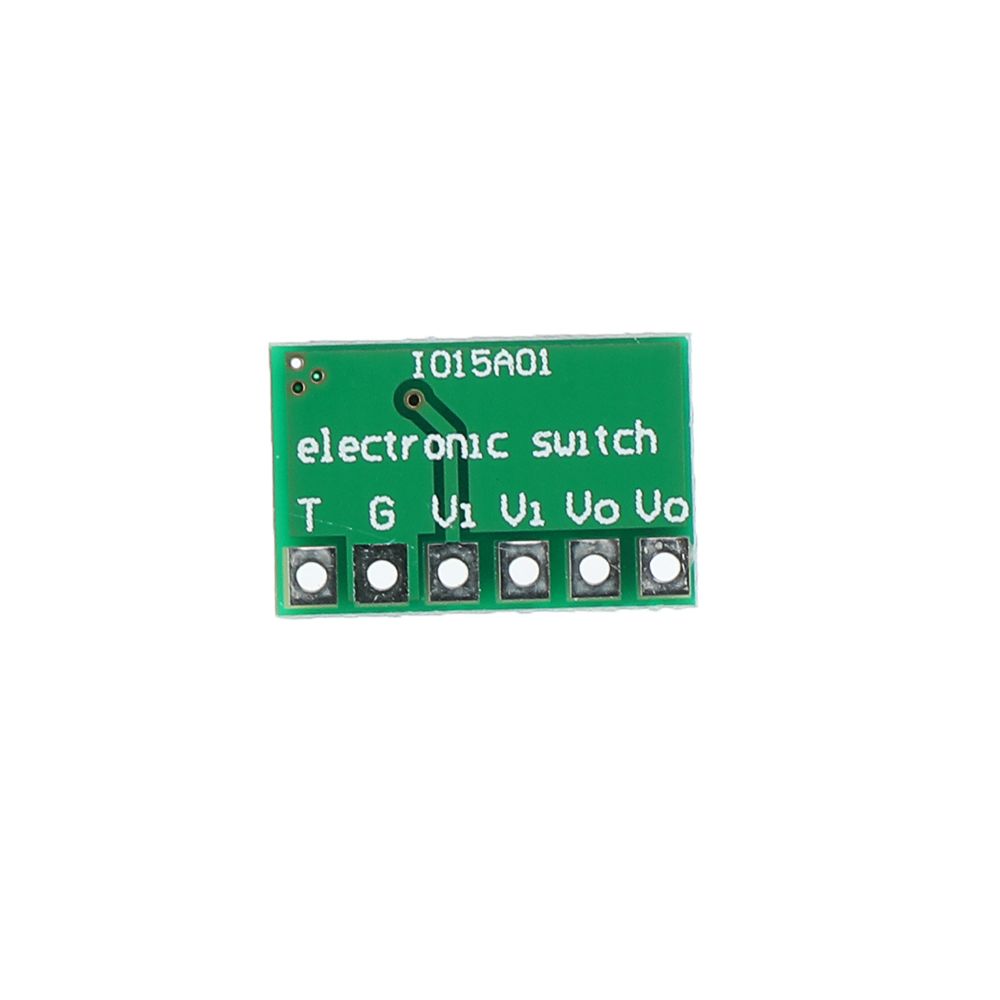

Pin Description:

Vo:output;
Vi:power supply;
G:power ground.
T:trigger signal input terminal;

Applications:

MCU Development Board
Motor
mobile power
LED Lighting
5V Relay
esp8266 WIFI MODULE
315M 433M Wireless remote controller



20pcs-IO15B01-6A-DC-3V-33V-37V-5V-Electronic-Switch-Latch-Bistable-Self-locking-Trigger-Module-Board-1656812

Package Included:

20 x Electronic Switch Latch Bistable Self-locking Trigger Module




20pcs-IO15B01-6A-DC-3V-33V-37V-5V-Electronic-Switch-Latch-Bistable-Self-locking-Trigger-Module-Board-1656812

20pcs-IO15B01-6A-DC-3V-33V-37V-5V-Electronic-Switch-Latch-Bistable-Self-locking-Trigger-Module-Board-1656812

20pcs-IO15B01-6A-DC-3V-33V-37V-5V-Electronic-Switch-Latch-Bistable-Self-locking-Trigger-Module-Board-1656812

20pcs-IO15B01-6A-DC-3V-33V-37V-5V-Electronic-Switch-Latch-Bistable-Self-locking-Trigger-Module-Board-1656812

20pcs-IO15B01-6A-DC-3V-33V-37V-5V-Electronic-Switch-Latch-Bistable-Self-locking-Trigger-Module-Board-1656812

20pcs-IO15B01-6A-DC-3V-33V-37V-5V-Electronic-Switch-Latch-Bistable-Self-locking-Trigger-Module-Board-1656812
