20pcs Cortex-M3 STM32F103C8T6 STM32 Development Board On-board SWD Interface Support Programmed with ST-LINK V2

Based on 0 reviews. - Write a review

$133.99

Ex Tax: $133.99

Stock: In Stock
Model: EB0041711
SKU: EB0041711

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description:

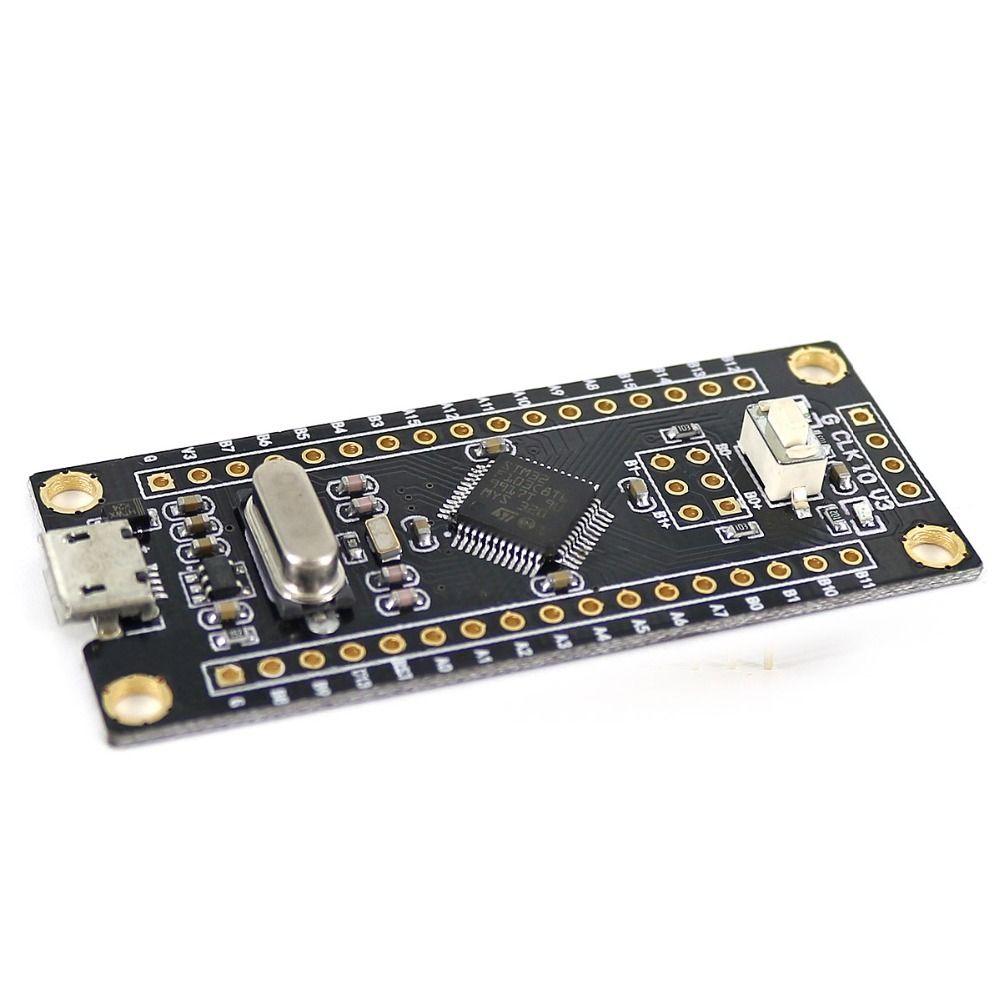

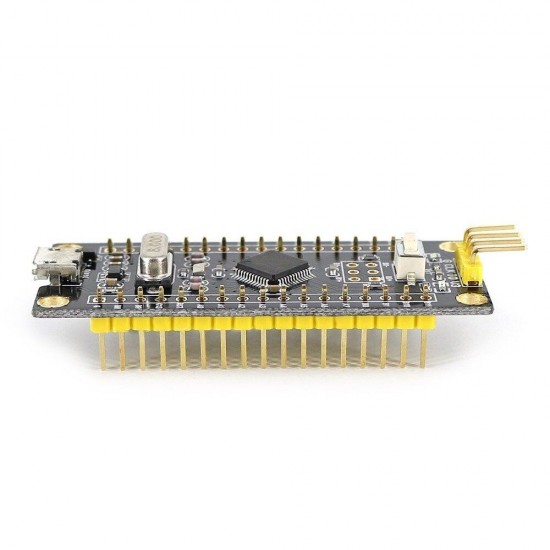

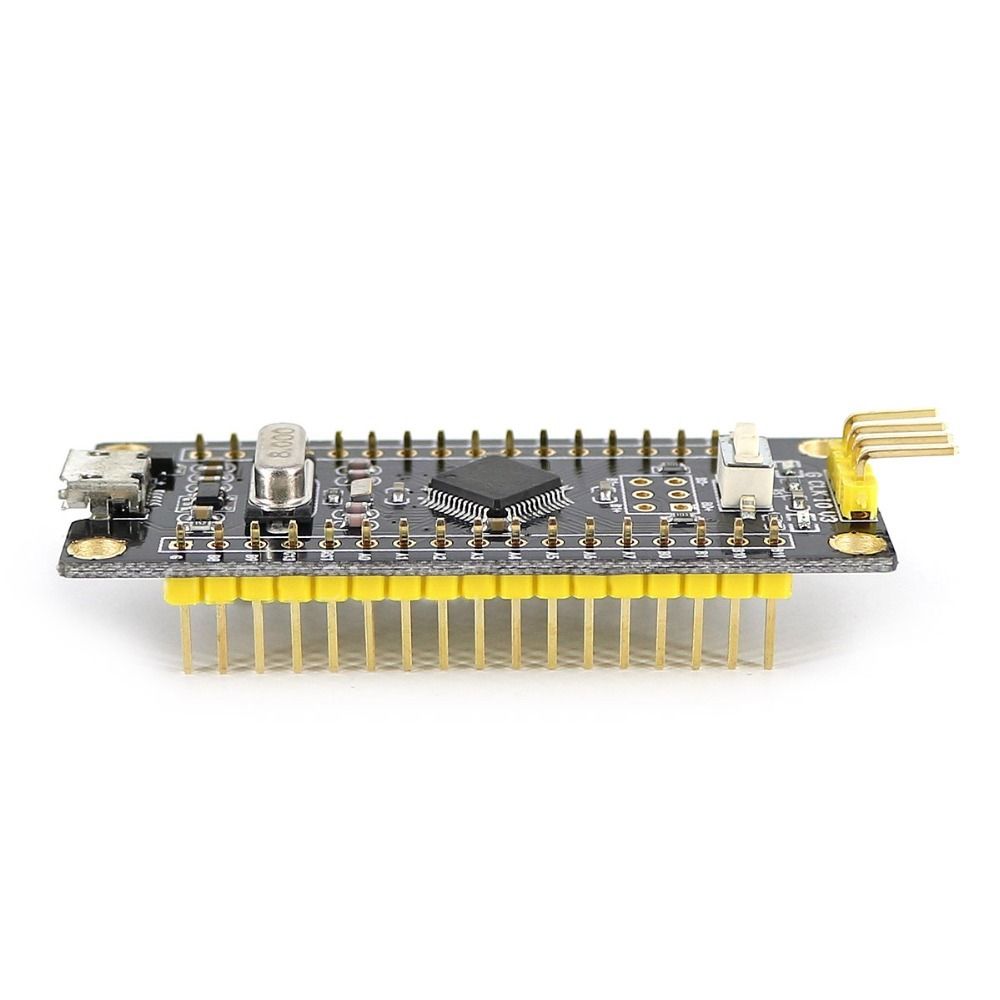

About STM32 development board:

- This board is very suitable for learners that want to learn STM32 microcontroller with ARM Coretex-M3 32-bit core.

- On-board SWD interface, and it can be programmed with ST-LINK V2.

- Immersion gold process, long service life;

- On-board reset button and power indicator LED.

- Power supply connector: USB socket

- On-board test indicator LED, and the beginners can program to control it.

- On-board 100ma 3.3V Regulator.

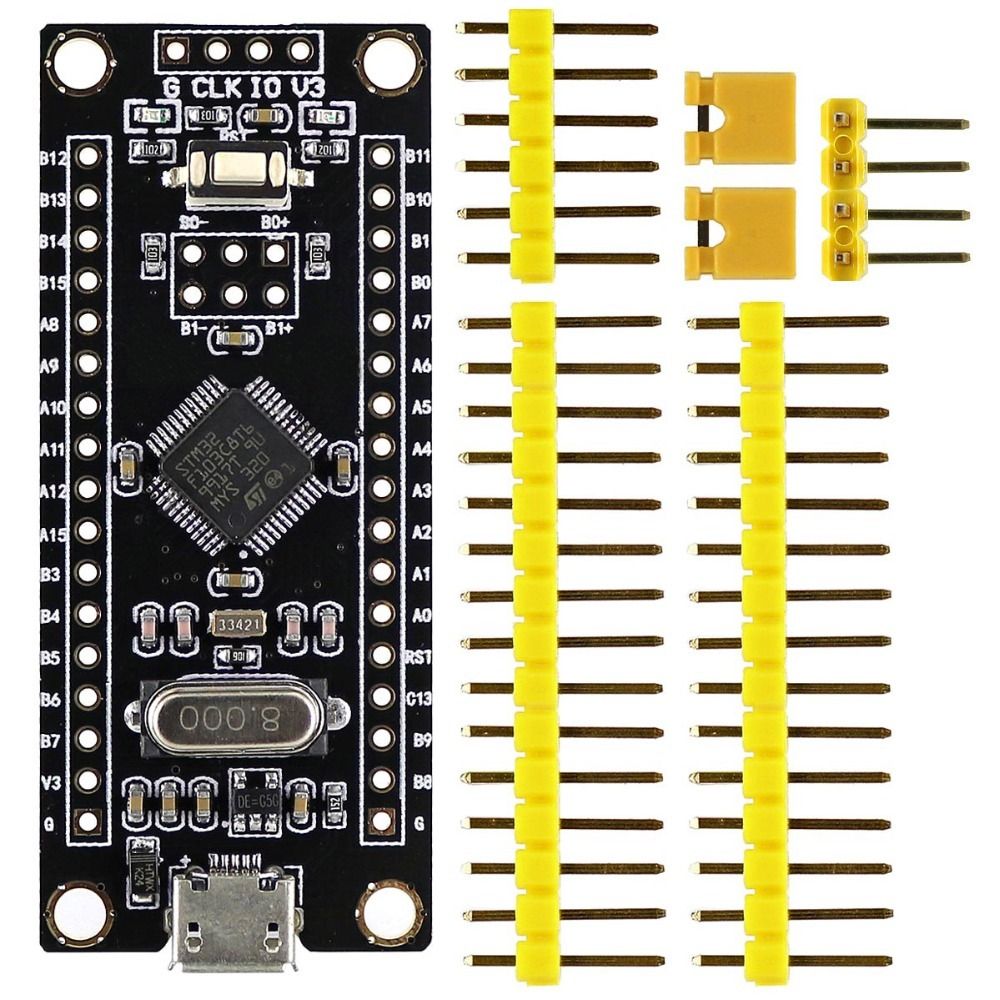

- All GPIO are led out and the names of the pins are marked.

- Microcontroller: STM32F103C8T6.

- Burning times: 10k cycles

- Operating voltage: 3.3 V.

- IO logicvoltage: 3.3V

- Digital I/O Pins: 37

- Analog Input Pins: 10 (12bits).

- Flash Memory: 64KB.

- RAM: 20KB.

- Programmable Clock Speed: 72 MHz (MAX).

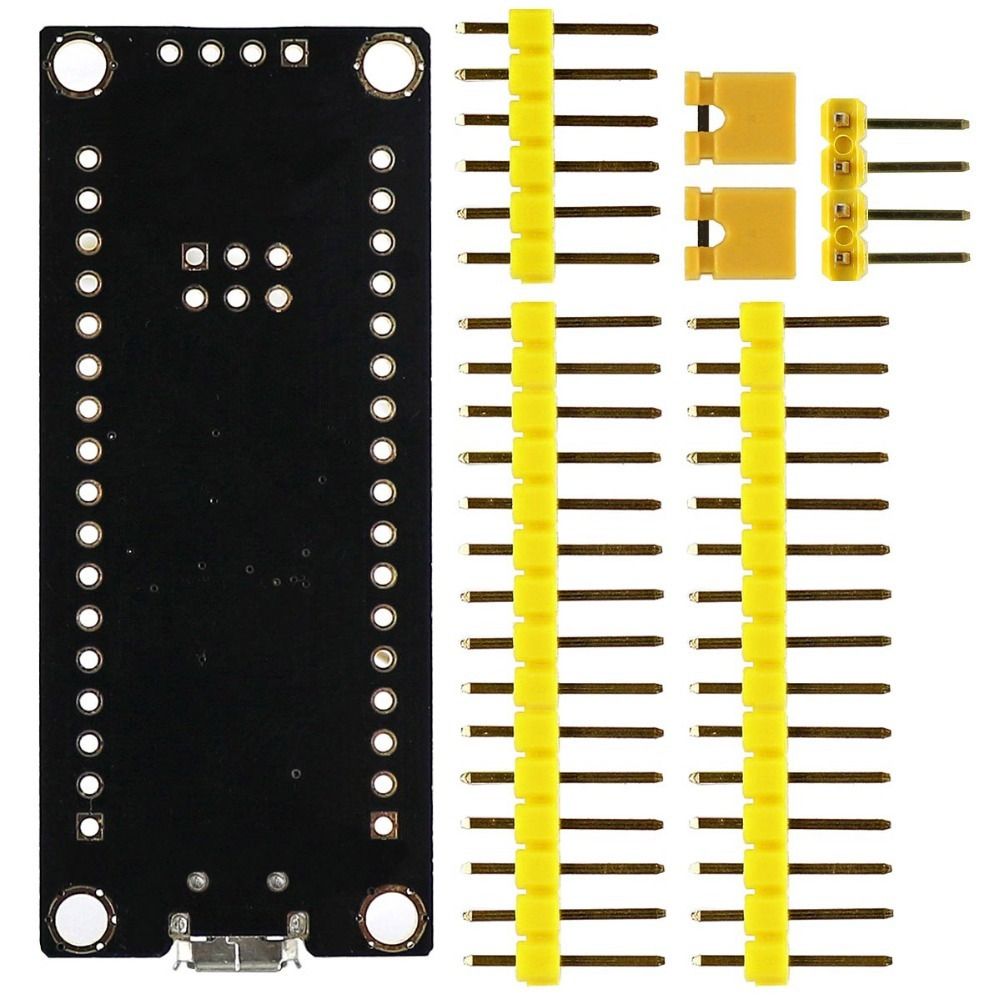

Package includes:

20 x STM32 board

40 x Jumper

20 x 6P pin header

40 x 17P pin header

20 x 4P pin header
