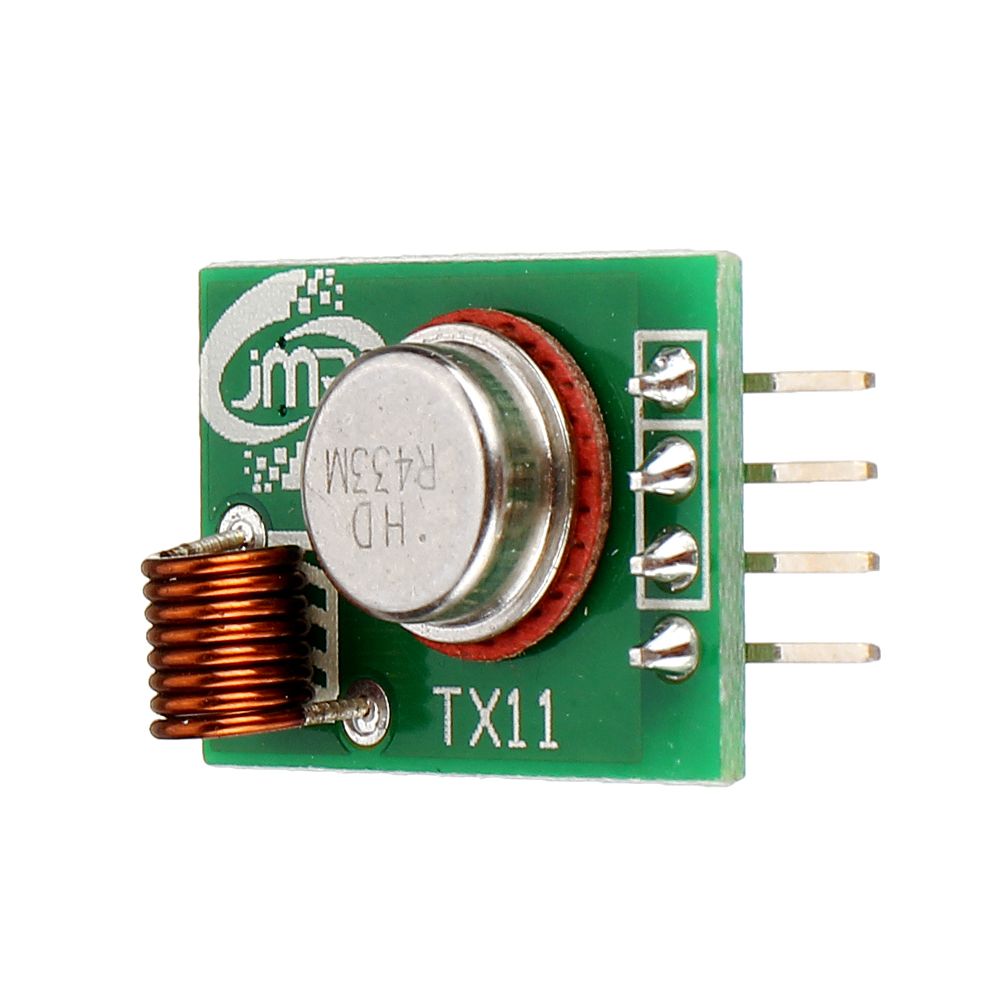

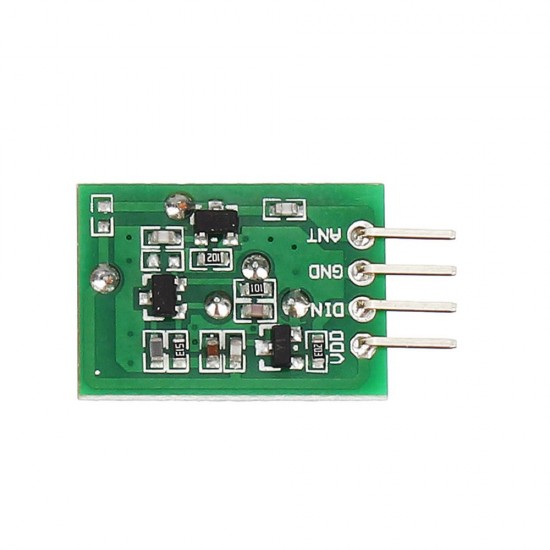

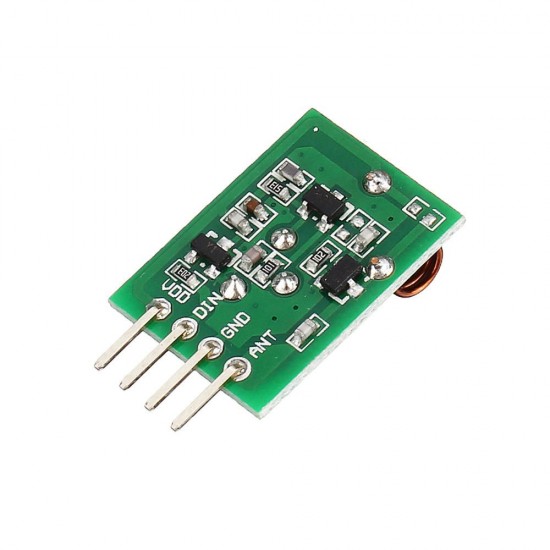

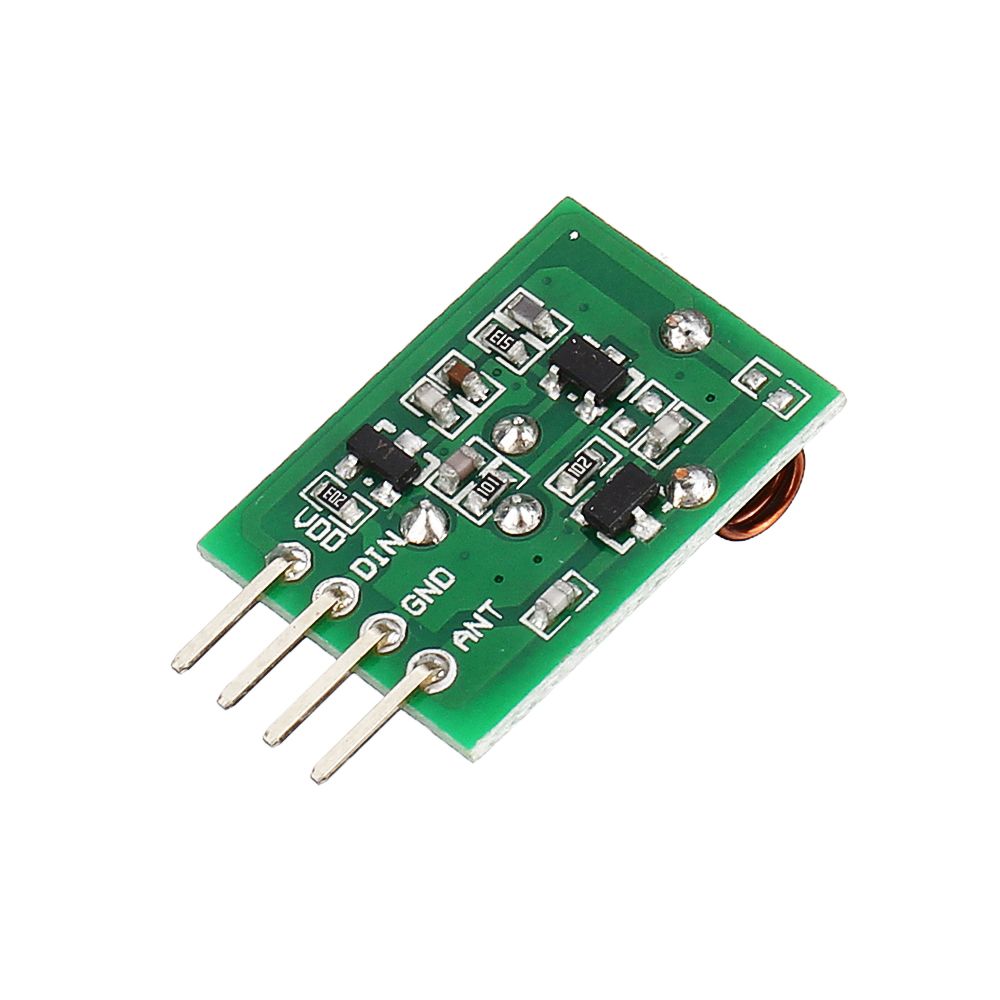

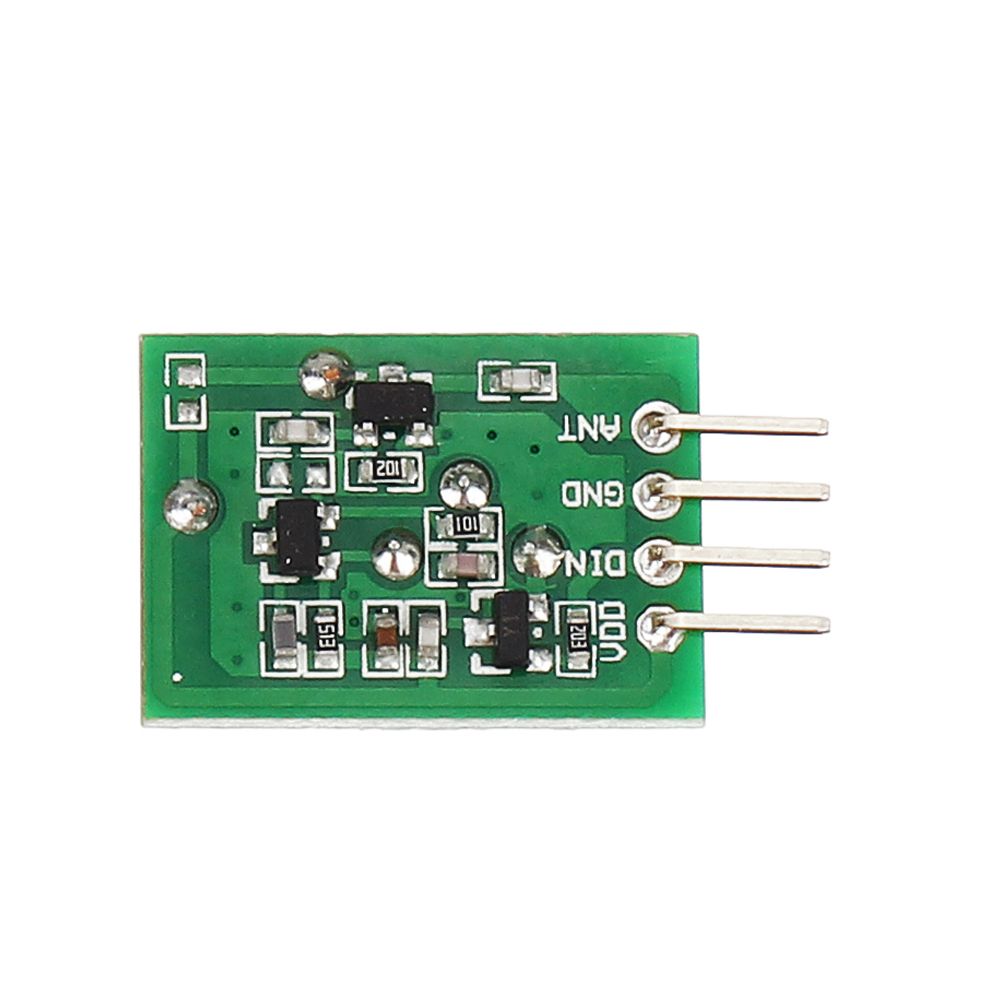

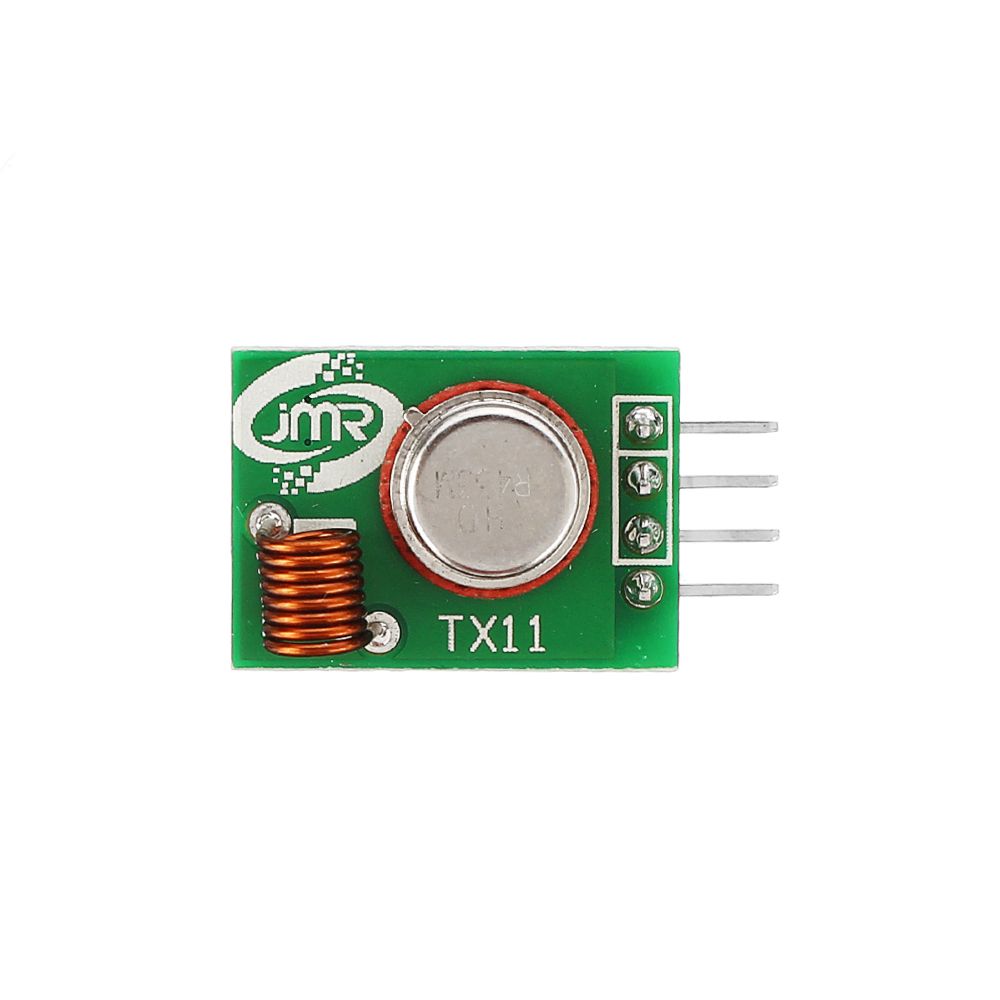

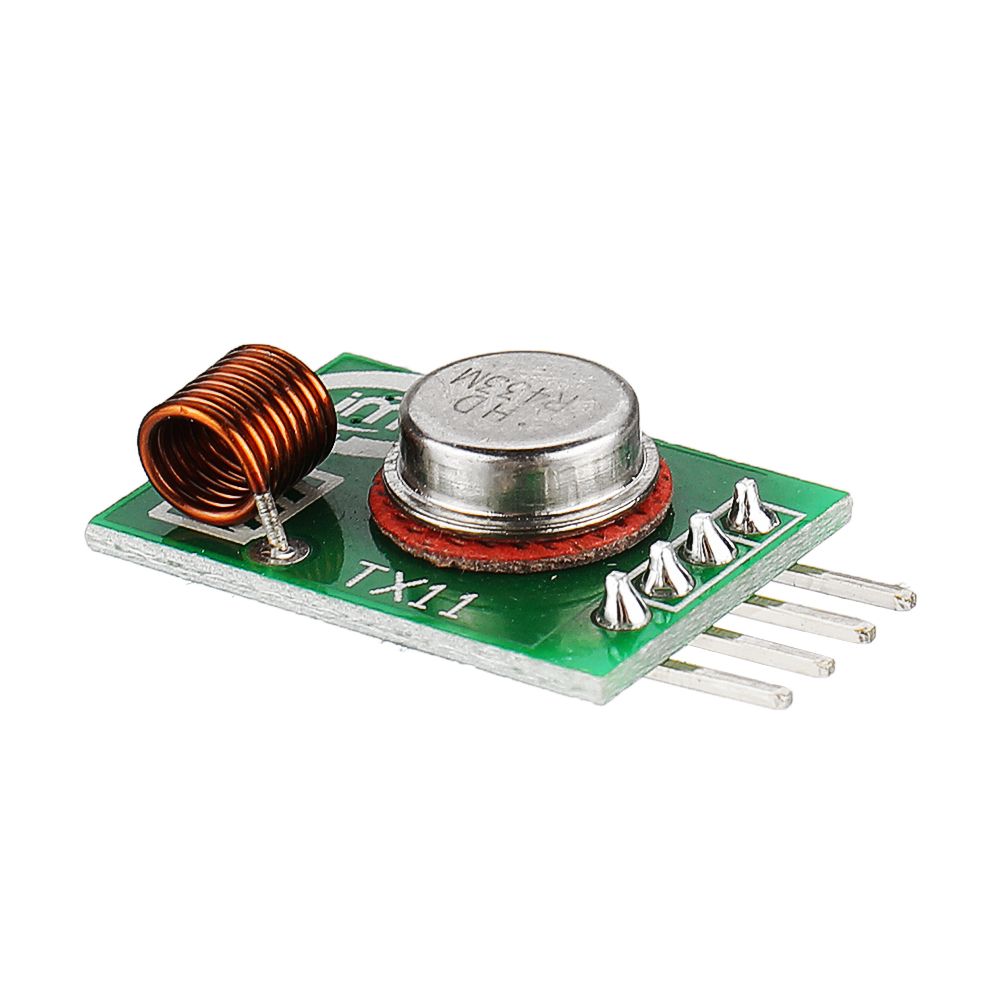

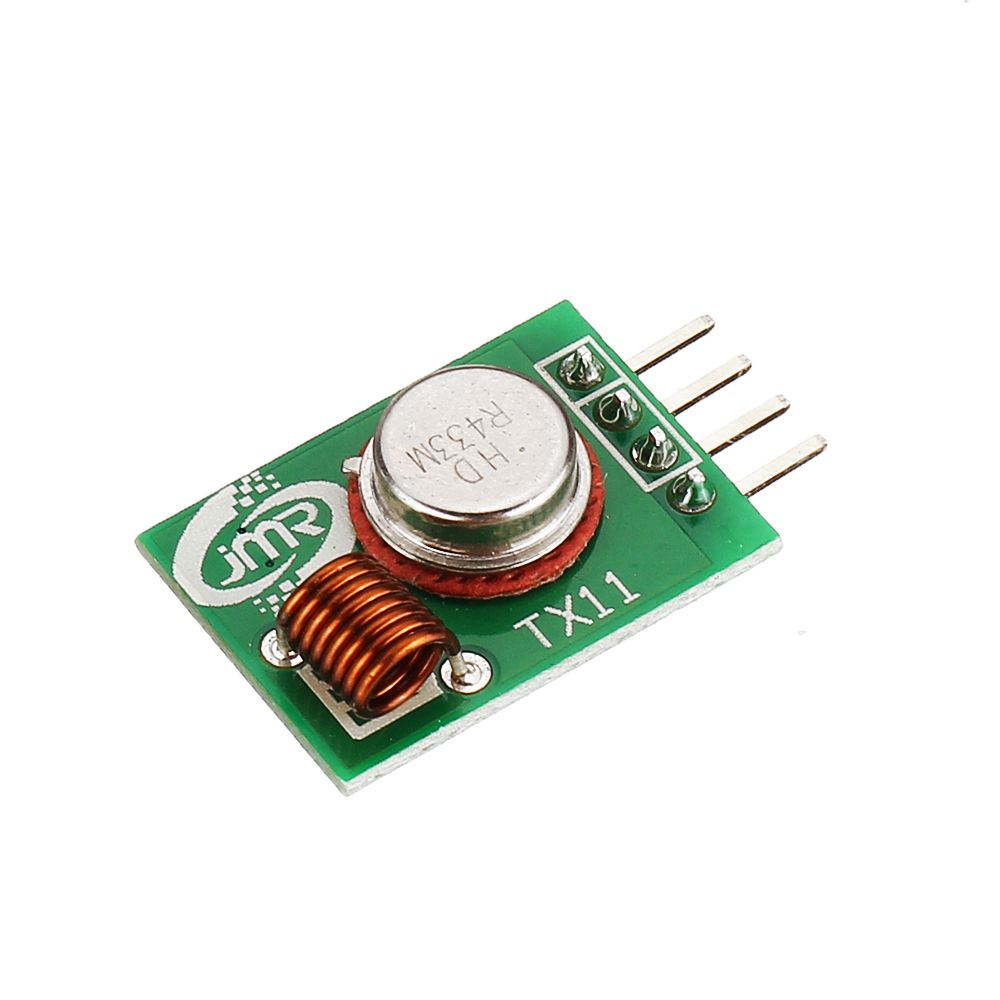

20pcs 315MHZ ASK Wireless Transmission Module TX11 High Power Module Infinite Emission Circuit Board

20pcs 315MHZ ASK Wireless Transmission Module TX11 High Power Module Infinite Emission Circuit Board
20pcs 315MHZ ASK Wireless Transmission Module TX11 High Power Module Infinite Emission Circuit Board
20pcs 315MHZ ASK Wireless Transmission Module TX11 High Power Module Infinite Emission Circuit Board
20pcs 315MHZ ASK Wireless Transmission Module TX11 High Power Module Infinite Emission Circuit Board
20pcs 315MHZ ASK Wireless Transmission Module TX11 High Power Module Infinite Emission Circuit Board
20pcs 315MHZ ASK Wireless Transmission Module TX11 High Power Module Infinite Emission Circuit Board
20pcs 315MHZ ASK Wireless Transmission Module TX11 High Power Module Infinite Emission Circuit Board
20pcs 315MHZ ASK Wireless Transmission Module TX11 High Power Module Infinite Emission Circuit Board
20pcs 315MHZ ASK Wireless Transmission Module TX11 High Power Module Infinite Emission Circuit Board
20pcs 315MHZ ASK Wireless Transmission Module TX11 High Power Module Infinite Emission Circuit Board
20pcs 315MHZ ASK Wireless Transmission Module TX11 High Power Module Infinite Emission Circuit Board
20pcs 315MHZ ASK Wireless Transmission Module TX11 High Power Module Infinite Emission Circuit Board
20pcs 315MHZ ASK Wireless Transmission Module TX11 High Power Module Infinite Emission Circuit Board
$20.99
Ex Tax: $20.99
  • Stock: In Stock
  • Model: EB0042846
  • SKU: EB0042846
Features:

(1) The transmission power is large, and the transmission power is greater than 30 mW;
(2) Wide operating voltage, 2.5V-9V;
(3) Operating frequency: 315 MHz
(4) Using SAW frequency stabilization (+-75KHZ), the working frequency is stable;
(5) With the RXB8 receiving module, the distance can reach 800 meters;
(6) Static power consumption Low emission is current consumption: 10mA, there is basically no current consumption when there is no data transmission;
(7) Working temperature: -20 ° C ~ +60 ° C;
(8) Dimensions: 15x21x5.5mm;
(9) Modulation rate: 3KB/S
(10) Input signal: TTL level.

Application range:

(1) Car remote control door switch (RKE);
(2) Remote control door opener and gate;
(3) Wireless security alarm;
(4) Remote control curtain machine;
(5) Wireless industrial controllers;
(6) Wireless data transmission.

Package includes:

20 x ASK Wireless Transmission Module
