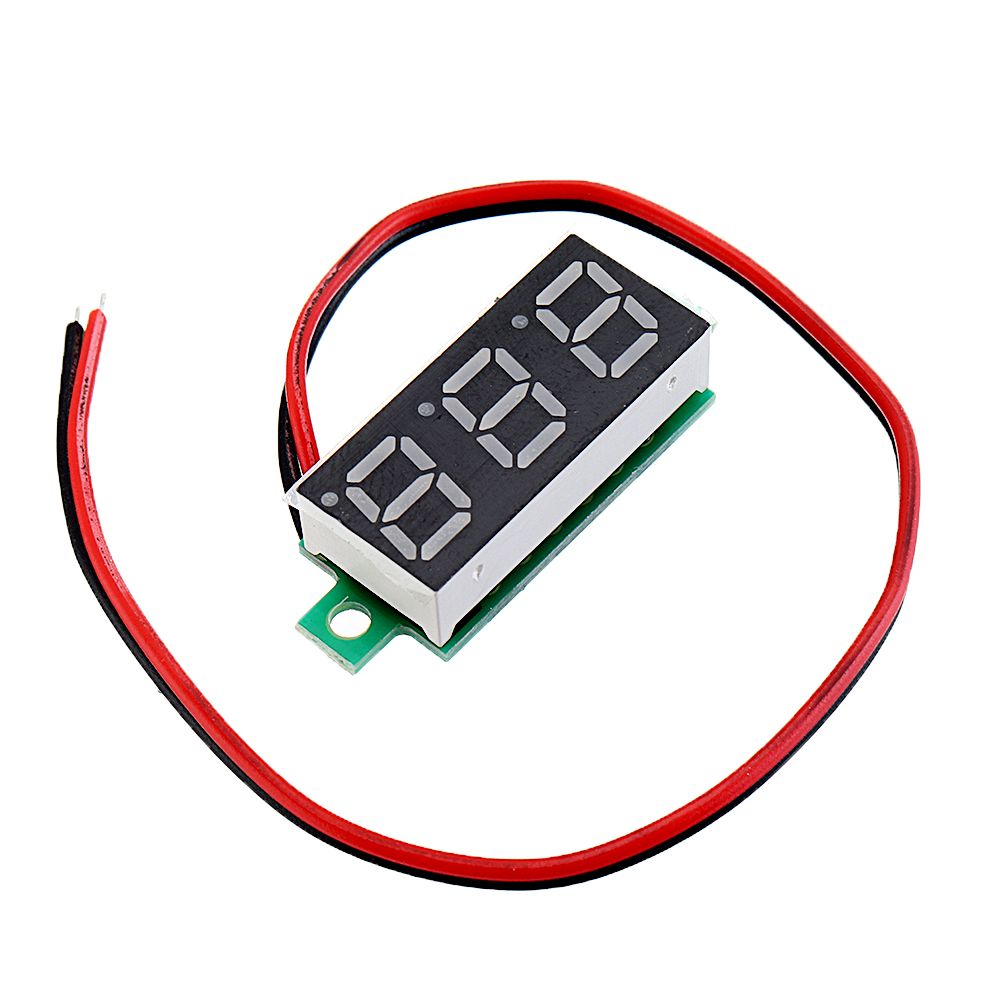

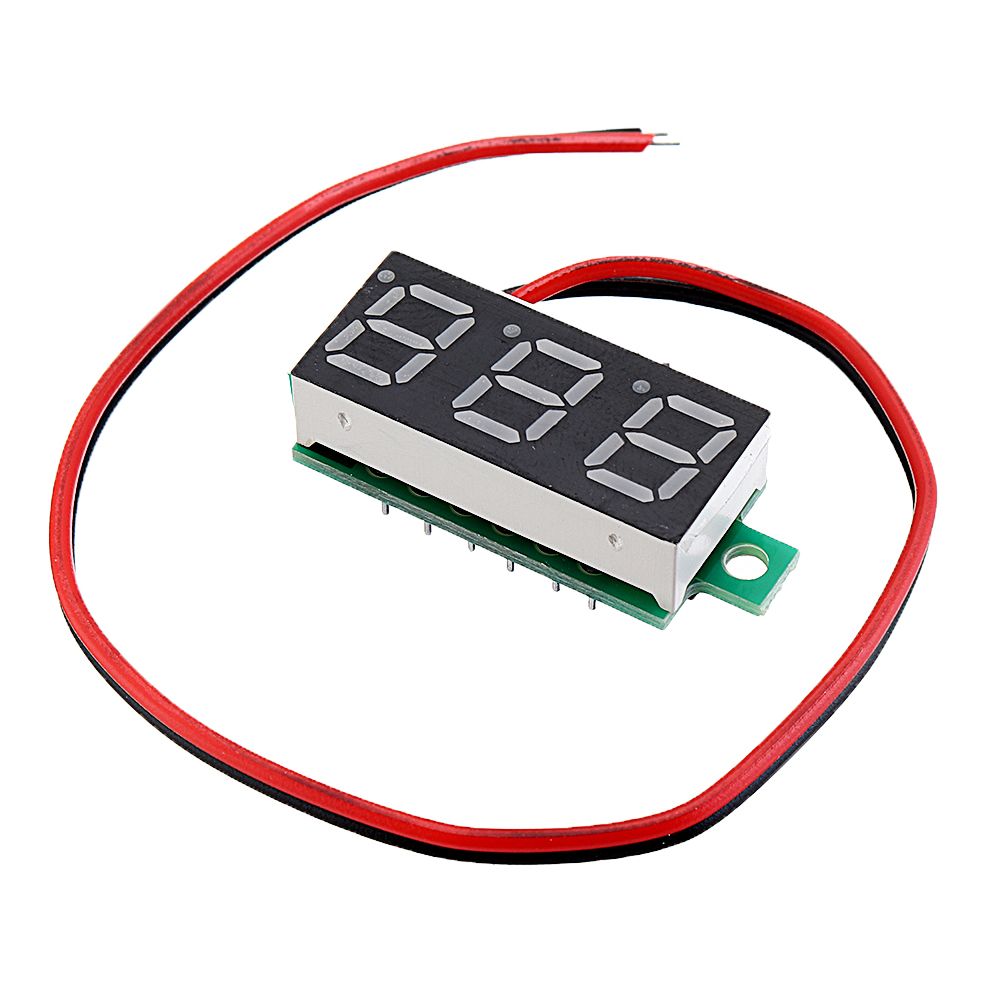

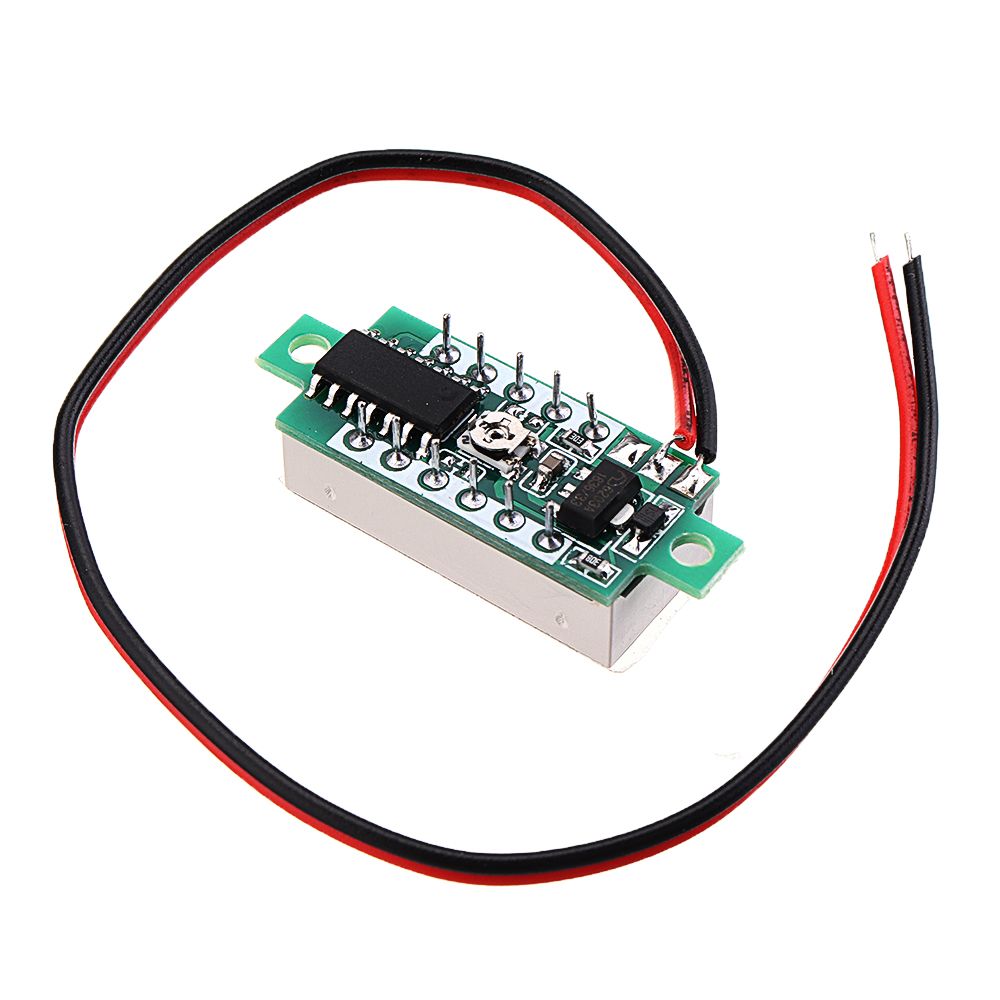

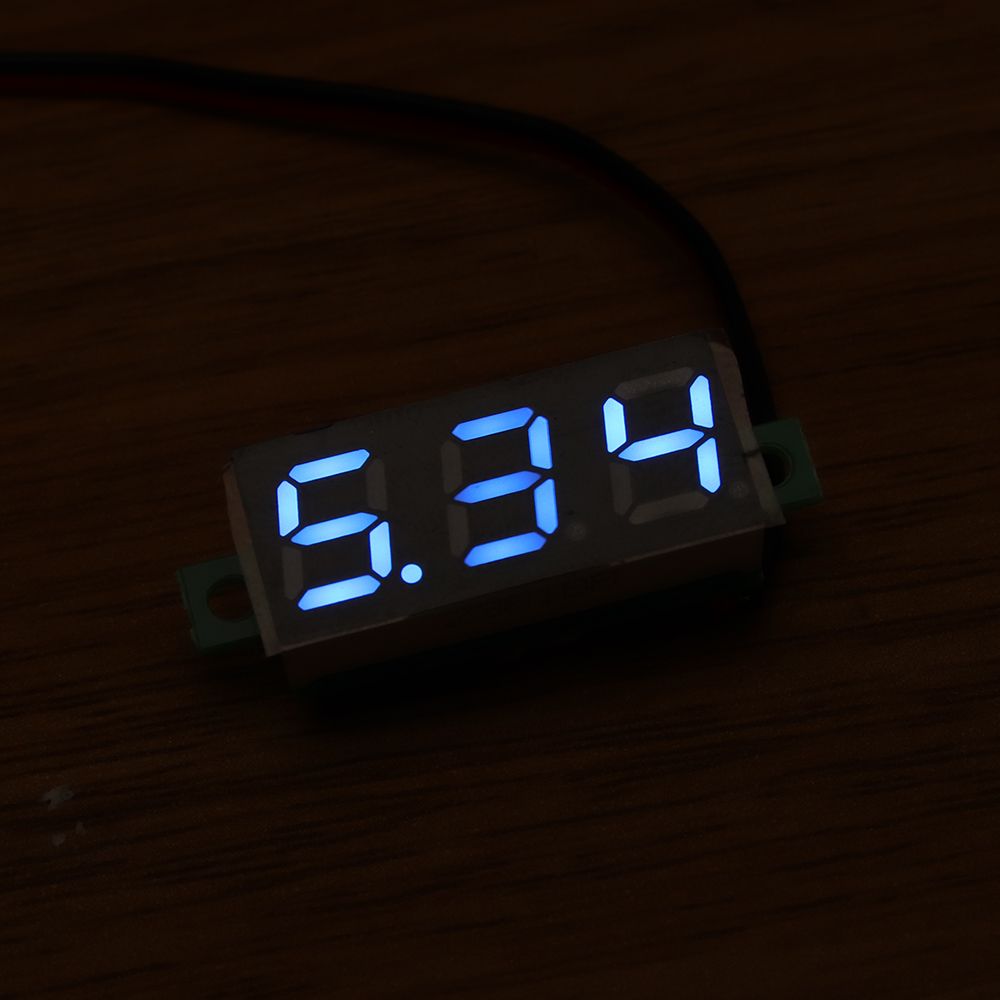

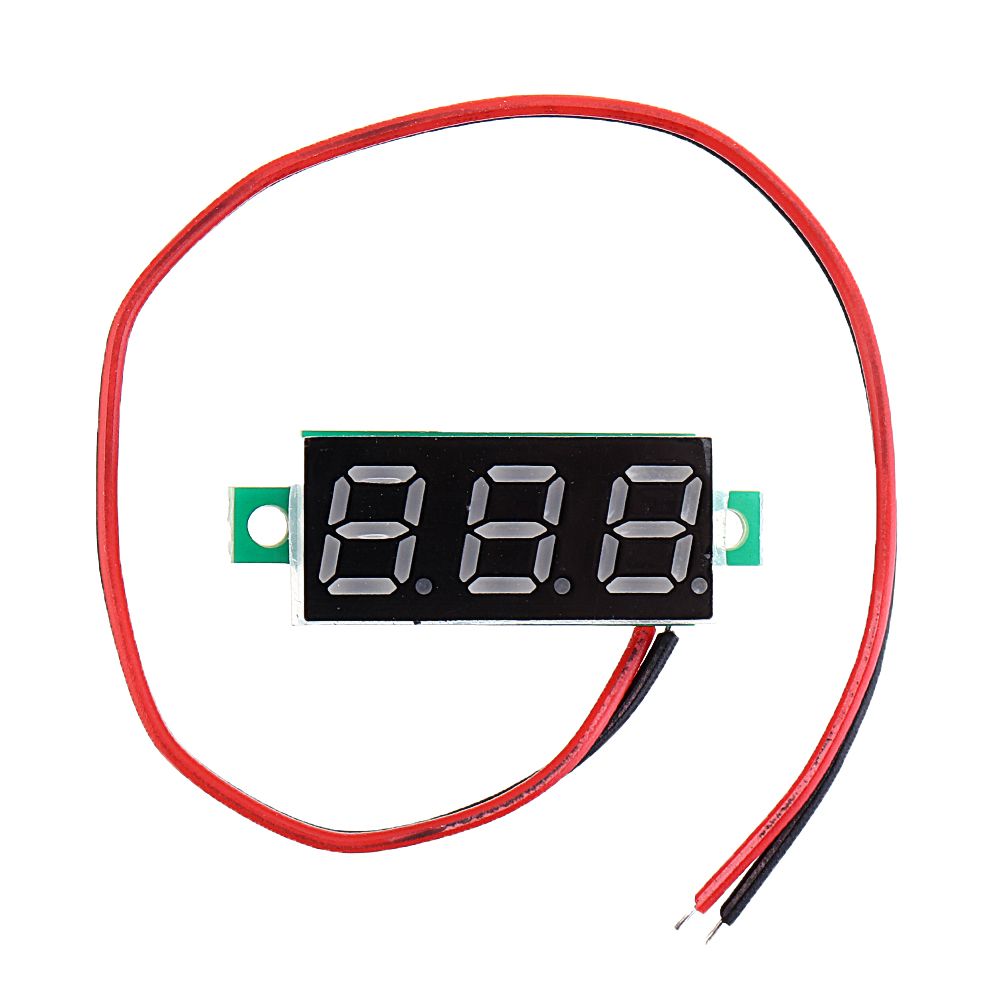

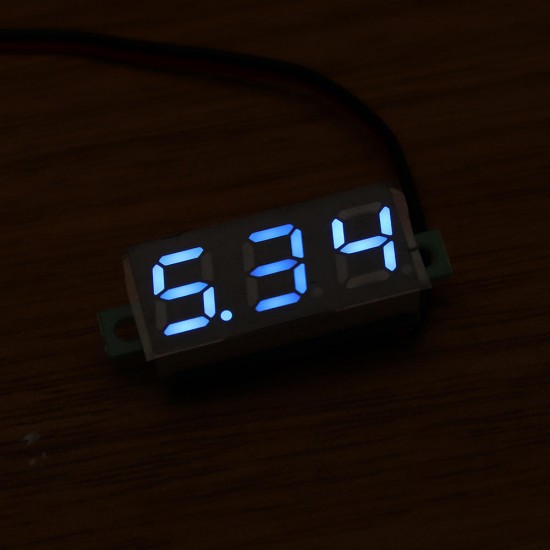

20pcs 0.28 Inch Two-wire 2.5-30V Digital Blue Display DC Voltmeter Adjustable Voltage Meter
- Stock: In Stock
- Model: EB0046502
- SKU: EB0046502
| Measuring range | Two-wire DC2.50~32.0V / three-wire DC0-100V / 500V |
| Power supply range | No need to supply power separately. The measured voltage <40V, higher than 40V may be damaged. |
| Test accuracy | ±1%. >10V error ±0.1V; <10V ±0.03V |
| Input resistance | >50KΩ |
| Working current | <30mA |
| Refresh rate | About 100mS once |
| Display specification | Three digit 0.28 LED digital tubes |
| Lead length | Default 20cm |

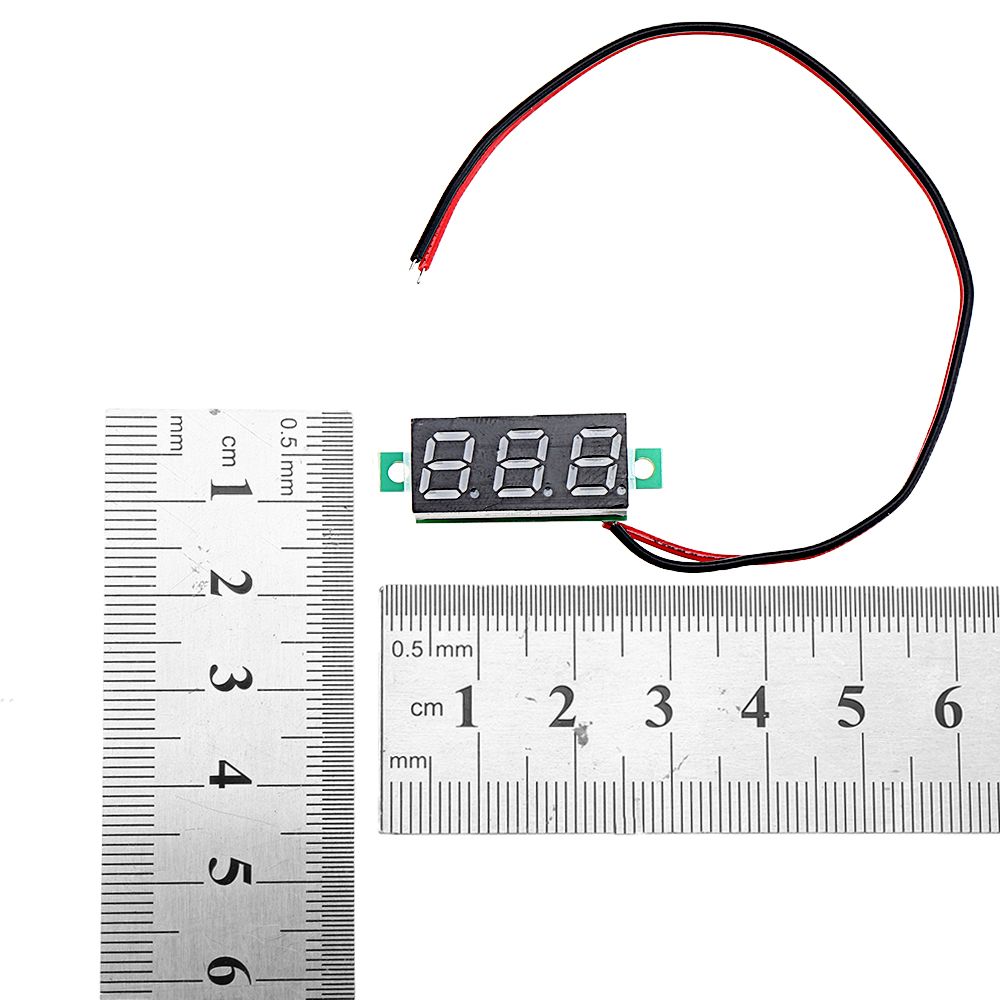

| Dimensions | 30 x 11.5 x 9 mm |
| Hole Size | Pitch: 26mm Aperture: 2.4mm |
| Net weight | 4g |
| Operating temperature | -10 to +80 °C |
| Working humidity | 10 to 80% |
| Working pressure | 80 to 106 kPa |
Package includes:
20 x Voltage meter
