20cm Multifunctional PCB Ruler Measuring Tool Resistor Capacitor Chip IC SMD Diode Transistor Package 180 Degrees

Based on 0 reviews. - Write a review

$3.49

Ex Tax: $3.49

Stock: In Stock
Model: EB0049134
SKU: EB0049134

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Features:

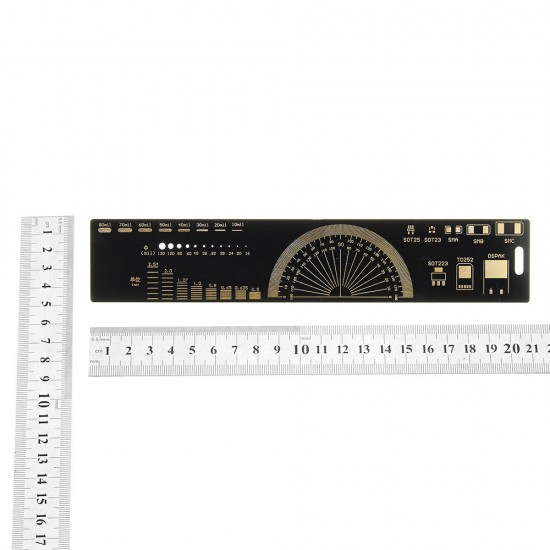

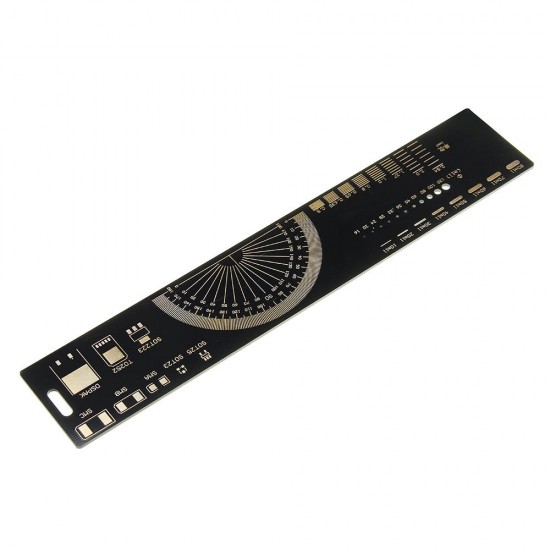

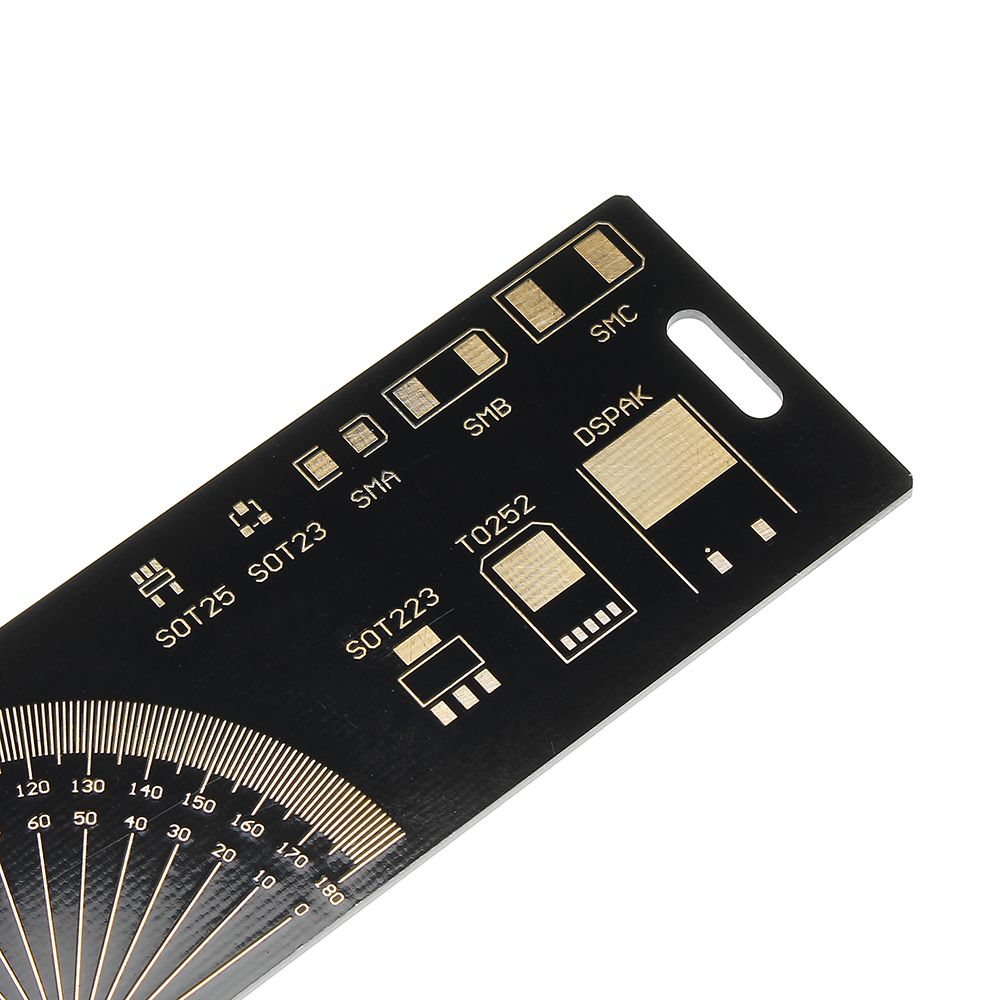

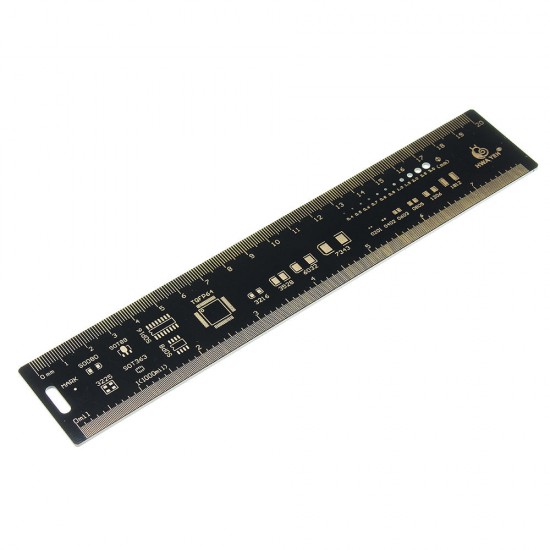

- It integrates relevant information for PCB design such as angle gauges, devices, IC pin spacing tables, and more.

Electronic enthusiasts in the design process in urgent need of a measurement tool can be set all the necessary functions.

- In addition to measuring the basic functions of millimeter and inch sizes,It also integrates relevant information for PCB design such as angle gauges, devices, IC pin spacing tables,

Resistor and capacitor chip package, the commonly used diameter reference drill, line width size reference.

Specifications:

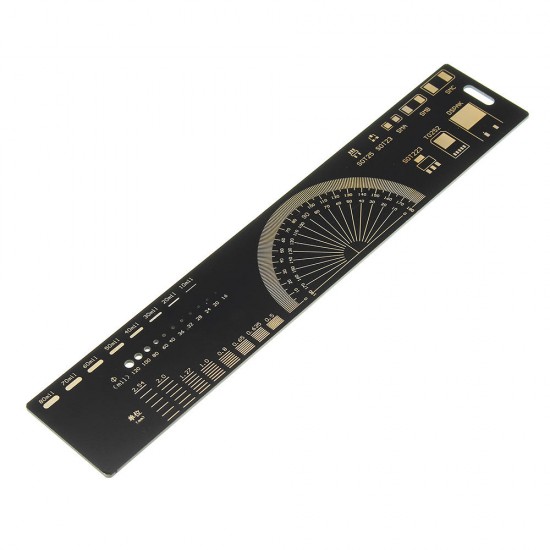

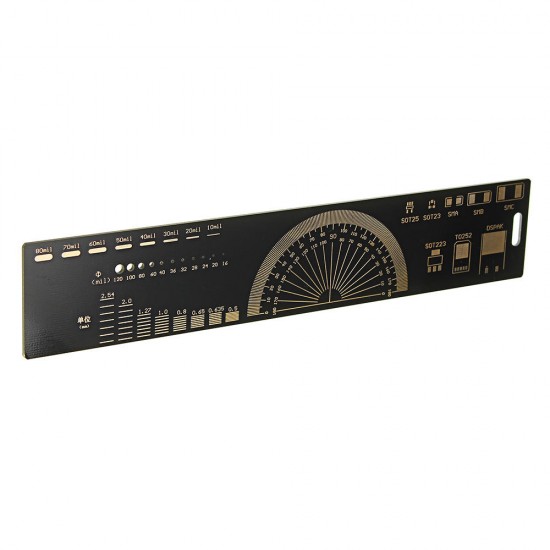

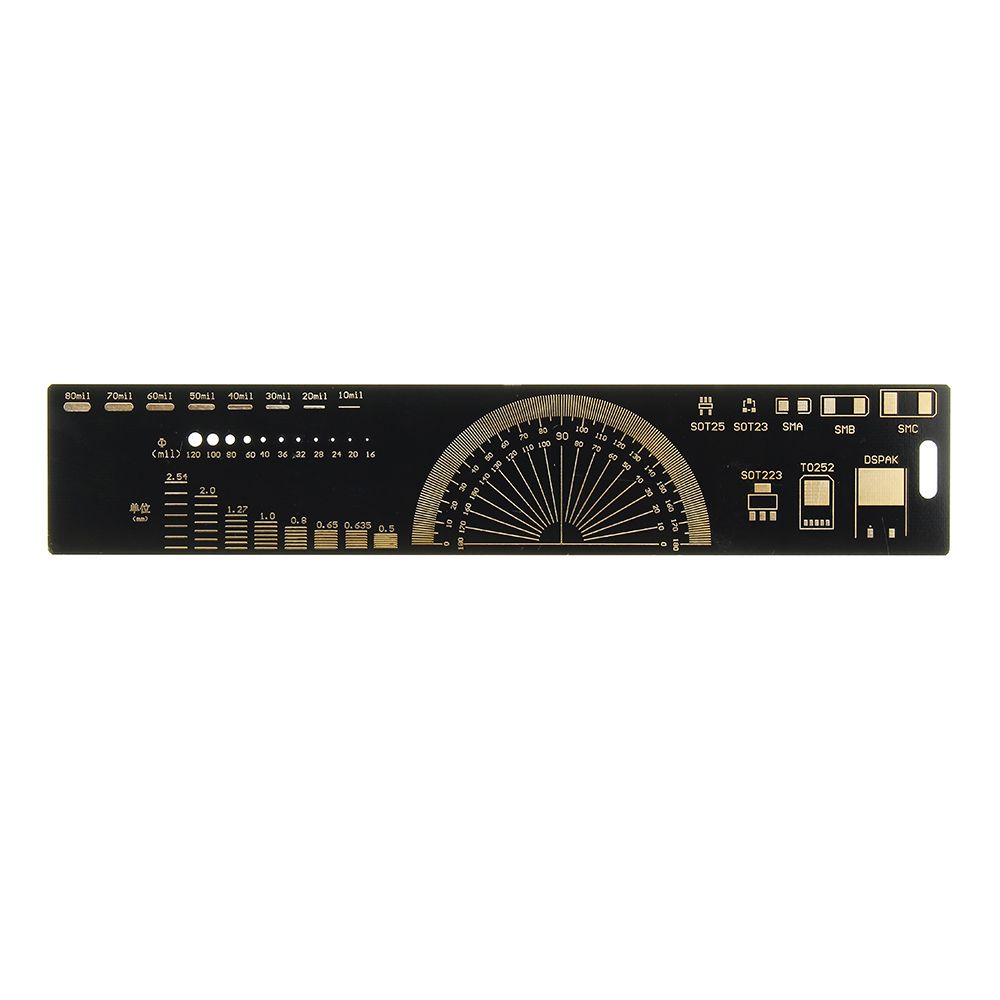

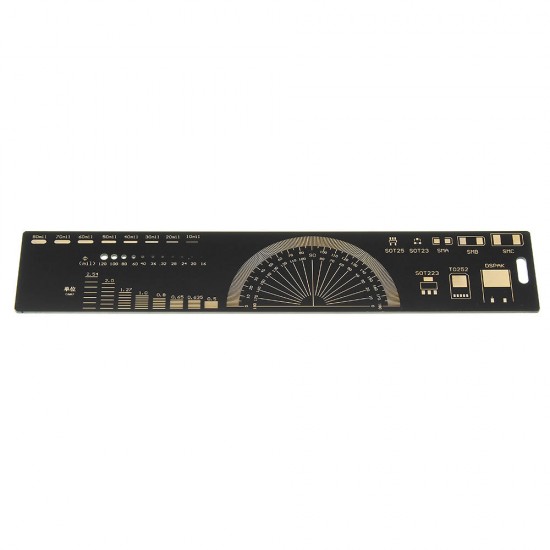

Positive:

The measurement length: 20 cm

Measuring length : 7.8 inches

Commonly used packages: SOT89, SOT8, SOP16, SOT363, 3225, SOD80, MARK, TQFP64.

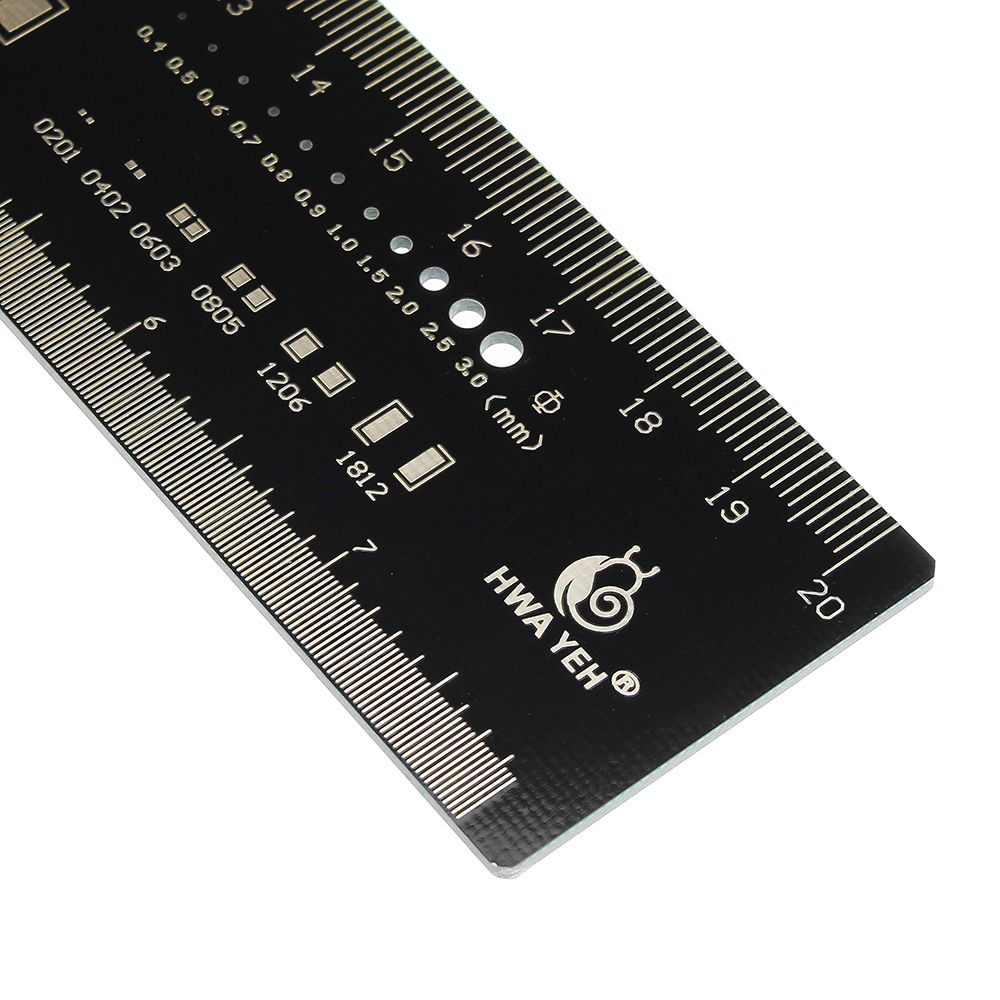

Commonly used resistance and capacitance patch package: 0201,0402,0603,0805,1206,1812,3216,3528,6032,7343.

Common bore diameter reference dimensions (unit: mm)

Slot for hanging straightedge

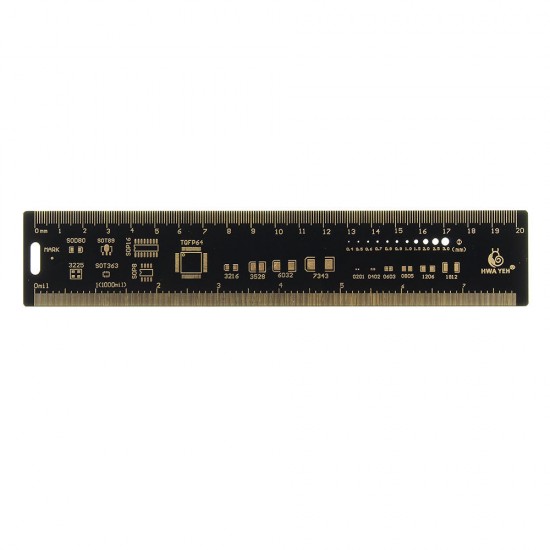

Back:

Commonly used line width reference (unit: mil)

Angle measurement: 180 degrees

Device, IC pin spacing table: 0.5mm, 0.635mm, 0.65mm, 0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm;

Commonly used MOS, diode, transistor package: SOT23, SOT223, SOT25, TO252, D2PAK, SMA, SMB, SMC.

Package Included:

1 x 20cm Multifunctional PCB Ruler
