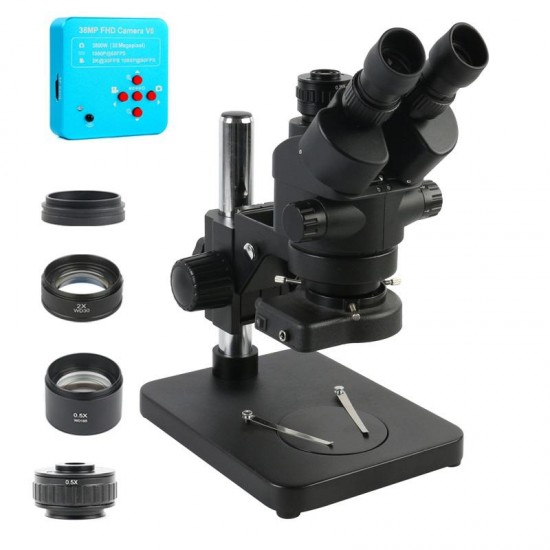

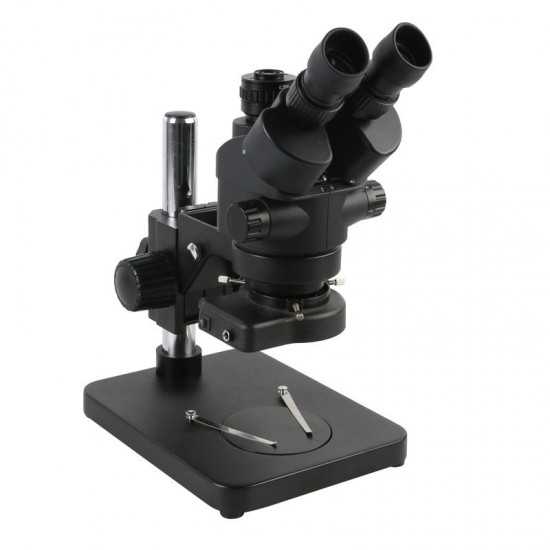

2019 Black 7X-45XZoom Stereo Microscope + HDMI USB 38MP Video Camera + 0.5x 2.0x Auxiliary Lens

Based on 0 reviews. - Write a review

$370.28

Ex Tax: $370.28

Stock: In Stock
Model: EB004838
SKU: EB004838

Available Options

style2

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Features:

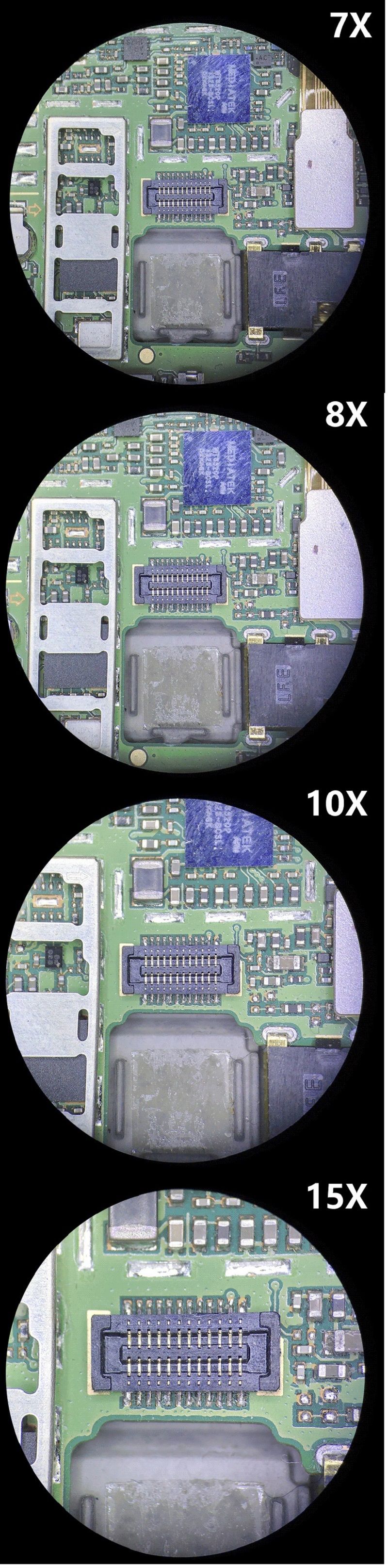

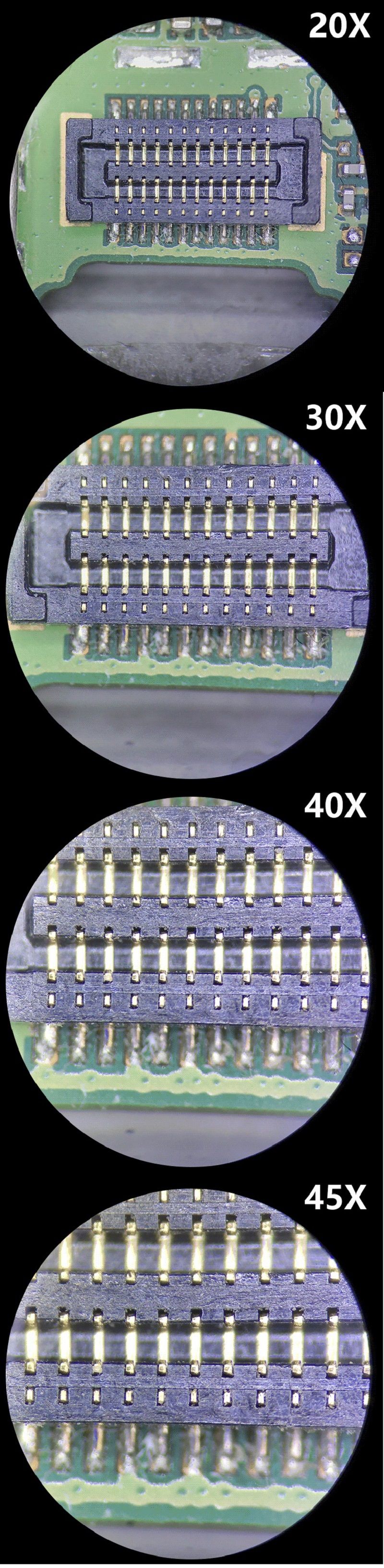

7X to 45X Continuous Zoom Magnification Power

45-degree Inclined Trinocular Simul-focal Head with SUPER WIDEFIELD High-Eyepoint Eyepieces

Trinocular port for adding photo or video capability

30mm Super Widefield WF10X Eyepieces with 20mm Field of View

High Resolution with Great Flatness and Contrast

Sharp Stereo Erect Images over a Wide Field View

Crystal Clear Original True Color Images

Large Working Distance

Accurate Alignment Ensuring a Fatigue-Free Viewing

Full Optical Glass Elements

Precise Ground Glass Lens

All Metal Mechanical Components

Adjustable Interpupillary Distance

Manufactured under ISO 9001 Quality Control Standard

Specifications:

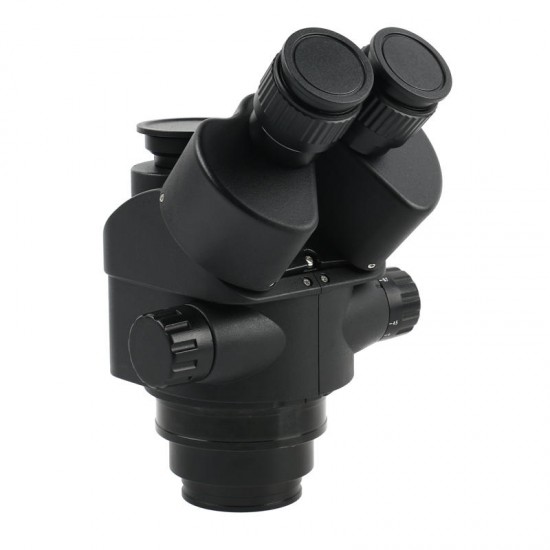

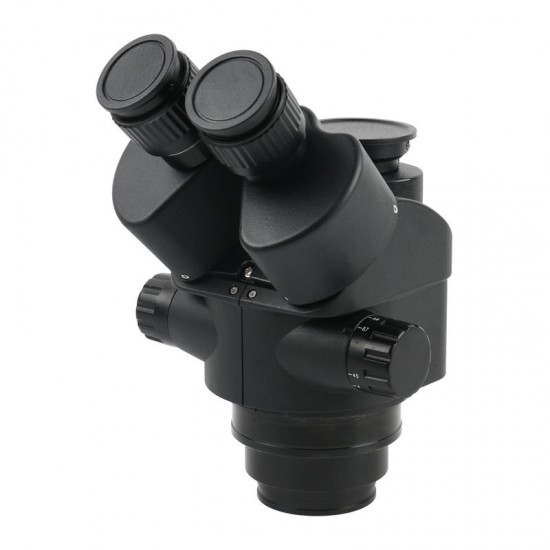

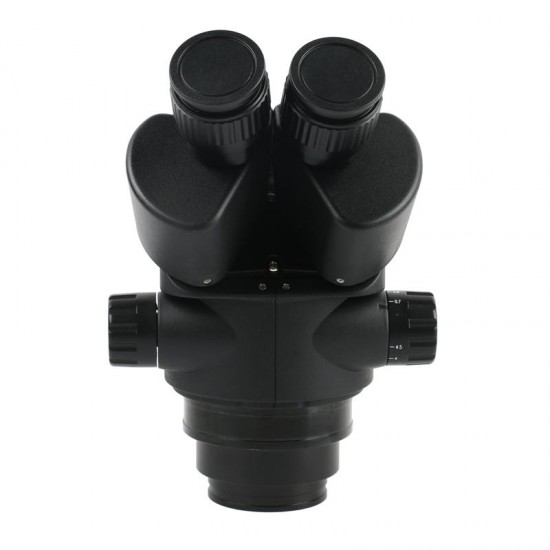

Head: 45-degree inclined 360-degree swiveling trinocular simul-focal

Eyepiece: 30mm super widefield high-eyepoint WF10X/20

Objective: 0.7-4.5X

Zoom Range: 6.5:1

Trinocular Port: 23mm photo port

Interpupillary Distance: 2-1/8" to 3"(54-76mm)

Field of View: 1-1/4" (33mm)

Working Distance: 7X-45X (100mm) Use 0.5x objective lens 3.5X-45X(165mm) Use 2.0x objective lens 7X-90X(40mm)

Head Mounting Size: 3" (76mm) diameter

Accessory Mounting Size: 1-7/8" (48mm female thread) diameter

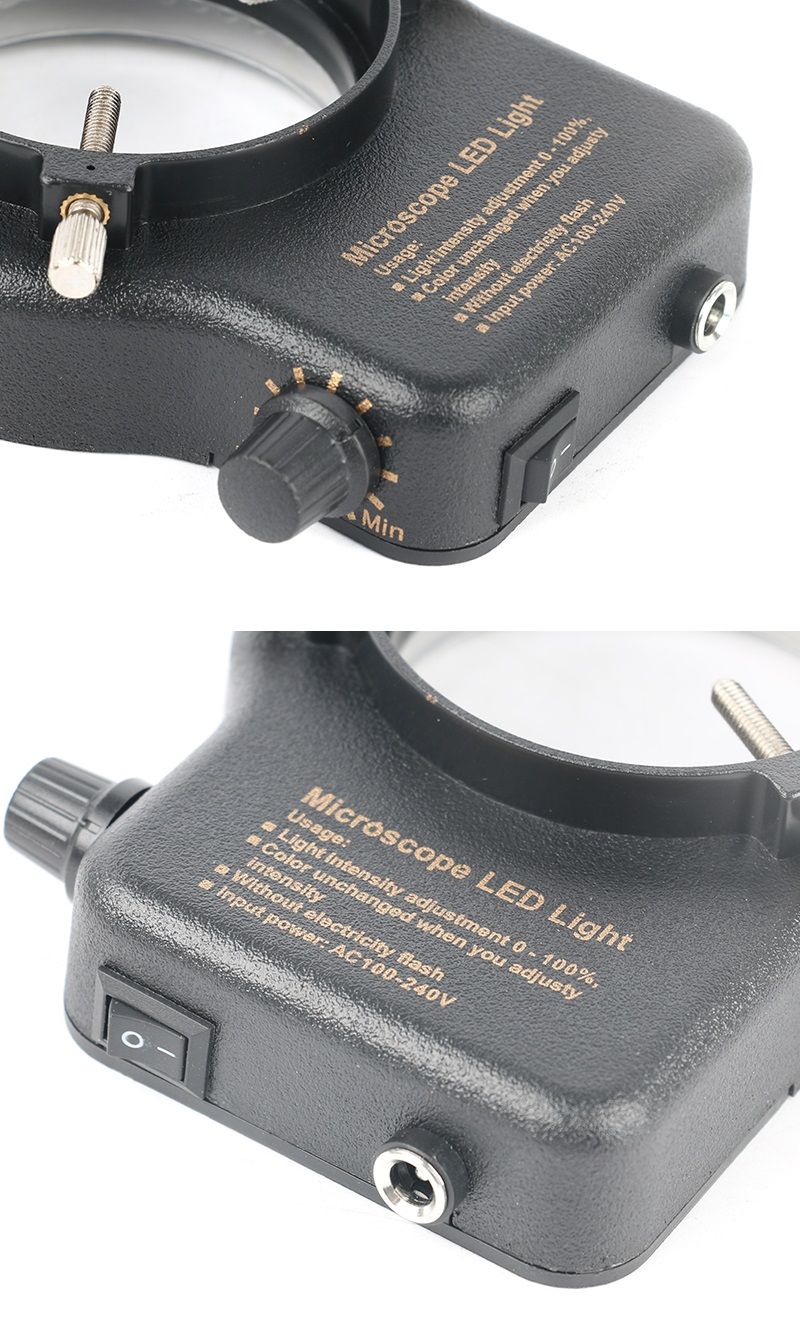

144 bright white LED bulbs

100,000 hours of life

Intense and focused shadow-free illumination

The brightness of 0-100%Adjustable,high brightness

Variable intensity control

Power input: 100-240V, 50-60HZ

Suit for the dia of the lens: 30mm-160mm

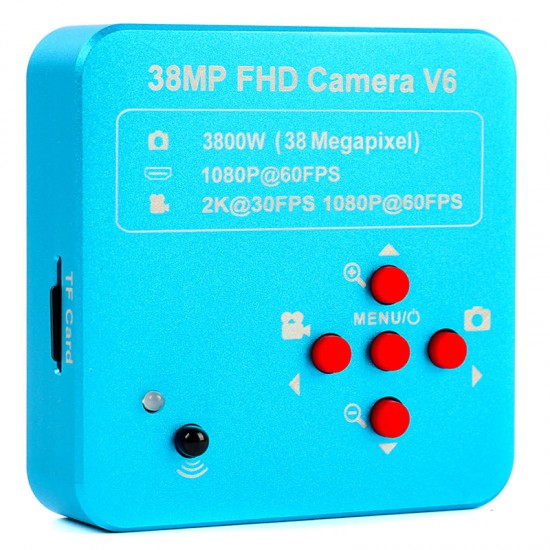

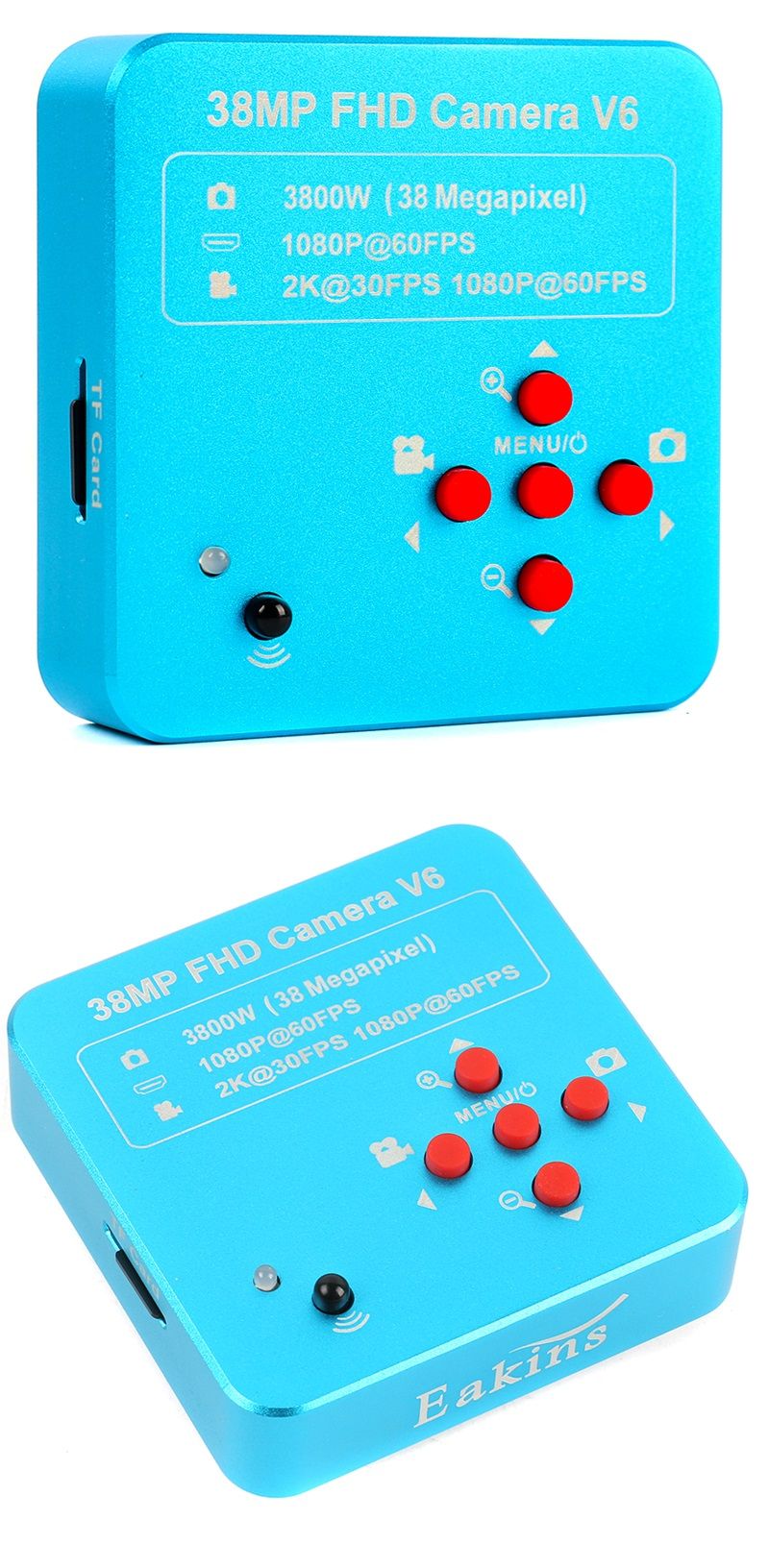

Sensor :CMOS

Optical format:1/2.3 inch

pixel size:1.335μm x1.335μm

Interface:HDMI(Type A).USB(Type B).TF Card

Image resolution:21MegaPixel

Video record resolution:2K@30FPS 1080p@60FPS

HDMI resoltion:1920x1080p 60FPS

Can output with USB at the same time

HDMI scale:Support 4:3,16:9,16:10 screen

USB2.0(Drive free):1920x1080@30FPS 1280x720@30FPS 640x480@30FPS

Can output with HDMI at the same time

TF card:MAX 64GB

AWB:WB color correction/Auto/Manual

R.G.B value setting independent

Exposure:Auto/Manual.AE value can set

Cross lines:8lines.Can set color& width& position

Scale mark lines:2lines.

Dotted lines:2lines.Can set color& width& position

Sharpness Contrast Color gain:Renhotec

Mono Negative:Renhotec

Mirror:Horizontal vertical mirror

Language:English/simplified Chinese

Digital Zoom:Renhotec

IR remoter:Renhotec

Voltage in:DC 12V 55-21mm size

Power consumption:MAX 0.15W 12V,0.12A

Lens interface:C/CS口

Net weight:180g

Gross weight:400g

Camera size:74x74x35mm

Packaging size:160x100x80mm

Questions Solutions:

LCD no video or flicker

1.Check power supply. Check green LED be onlight. Press PowerKey to Up it.

2.Check lens cover. Increase the lighting.

LCD have black bar Image warp

1.change resolution of LCD

2.change resolution of camera

Have dirty spot

1.Check camera and lens, find the dust, then clean using absolute ethyl alcohol or cleanser

Package Included:

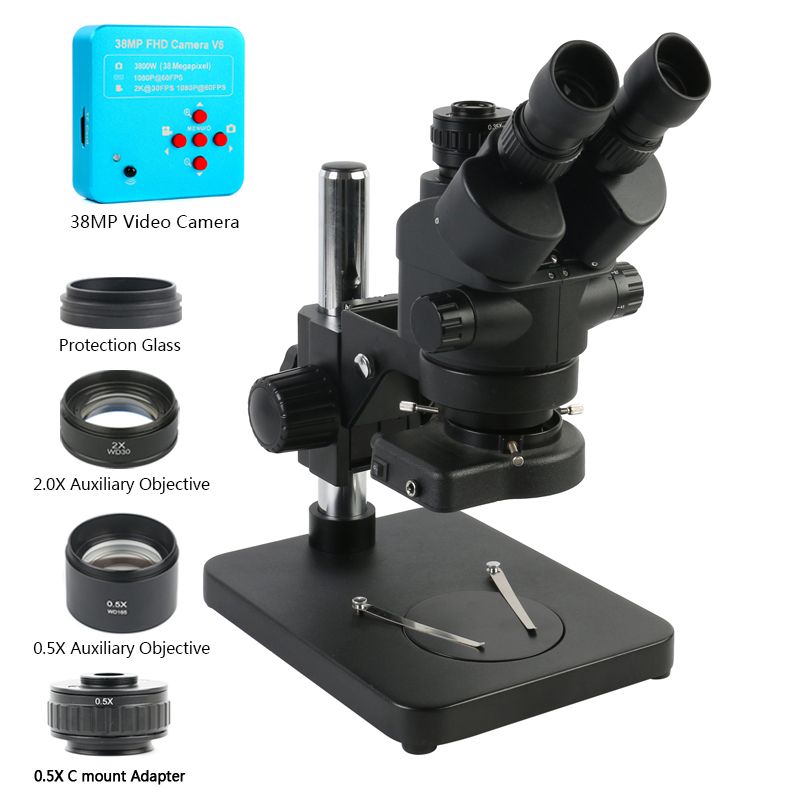

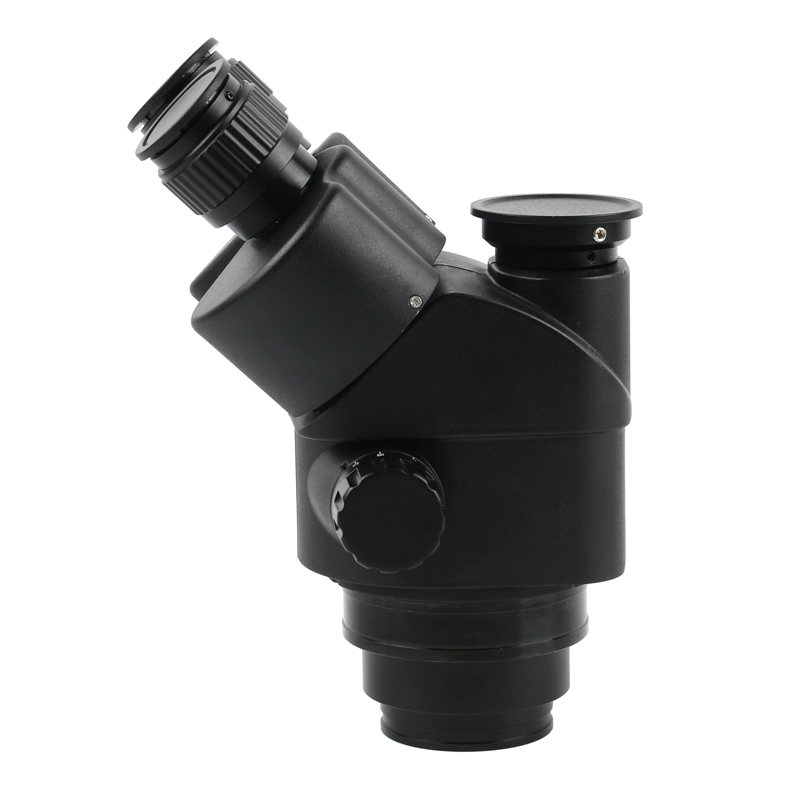

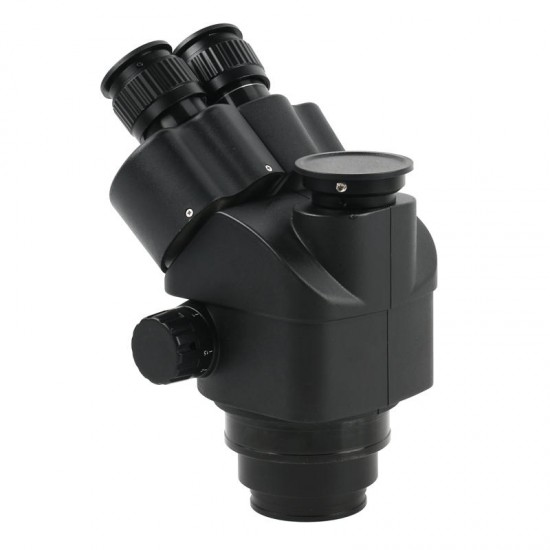

1 x Trinocular Stereo Zoom Head(Working distance is about 10cm)

1 x Pair of Super Widefield 10X20MM Eyepieces

1 x Pair of Eye-Guards

1 x Dust Cover

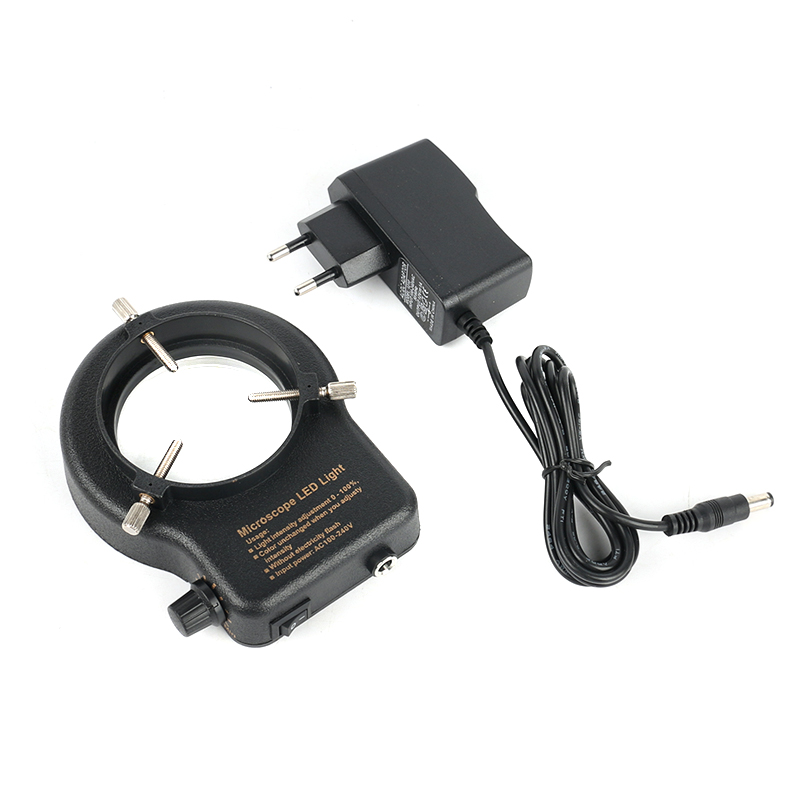

1 x 144-LED Ring Light

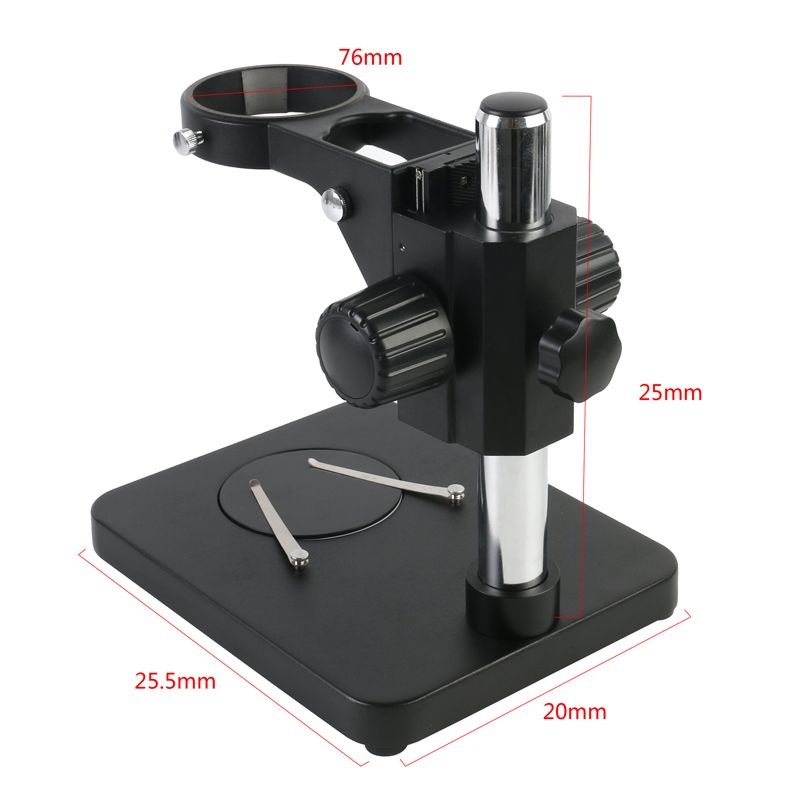

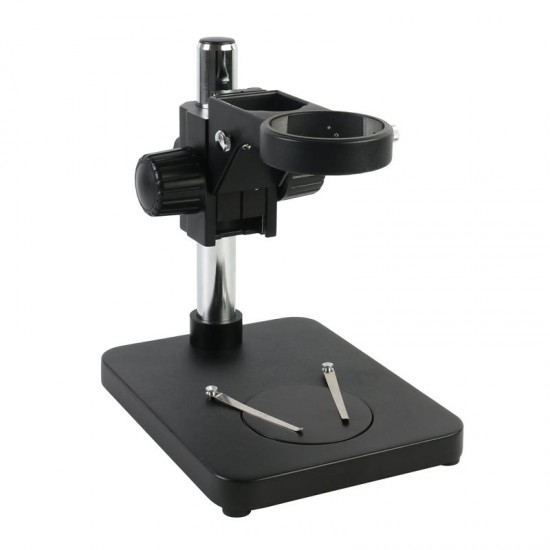

1 x Stand

1 x 76mm Focusing Holder

1 x HDMI USB Video Camera

1 x HDMI Cable

1 x USB Cable

1 x 8GB TF card

1 x IR Remote control

1 x Power Supply Adapter (EU/AU)

1 x 0.5X C-mount Adapter

(Optional)
1 x 2.0X Microscope Auxiliary Objective Lens(Working Distance 40 mm)

1 x 0.5X Microscope Auxiliary Objective Lens(Working Distance 165 mm)

1 x 1.0X Microscope Auxiliary Objective Lens(Protective Function Lens)

1 x Adjustable Metal Arm

Details Pictures:
