2.7 Inch Ink Screen Bare Screen e-Paper Display Module 264x176 Resolution 2.7inch E-Ink Raw Display Three-color

Based on 0 reviews. - Write a review

$11.99

Ex Tax: $11.99

Stock: In Stock
Model: EB0051067
SKU: EB0051067

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Documents:

Manual: Click here to open

Schematic: Click here to open

Datasheet: Click here to open

Overview:

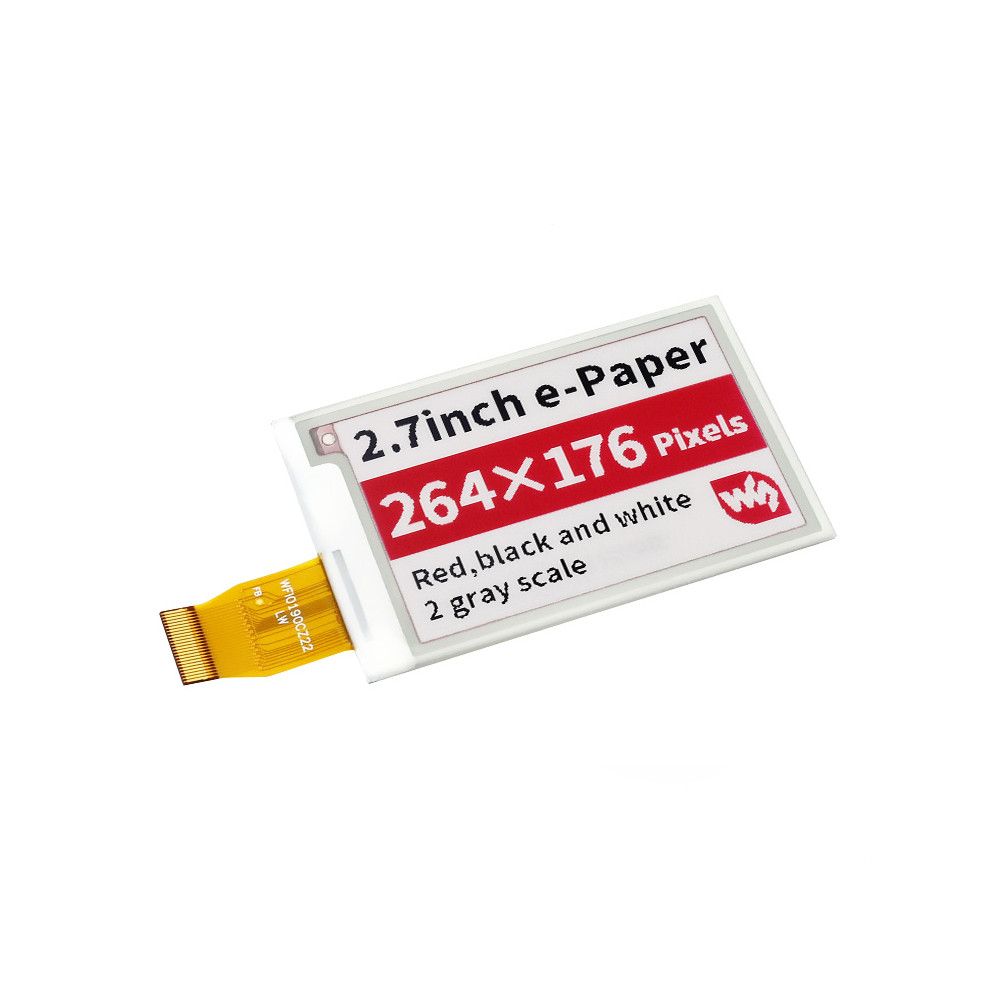

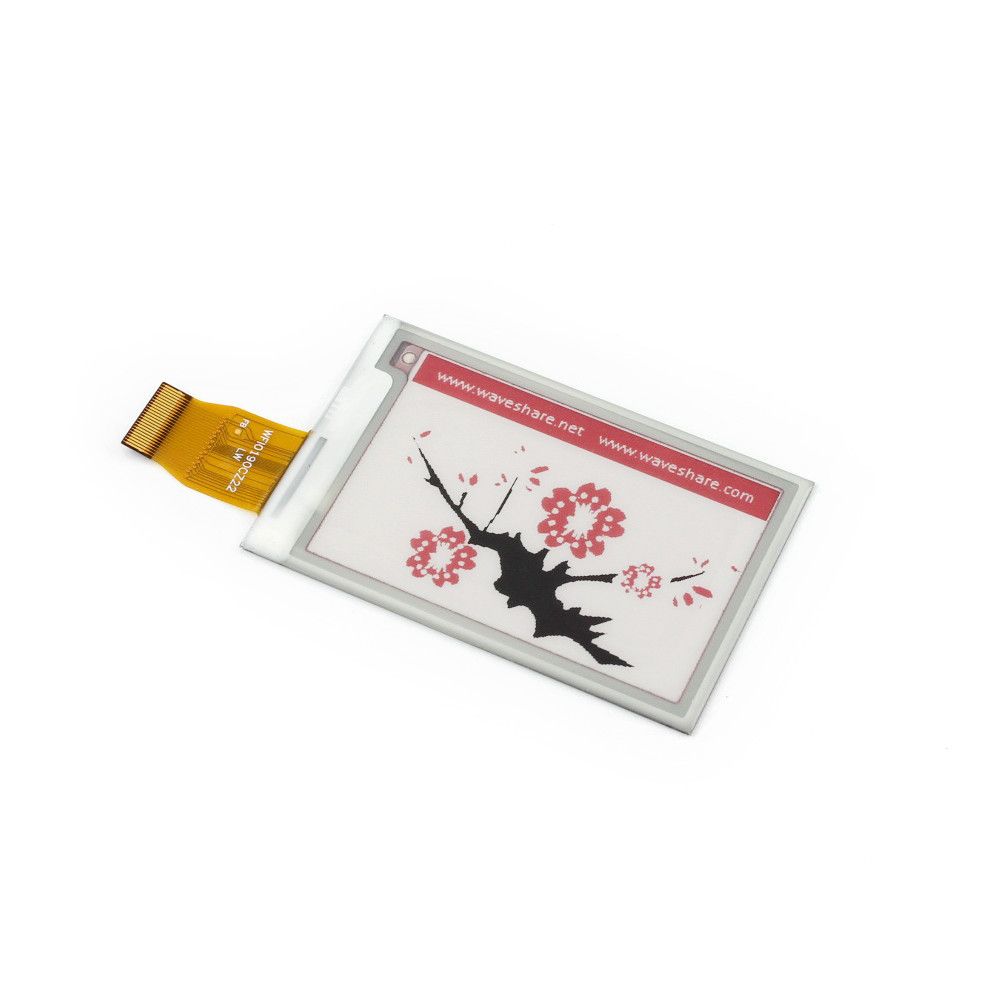

This is an E-Ink raw display, 2.7inch, 264x176 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features:

No backlight, keeps displaying last content for a long time even when power down

Ultra low power consumption, basically power is only required for refreshing

Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications:

Operating voltage: 3.3V

Interface: 3-wire SPI, 4-wire SPI

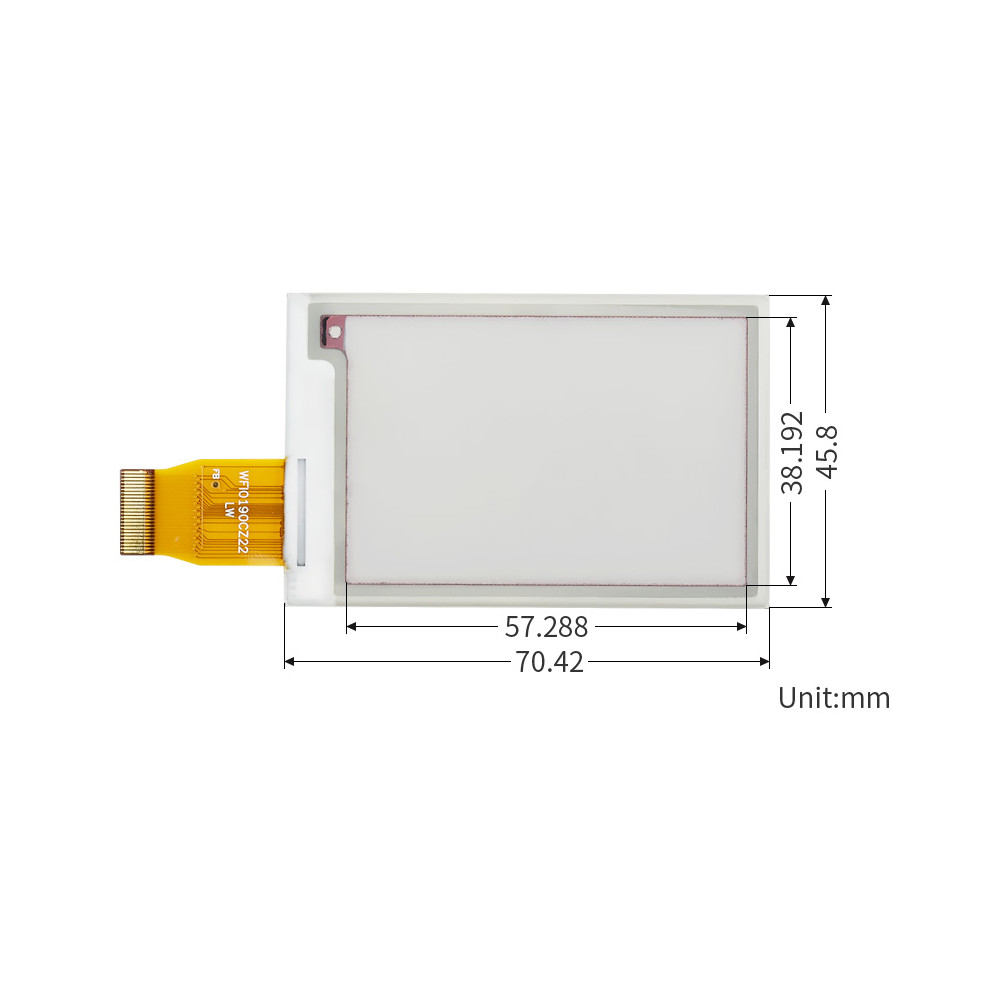

Outline dimension: 70.42mm × 45.8mm × 0.98mm

Display size: 57.288mm × 38.192mm

Dot pitch: 0.217 × 0.217

Resolution: 264 × 176

Display color: red, black, white

Grey level: 2

Full refresh time: 15s

Refresh power: 26.4mW(typ.)

Standby power: <0.017mW

Viewing angle: >170°

Package includes:

1 x E-Ink raw display
