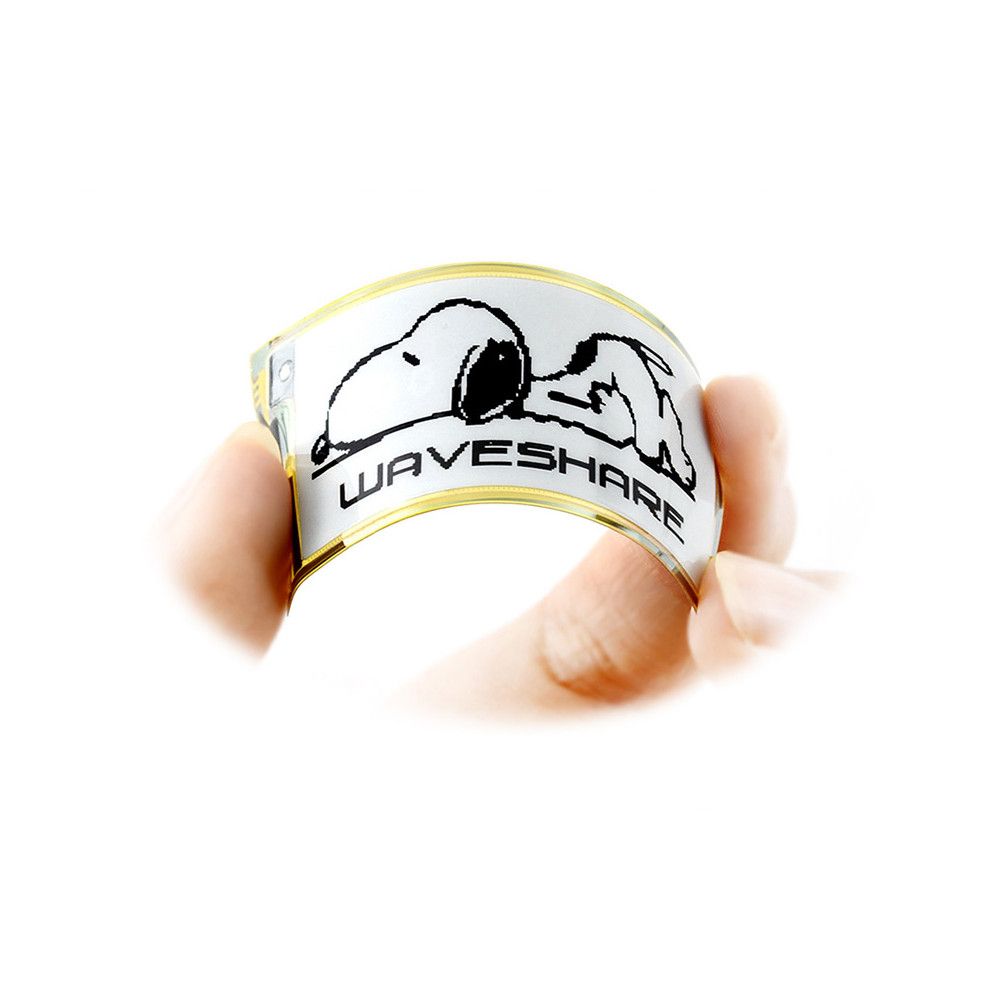

2.13 Inch Electronic Paper Flexible Ink Screen SPI Partially Refresh 212x104 Resolution Black&White Color

Based on 0 reviews. - Write a review

$33.99

Ex Tax: $33.99

Stock: In Stock
Model: EB0048549
SKU: EB0048549

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Features:

No need for backlight, power off can maintain the content of the last screen for a long time

Very low power consumption, basically only consumes power during refresh

Suitable for Raspberry Pi 2nd generation B/3th generation B/Zero/Zero W

Reserve the SPI control interface pad for easy access to Arduino/Nucleo and other main control boards

Parameter:

Working voltage: 3.3V

Communication interface: 3-wire SPI, 4-wire SPI

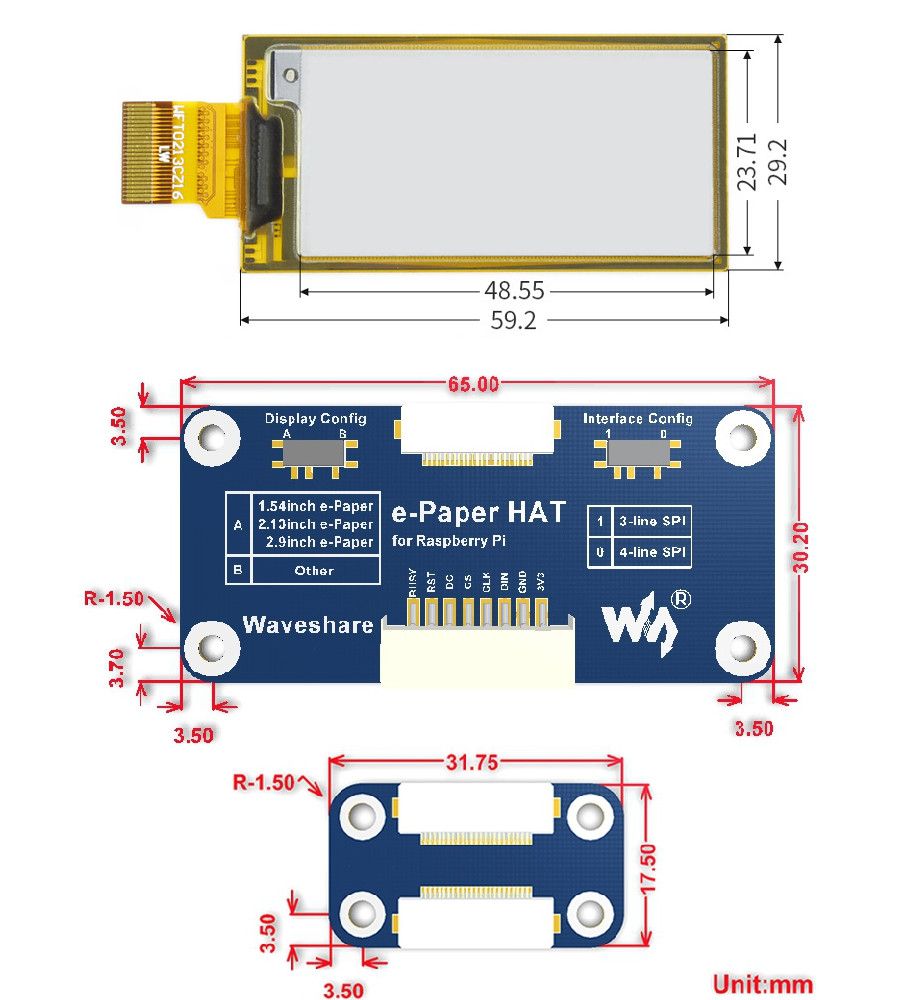

Dimensions: 59.2mm × 29.2mm × 0.3mm

Display size: 48.55mm × 23.71mm

Dot pitch: 0.229 × 0.228

Resolution: 212 × 104

Display color: black and white

Gray level: 2

Global refresh: 2s

Refresh power consumption: 26.4mW(typ.)

Standby power consumption: <0.017mW

Viewing angle: >170°

Interface Description:

VCC: 3.3V / 5V

GND: GND

DIN: SPI communication MOSI pin

CLK: SPI communication SCK pin

CS: SPI chip select pin (active low)

DC: data/command control pin (high level indicates data, low level indicates command)

RST: external reset pin (low level reset)

BUSY: Busy output pin (low level means busy)

Documents:

Schematic: Click here to open

Sample tutorial: Click here to open: http://www.waveshare.net/w/upload/3/39/E-Paper_code.7z

Datasheet: Click here to open

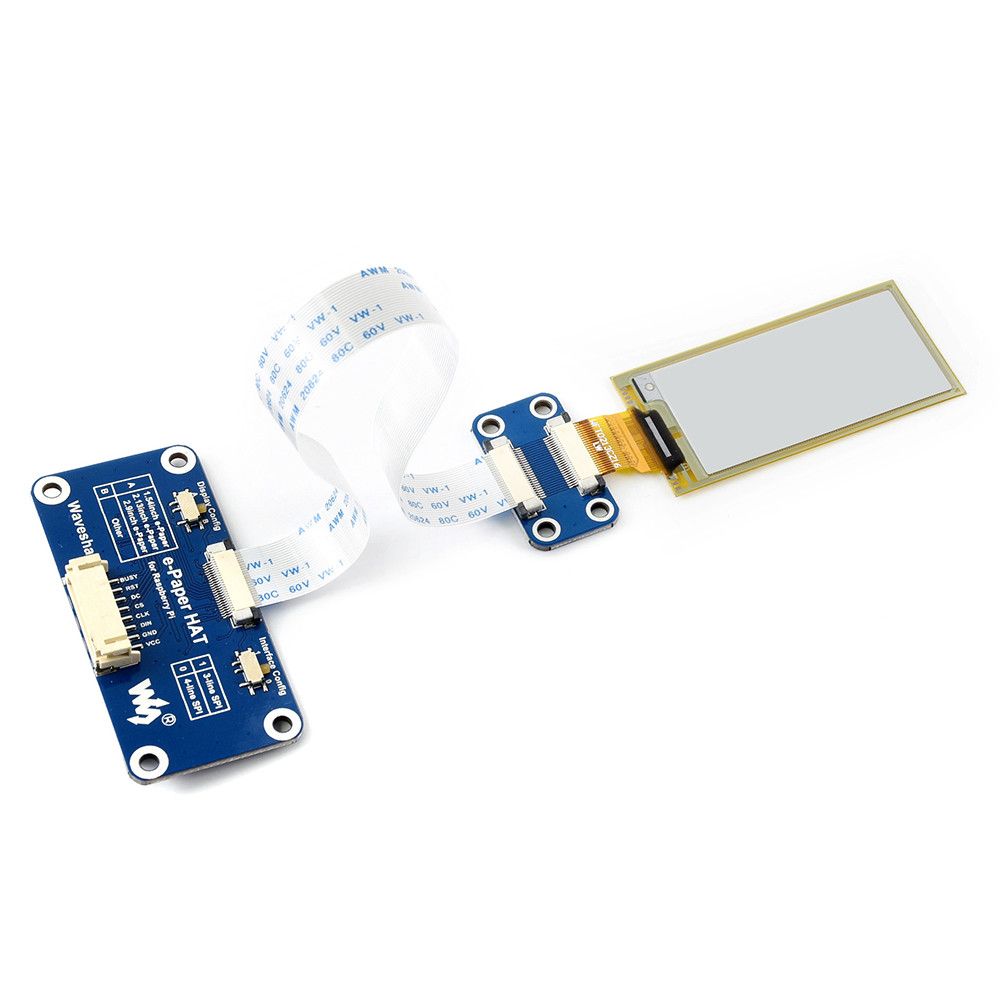

Package includes:

1 x 2.13inch e-Paper (D)

1 x e-Paper Driver HAT

1 x RPi copper column package (2PCS set)

1 x PH2.0 8PIN cable 20cm
