2 Million Pixel TH38A12 Network Module RTOS Dual Core 32 Bit 1080P Hass IPC Module Set Support ONVIF Protocol
- Stock: In Stock
- Model: EB0042877
- SKU: EB0042877

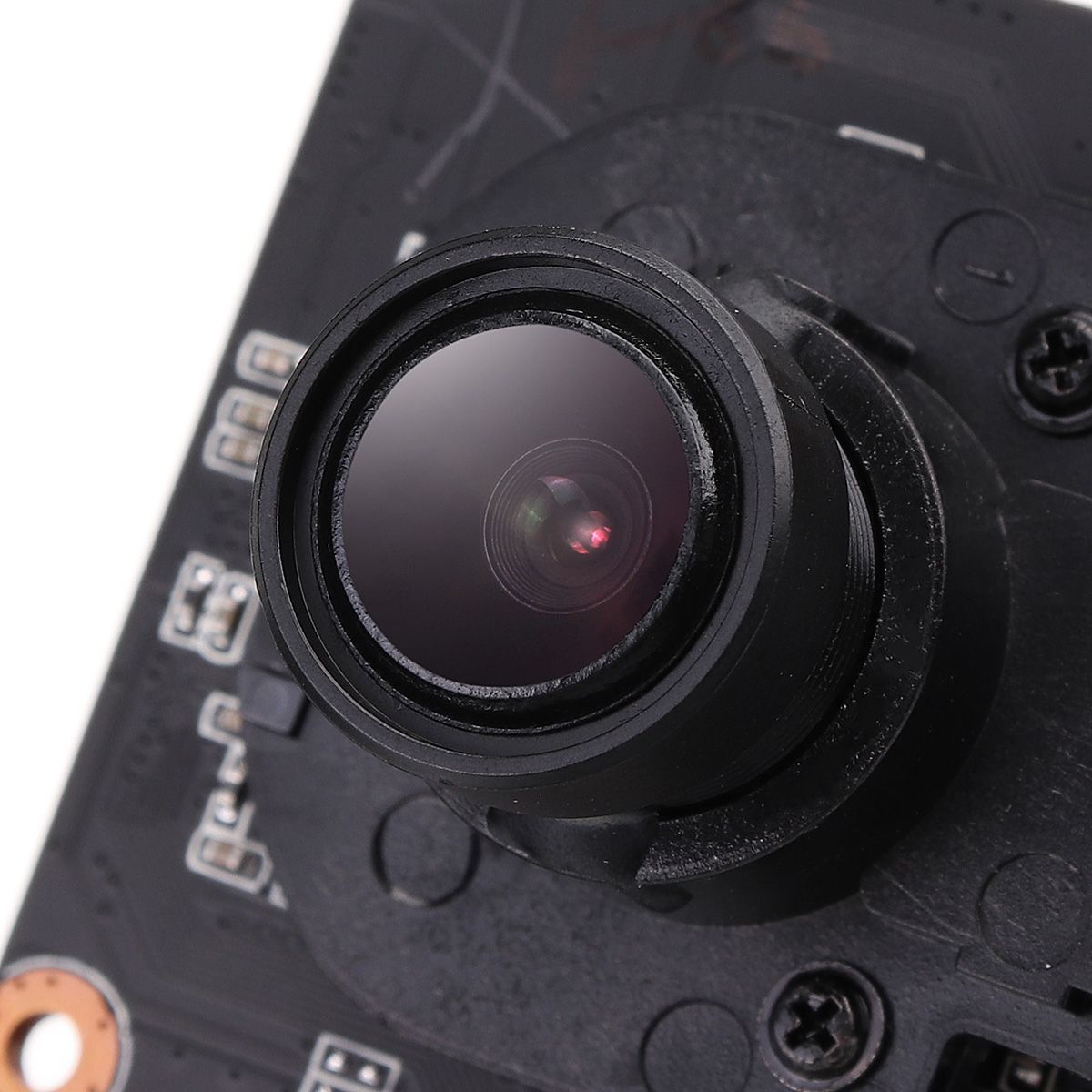

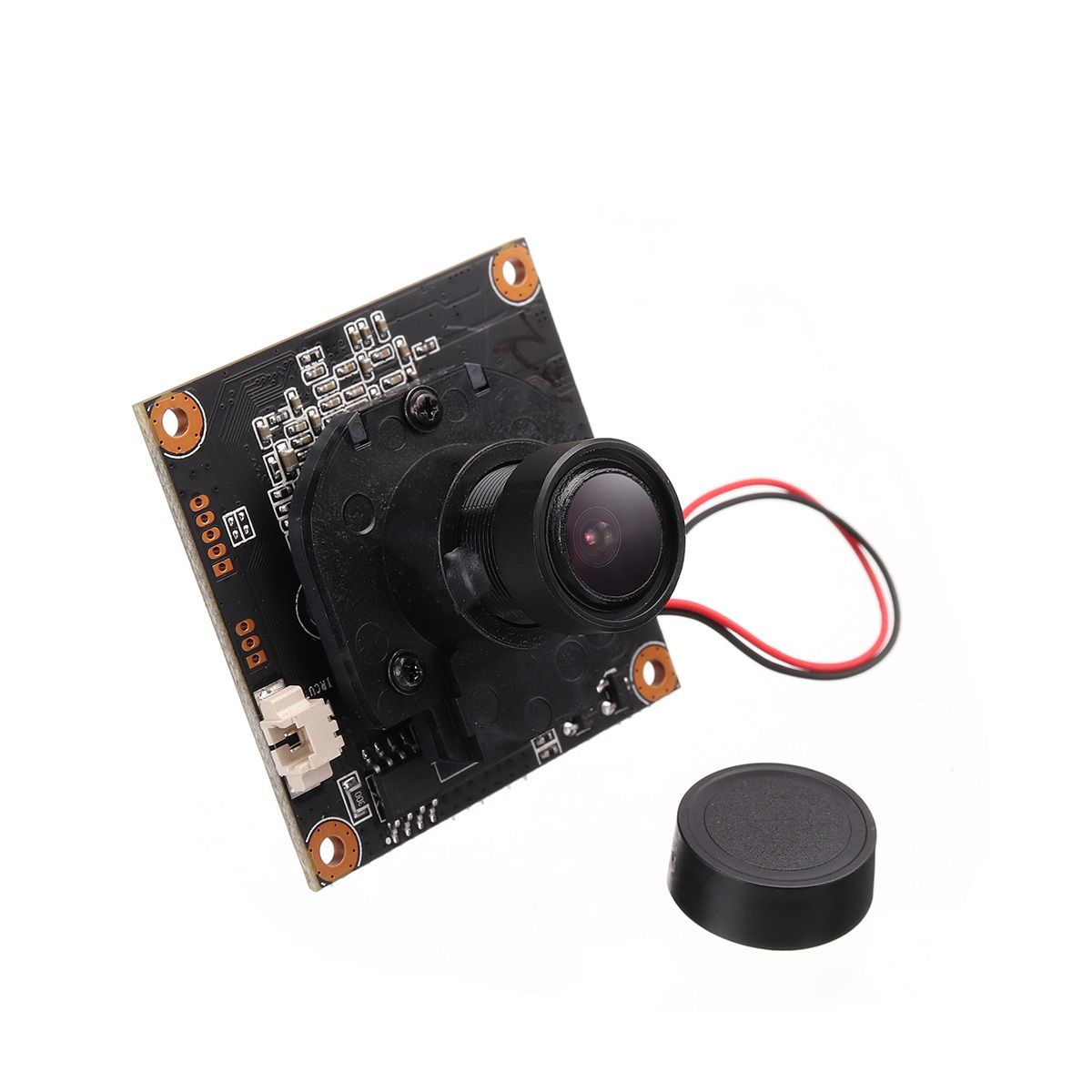

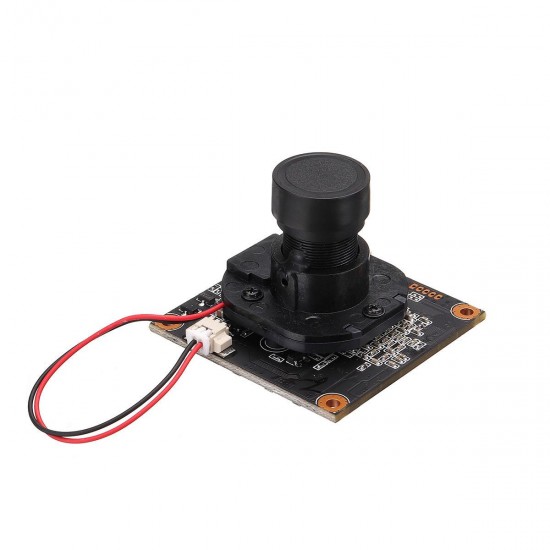

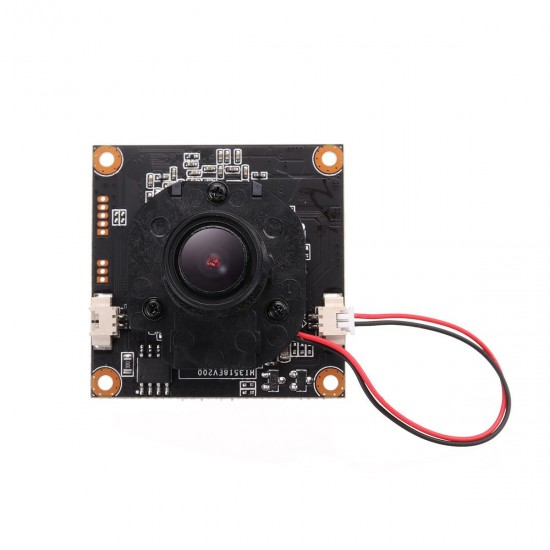

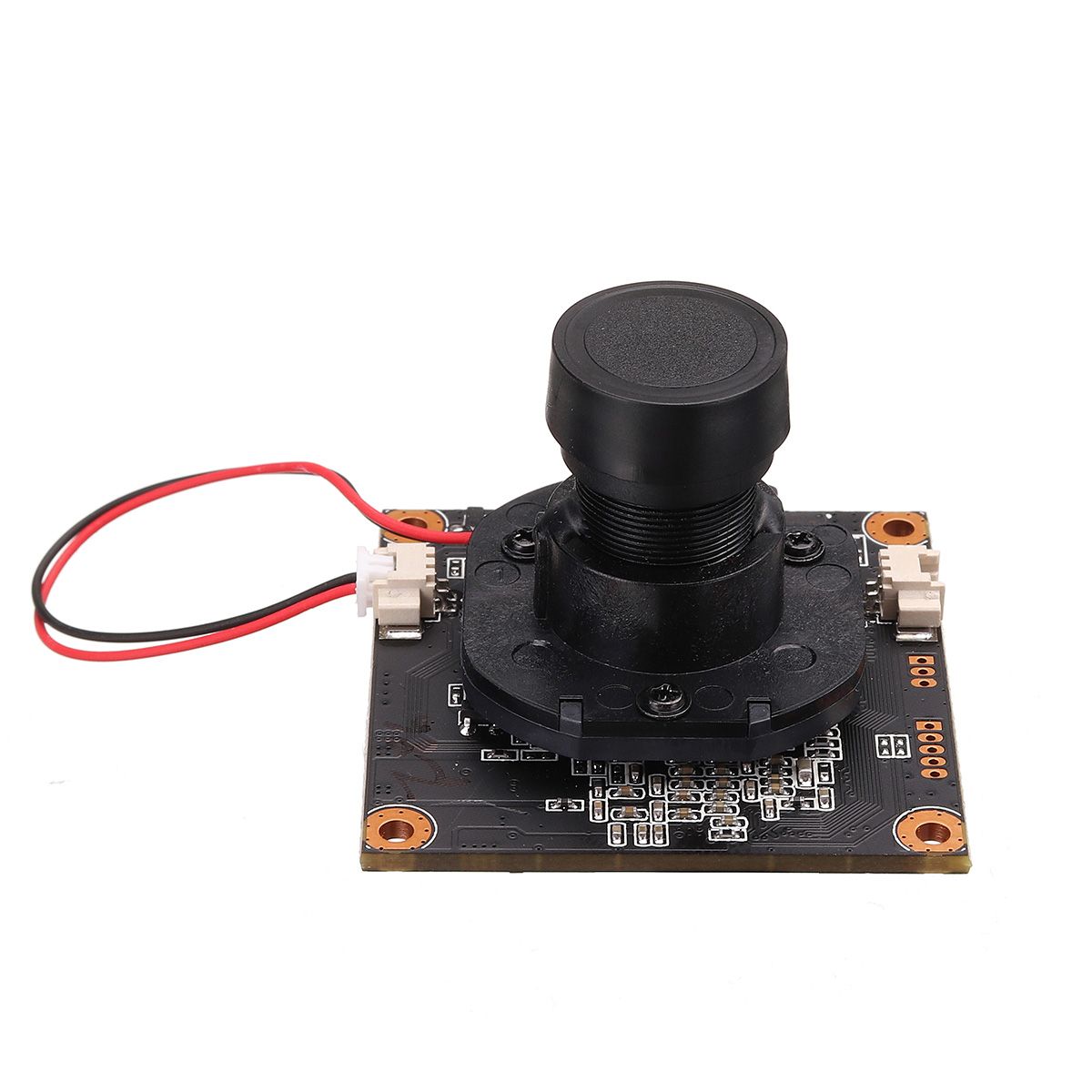

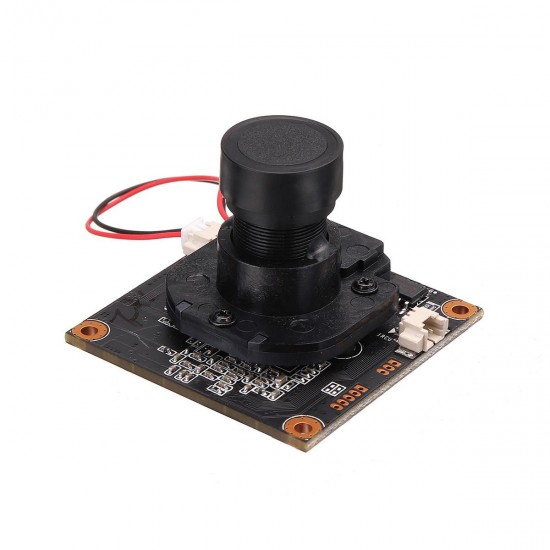

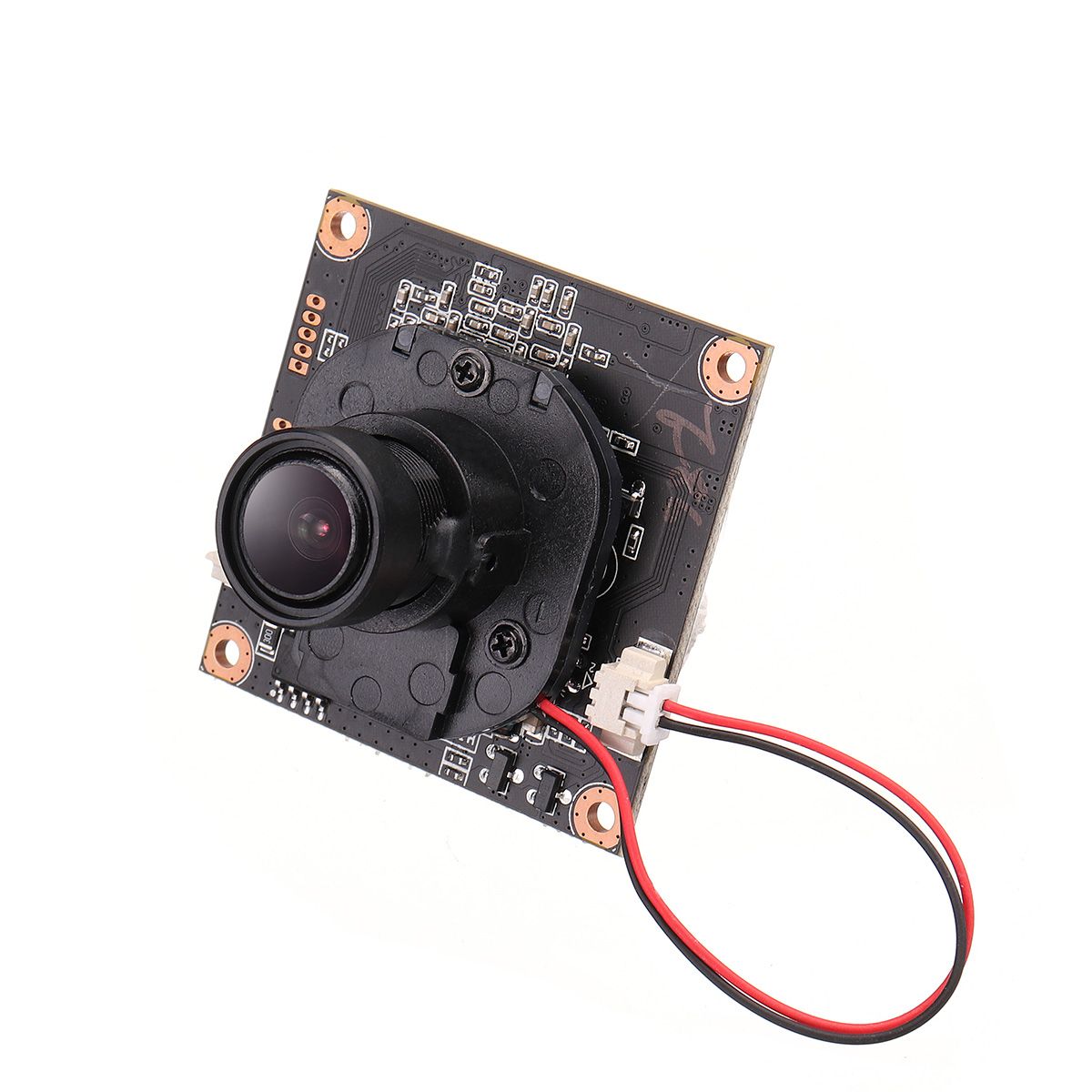

This kit includes: TH38A12 module +300W high-definition M12IR-CUT + Phoenix 4mm 300 million lens + adjusting lens
| Specification | |
| System structure | Embedded RTOS design, dual-core 32-bit DSP (Hi3518EV200), hard compression, watchdog, 8MB FLASH, 64MB built-in DDR2 |
| Sensor | 2-megapixel 1/3" CMOS, color 1.0Lux@F1.2, black and white 1.0Lux@F1.2. Integrated IR-CUT driver, support Sensor + IR-CUT + light-sensitive + LED fill light linkage control, supports day and night conversion, optional IR-CUT (20mm) and lens (CS/M12) |
| Video processing | H.264 video encoding, support for dual stream, AVI format, support for streaming 200k-5000k bps adjustable, support P system and N system. |
| Frame rate | 2 million pixels default 16 frames, support 7-16 frames / second adjustable. |
| Image output | Main stream: 1920x1080, 1280x960, 1280x720 |
| Substreams: 800x448, 640x480, 640x360, 352x288 | |
| Network interface | 1 RJ45 Ethernet interface, 10/100M self-adaptive, 8KV anti-static capability, support HTTP, TCP/IP, IPV4, DHCP, NTP, RTSP, ONVIF, P2P, PPTP, GB/T28181 and other network protocols . |

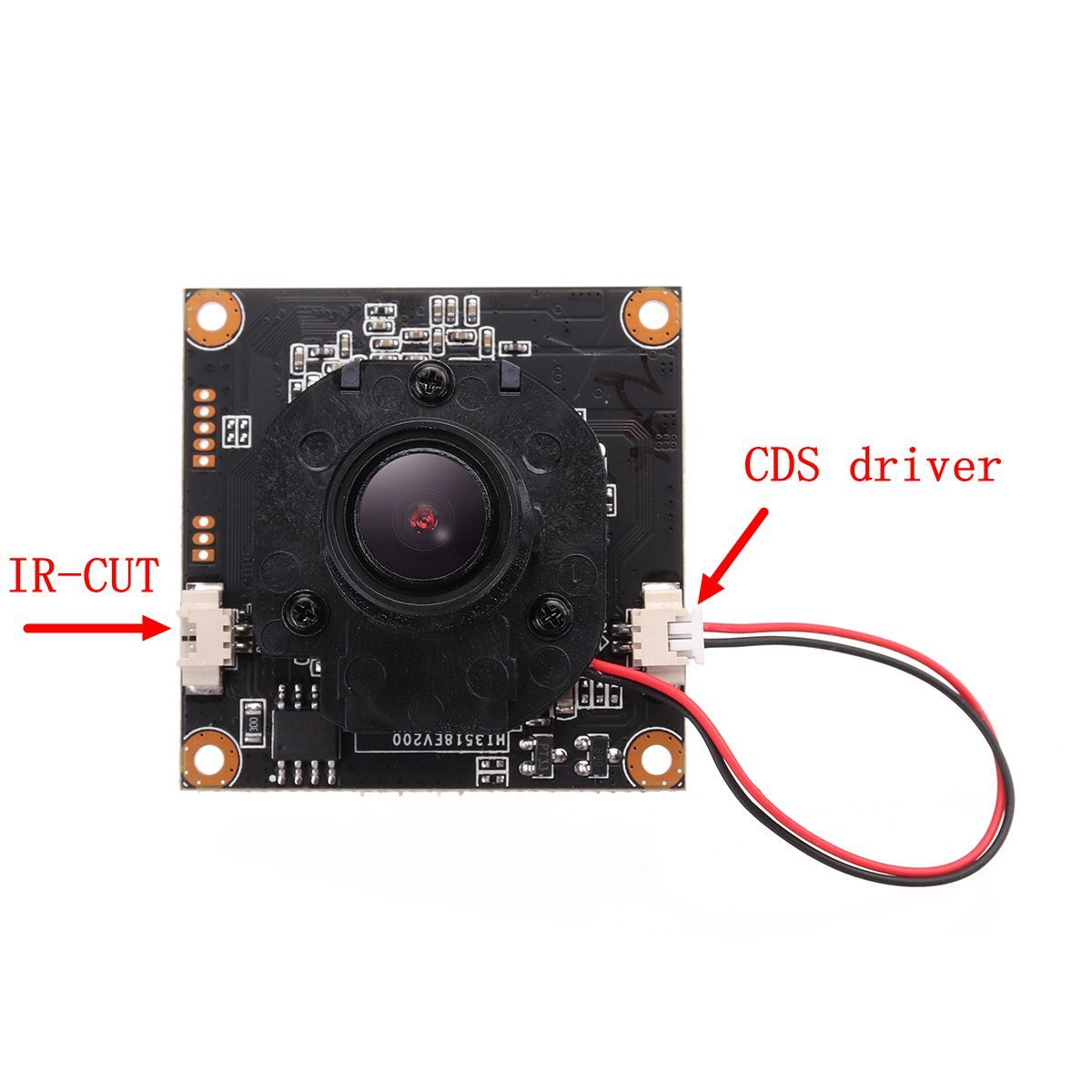

| Signal interface | 1 signal control input interface, 1 IRCUT interface, support IR-CUT and image linkage control. |
| Lightning protection | The power supply and the network are fully protected against lightning. They pass lightning protection standard tests such as ITU-T K.21-2008, IEC61000-4-2/IEC61000-4-5. |
| Business function | Support WEB configuration, support OSD, support real-time video transmission, support motion detection and alarm linkage, support center alarm and screen pop-up linkage after motion detection alarm, support remote monitoring software (Seetong) and other system applications |
| ONVIF protocol | Renhotec |
| Mobile phone monitoring | Support mobile phone monitoring (IOS, Android), support "Seetong" cloud service. |
| Power | DC12V power input interface, 1.2W power consumption, front-end power input lightning protection, anti-static, anti-reverse, and support 18V off voltage protection. |

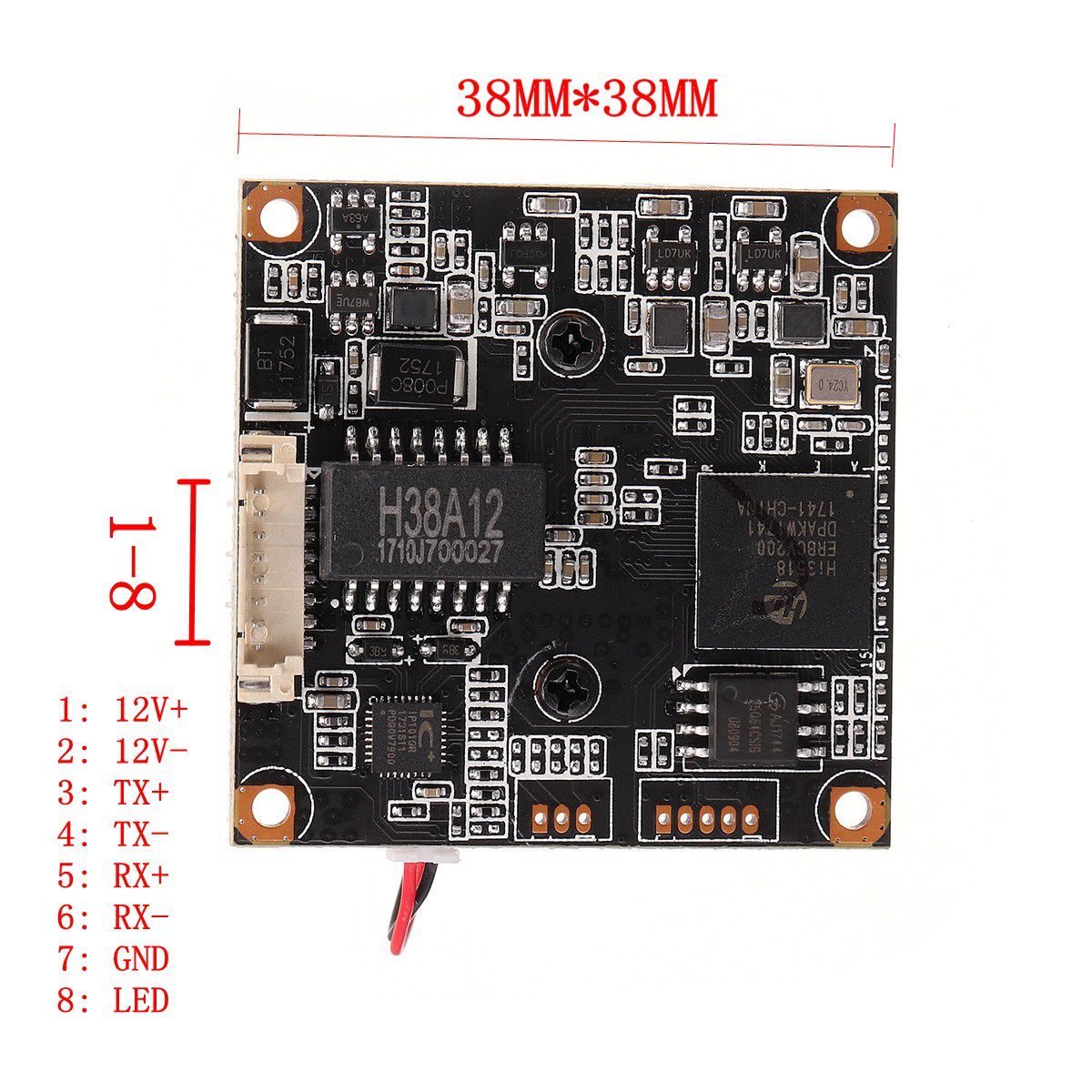

| Dimensions and weight | 38*38*11mm, 38 single-board structure, net weight about 8.6g |
| Operating temperature | -20°C to 55°C |
