$6.99
Ex Tax: $6.99
  • Stock: Out Of Stock
  • Model: EB0047658
  • SKU: EB0047658
    Overview:

    With 2 million pixels (1632x1232 pixels), the OV2640 image sensor is small in size and low in operating voltage, providing all the features of a single UXGA camera and image processor. Through the SCCB bus control, it is possible to output 10-bit sample data of various resolutions such as full frame, sub-sampling, and window. The UXGA image of this product is up to 15 frames per second. Users have complete control over image quality, data format and transmission. All image processing functions including gamma curve, white balance, saturation, chrominance, etc. can be programmed via the SCCB interface. OmmiVision Image Sensors use unique sensor technology to improve image quality and reduce sharp and stable color images by reducing or eliminating optical or electronic defects such as fixed pattern noise, tailing, and floating.

    Features:

    ● High sensitivity for low illumination applications
    ● Low voltage for embedded applications
    ● Standard SCCB interface, compatible with I2C interface
    ● RawRGB, RGB (GRB4: 2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) output formats
    ● Support UXGA, SXGA, VGA, QVGA, QQVGA, CIF, QCIF and various sizes up to 40x30 size
    ● Support VarioPixel subsampling mode
    ● Automatic influence control functions include: automatic exposure control, automatic gain control, automatic white balance, automatic elimination of light streaks, automatic black level calibration. Image quality control including color saturation, hue, gamma, sharpness ANTI_BLOOM
    ●ISP has noise elimination and dead point compensation
    ● Support image scaling
    ● Lens loss compensation
    ● Automatic adjustment of saturation
    ● Edge enhancement auto adjustment
    ● Automatic noise reduction

    Specifications:

    Photosensitive Array 1632x1232 Maximum Format UXGA
    IO voltage 1.7V-3.3V analog voltage 2.5-3.0v (internal LDO power supply 1.2V)
    Power Operation TBD Sleep <20μA
    Temperature operation -30 ° C to 70 ° C
    Stable operation 0 ° C to 50 ° C
    Output format (8-bit) YUV/YCbCr4: 2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data
    Optical size 1/4"
    Angle of view 25°
    Maximum conversion rate 15fps SXGA
    Sensitivity 1.3V / (Lux-sec)
    Signal to noise ratio 40 dB
    Dynamic range 50 dB
    Browse mode line by line
    Electronic exposure 1 line to 1247 lines
    Pixel area 2.2μm x 2.2μm
    Dark current 15mV/s at 60°C
    Base plate reserved crystal position

    Package Included:

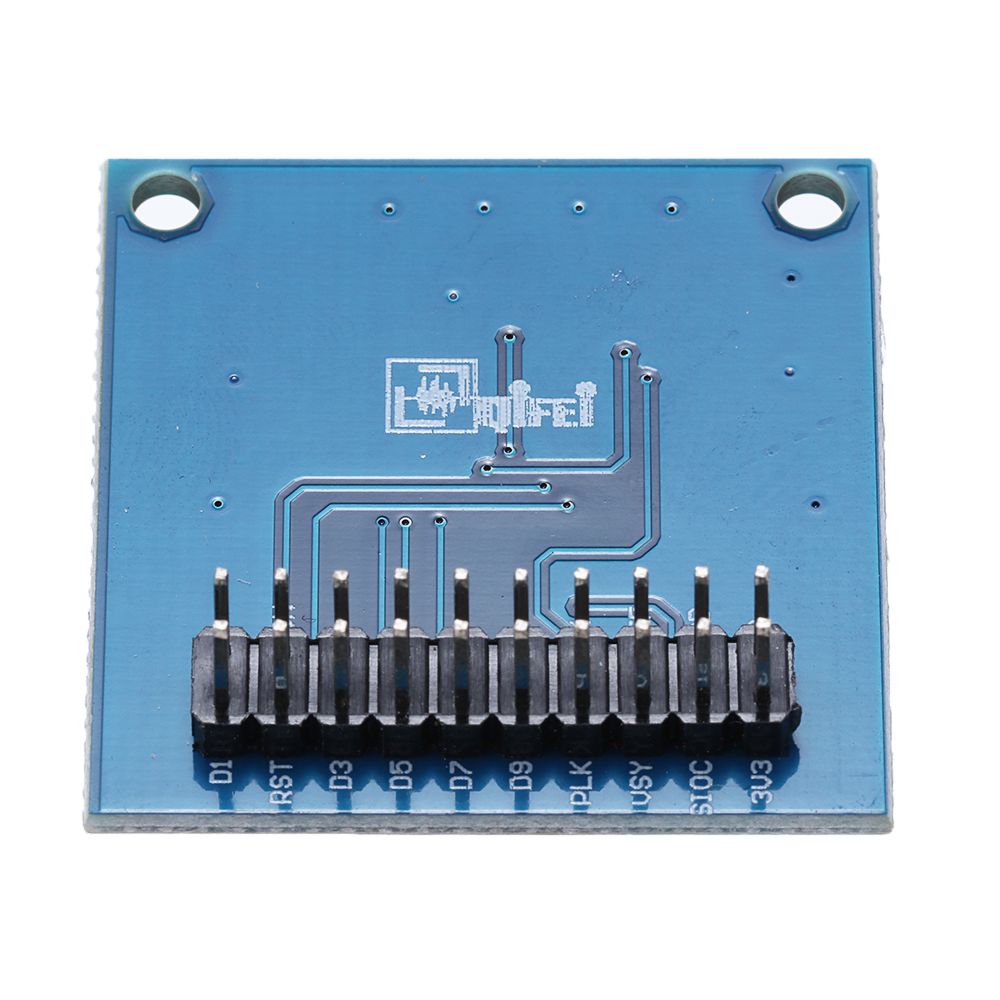

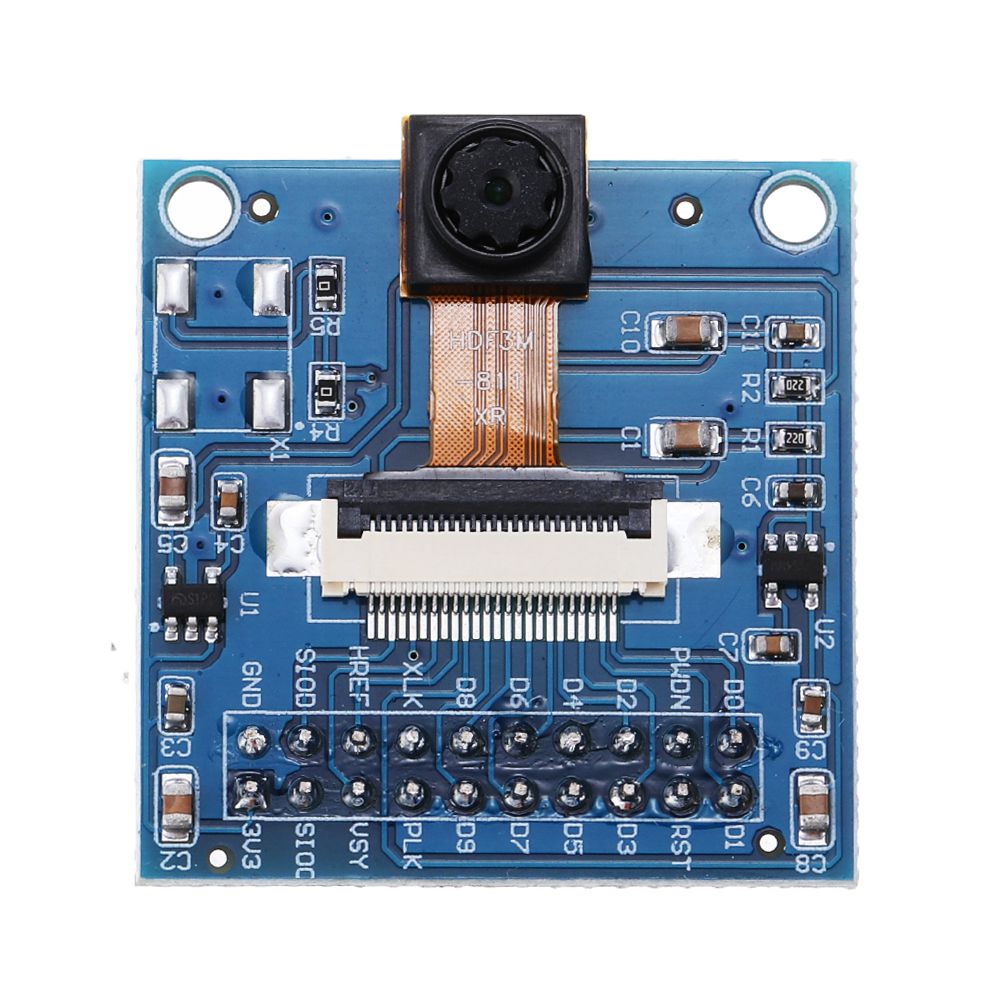

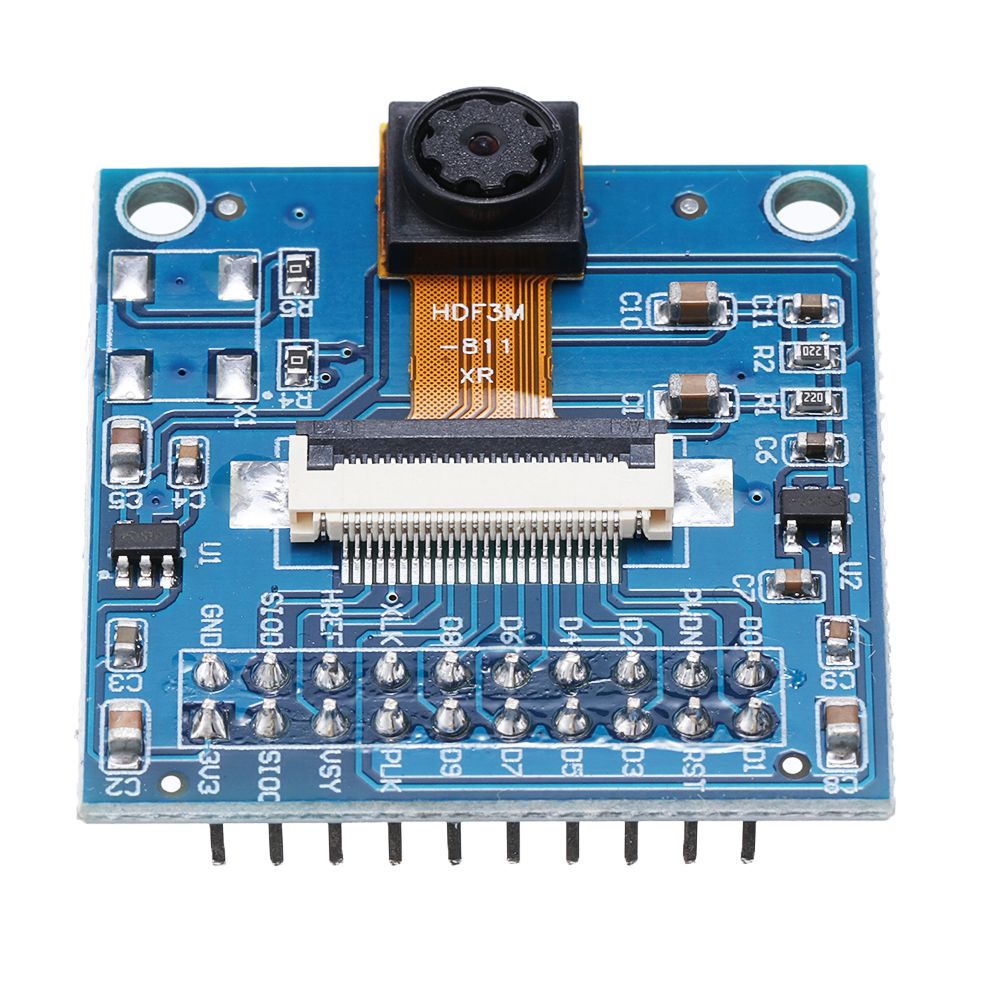

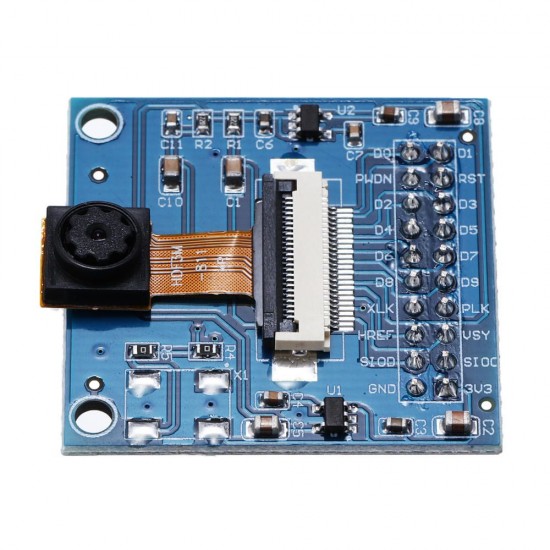

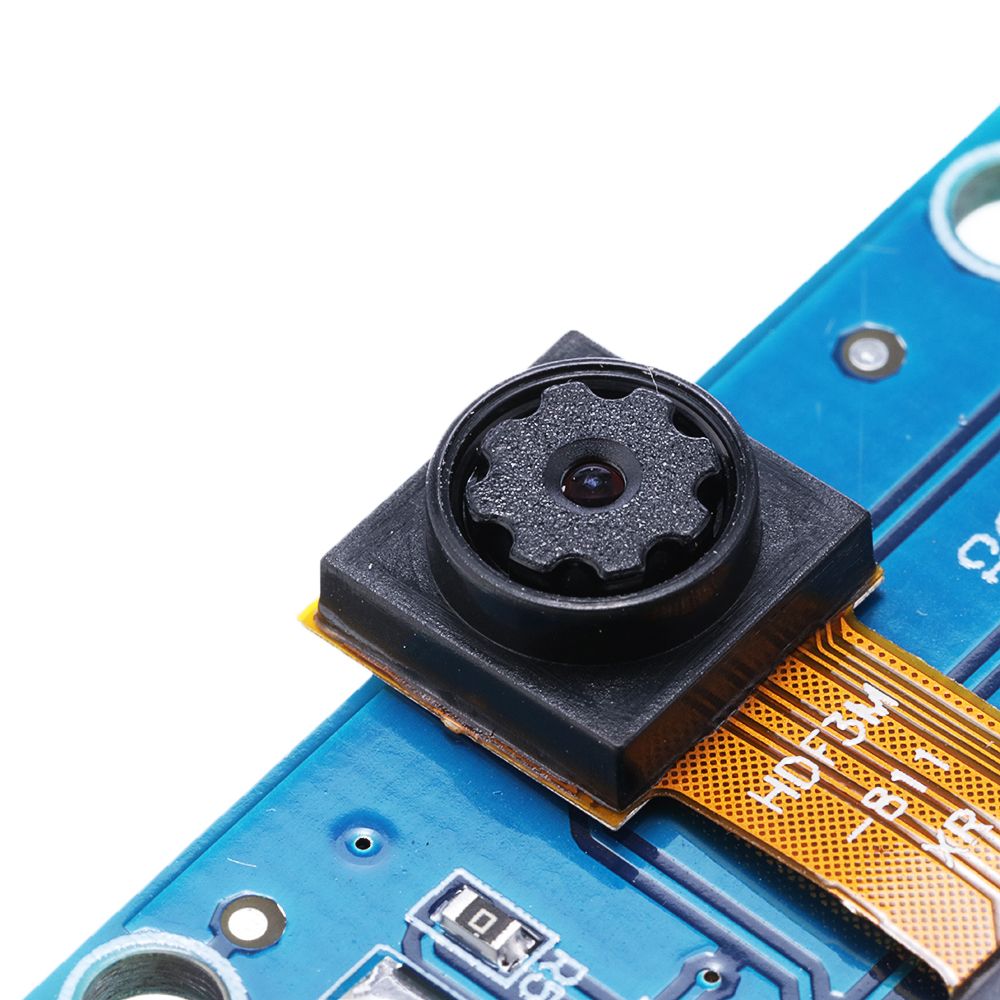

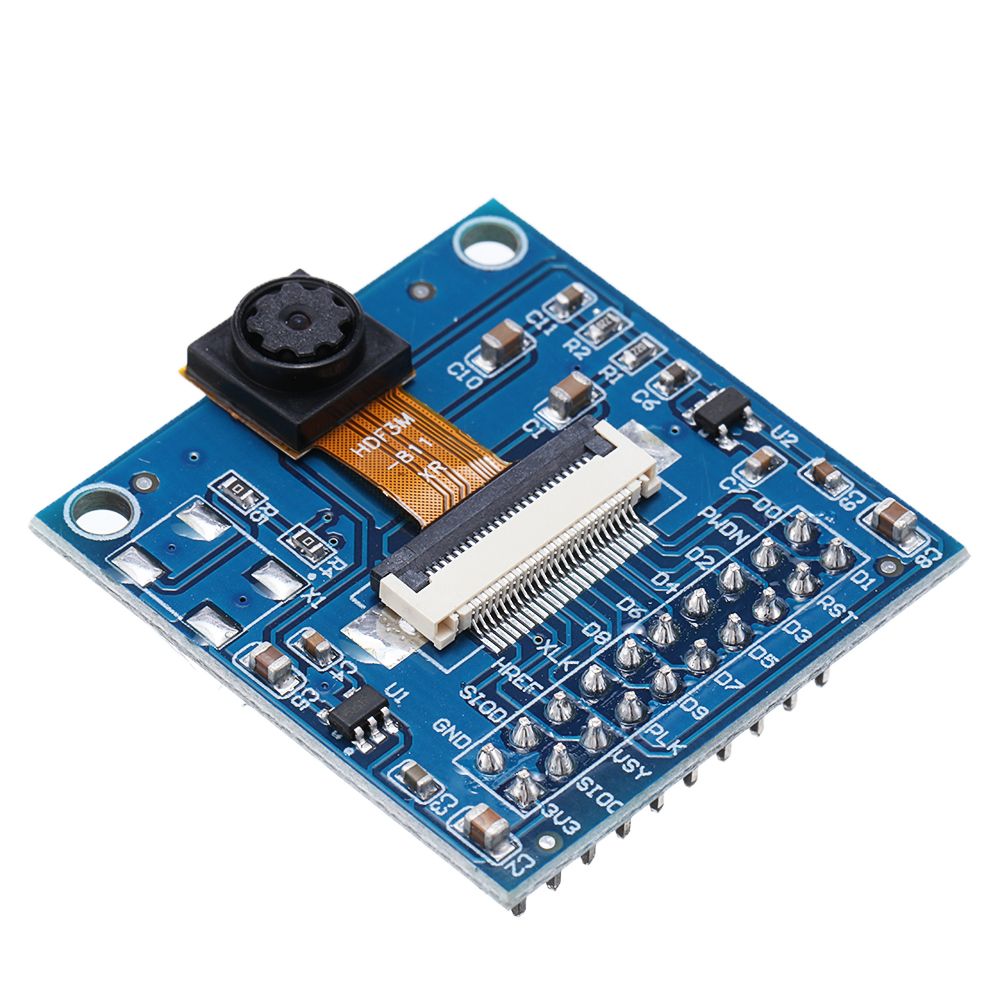

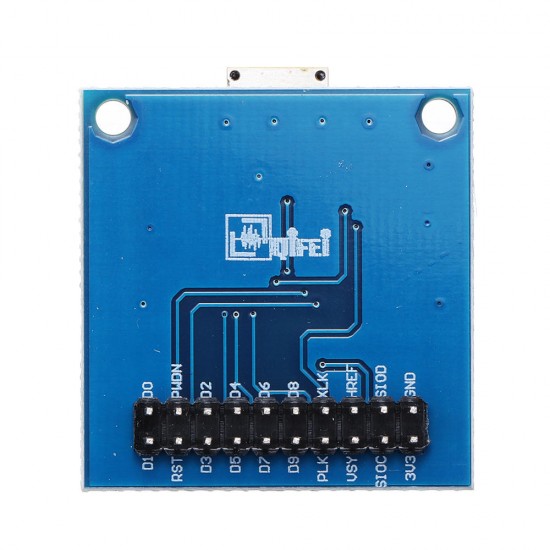

    1 x 2 Megapixel OV2640 Camera Module with Adapter Board
