1x6P 2x3P Bootloader Flash Tool Board Micro-USB IDE
- Stock: In Stock
- Model: EB0048635
- SKU: EB0048635

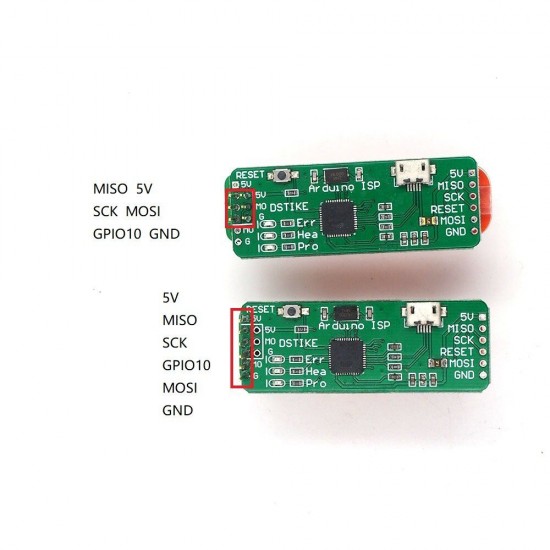

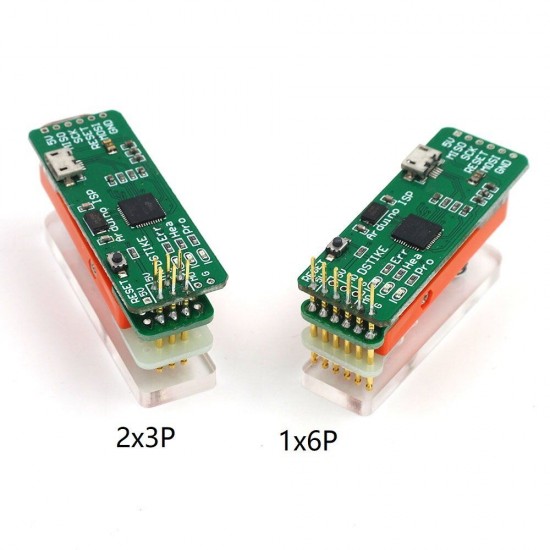

1#: 1x6P
2#: 2x3P
What is it?
It is a bootloader flash tool for Ardui o products. If you do not understand what is bootloader I suggest you have a look this:
- Bootloader Development: https://www.arduino.cc/en/hacking/bootloader
- Ardui o as ISP and Ardui o Bootloaders: https://www.arduino.cc/en/tutorial/arduinoISP
Why did you make it?
Now I have some Arudino products like Wifi Duck... Bootloader is a problem during Ardui o develop process. I want to share my exprience for those Ardui o developers. Now I only use Ardui o Leonardo as my target but theoretically other target is also OK.
What makes it special?
It is pre-flashed with Ardui o ISP software: https://www.arduino.cc/en/tutorial/arduinoISP
- Connect Flash Tool and computer via a Micro-USB cable.

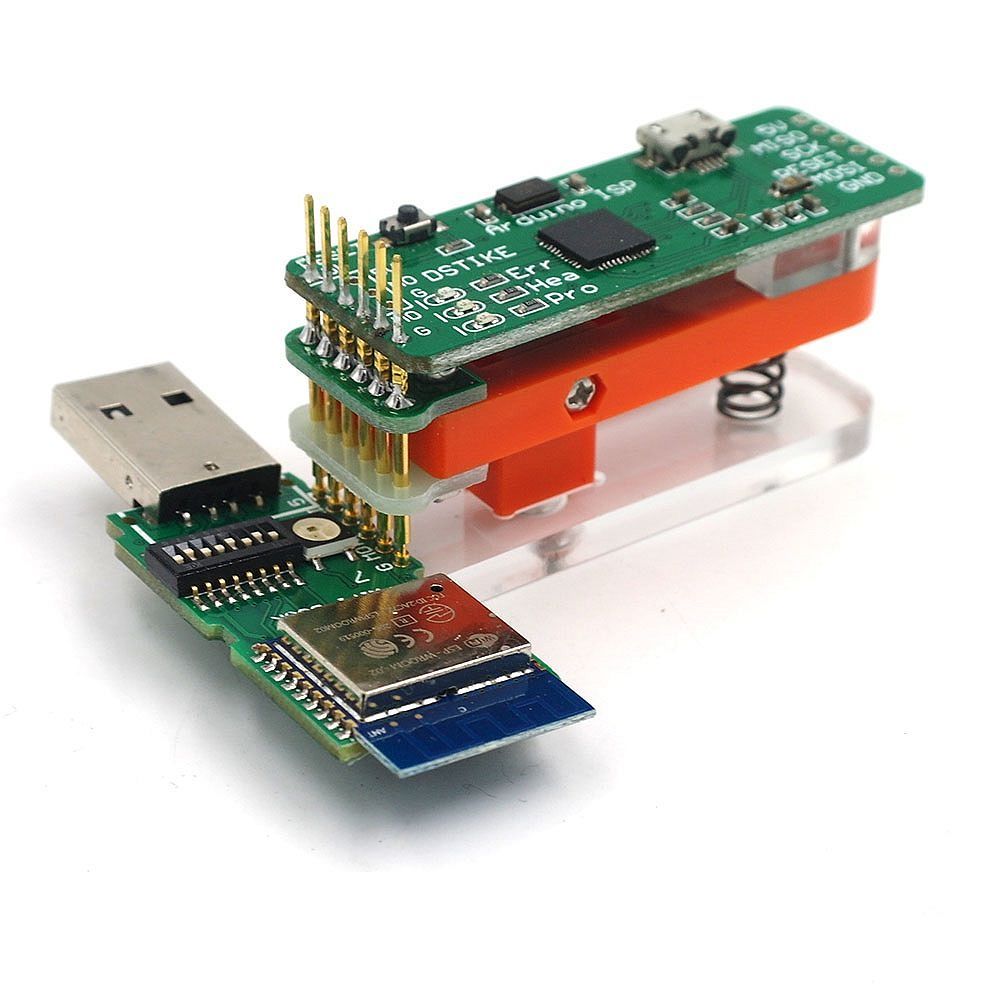

- Connect Flash Tool to the target board.
- Indicate LED will turn off for about 10 seconds.
- Wait until LED turn up .
- Open Ardui o IDE and select the item in the Tools->Board menu that corresponds to the board on which you want to burn the bootloader (Ardui o Uno,Nano,Leonardo...).
- Select Port COMXX(Ardui o Leonardo) .
- Select the Ardui o as ISP(Atmega32u4) in the Tools>Programmer menu.
- Use the Burn Bootloader command.
- You will see Indicate LED is twinkling when burning process start.
- Twinkling LED will be off and software says "Finish" at the same time when buring process finish.
Package Included:
1 x 1x6P/2x3P DSTIKE Bootloader Flash Tool
