1pcs NX4832T035 3.5 Inch 480x320 HMI TFT LCD Touch Display Module Resistive Touch Screen
- Stock: In Stock
- Model: EB0051013
- SKU: EB0051013
Nextion is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to Internet of thing (IoT) or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube.

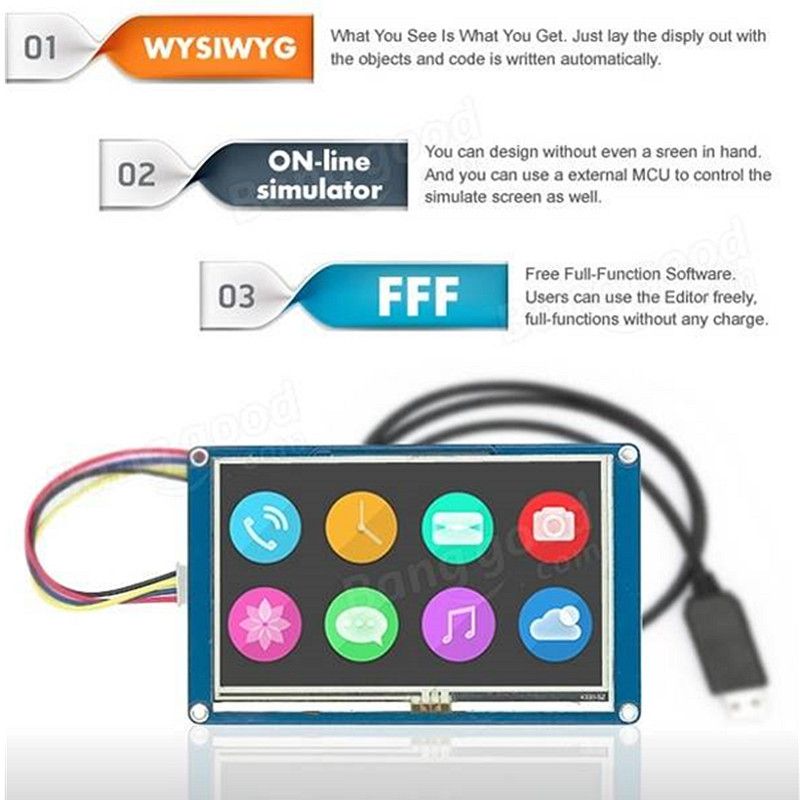

Nextion includes a hardware part (a series of TFT boards) and a software part (the Nextion editor: http://nextion.itead.cc/). The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend much time in application development but get unsatisfactory results. As a solution to this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake.
It's easy to adapt Nextion family HMI to existing projects. Users just need to provide it a UART.

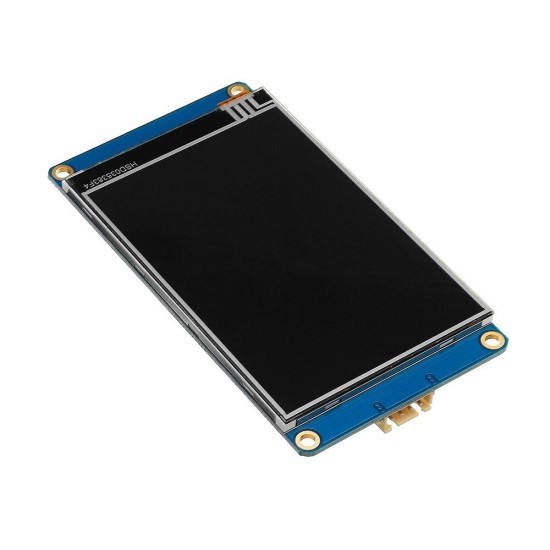

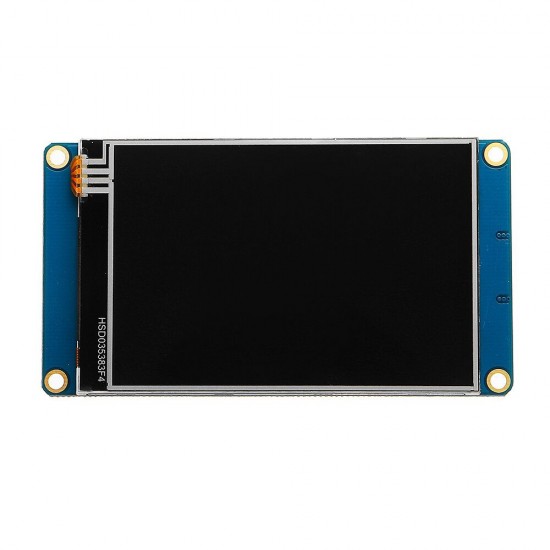

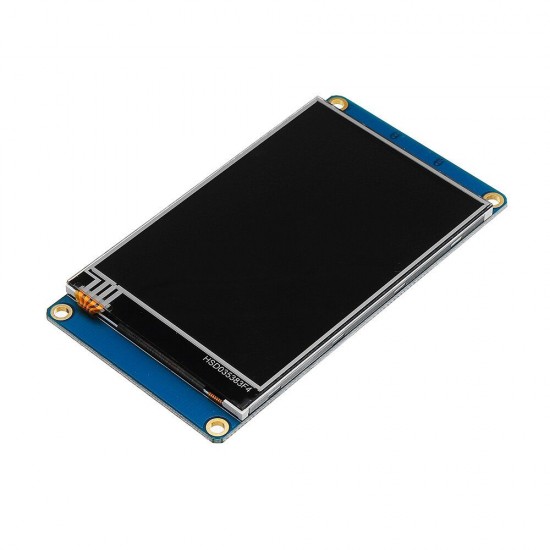

3.5" Basic Nextion NX4832T035 HMI TFT Intelligent Display Module is a powerful 3.5'' HMI, which is member of Nextion family. Features include: a 3.5" TFT 480x320 resistive touch screen display, 16M Flash, 3.5KByte RAM, 65k colors.
Features:
480 x 320 Resolution
RGB 65K true to life colors
TFT Screen with integrated 4-wire Resistive Touch Panel
Easy 4 pin interface to any TTL Serial Host
16M Flash memory for User Application Code and Data
Onboard micro-SD card for firmware upgrade
Visual Area:73.44mm(L)×48.96mm(W)
Adjustable Brightness:0~180 nit, the interval of adjustment is 1%

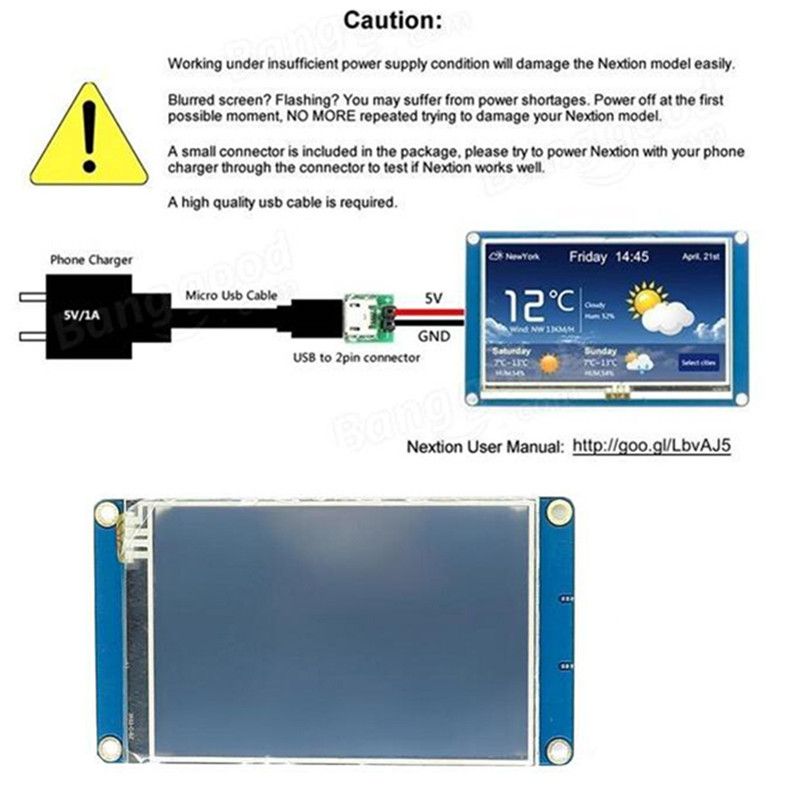

5V500mA DC recommended a power supply
5V145mA power consumption

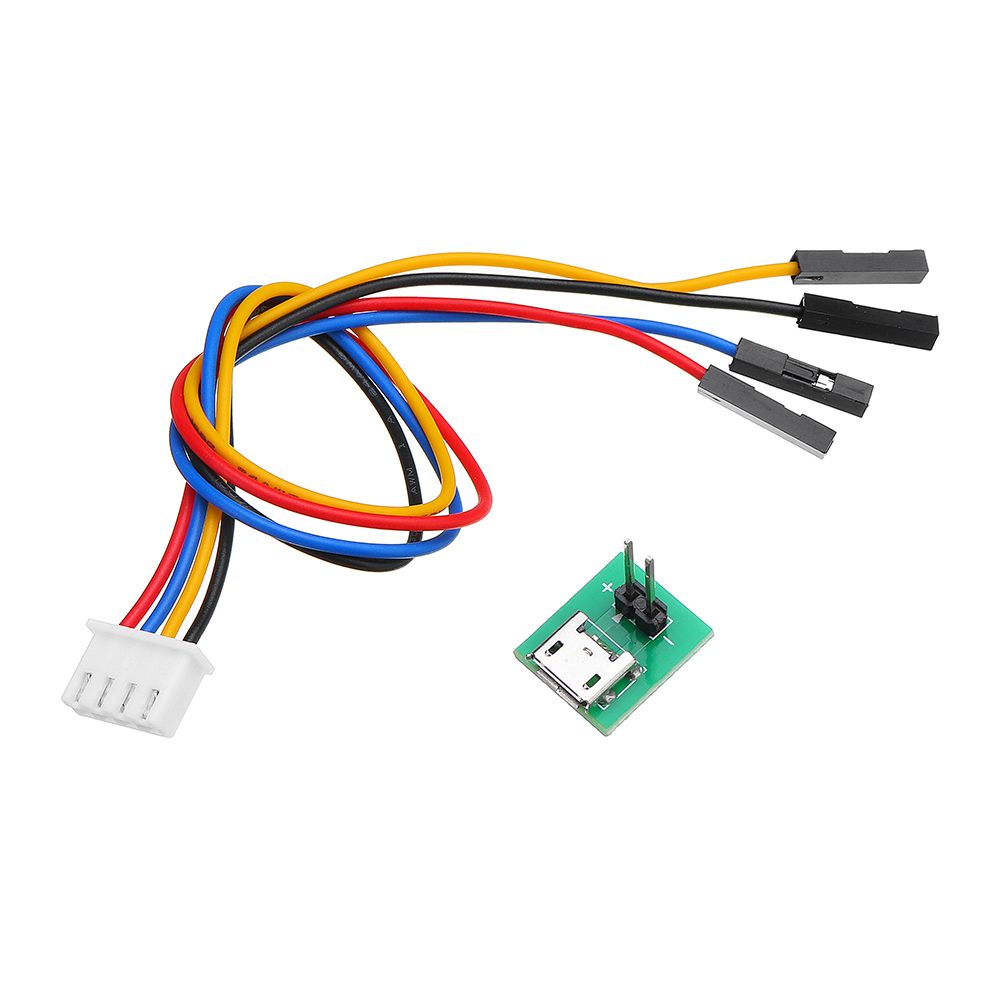

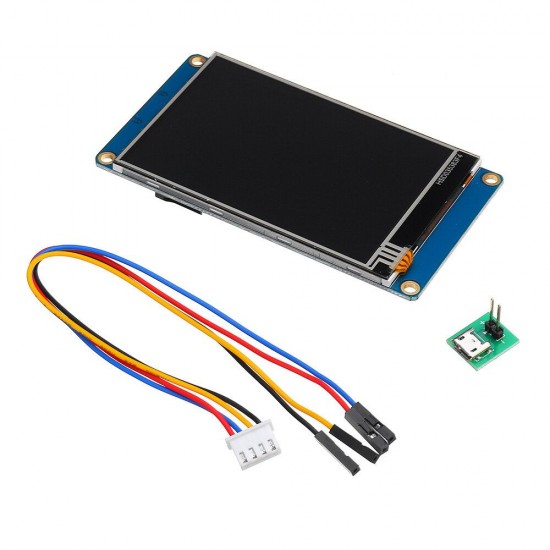

Package included:
1 x 3.5 Inch Serial Touch TFT LCD Screen
