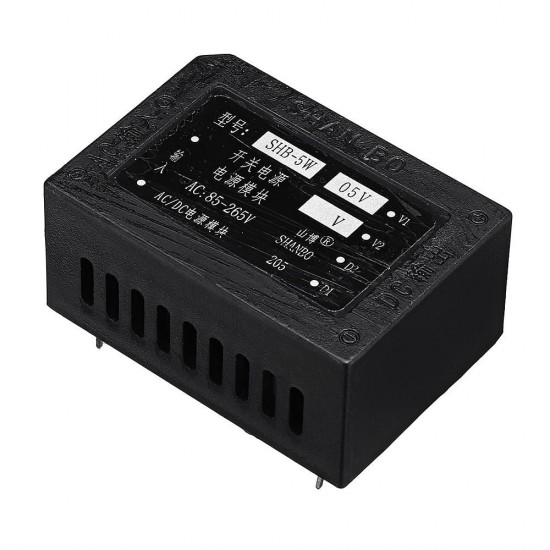

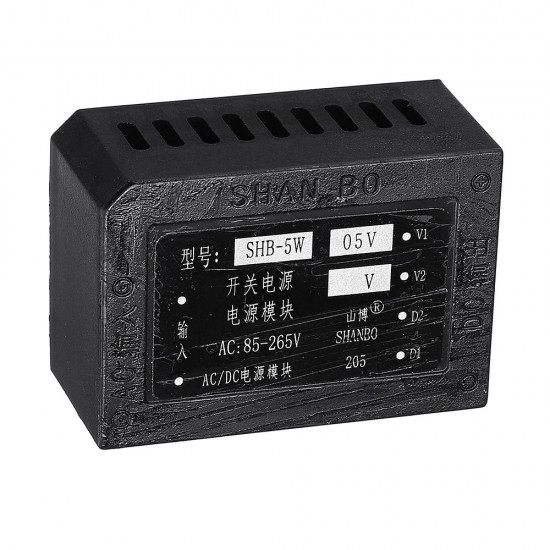

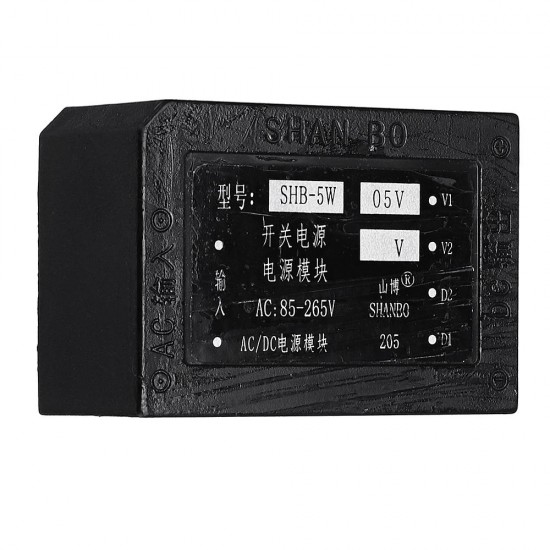

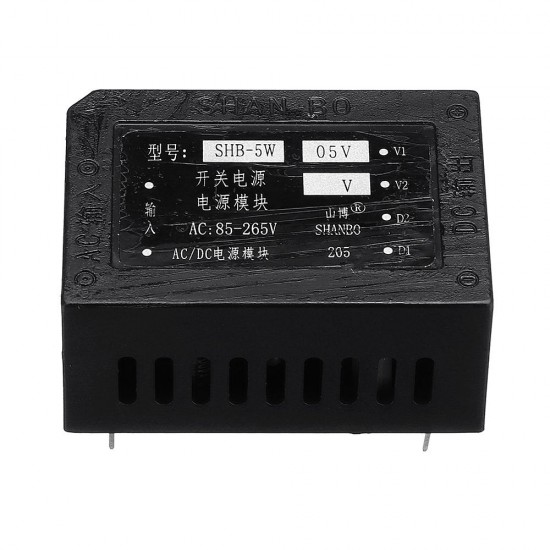

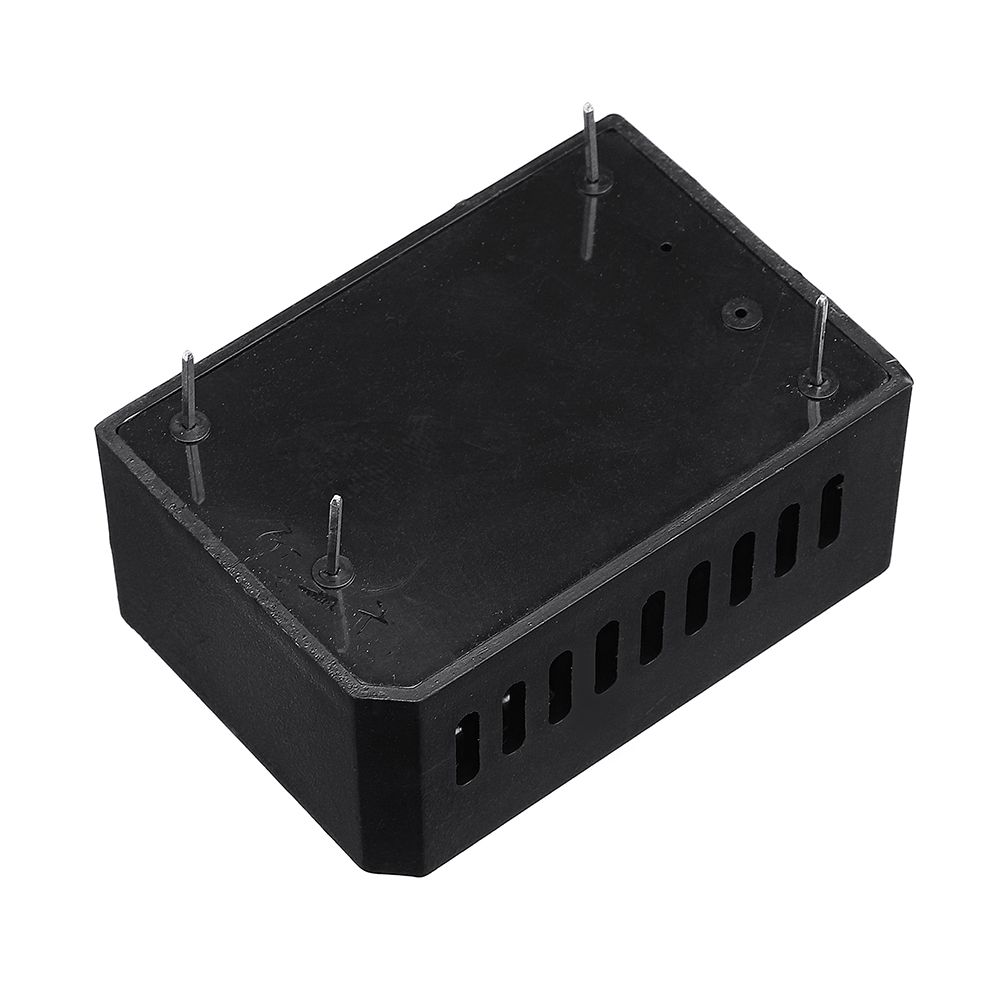

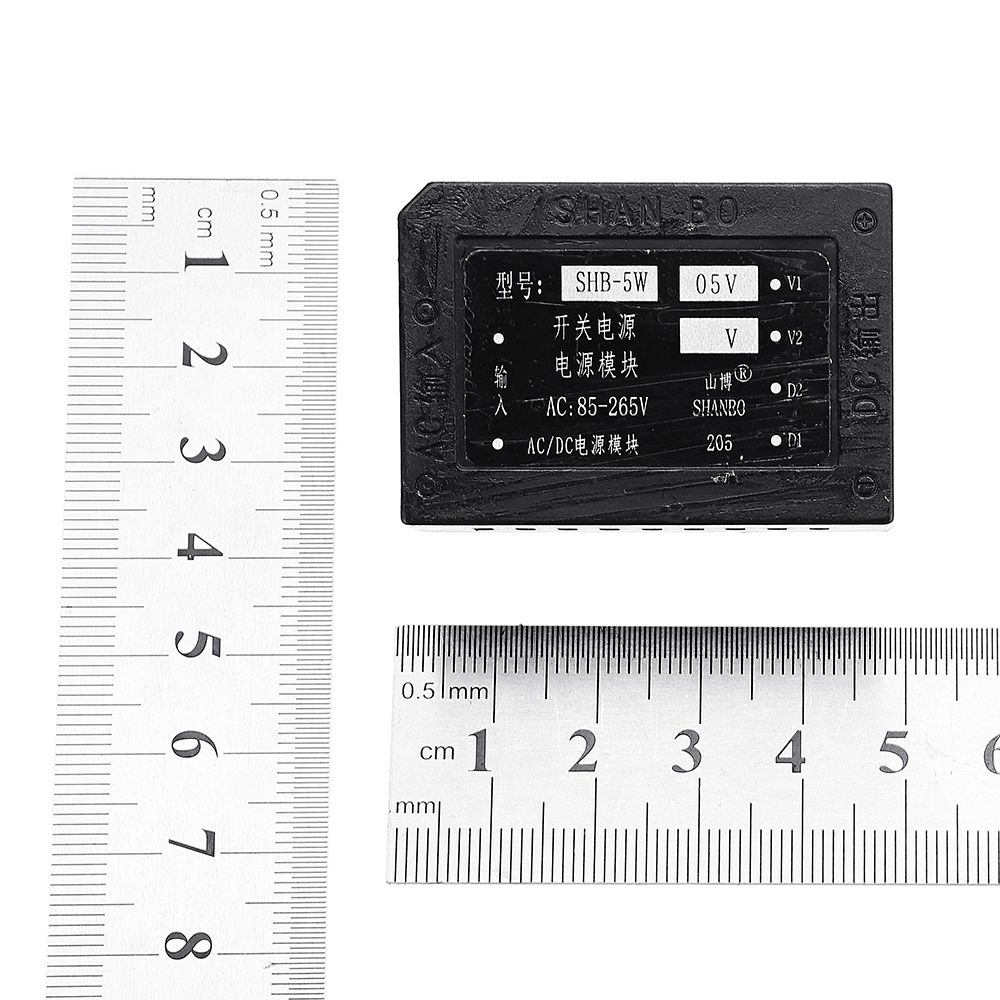

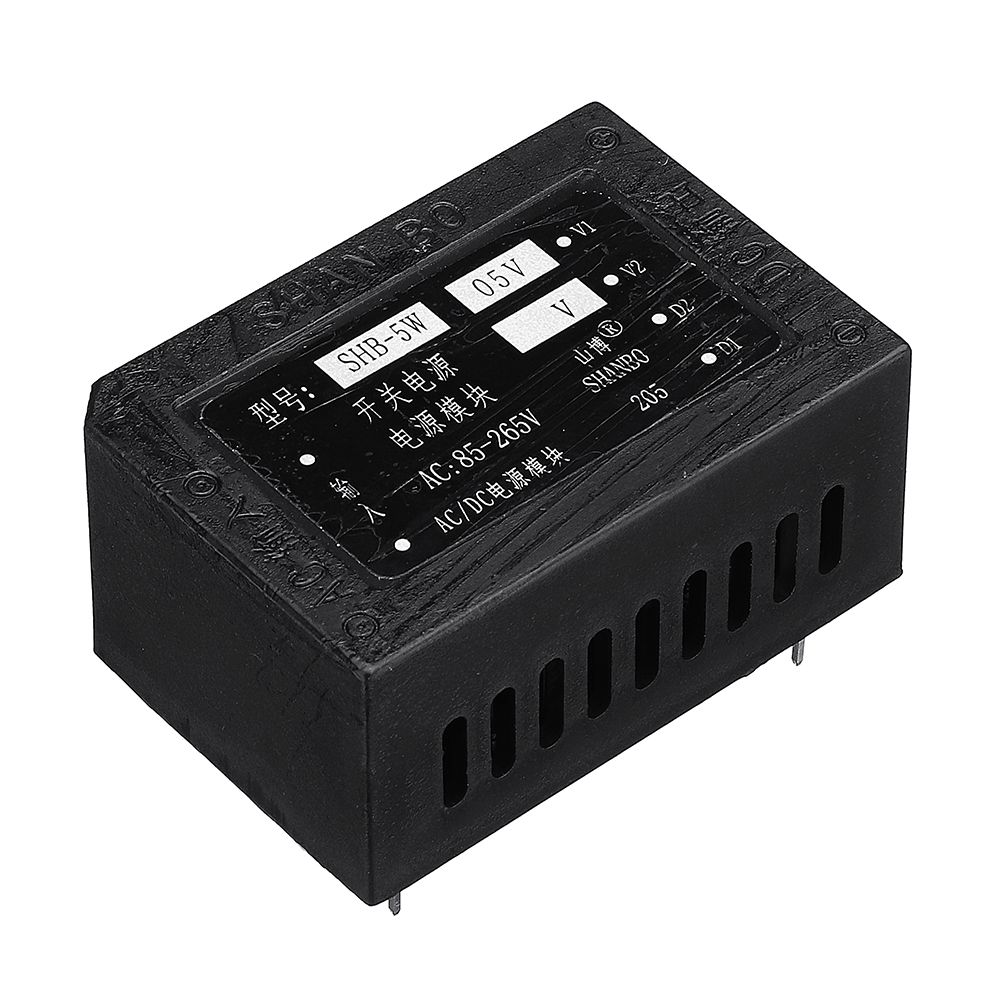

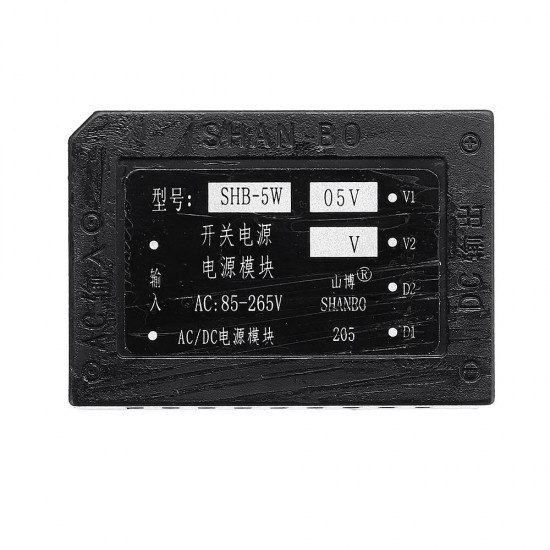

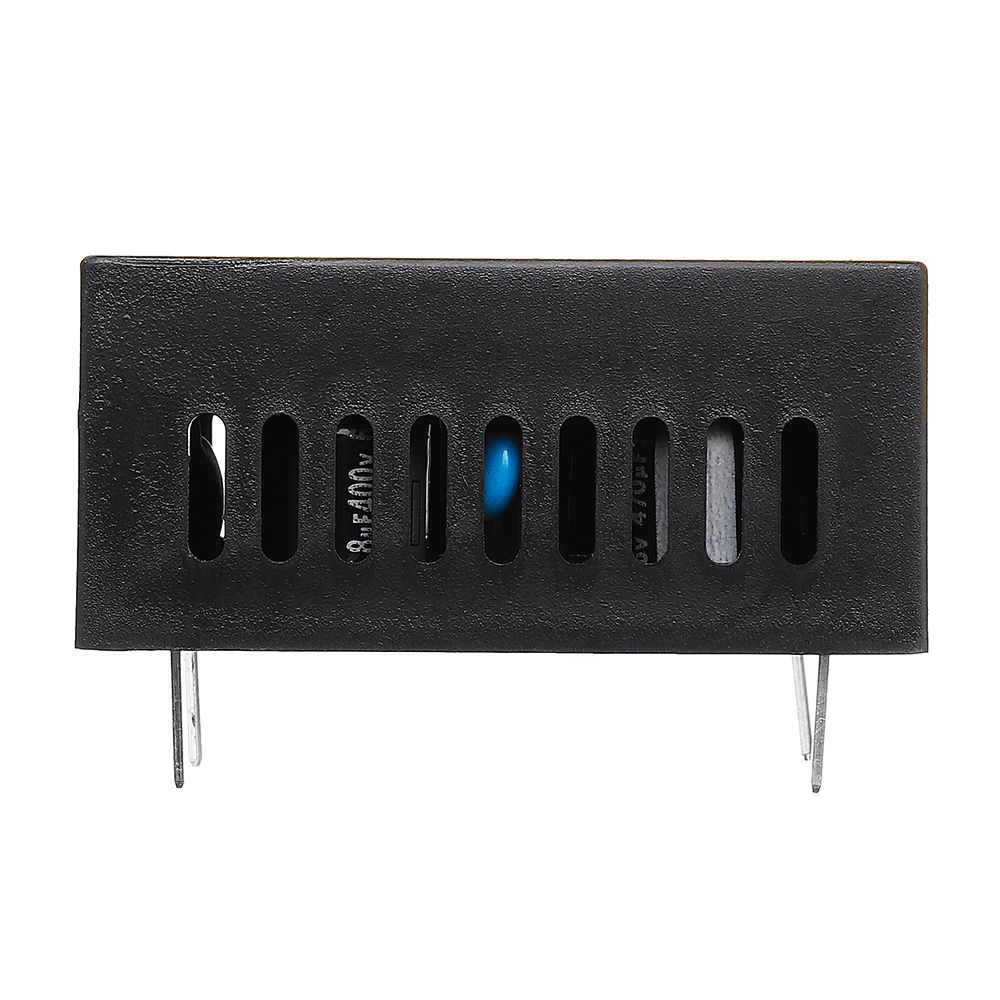

1A AC 85-264V To DC 5V Switching Power Supply Module Precision Low Temperature Over Current Protection Step Down Module

1A AC 85-264V To DC 5V Switching Power Supply Module Precision Low Temperature Over Current Protection Step Down Module
1A AC 85-264V To DC 5V Switching Power Supply Module Precision Low Temperature Over Current Protection Step Down Module
1A AC 85-264V To DC 5V Switching Power Supply Module Precision Low Temperature Over Current Protection Step Down Module
1A AC 85-264V To DC 5V Switching Power Supply Module Precision Low Temperature Over Current Protection Step Down Module
1A AC 85-264V To DC 5V Switching Power Supply Module Precision Low Temperature Over Current Protection Step Down Module
1A AC 85-264V To DC 5V Switching Power Supply Module Precision Low Temperature Over Current Protection Step Down Module
1A AC 85-264V To DC 5V Switching Power Supply Module Precision Low Temperature Over Current Protection Step Down Module
1A AC 85-264V To DC 5V Switching Power Supply Module Precision Low Temperature Over Current Protection Step Down Module
1A AC 85-264V To DC 5V Switching Power Supply Module Precision Low Temperature Over Current Protection Step Down Module
1A AC 85-264V To DC 5V Switching Power Supply Module Precision Low Temperature Over Current Protection Step Down Module
1A AC 85-264V To DC 5V Switching Power Supply Module Precision Low Temperature Over Current Protection Step Down Module
1A AC 85-264V To DC 5V Switching Power Supply Module Precision Low Temperature Over Current Protection Step Down Module
1A AC 85-264V To DC 5V Switching Power Supply Module Precision Low Temperature Over Current Protection Step Down Module
1A AC 85-264V To DC 5V Switching Power Supply Module Precision Low Temperature Over Current Protection Step Down Module
1A AC 85-264V To DC 5V Switching Power Supply Module Precision Low Temperature Over Current Protection Step Down Module
1A AC 85-264V To DC 5V Switching Power Supply Module Precision Low Temperature Over Current Protection Step Down Module
1A AC 85-264V To DC 5V Switching Power Supply Module Precision Low Temperature Over Current Protection Step Down Module
1A AC 85-264V To DC 5V Switching Power Supply Module Precision Low Temperature Over Current Protection Step Down Module
1A AC 85-264V To DC 5V Switching Power Supply Module Precision Low Temperature Over Current Protection Step Down Module
1A AC 85-264V To DC 5V Switching Power Supply Module Precision Low Temperature Over Current Protection Step Down Module
1A AC 85-264V To DC 5V Switching Power Supply Module Precision Low Temperature Over Current Protection Step Down Module
$5.39
Ex Tax: $5.39
  • Stock: In Stock
  • Model: EB0045111
  • SKU: EB0045111
Feature:

- Using integrated circuit chips Part of the original patch mounting process
- Over temperature and overcurrent protection

Specification:

Model: SHB*5W*5V
Rated power: 5W
Output voltage: DC 5V
Output current: DC 1000MA
Input voltage: AC 85V-264V
Working efficiency: 75-82%
Ripple voltage: 50MV
No-load power consumption: <0.3W
Isolation voltage: >AC 2000V
Isolation resistance: >200MR
Voltage regulation rate ≤0.8%
Load regulation rate ≤1%
Opening time: 50MS
Hold time: 20MS
Transient response: 500US
Temperature coefficient: ≤0.05%/°C
Working frequency: 50-150KHZ
Working environment temperature: -10°C To 50°C
Mean time between failures : ≥ 16000 hours

Package Included:

1 x Precision Switching Power Supply Module
