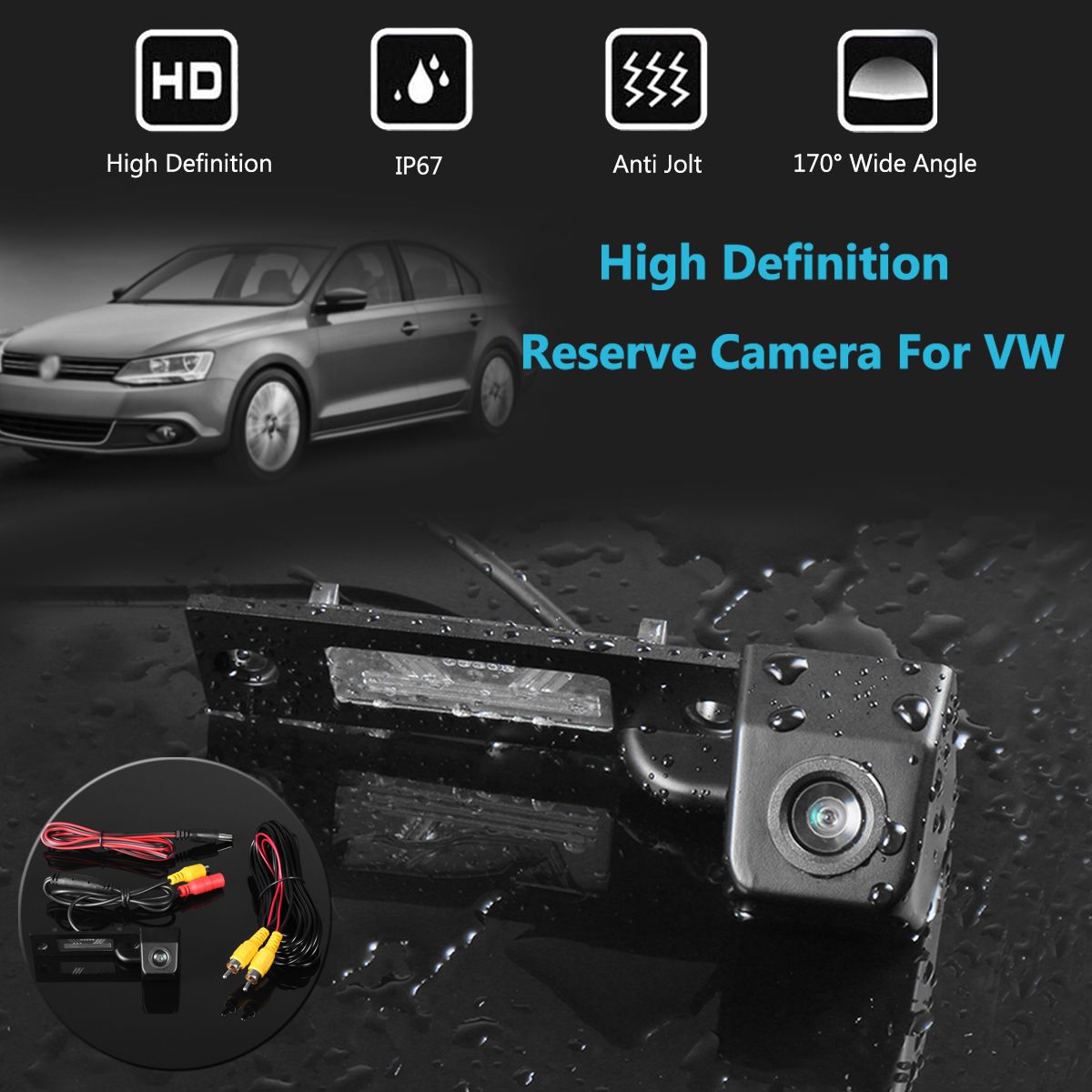

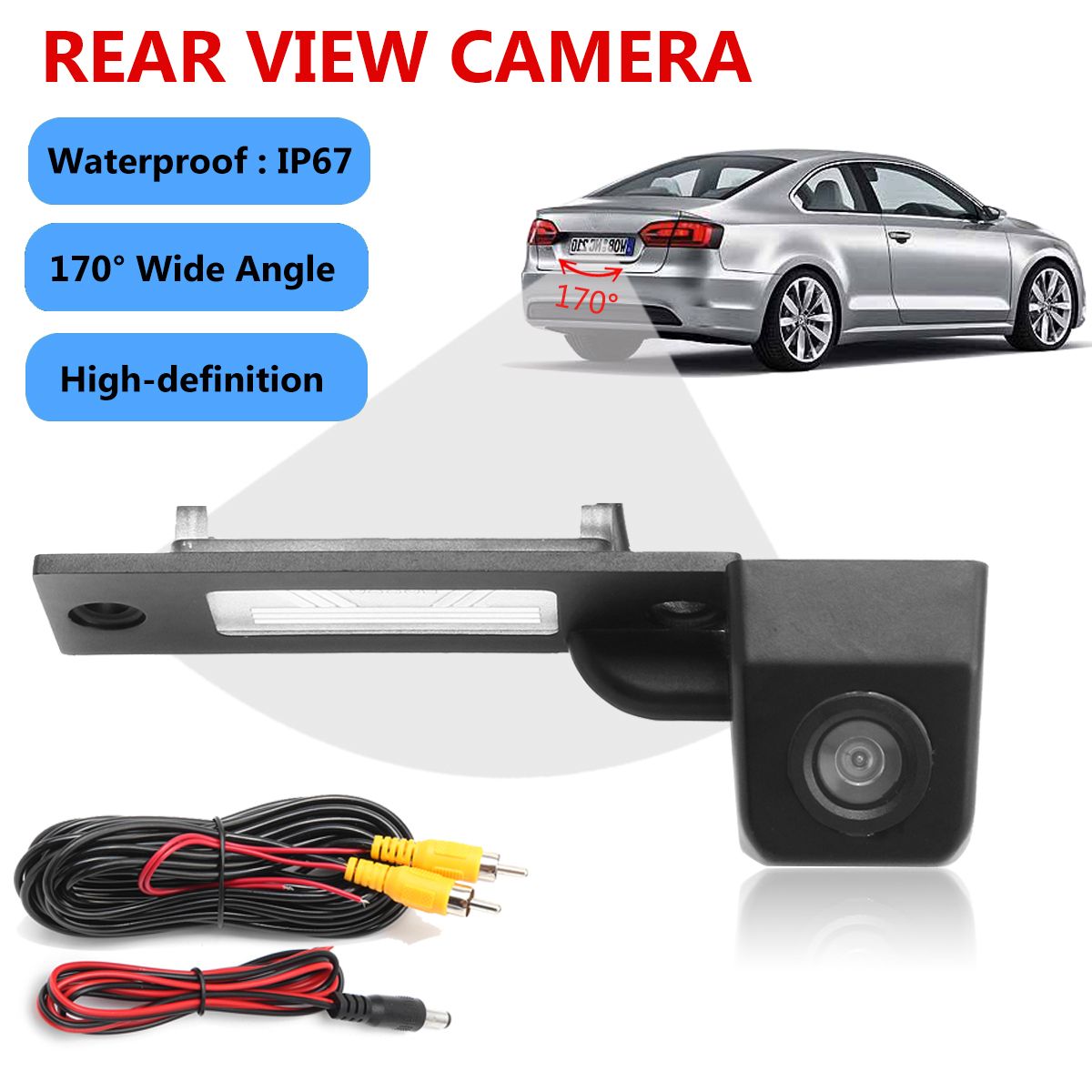

170 Degree Waterproof CCD Rear View Reverse Camera for VW Caddy Passat Touran Jetta T5
- Stock: In Stock
- Model: EB0031867
- SKU: EB0031867
1. Shockproof, IP67, anti-interference and resistance to high/low temperature.
2. Super low-light, high quality image capabilities,high resolution, high sensitivity and high signal to noise ratio.

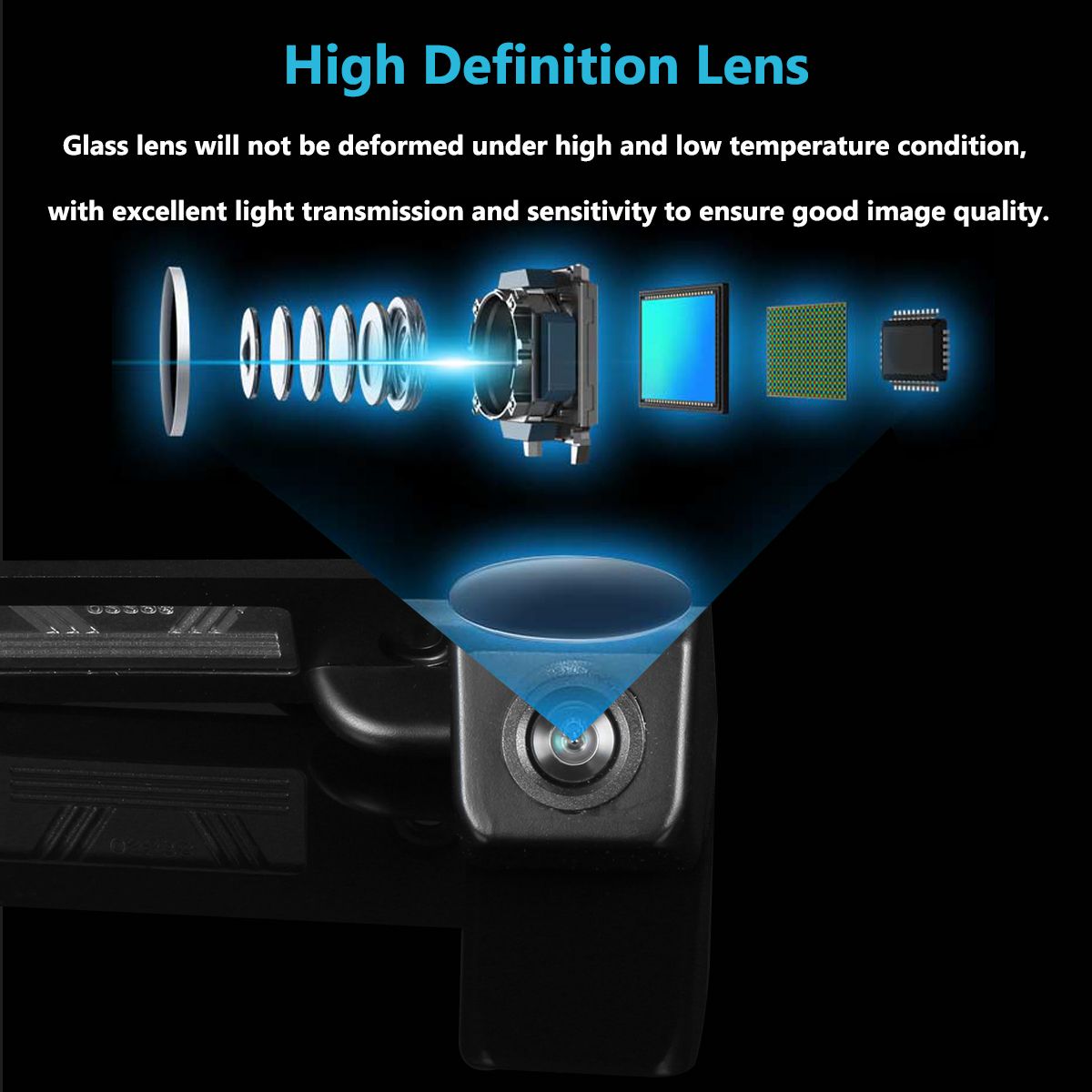

3. DSP digital chip, image clarity without distortion.

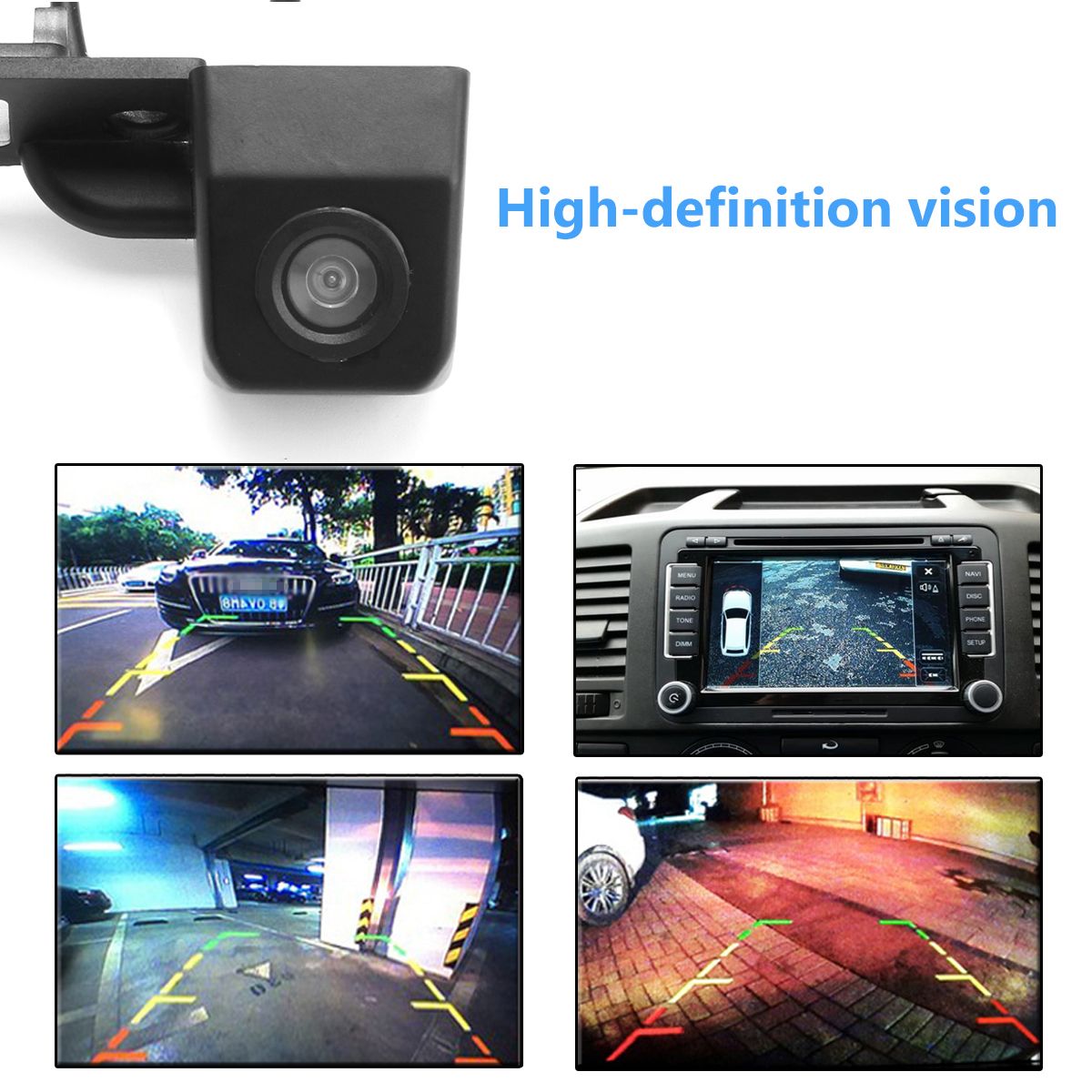

4. High-definition and 170 degree wide viewing angle.
5. Extra-low illumination of 0.2 Lux for clear night vision,it can work within 3 meters at night and other dark environments.
6. Embedded mounting in rear bumper.

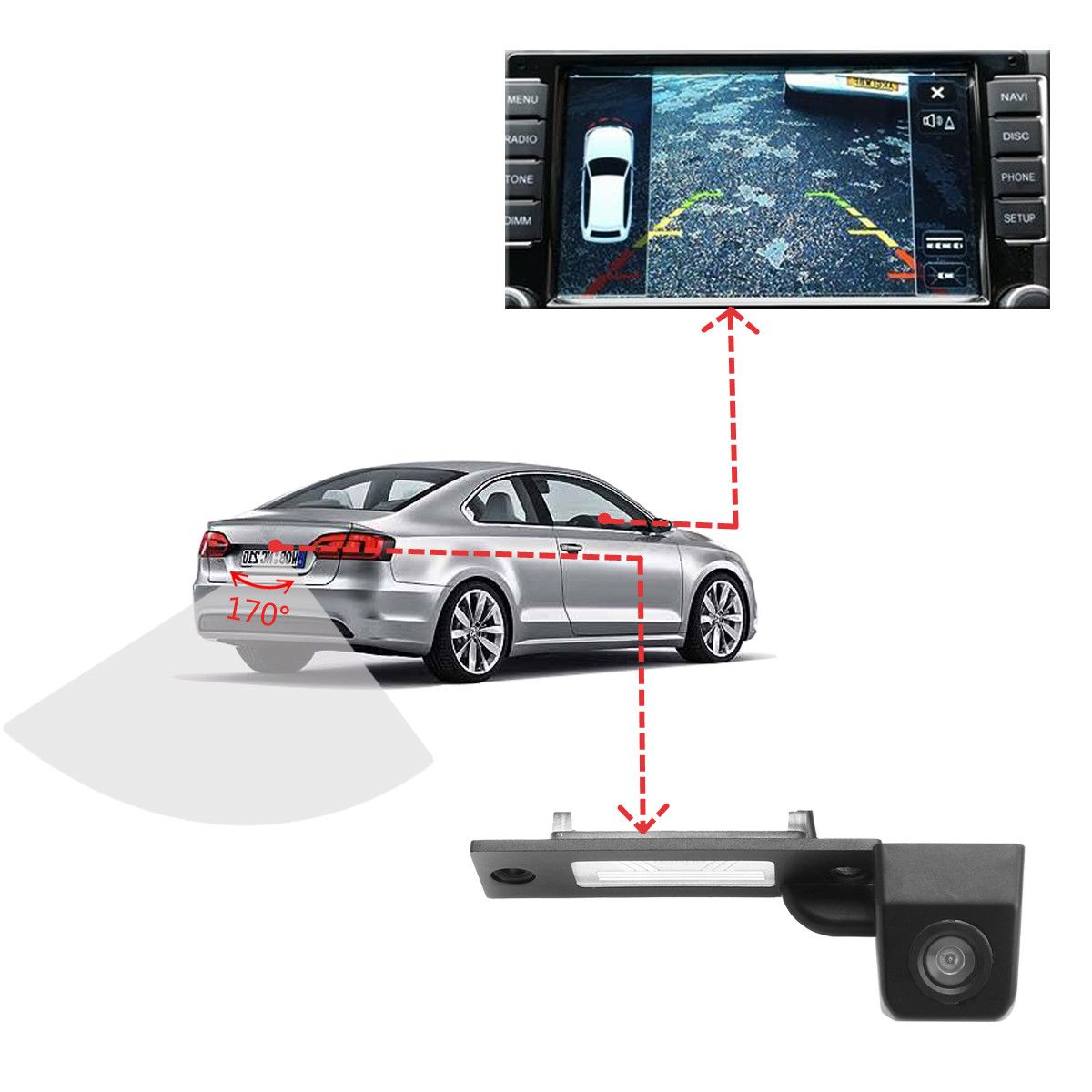

7. This camera can give you a full sight of the back of your car when you are driving.
8. To protect your car from collision with invisible obstacle, choose a high definition and good quality camera as ours.
Specification:
Material: Plastic & Metal
Color: Black
Voltage: 12V DC
Current consumption: 130mA
Waterproof rating: IP67
Effective Pixels: NTSC:628(H) *535(V)
Resolution: 480 TV lines
Minimum illumination: 3Lux/F1.2(OLux when infrared LED on)
Lens angle: 170°
S/N rstio: More than 48db
Electronic shutter: 1/50/1/60-1/15,000 seconds
Video output: RCA connector, 1.0vp-p,75ohm
Operating temperature: -30 to 60 degree RH95% Max
Storage temperature: -35 to 70 degree RH95% Max
Other items: Automatiewhite balance, AGC and BLC

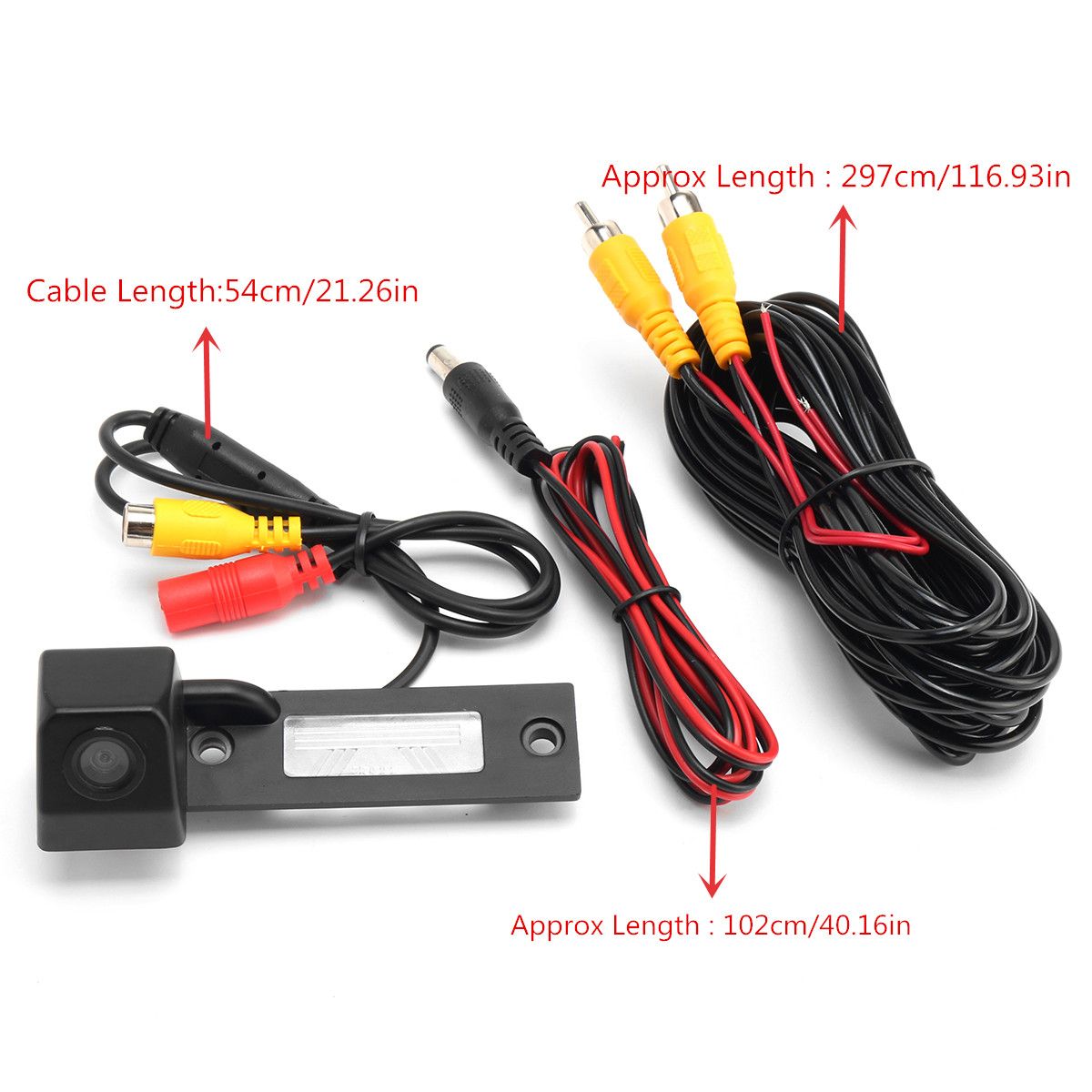

Cable Length of Camera: Approx.54cm/21.26in
Power Supply Cable Length: Approx.102cm/40.16in
Video Cable Length: Approx. 297cm/116.93in
Placement on vehicle: Rear
Fitment:
For VW CADDY 2004-2015
For VW JETTA 2003-2014
For VW GOLF PLUS 2005-2007
For VW PASSAT 3C 3B 2001-2005
For VW TOURAN 2003-2015
For VW T5, T5.1 TRANSPORTER 2003-2015
For Skoda's SUPERB 2002-2008

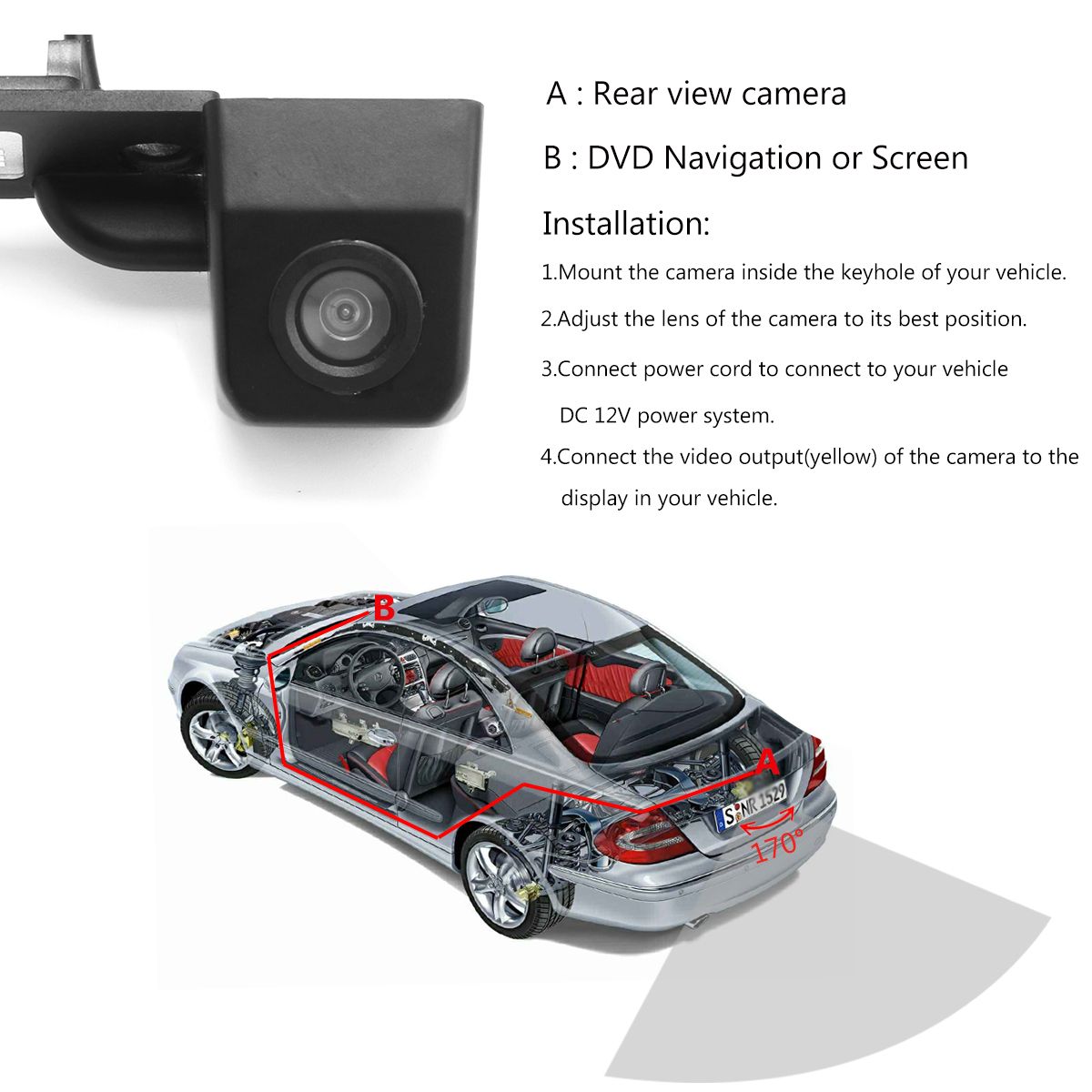

Installation:
1. Mount the camera inside the keyhole of your vehicle.
2. Adjust the lens of the camera to its best position.
3. Connect power cord to connect to your vehicle DC 12V power system.
4. Connect the video output(yellow) of the camera to the display in your vehicle.
Package Included:
1 X Car Rear View Camera
1 X Video Cable
1 X Power Cable
1 X User Manual
