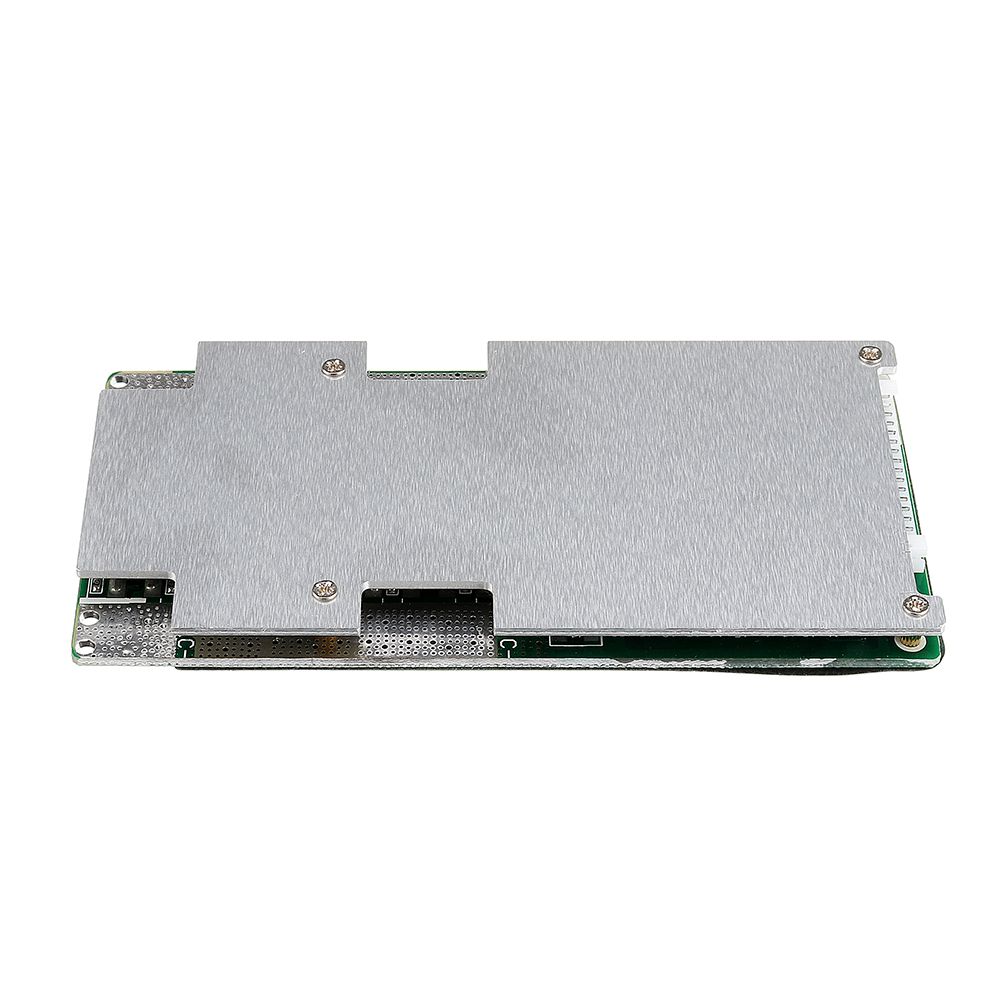

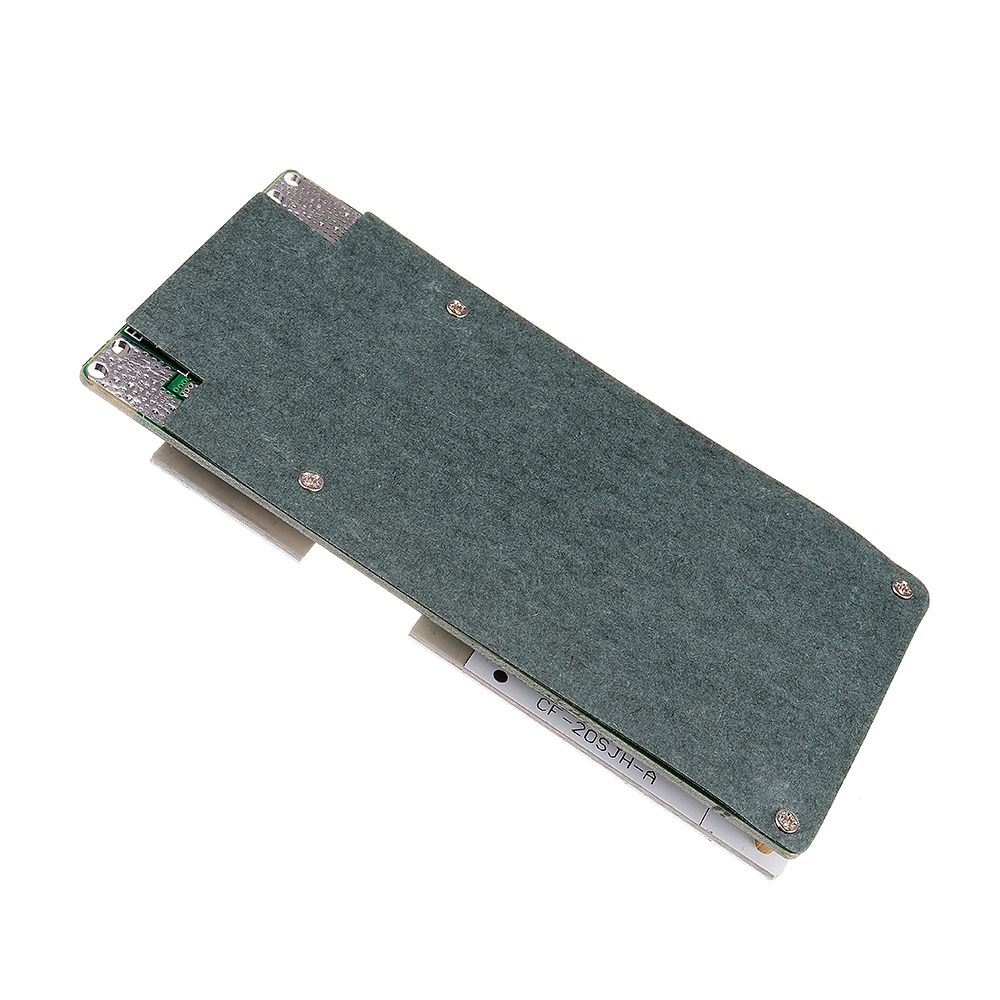

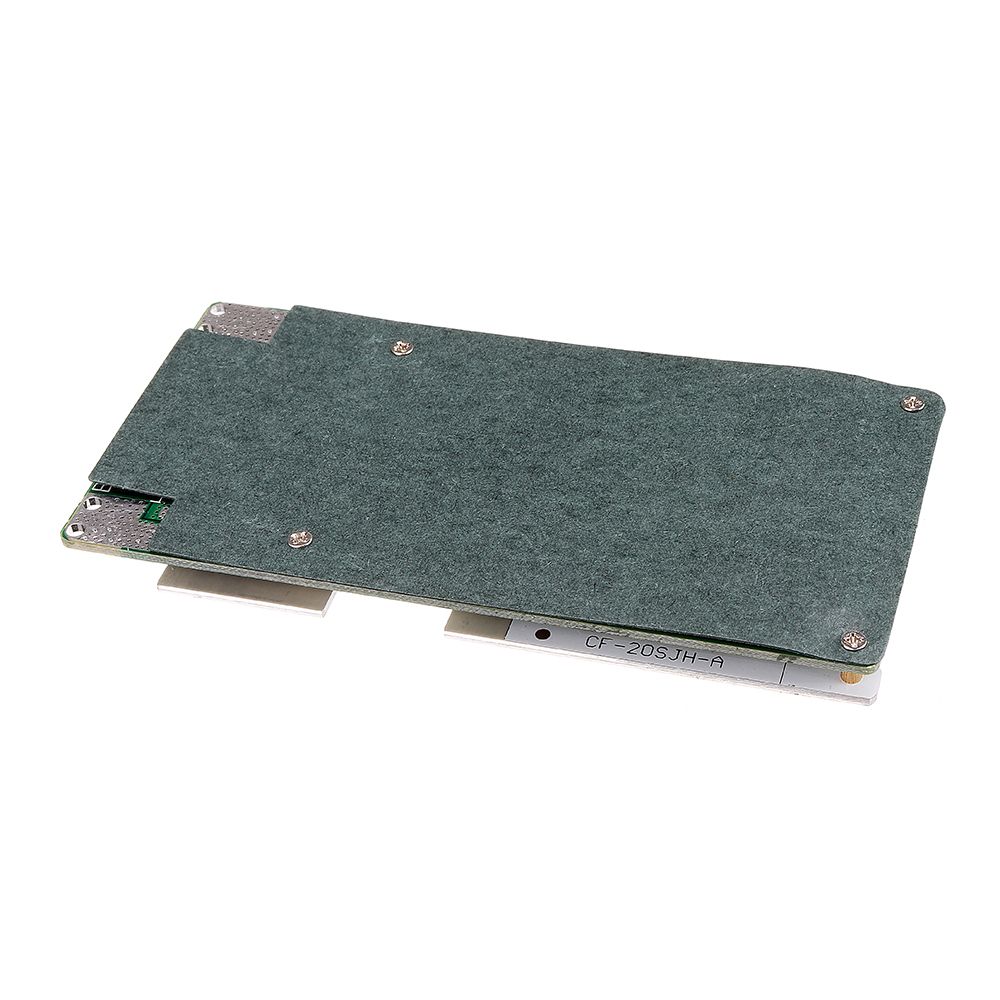

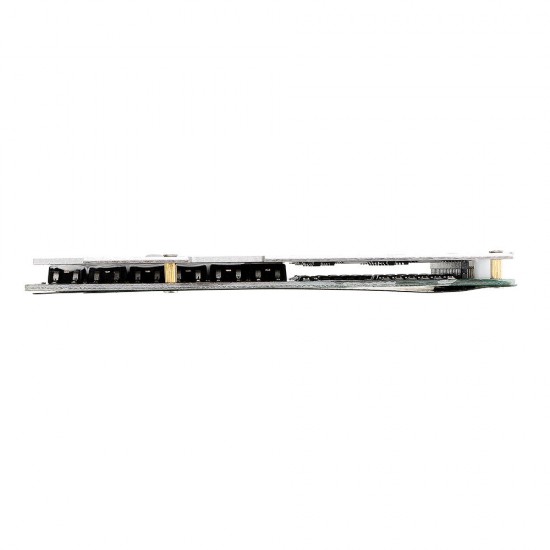

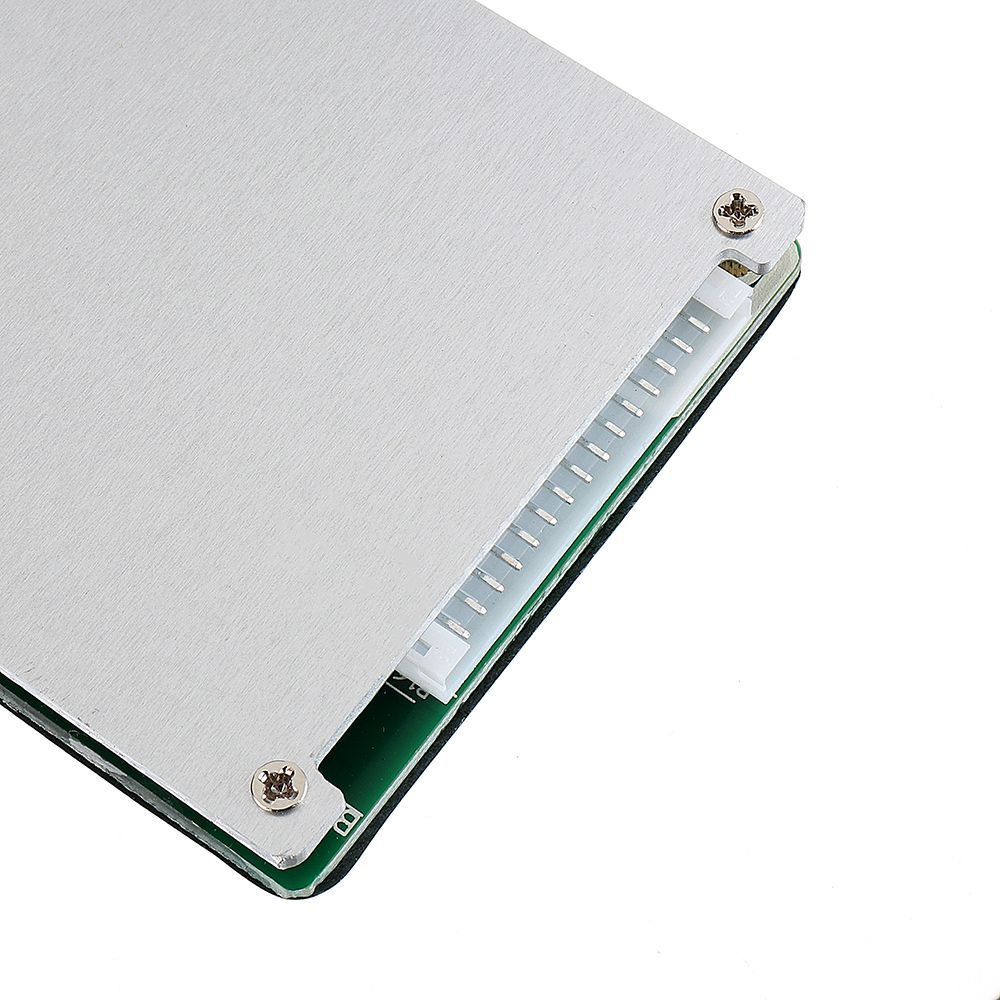

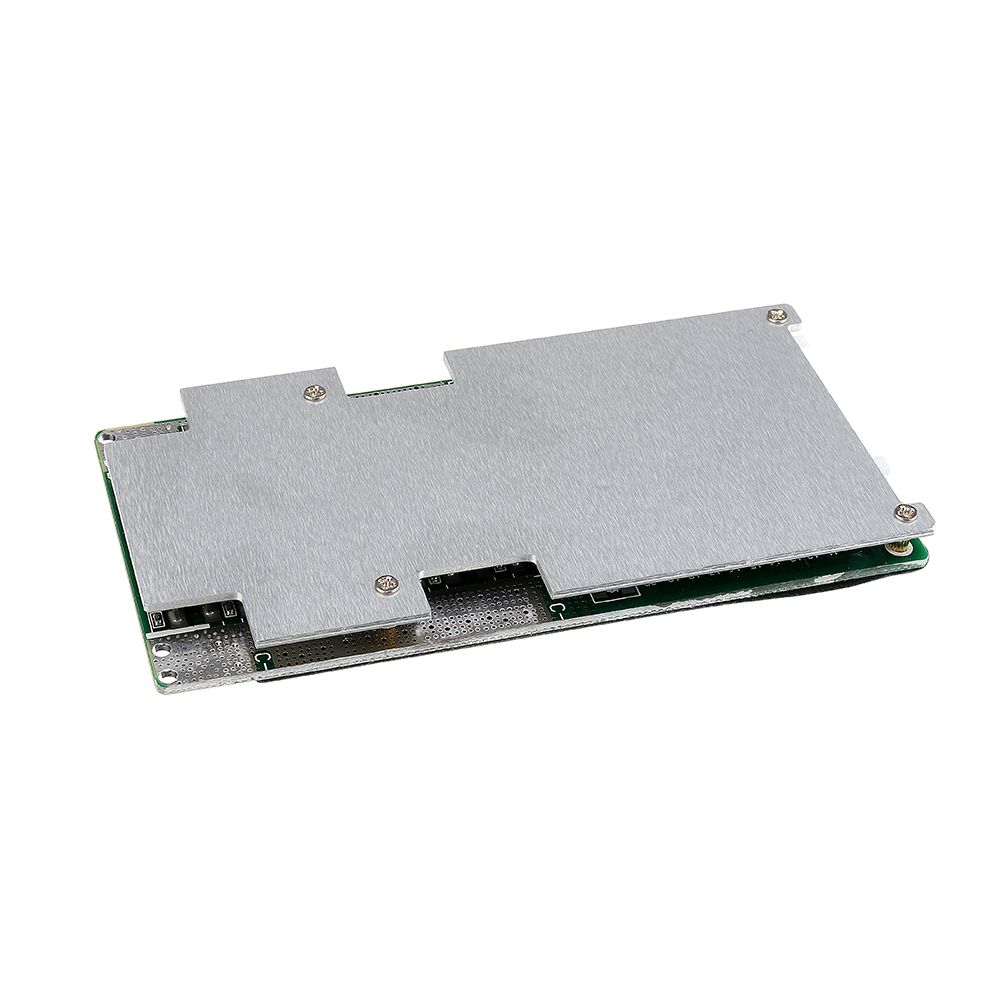

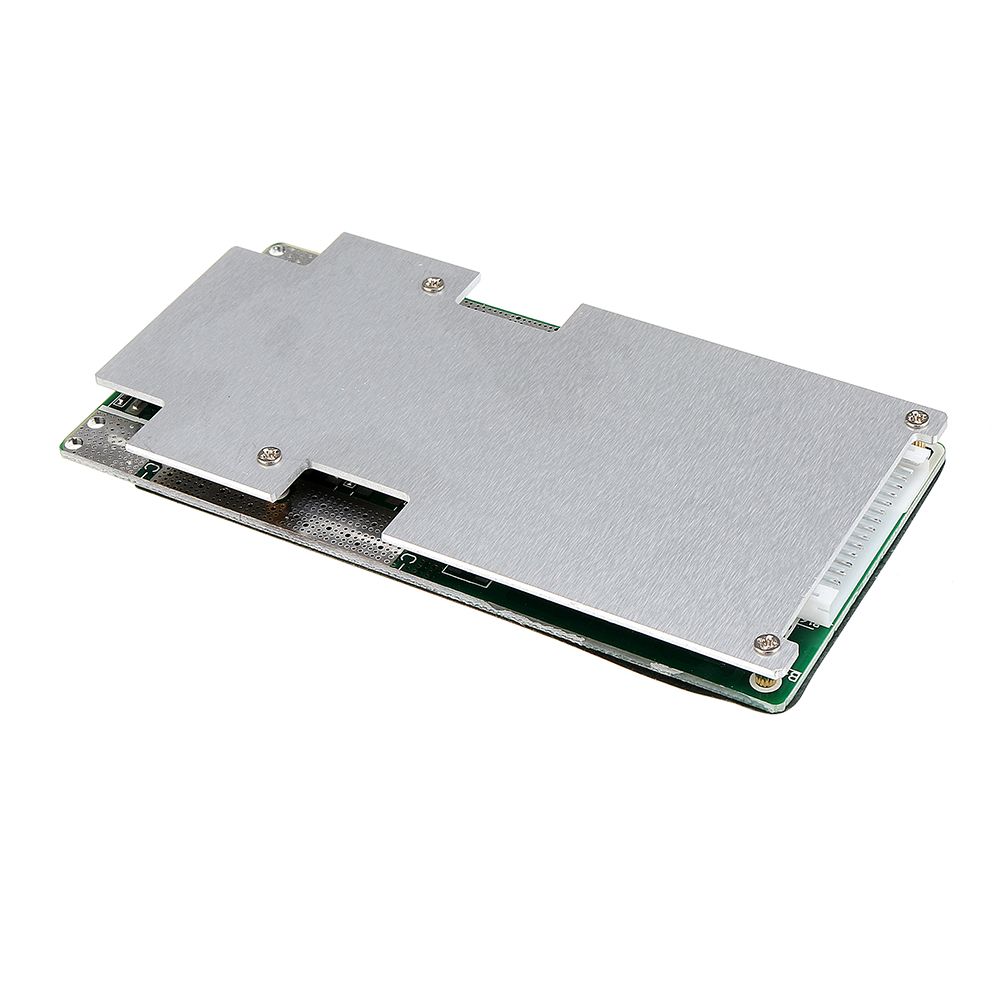

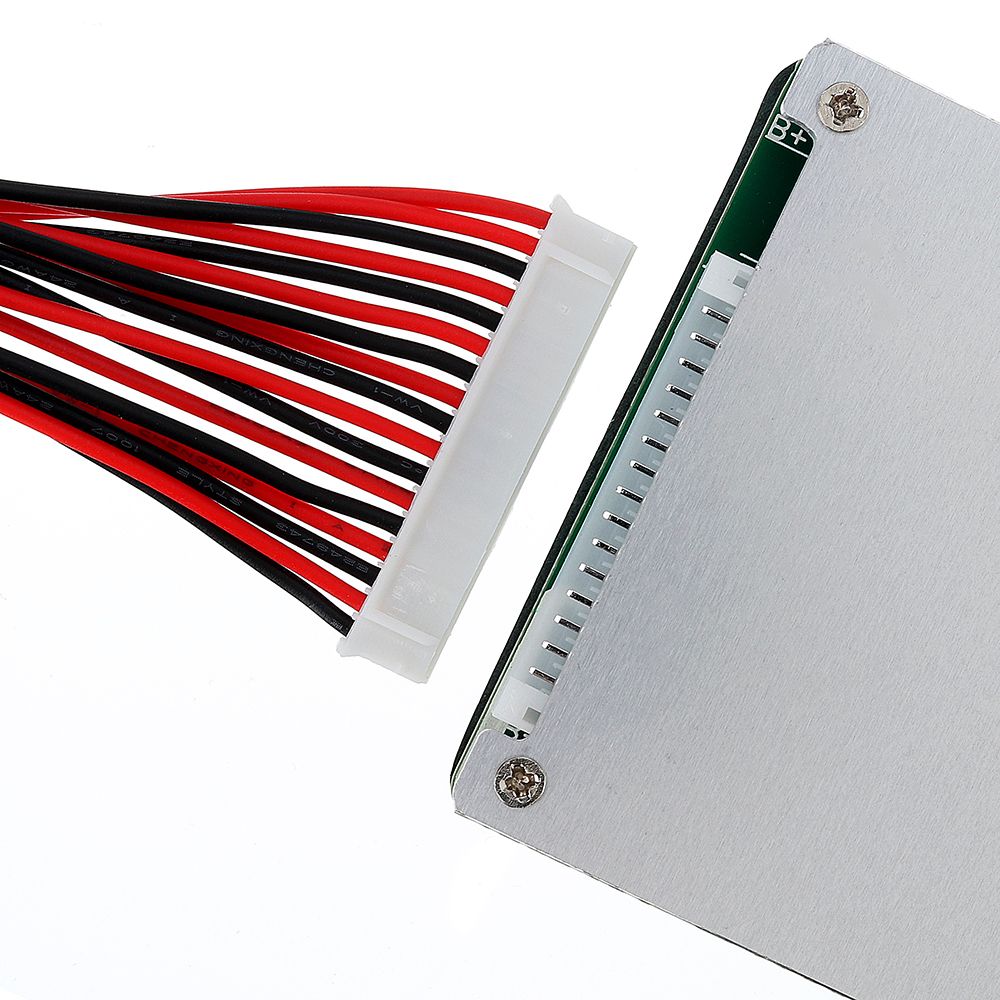

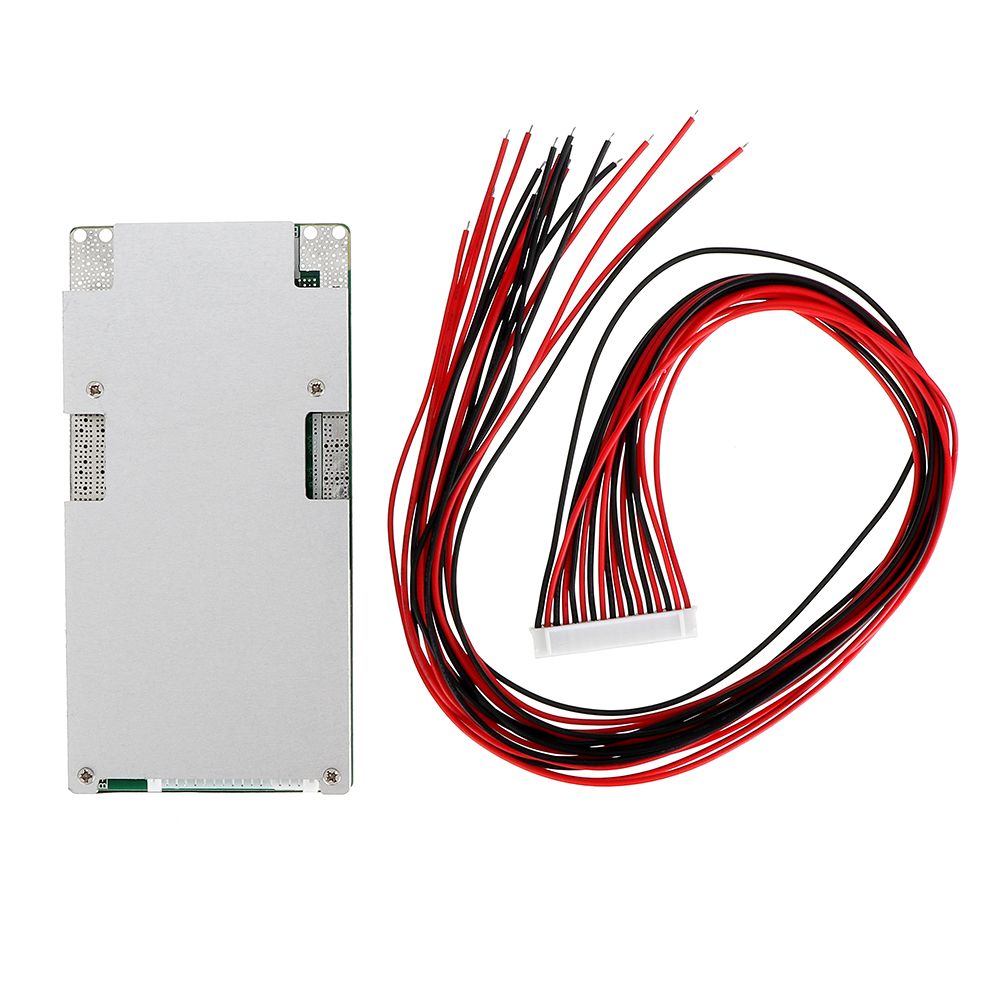

16 Series 60V 45A Lithium Battery Protection Board For Electric Tricycle Motorcycle Power Protection With Balance
- Stock: In Stock
- Model: EB0046139
- SKU: EB0046139
| Details | Specification | Unit |
| Discharging | Continuous discharge current | 45A |
| Instantaneous discharge current | 100A | |
| Charging | Charging voltage | 67.2V |
| Charging current | 45(MAX.)A | |
| Over charge protection | Overcharge detection voltage | 4.28±0.05V |
| Overcharge protection delay | 100mS | |
| Overcharge release voltage | 4.08±0.05V | |
| Battery balance | Battery balance detection voltage | 4.2±0.025V |
| Battery balance release voltage | 4.2±0.05V | |
| Battery balance current | 45±5mA | |
| Over discharge protection | Over-discharge detection voltage | 2.55±0.08V |
| Over discharge detection delay | 50mS | |
| Over discharge release voltage | 2.9±0.1V | |
| Over current protection | Overcurrent detection voltage | 150mV |
| Overcurrent detection delay | 15mS | |
| Overcurrent protection current | 130±10A | |
| Overcurrent protection release condition | Disconnect the load | |
| Short circuit protection | Short circuit protection condition | External load short circuit |
| Short circuit detection delay | 200uS | |
| Short circuit protection release condition | Disconnect negative open | |
| Temperature protection | Temperature protection | / |
| Internal resistance | Main circuit conduction internal resistance | ≤15mΩ |
| Self-consumption | Working current | ≤50uA |
| Sleep current (when battery is over-discharged) | ≤10uA | |
| Operating temperature | Temperature range | -30 to +80°C |
