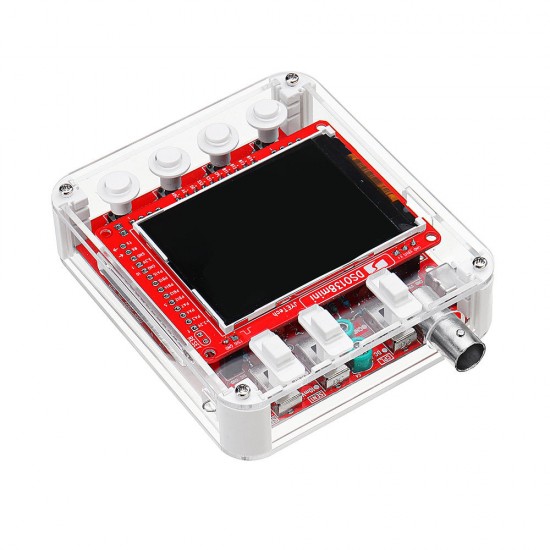

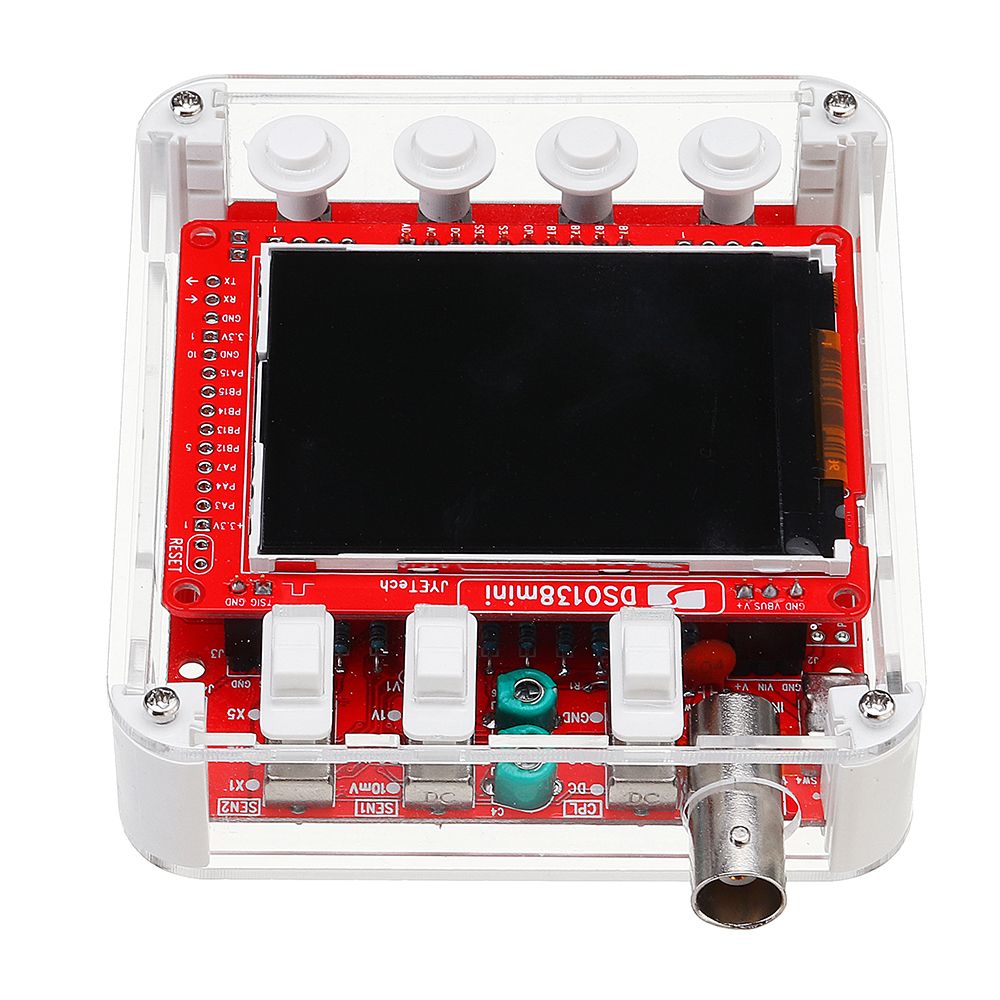

13805K DSO138 Mini Digital Oscilloscope 200KHz DC 3.5V-6V With Case
- Stock: In Stock
- Model: EB0046063
- SKU: EB0046063
| Specifications | |
| Number of Channel | 1 |
| Analog Bandwidth | 0 - 200KHz |
| Sensitivity | 10mV/Div - 5V/Div |
| Sensitivity error | < 5% |
| Resolution | 12-bit |
| Input Impedance | 1M ohm |
| Maximum Input voltage | 50Vpk |
| Coupling | DC, AC, GND |
| Max Real-time Sampling Rate | 1Msps |
| Timebase | 10us/Div - 500s/Div |
| Record Length | 1024 |
| Trigger Modes | Auto, Normal, Single |
| Trigger Types | Rising/falling edge |
| Trigger Position | 1/2 of buffer size fixed |
| Display | 2.4-inch color TFT LCD with 320 x 240 resolution |
| Power Supply | 3.5V - 6V DC |
| Supply Current | 120mA @5V |
| Dimension | 85mm x 75mm x 15mm |
| Weight | 50 gram (not including cables) |
Housing Feature:
Please peel off the protective film before use.

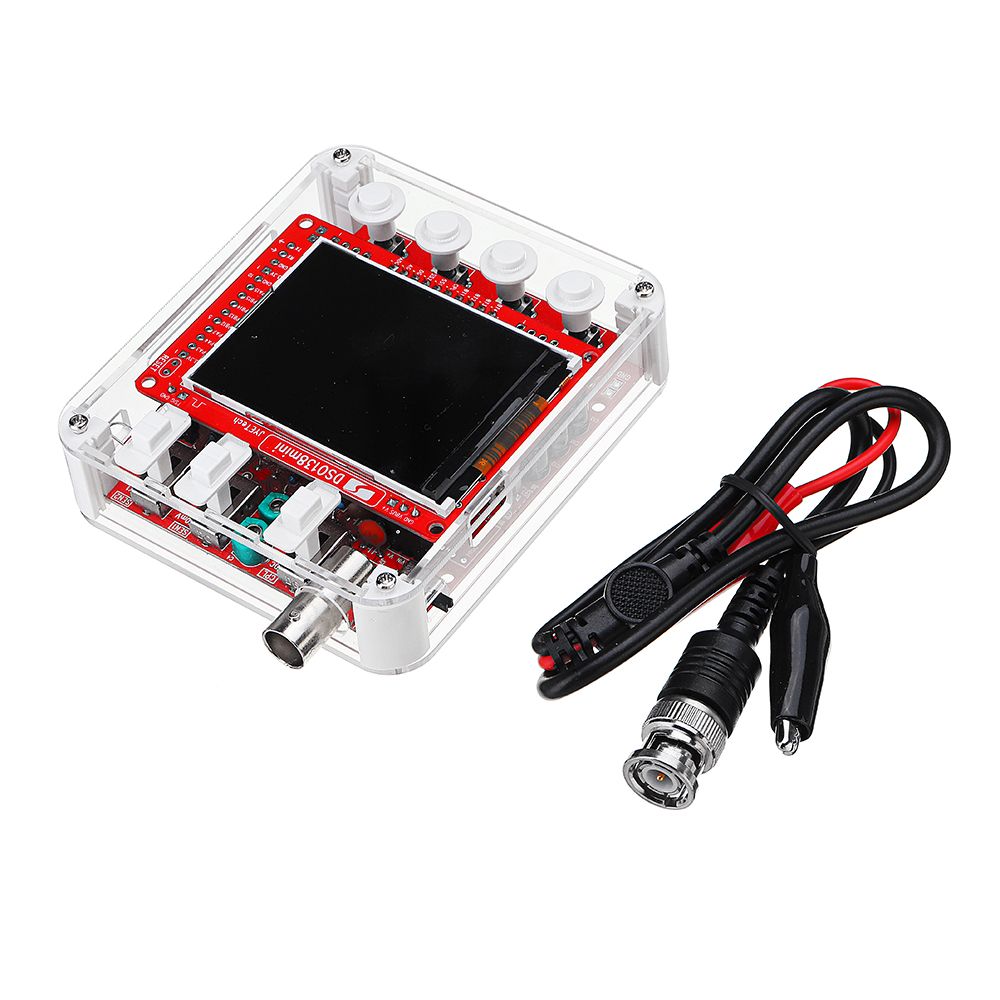

Package includes:
1 x Mini Digital Oscilloscope
1 x Acrylic Case
1 x User Manual (English)
