13.3 Inch e-Paper e-Ink Display HAT 1600x1200 Black and White 16 Grey Scales USB/SPI/I80 Support For Raspberry Pi STM32
- Stock: In Stock
- Model: EB0050387
- SKU: EB0050387
Instruction:
13.3inch E-Paper E-Ink Display HAT For Raspberry Pi, 1600×1200 Pixels, Black / White, 2-16 Grey Scales, USB/SPI/I80
Partial Refresh Support, Low Power, Wide Viewing Angle, Paper-Like Effect
Ideal for e-reader, eink monitor, industrial instruments...
Features At A Glance:
No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
USB/SPI/I80 interface, for connecting with controller boards like Raspberry Pi/STM32, etc.
Specifications:
| OPERATING VOLTAGE | 5V | DISPLAY COLOR | Black, white |
| INTERFACE | USB/SPI/I80 | GREY SCALE | 2-16 (1-4 bit) |
| OUTLINE DIMENSIONS | 285.80 × 213.65mm | FULL REFRESH TIME | <1s |
| DISPLAY SIZE | 270.40 × 202.80mm | REFRESH POWER | 1.2W (typ.) |
| DOT PITCH | 0.169 × 0.169mm | STANDBY CURRENT | <0.1W |
| RESOLUTION | 1600 × 1200 pixels | VIEWING ANGLE | >170° |
Package includes:
1 x 13.3inch e-Paper

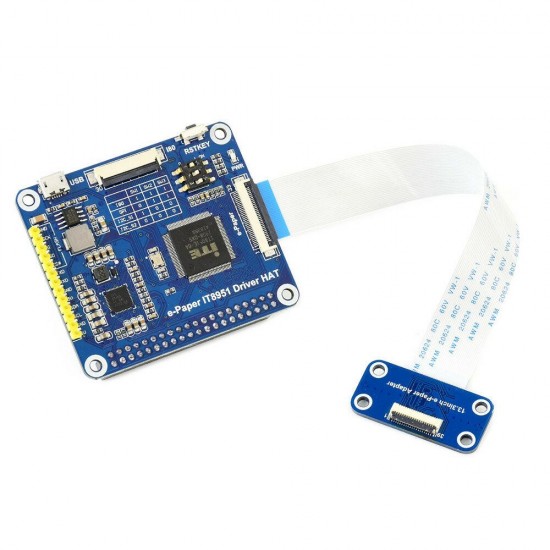

1 x e-Paper IT8951 Driver HAT
1 x 13.3inch e-Paper Adapter
1 x 33PIN FFC (same side contact)
1 x USB type A plug to micro B plug cable
1 x PH2.0 20cm 8Pin
1 x RPi screws pack (2pcs)
NOTE: Raspberry Pi in the photo is NOT included.
| SPI PINOUT | |
| 5V | Power, 5V input |
| GND | Ground |
| MISO | SPI MISO pin |
| MOSI | SPI MOSI pin |
| SCK | SPI SCK pin |
| CS | SPI chip selection, low active |
| RST | External reset, low active |
| HRDY | Busy status output, low active |
