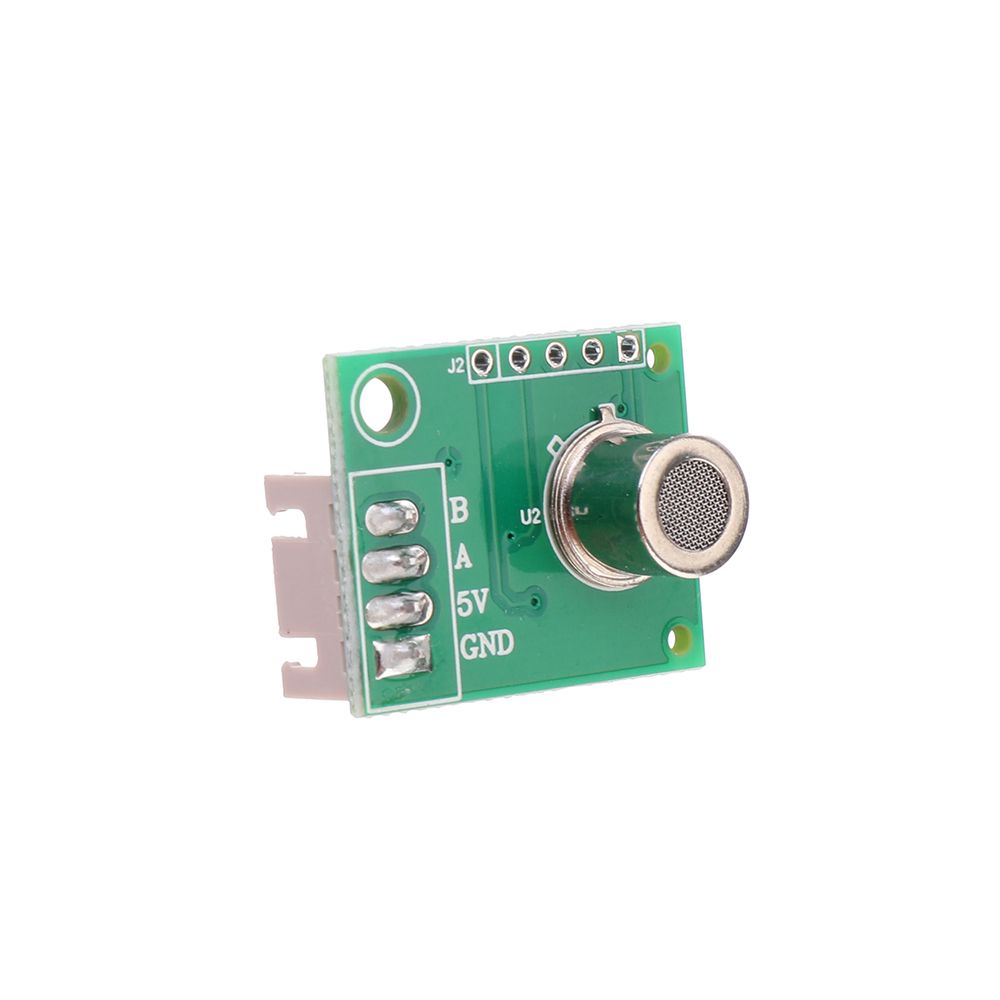

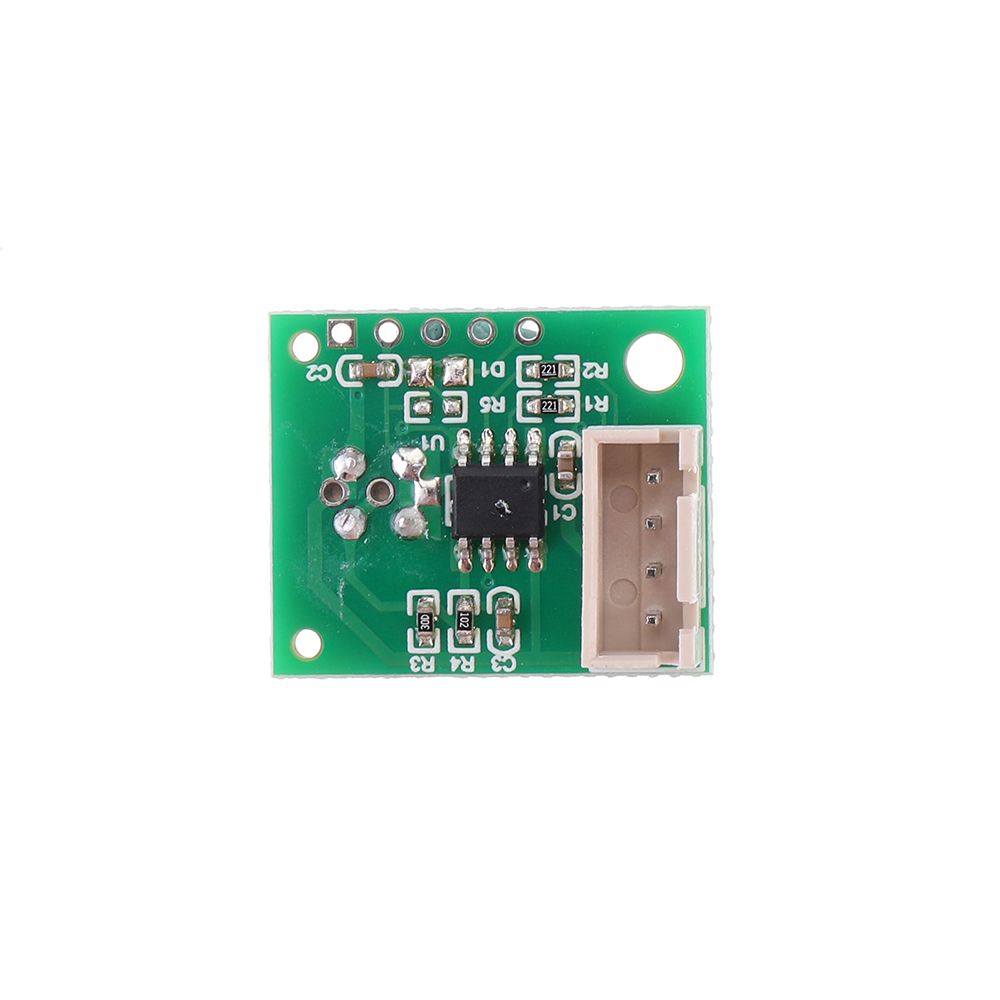

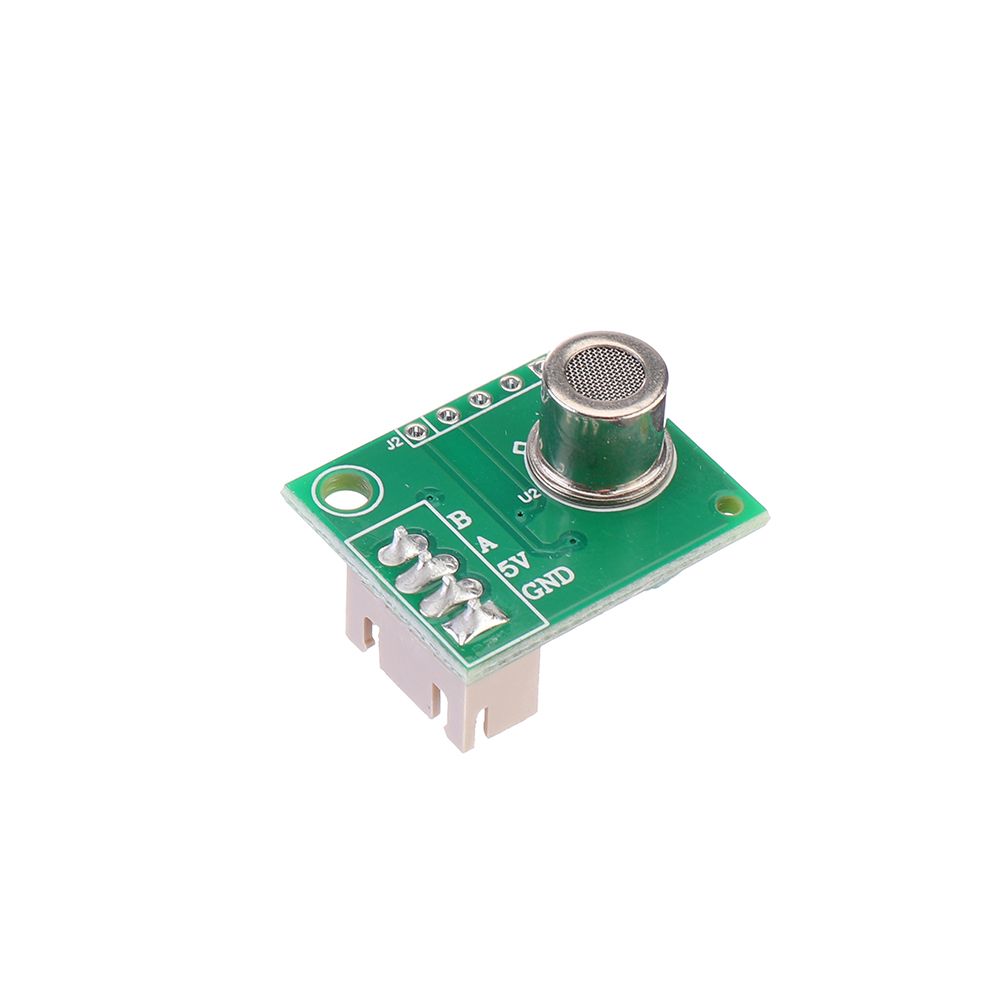

10pcs ZP07-MP503 Air-Quality Detection Module Formaldehyde Benzene Carbon Monoxide Hydrogen Alcohol Ammonia Smoke Essence for Air Quality Detector

10pcs ZP07-MP503 Air-Quality Detection Module Formaldehyde Benzene Carbon Monoxide Hydrogen Alcohol Ammonia Smoke Essence for Air Quality Detector
10pcs ZP07-MP503 Air-Quality Detection Module Formaldehyde Benzene Carbon Monoxide Hydrogen Alcohol Ammonia Smoke Essence for Air Quality Detector
10pcs ZP07-MP503 Air-Quality Detection Module Formaldehyde Benzene Carbon Monoxide Hydrogen Alcohol Ammonia Smoke Essence for Air Quality Detector
10pcs ZP07-MP503 Air-Quality Detection Module Formaldehyde Benzene Carbon Monoxide Hydrogen Alcohol Ammonia Smoke Essence for Air Quality Detector
10pcs ZP07-MP503 Air-Quality Detection Module Formaldehyde Benzene Carbon Monoxide Hydrogen Alcohol Ammonia Smoke Essence for Air Quality Detector
10pcs ZP07-MP503 Air-Quality Detection Module Formaldehyde Benzene Carbon Monoxide Hydrogen Alcohol Ammonia Smoke Essence for Air Quality Detector
10pcs ZP07-MP503 Air-Quality Detection Module Formaldehyde Benzene Carbon Monoxide Hydrogen Alcohol Ammonia Smoke Essence for Air Quality Detector
10pcs ZP07-MP503 Air-Quality Detection Module Formaldehyde Benzene Carbon Monoxide Hydrogen Alcohol Ammonia Smoke Essence for Air Quality Detector
10pcs ZP07-MP503 Air-Quality Detection Module Formaldehyde Benzene Carbon Monoxide Hydrogen Alcohol Ammonia Smoke Essence for Air Quality Detector
$27.99
Ex Tax: $27.99
  • Stock: In Stock
  • Model: EB0046074
  • SKU: EB0046074

Principle Introduction:

 ZP07 air-quality module adopts flat surface semiconductor gas sensor. The module has good sensitivity to volatile organic gases such as formaldehyde, benzene, carbon monoxide, ammonia, hydrogen, alcohol and smoke, essence &etc. The module has been aging, debugged, adjusted and calibrated. So it has good consistency and high sensitivity.

Applications :

Air cleaner, fresh-air system, intelligent integrated ceiling, air quality detector, ventilator, air-condition.

Technical Parameters :

Model No.: ZP07
Detection Gas: formaldehyde, benzene, carbon monoxide, hydrogen, alcohol, ammonia, smoke, essence &etc
Physical Interface: XH2.54-4P terminal sockets
Output Data: 0-3 grade pollution signal
Working Voltage: 5.0±0.2V DC (No voltage
reverse connect protection)
Output: TTL level (200ohm protected
resistance inside)
Working Current: ≤60mA
Warm-up Time: ≤3 min
Response Time:  ≤20s
Recovery Time: ≤60s

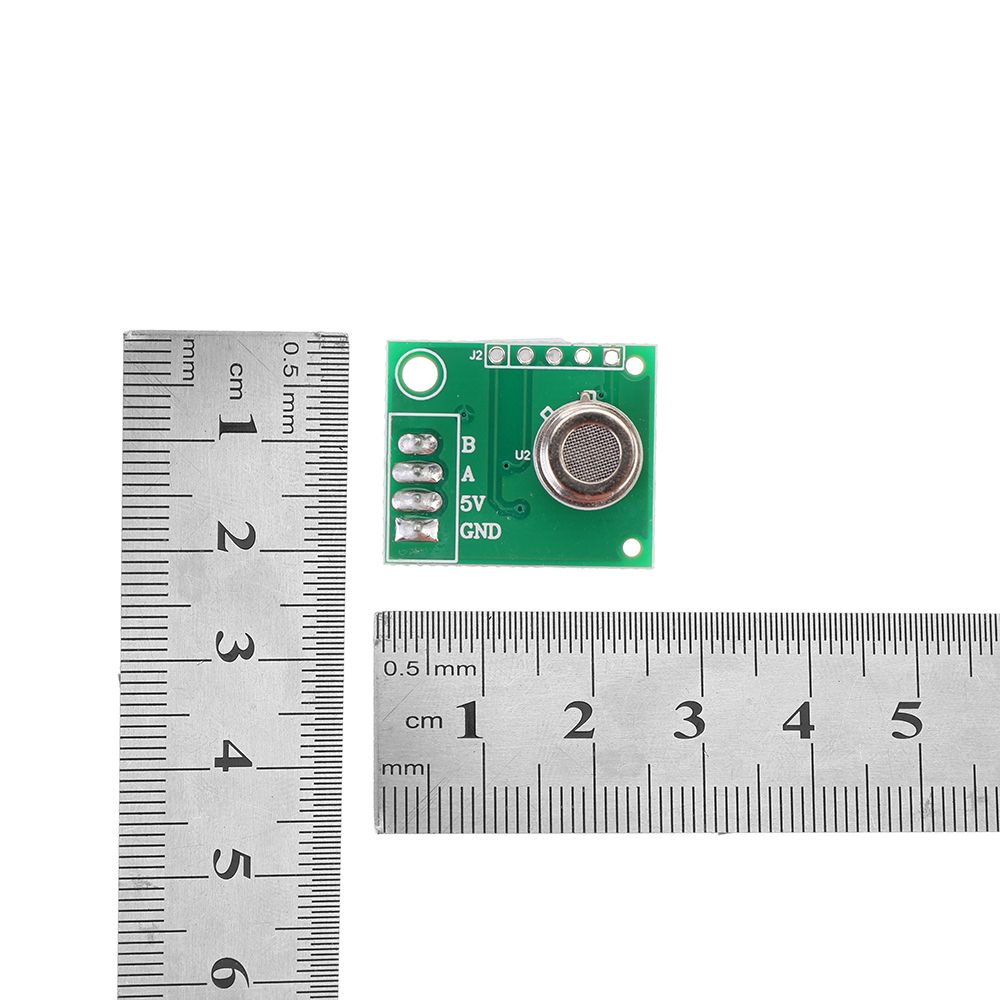

Size: 24×20×16mm(L×W×H)

Package Inlcuded:

10 x ZP07-MP503 Air-Quality Detection Module
