10pcs USB to Serial Port Multi-function Converter Module RS232 TTL CH340 SP232 IC Win10 for Pro Mini STM32 AVR PLC PTZ Modubs

Based on 0 reviews. - Write a review

$43.00

Ex Tax: $43.00

Stock: In Stock
Model: EB0050581
SKU: EB0050581

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description:

1. The USB driver IC is CH340, stable performance, fully compatible with USB1.1,USB2.0,USB3.0 , baud rate up to 256 kbps;

2. The RS232 bus IC is SP232,this is Industrial grade RS232 conversion IC

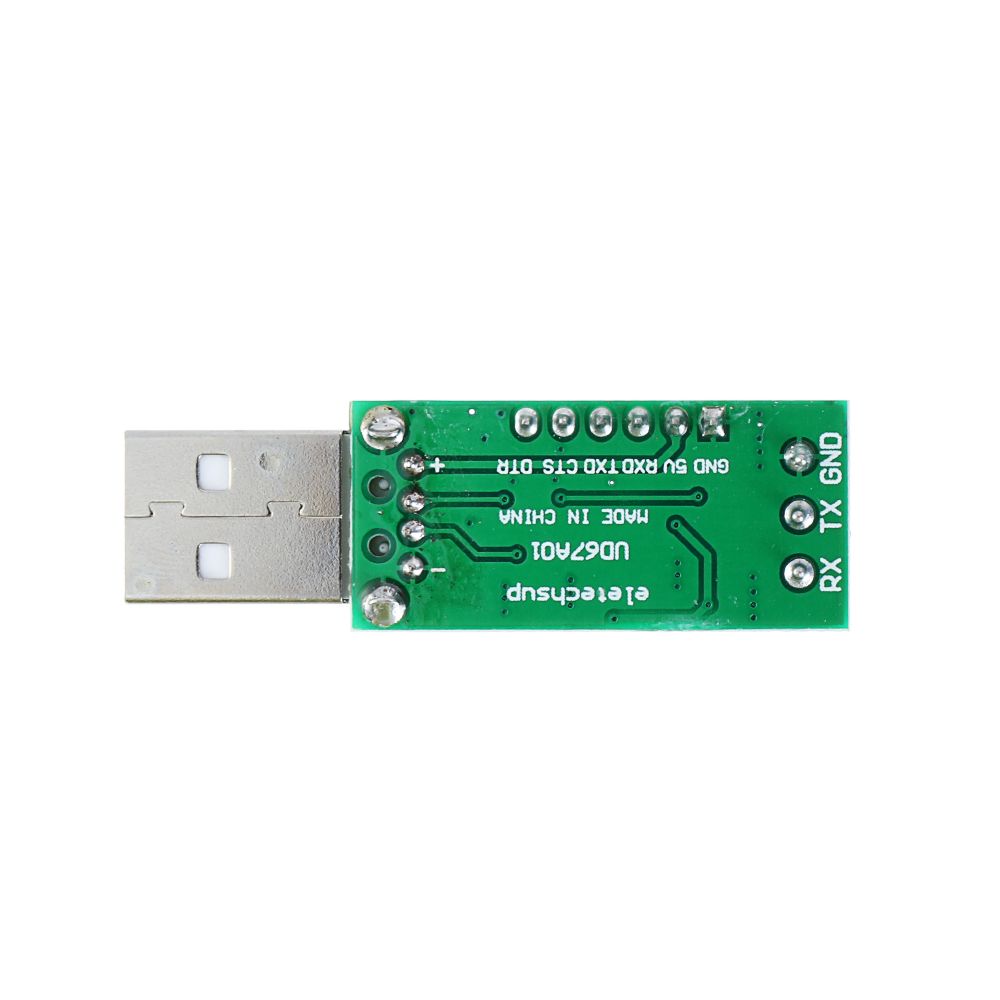

3. USB to RS232 serial port, 3 pin pin assignment as below : GND TX RX

4. USB to TTL serial port, 6 pin assignment as below : GND 5V RXD TXD CTS DTR

5. Compatible with PRO MINI download port

6. Uses : CH340 replace FT232 CP2102 PL2303 for Arduiuo Pro Mini Download

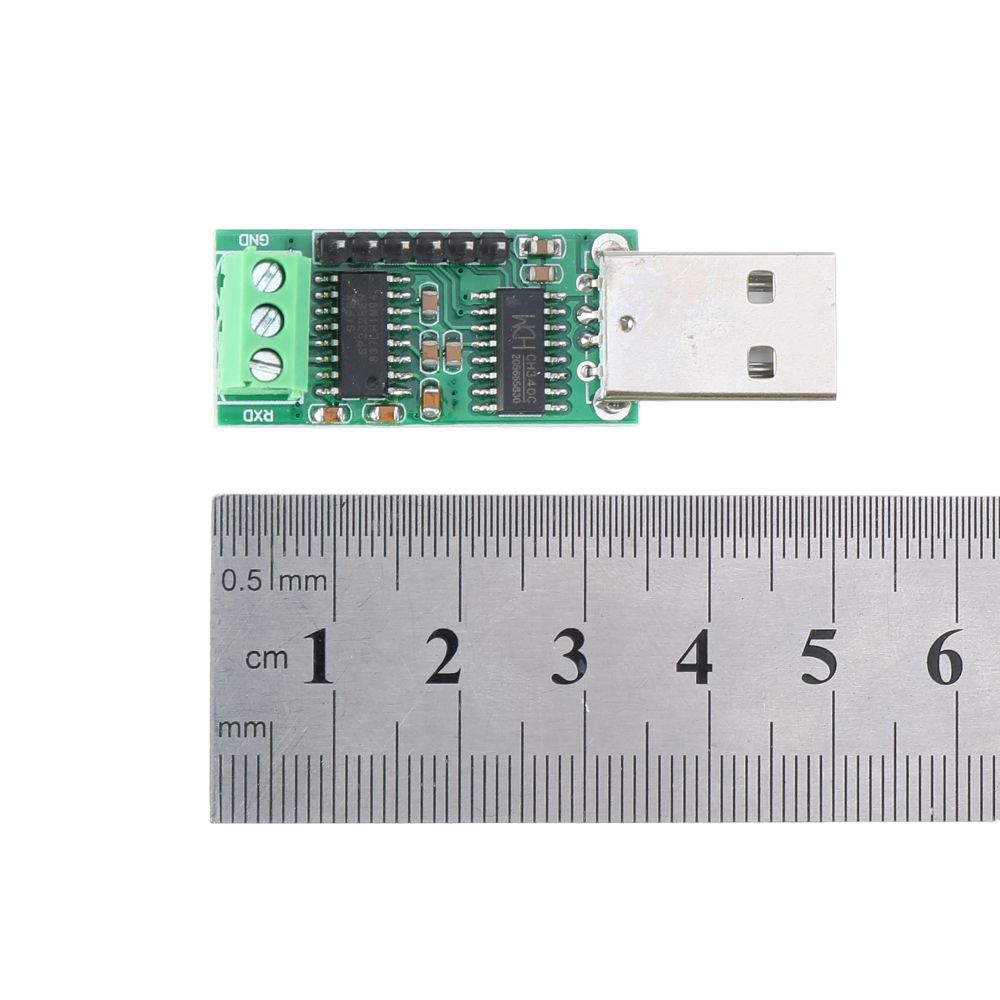

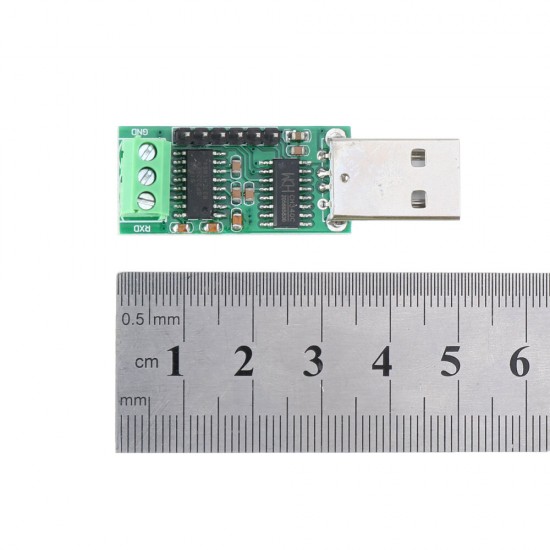

7. Size : 36 x 14 x 12 mm(Does not include USB ports )

Supports the following Windows OSes:

Windows 98SE

Windows ME

Windows 2000 SP4

Windows XP SP2 and above (32 & 64 bit)

Windows Server 2003 (32 & 64 bit)

Windows Server 2008 / 2008 R2 (32 & 64 bit)

Windows Vista (32 & 64 bit)

Windows 7 (32 & 64 bit)

Windows 8

Windows 8.1

Windows 10

Application :

RS232 Bus device

TTL232 Communication MCU FPGA/CPLD ARM AVR PIC

Ardunuo PRO mini downloader cable

PLC Modubs device

Camera PTZ

MODEM

Computer communication terminal

Package Included:

10 x USB to Serial Port Multi-function Converter Module
