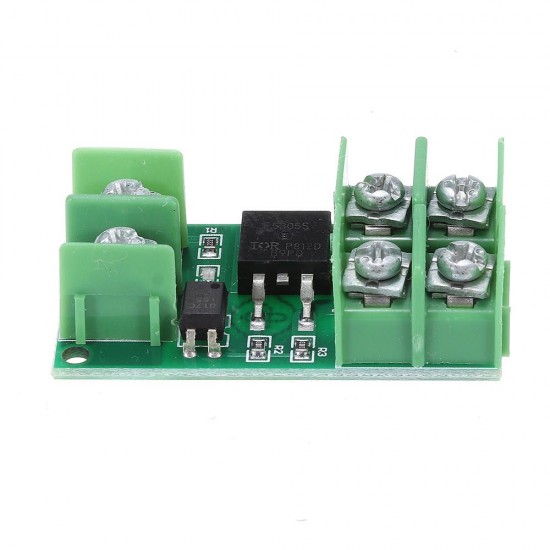

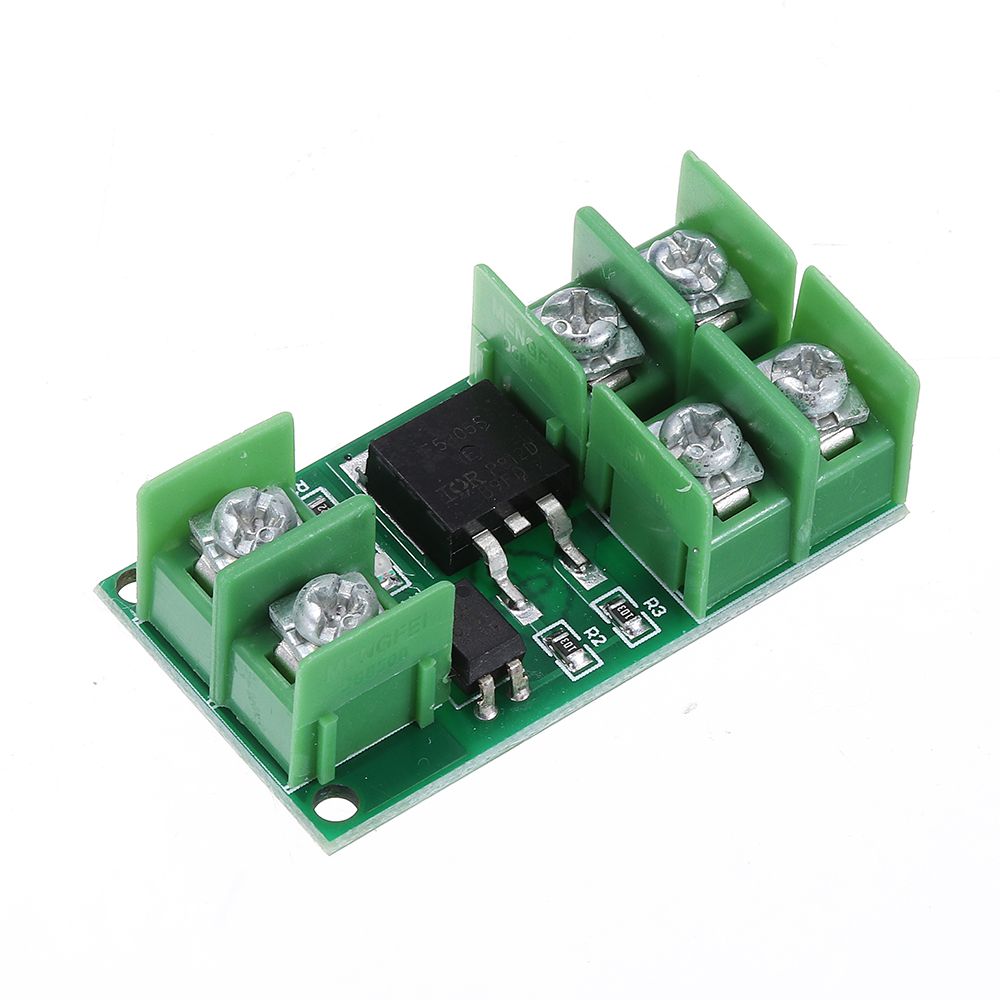

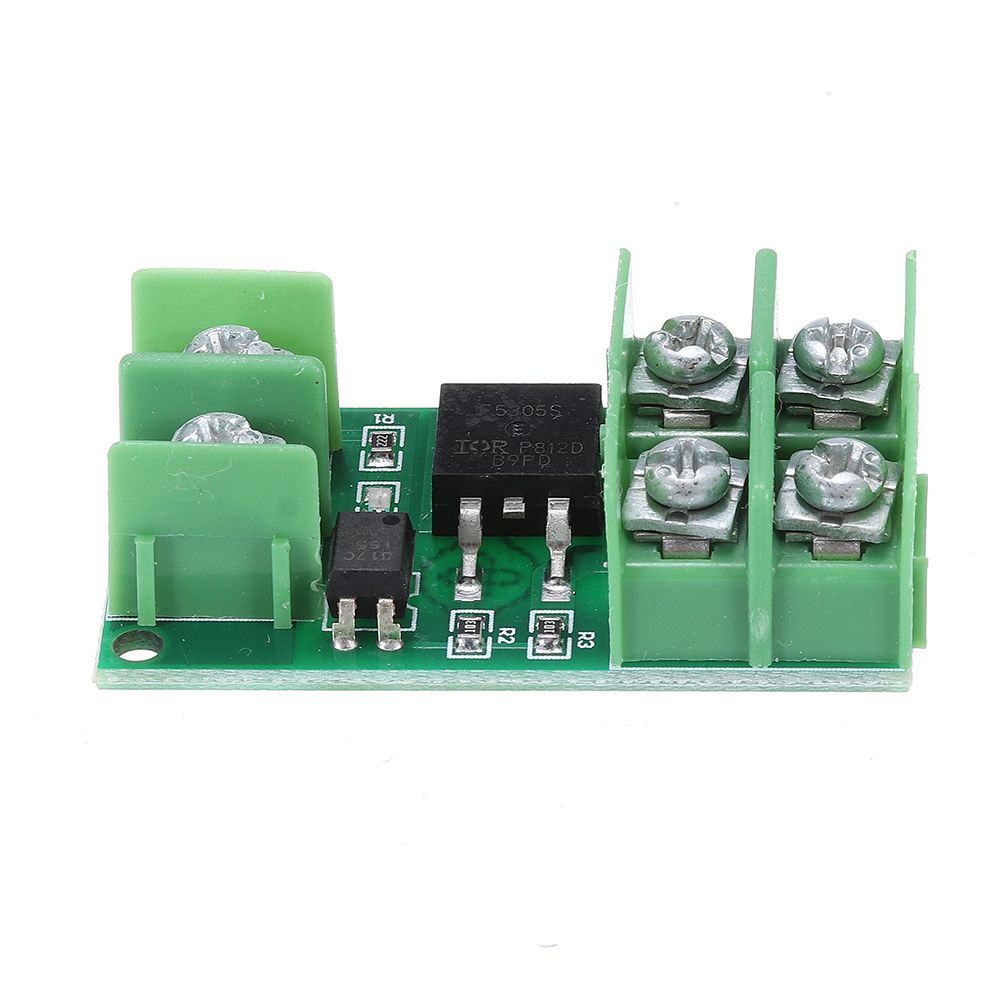

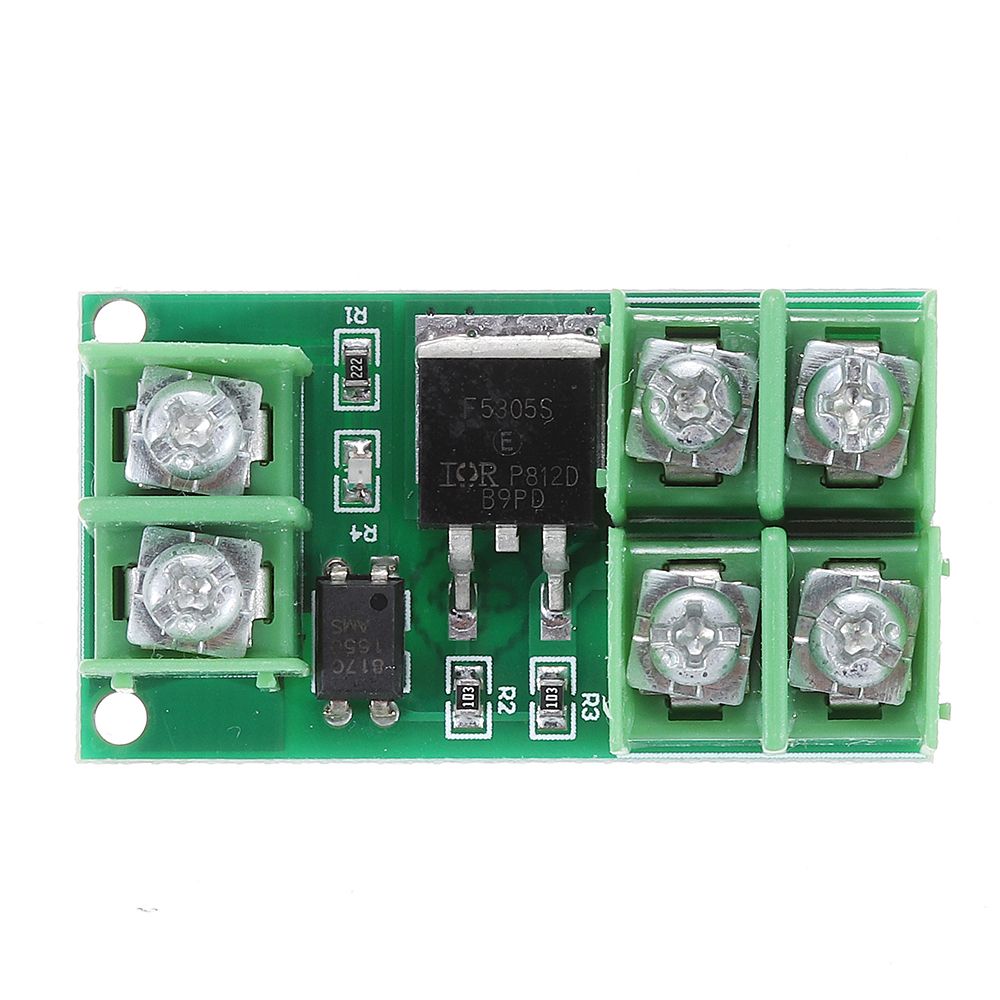

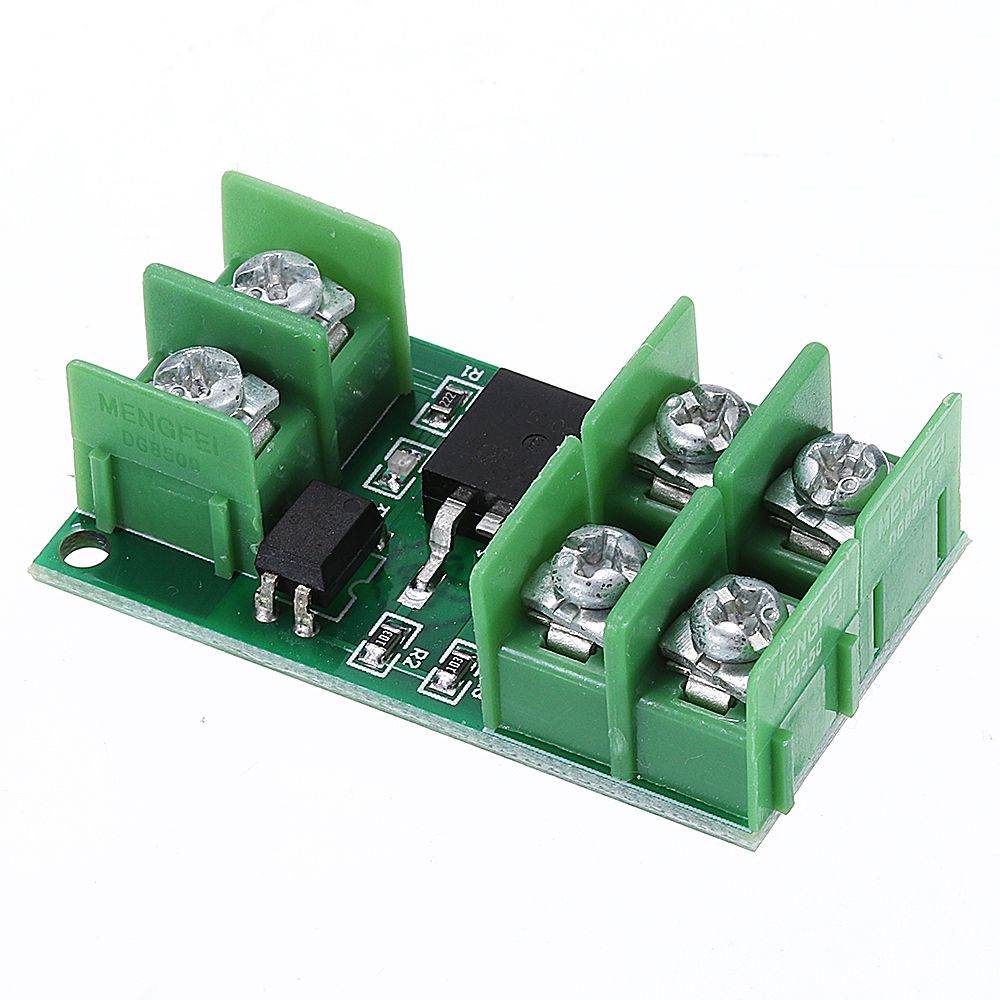

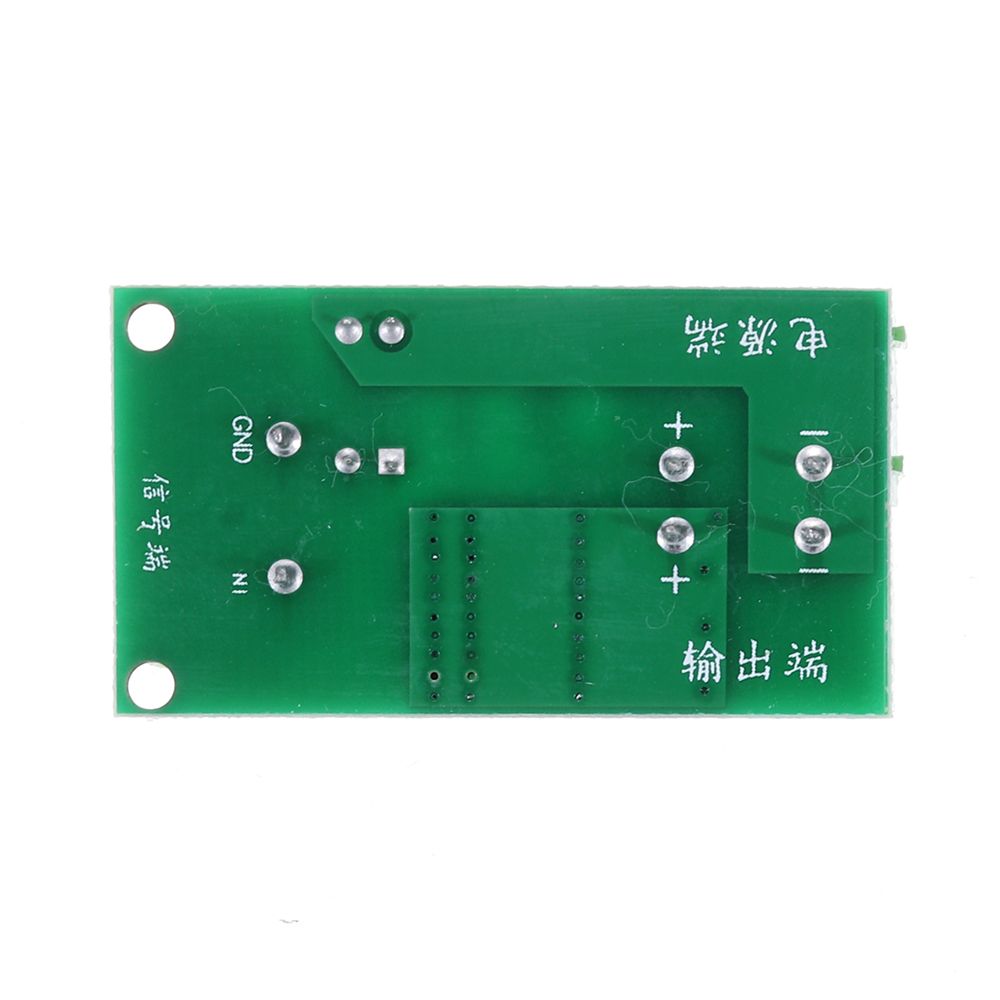

10pcs Trigger F5305S PMOS Switch Module FET MOS Field Effect Transistor 3V 5V 12V 24V 36V for Motor LED Light Bulb Strip Pump

10pcs Trigger F5305S PMOS Switch Module FET MOS Field Effect Transistor 3V 5V 12V 24V 36V for Motor LED Light Bulb Strip Pump
10pcs Trigger F5305S PMOS Switch Module FET MOS Field Effect Transistor 3V 5V 12V 24V 36V for Motor LED Light Bulb Strip Pump
10pcs Trigger F5305S PMOS Switch Module FET MOS Field Effect Transistor 3V 5V 12V 24V 36V for Motor LED Light Bulb Strip Pump
10pcs Trigger F5305S PMOS Switch Module FET MOS Field Effect Transistor 3V 5V 12V 24V 36V for Motor LED Light Bulb Strip Pump
10pcs Trigger F5305S PMOS Switch Module FET MOS Field Effect Transistor 3V 5V 12V 24V 36V for Motor LED Light Bulb Strip Pump
10pcs Trigger F5305S PMOS Switch Module FET MOS Field Effect Transistor 3V 5V 12V 24V 36V for Motor LED Light Bulb Strip Pump
10pcs Trigger F5305S PMOS Switch Module FET MOS Field Effect Transistor 3V 5V 12V 24V 36V for Motor LED Light Bulb Strip Pump
10pcs Trigger F5305S PMOS Switch Module FET MOS Field Effect Transistor 3V 5V 12V 24V 36V for Motor LED Light Bulb Strip Pump
10pcs Trigger F5305S PMOS Switch Module FET MOS Field Effect Transistor 3V 5V 12V 24V 36V for Motor LED Light Bulb Strip Pump
10pcs Trigger F5305S PMOS Switch Module FET MOS Field Effect Transistor 3V 5V 12V 24V 36V for Motor LED Light Bulb Strip Pump
10pcs Trigger F5305S PMOS Switch Module FET MOS Field Effect Transistor 3V 5V 12V 24V 36V for Motor LED Light Bulb Strip Pump
$21.99
Ex Tax: $21.99
  • Stock: In Stock
  • Model: EB0045857
  • SKU: EB0045857
Features:

- FET module, input and output totally isolated from each other.
- Input signal voltage: 3V~20V; Input current: about 5mA.
- Output voltage: 5V~36V(Current: within 5A, Max. current is 20A. -When current is over 5A, please add heat sink).
- Signal trigger: digital high/low signal, can be connected to IO of micro-controller, PLC interface, DC power supply, etc.
- The output can control high-power devices: motor, light bulb, LED light & strips, DC motor, small pumps, solenoid valve.
- Based on FET model New original F5305S. We can input PWM signal to control motor speed, lightness of bulb, etc.

Specifications:

Input Signal: Voltage: 3V~20V; Current: 5mA
Output: Voltage: 5V~36V; Current: within 5A
Item Size: 46 * 25 * 18mm / 1.8 * 0.98 * 0.7in

Package Included:

10 x Trigger F5305S PMOS Switch Module FET MOS Field Effect Transistor
