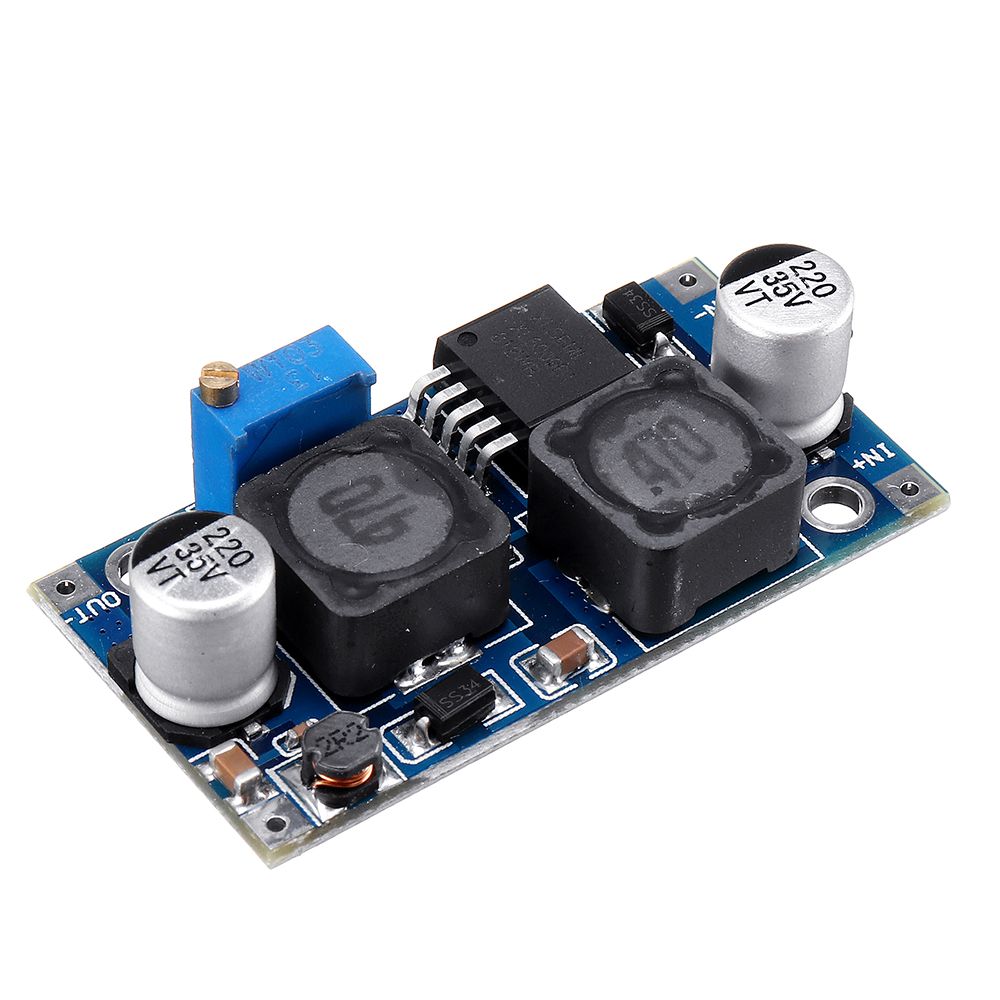

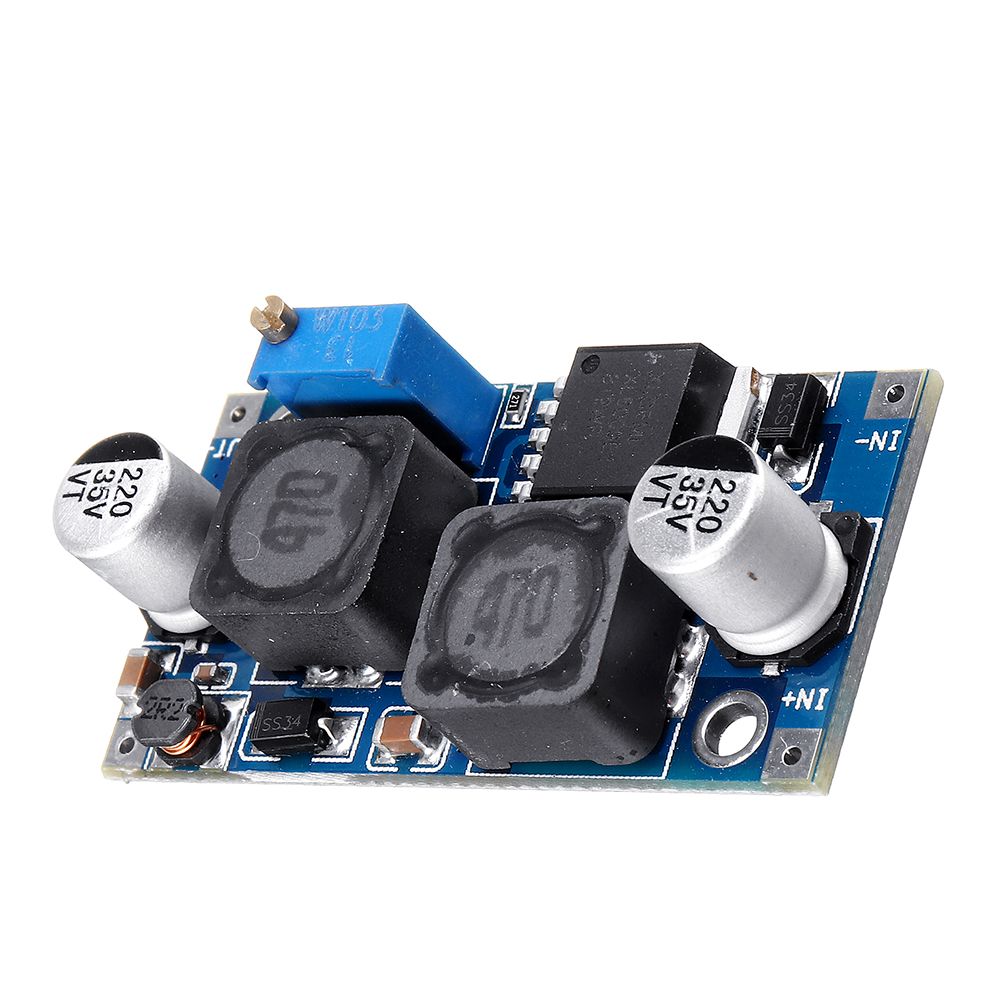

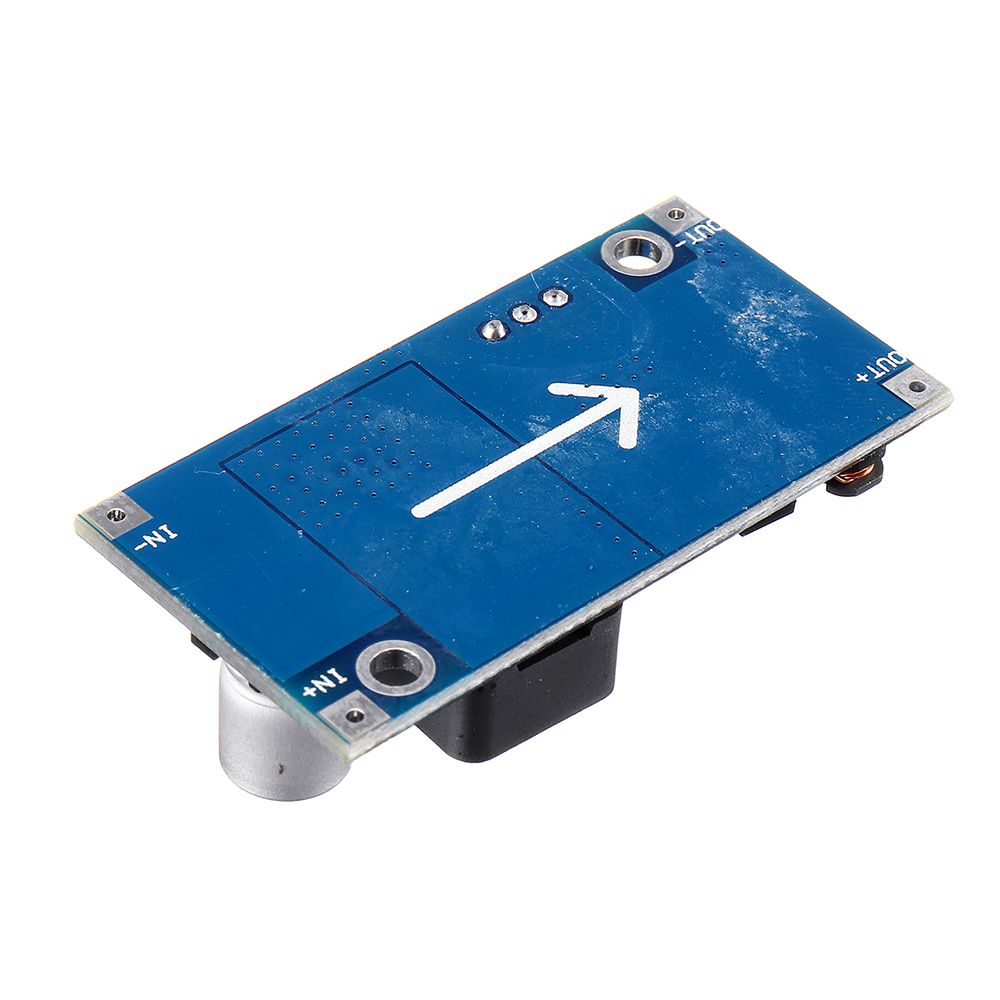

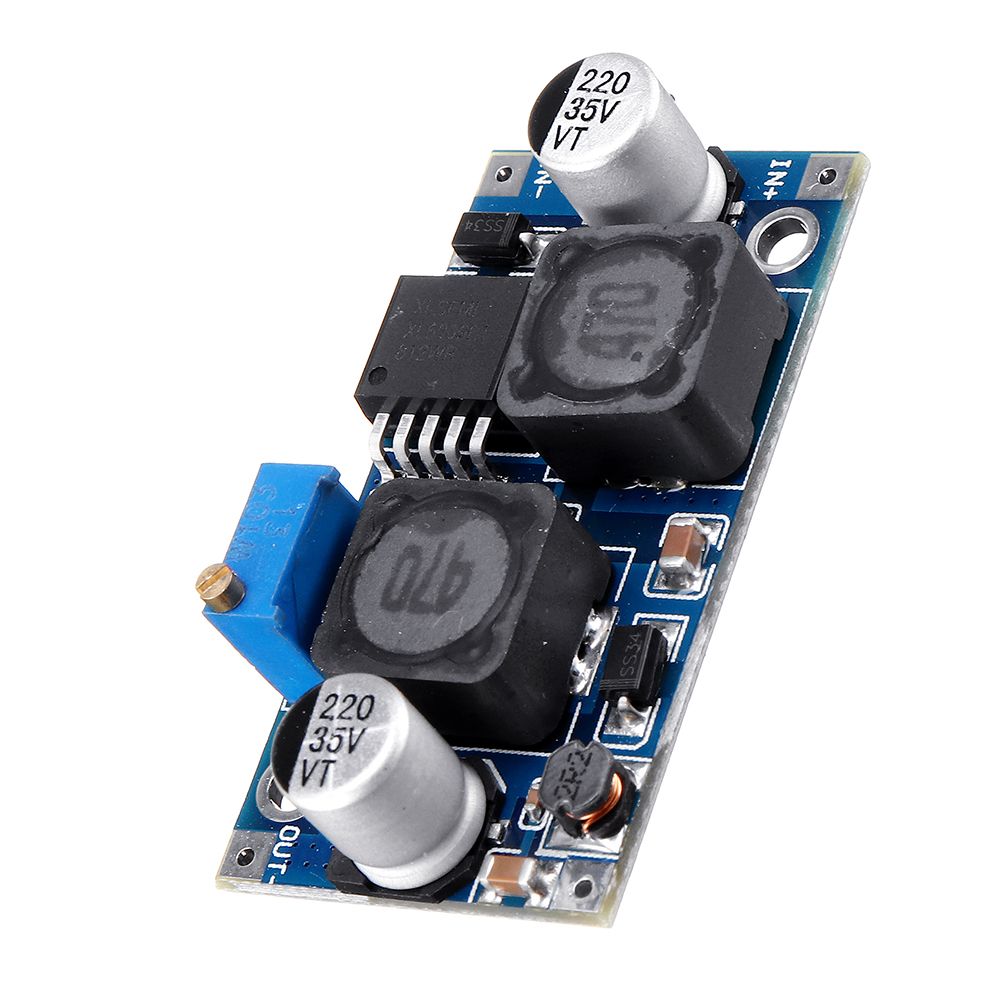

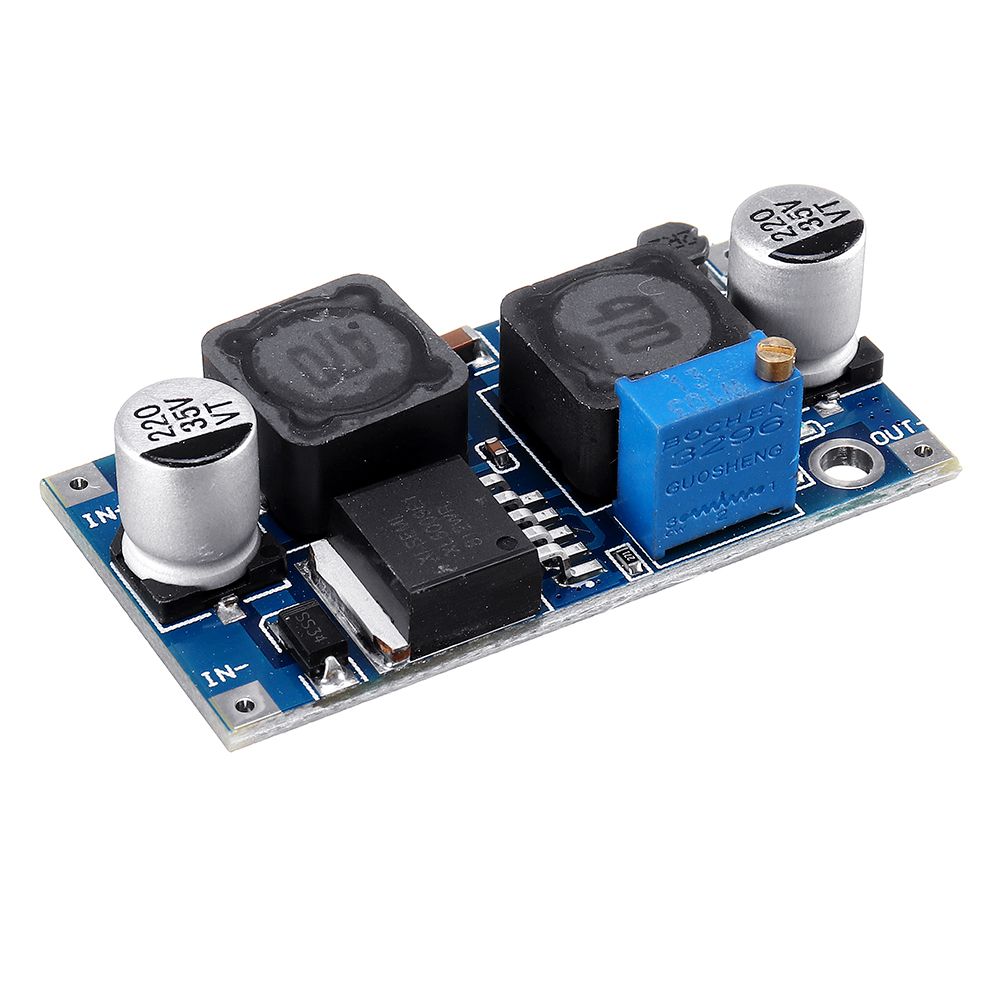

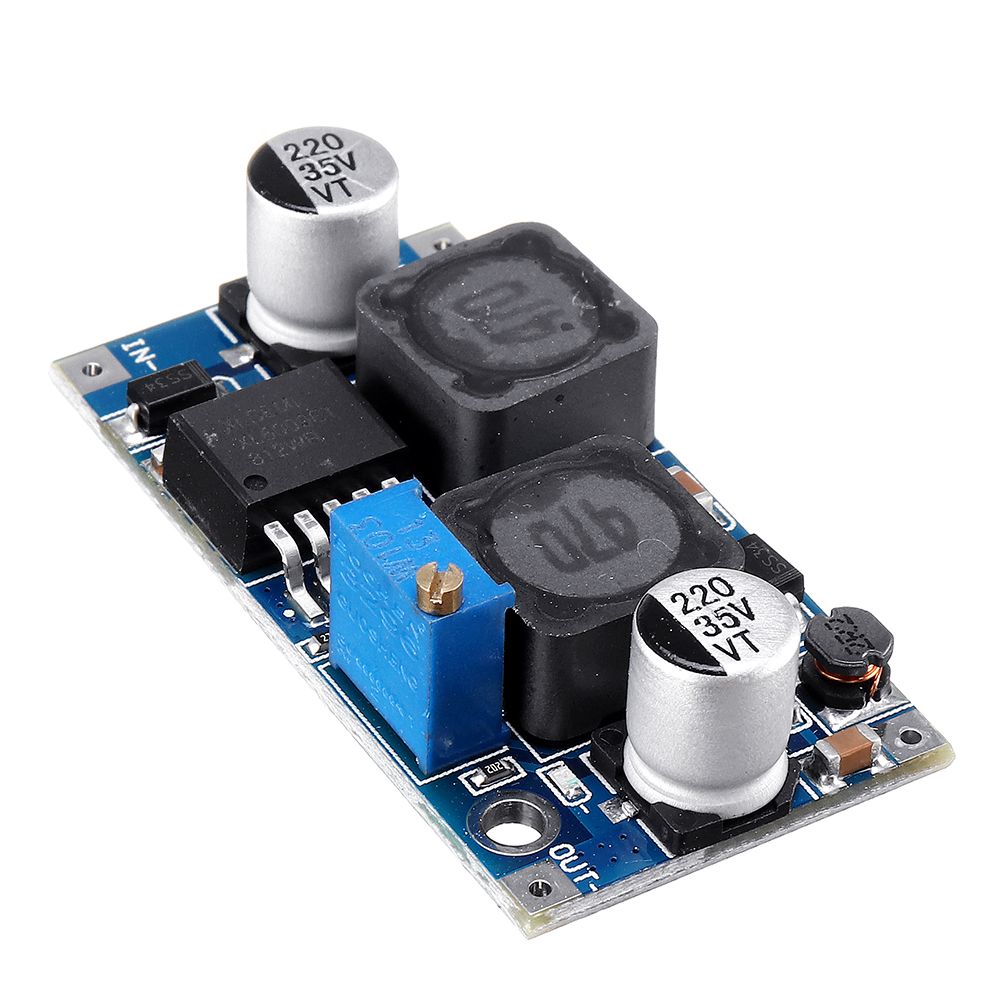

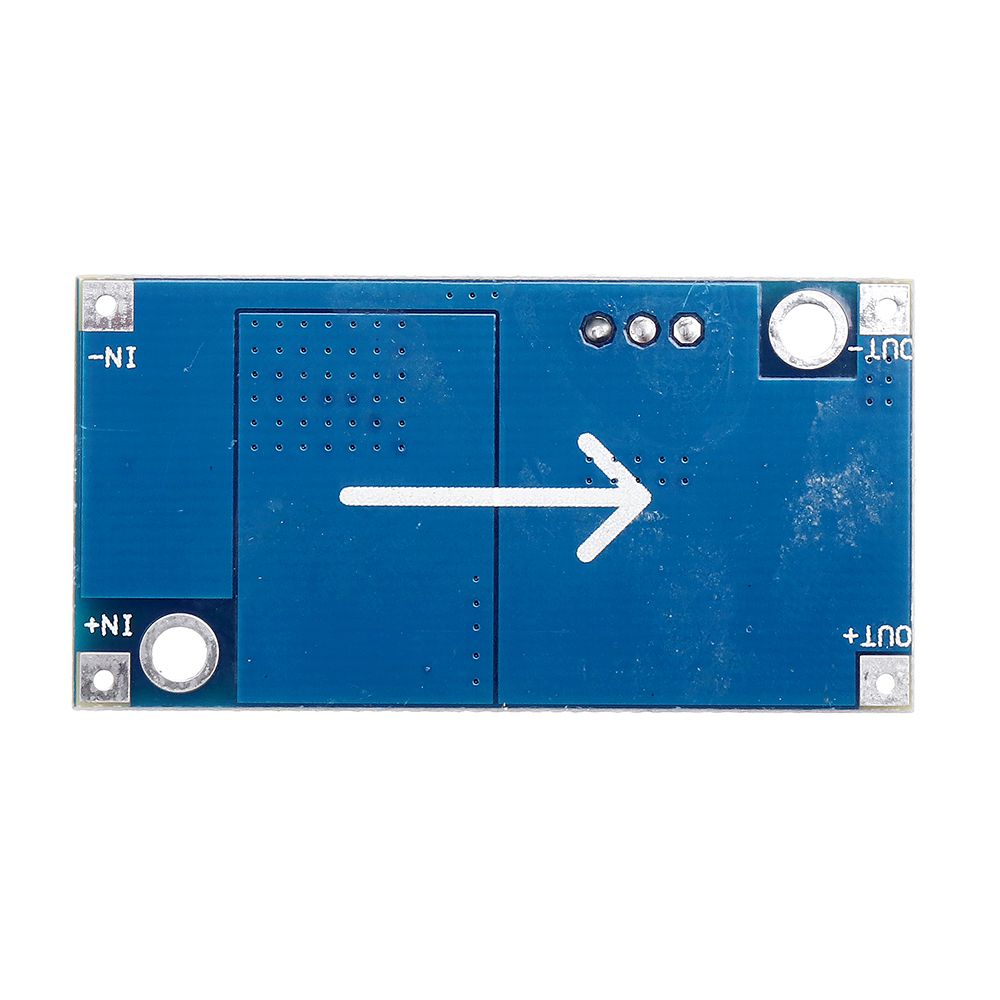

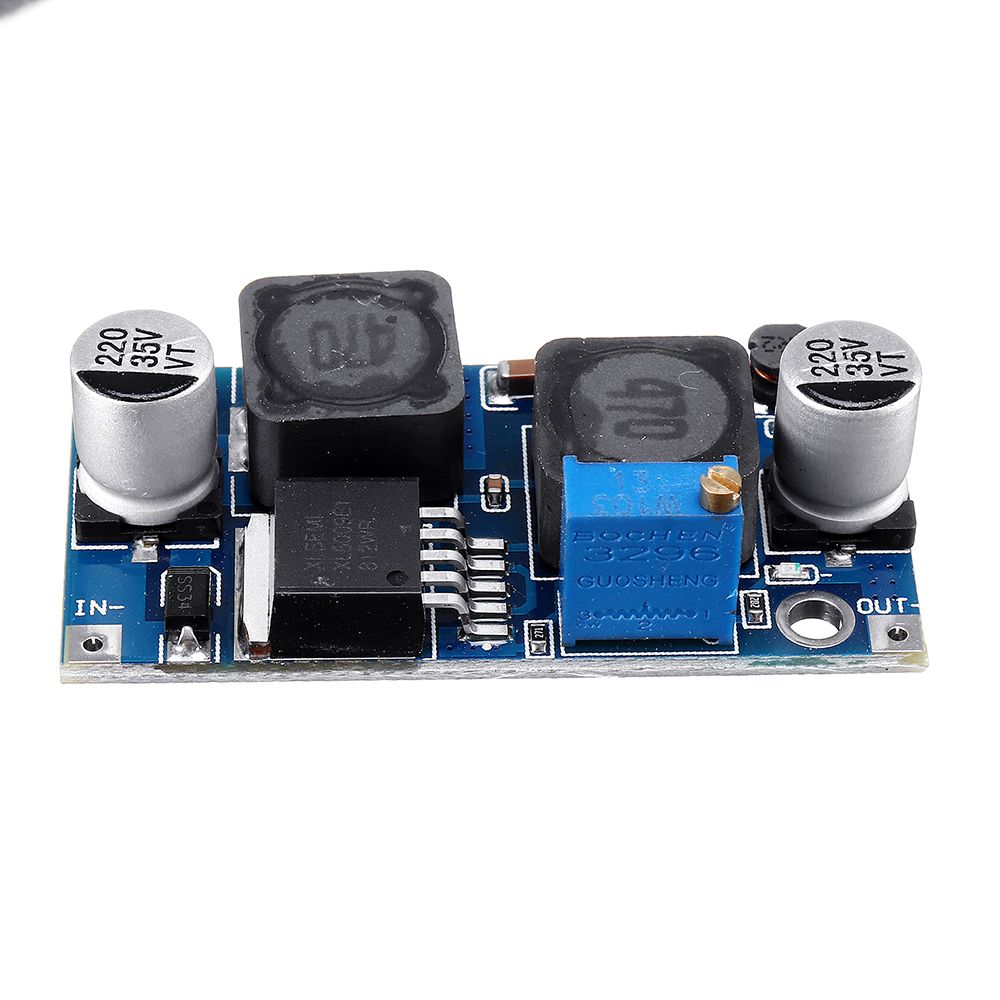

10pcs DC-DC Boost Buck Adjustable Step Up Step Down Automatic Converter XL6009 Module Suitable For Solar Panel

Based on 0 reviews. - Write a review

$20.99

Ex Tax: $20.99

Stock: In Stock
Model: EB0043640
SKU: EB0043640

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Descriptions:

Auto start voltage will be pulled down to 7V or less, and engine will at high speed when the voltage up to 15V or higher. It is hard to work for 12V electrical equipment, this automatic buck boost module can solve this problem, regardless of the input voltage is 5V or 12V or 32V, the output can be stabilized at 12V.

Built-in 4A efficient MOSFET switches enable efficiency up to 94%; (LM2577 current is 3A)

High switching frequency 400KHz, the ripple is smaller, dimension is smaller . (LM2577 frequency only 50KHz)

Applications:

Car regulator, solar photovoltaic, wind power and other applications of voltage instability .

Specifications:

Model Specification: DSN6000AUD Automatic Buck module

Module Properties: Non- isolated boost (BOOST)

Rectification: Non- Synchronous Rectification

Input Range: 3.8V - 32V

Output Range: 1.25V - 35V

Input Current:3A ( max ) , no-load 18mA (5V input , 8V output , no-load is less than 18mA. Higher the voltage, the greater the load current. )

Conversion efficiency:<94% ( the greater the pressure , the lower the efficiency )

Switching frequency:400KHz

Output Ripple:50mV ( the higher the voltage, the greater the current, the greater the ripple )

Load Regulation:± 0.5%

Voltage Regulation:± 0.5%

Operating Temperature:-40 - +85

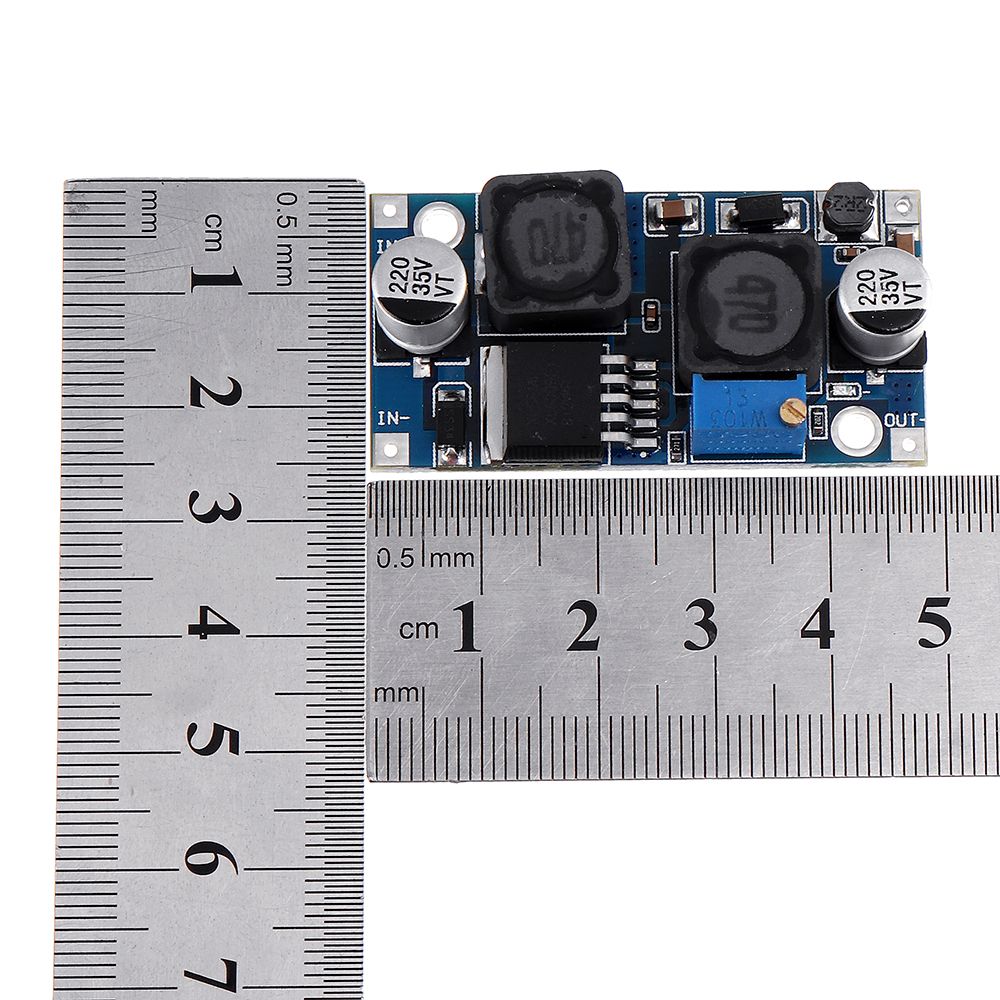

Dimensions:48mm * 25mm * 14mm ( L * W * H )

Package included:

10 x DC-DC Boost Buck Adjustable Step Up Step Down Automatic Converter XL6009 Module
