10pcs APDS-9960 Gesture Sensor Module Digital RGB Light Sensor for Arduino - products that work with official for Arduino boards

Based on 0 reviews. - Write a review

$43.99

Ex Tax: $43.99

Stock: In Stock
Model: EB0045962
SKU: EB0045962

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Introduction:

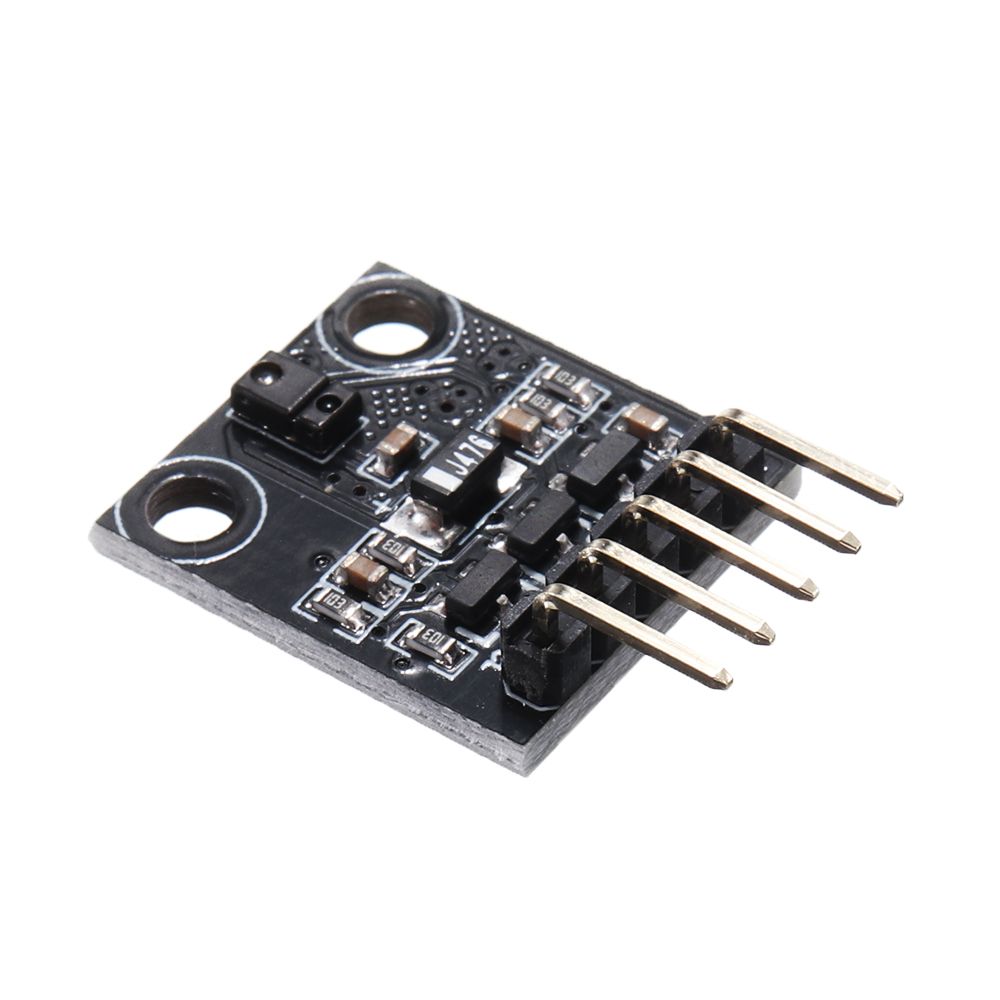

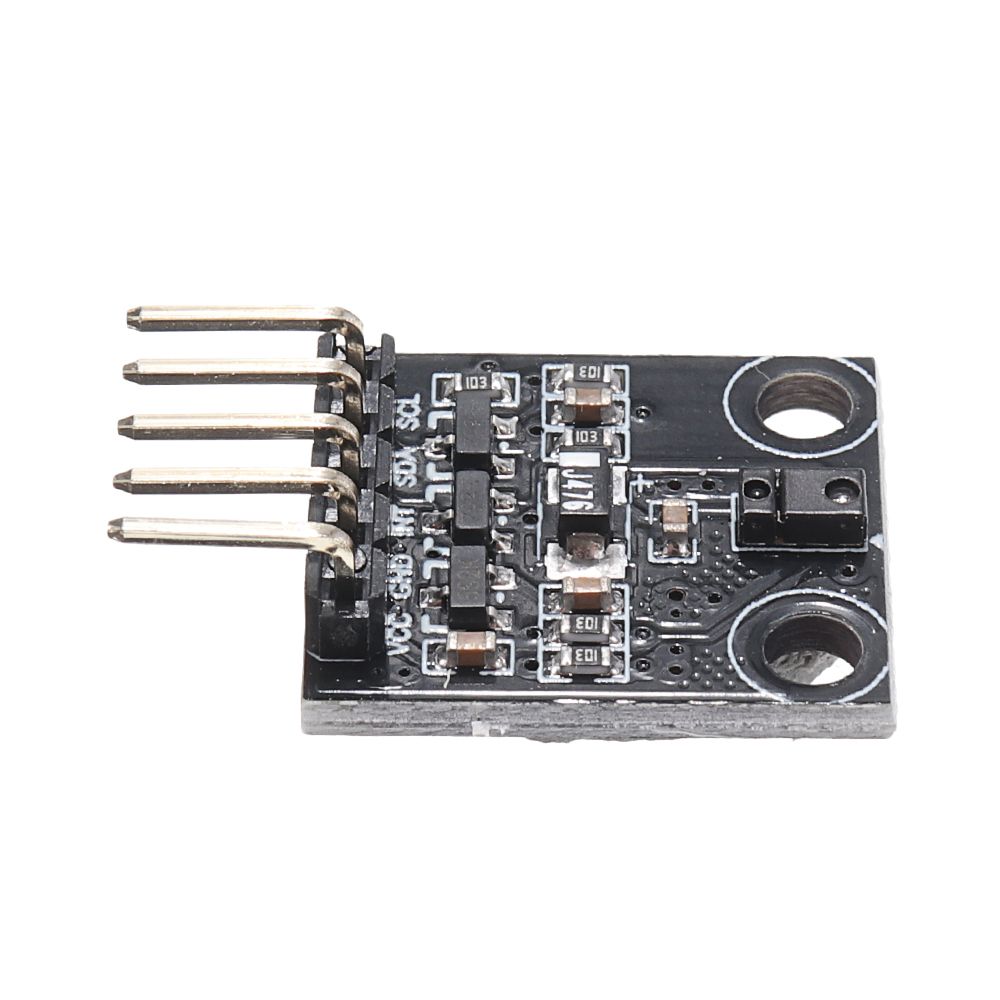

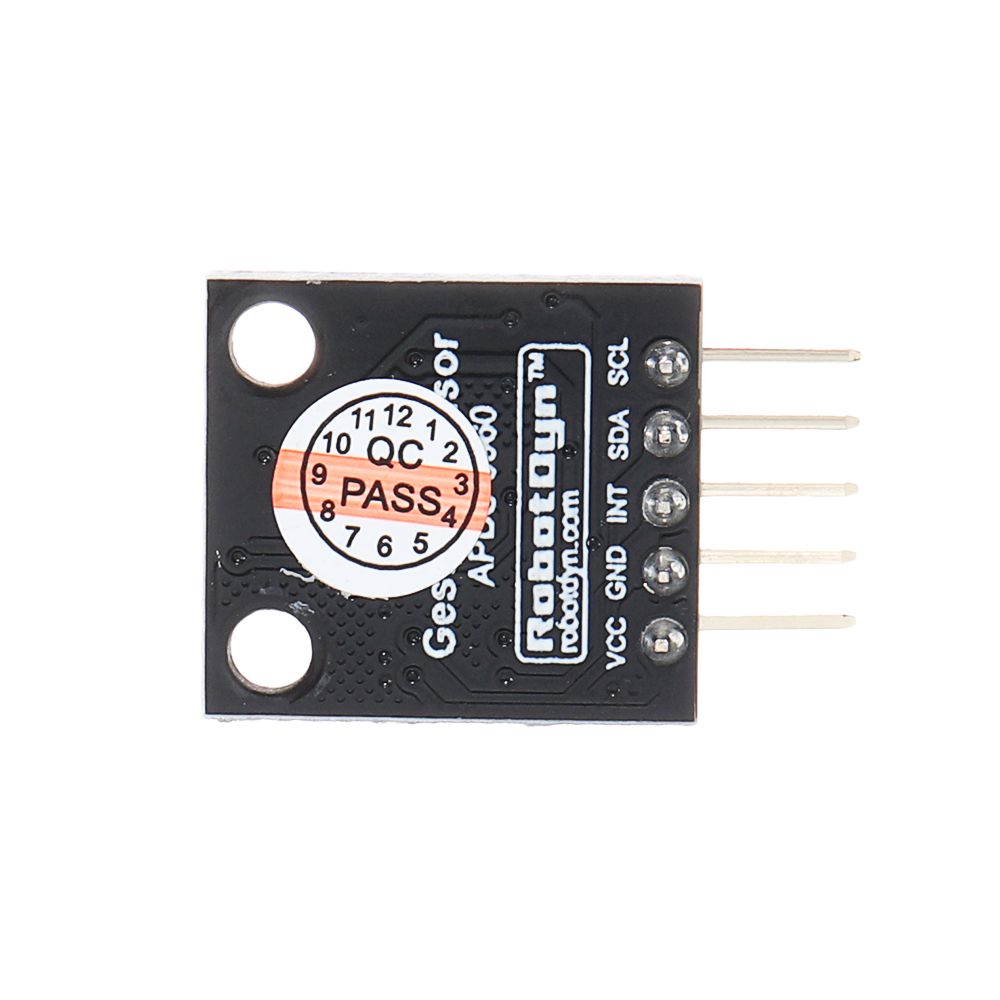

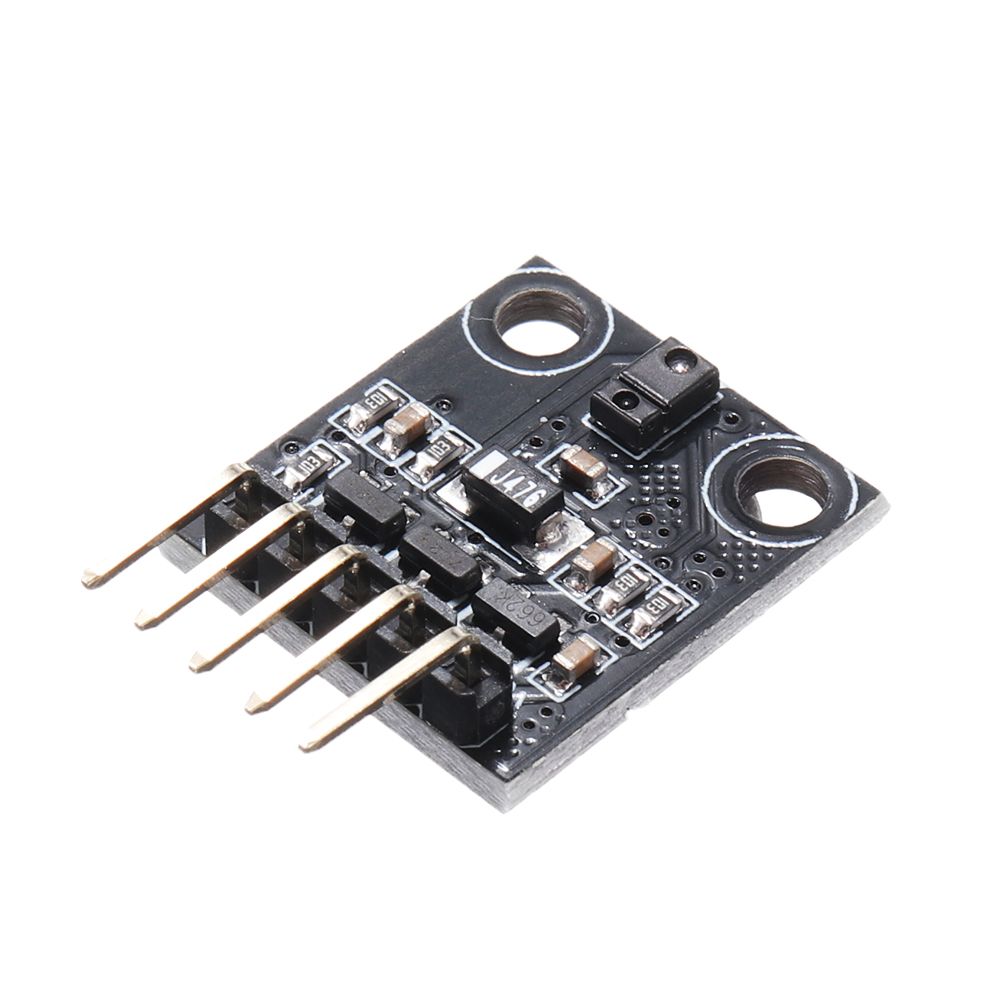

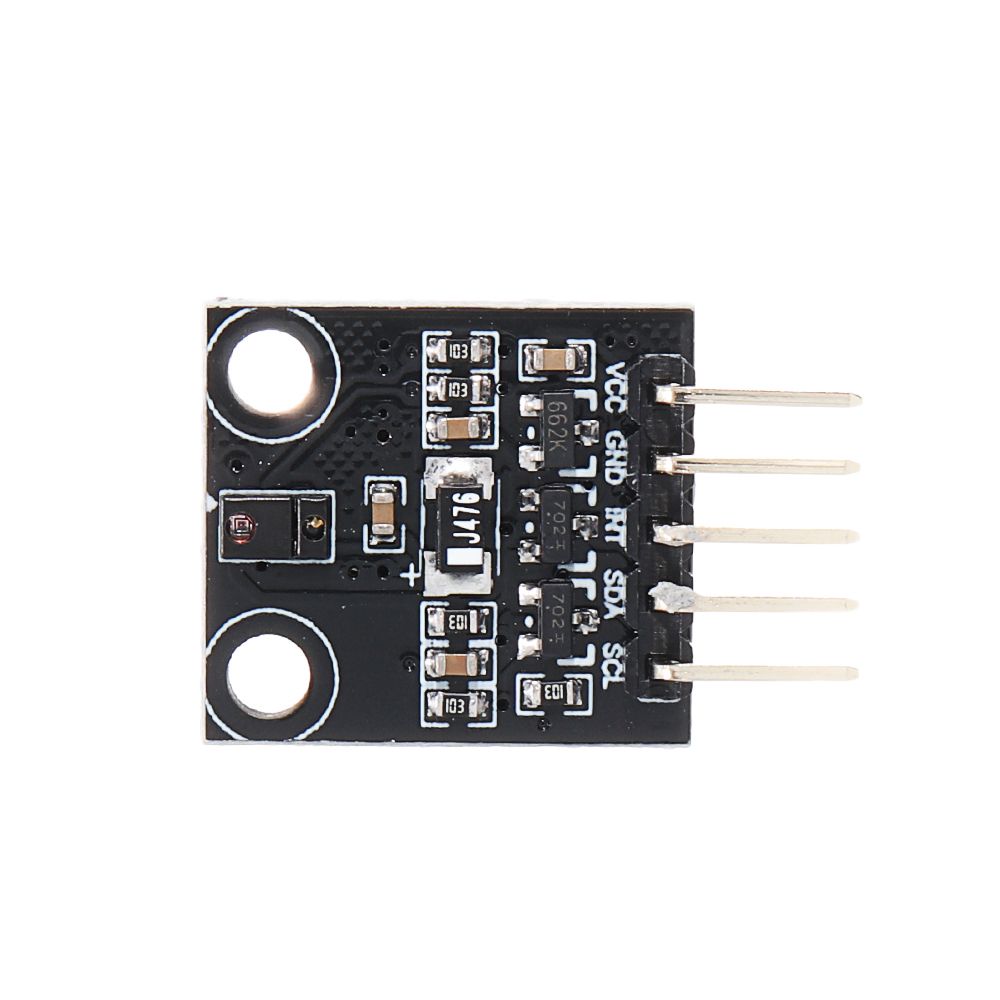

The Gesture Sensor APDS-9960 is a digital RGB, ambient light, proximity and gesture sensor. The sensor has an I2C compatible interface providing red, green, blue, clear (RGBC), proximity and gesture sensing with IR LED. The RGB and ambient light sensing feature detects light intensity under various lighting conditions and through various attenuation materials including darkened glass. In addition, the integrated UV-IR blocking filter enables accurate ambient light and correlated color temperature sensing.

The proximity and gesture feature is factory-trimmed and calibrated to 100mm proximity detection distance without requiring customer calibrations. Gesture detection utilizes four directional photodiodes, integrated with visible blocking filter, to accurately sense simple UP-DOWN-RIGHT-LEFT gestures or more complex gestures. The addition of micro-optics lenses within the module provides high efficient transmission and reception of infrared energy. An internal state machine allows the device to be put into a low power state between RGBC, proximity and gesture measurements providing very low power consumption.

Features:

RGBC Light Sensor, Proximity and Gesture Detector with IR LED in an Optical Module

I2C Interface Compatible with Dedicated Interrupt Pin

High Sensitivity Enabling Operation Behind Darkened Glass

RGBC Light Sensing with Integrated UV-IR Block Filter

Geometrically Arranged RGBC Photodiodes Providing Uniform Angular Response

Calibrated to 100mm Detection Distance Eliminating Customer End Product Calibration

Four Separate Photodiodes Sensitive to Different Directions

Proximity and Gesture Sensing with Integrated Visible Block Filter

Patented Shield Design Minimizing Proximity Cross Talk

Integrated Optical Lens Collimating IR LED Beam and Improving Photodiode Sensitivity.

Low Power Consumption: 1.0 µA typical in Sleep Mode

Applications:

Display Backlight Control

Correlated Color Temperature Sensing

Cell Phone Touch-screen Disable

Digital Camera Touch-screen Disable

Mechanical Switch Replacement

Gesture Detection

Documents:

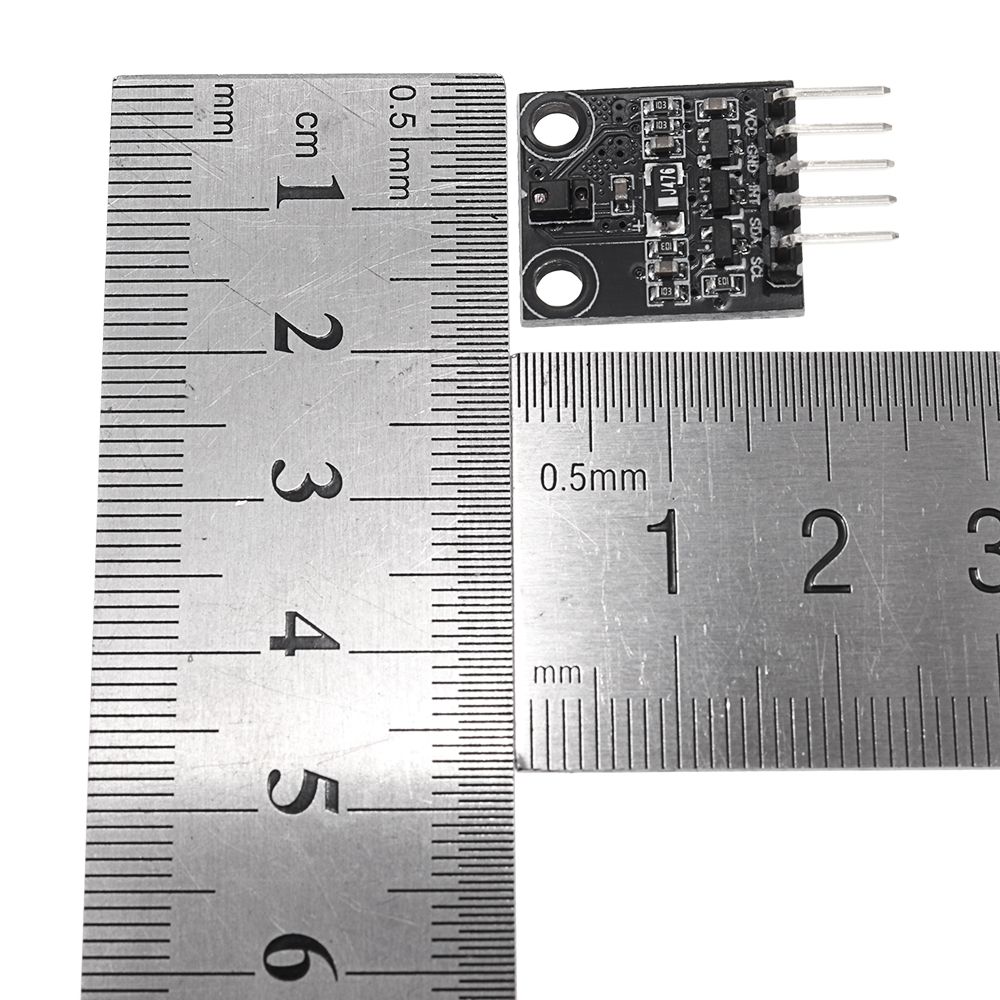

Dimensional drawing: Click here to open

Pinout: Click here to open

Schematic: Click here to open

Package includes:

10 x APDS-9960 Gesture Sensor Module
