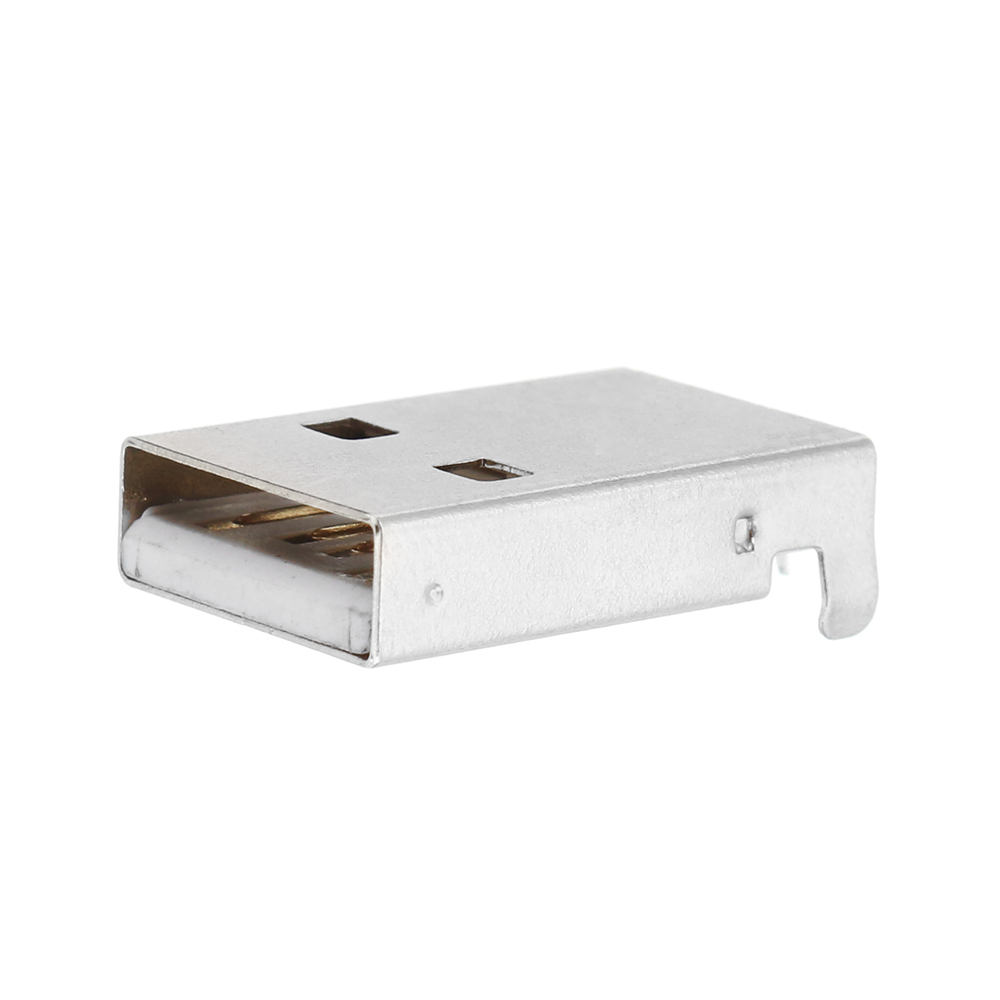

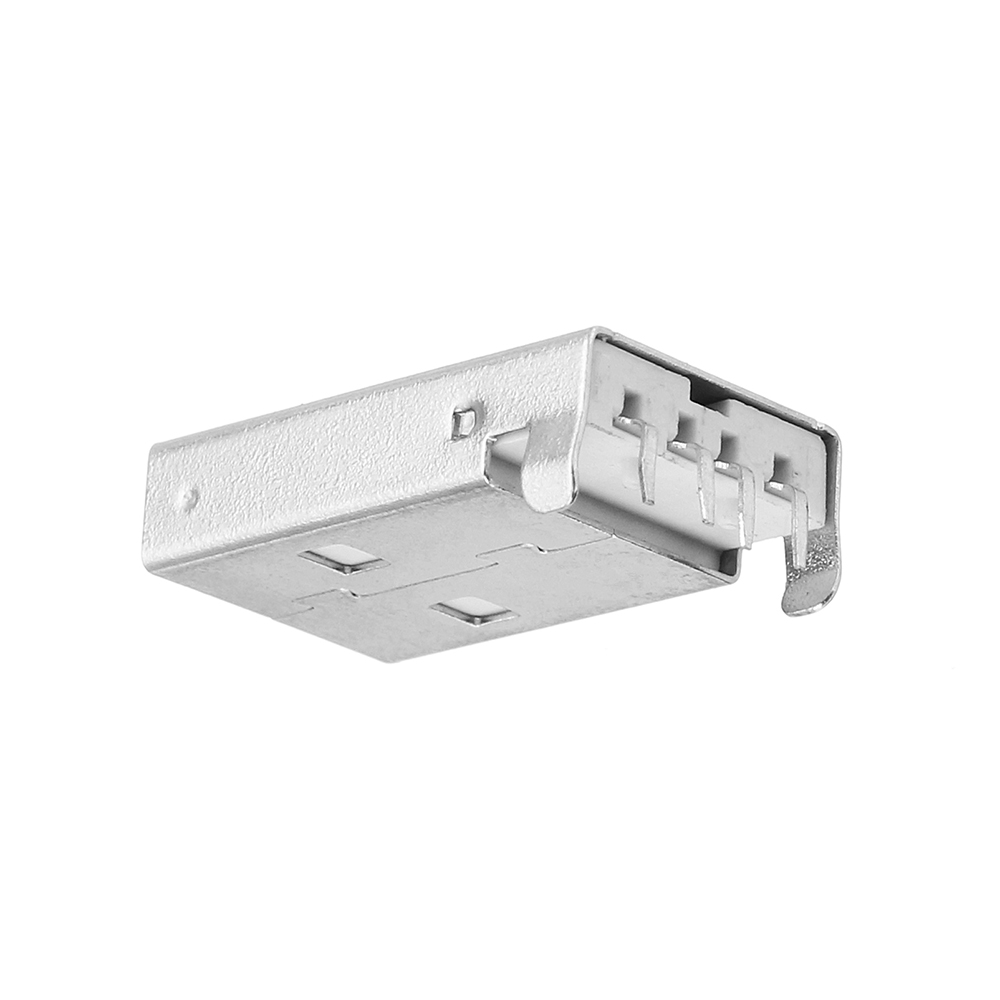

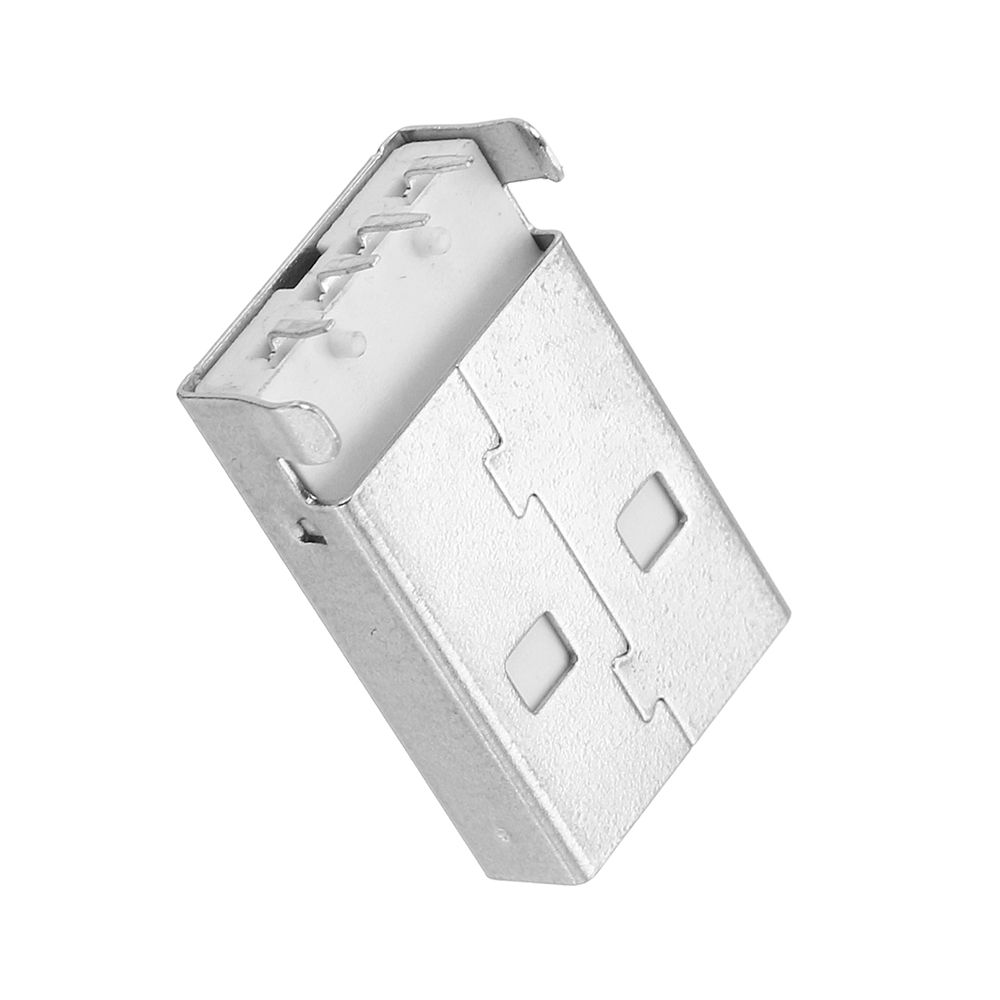

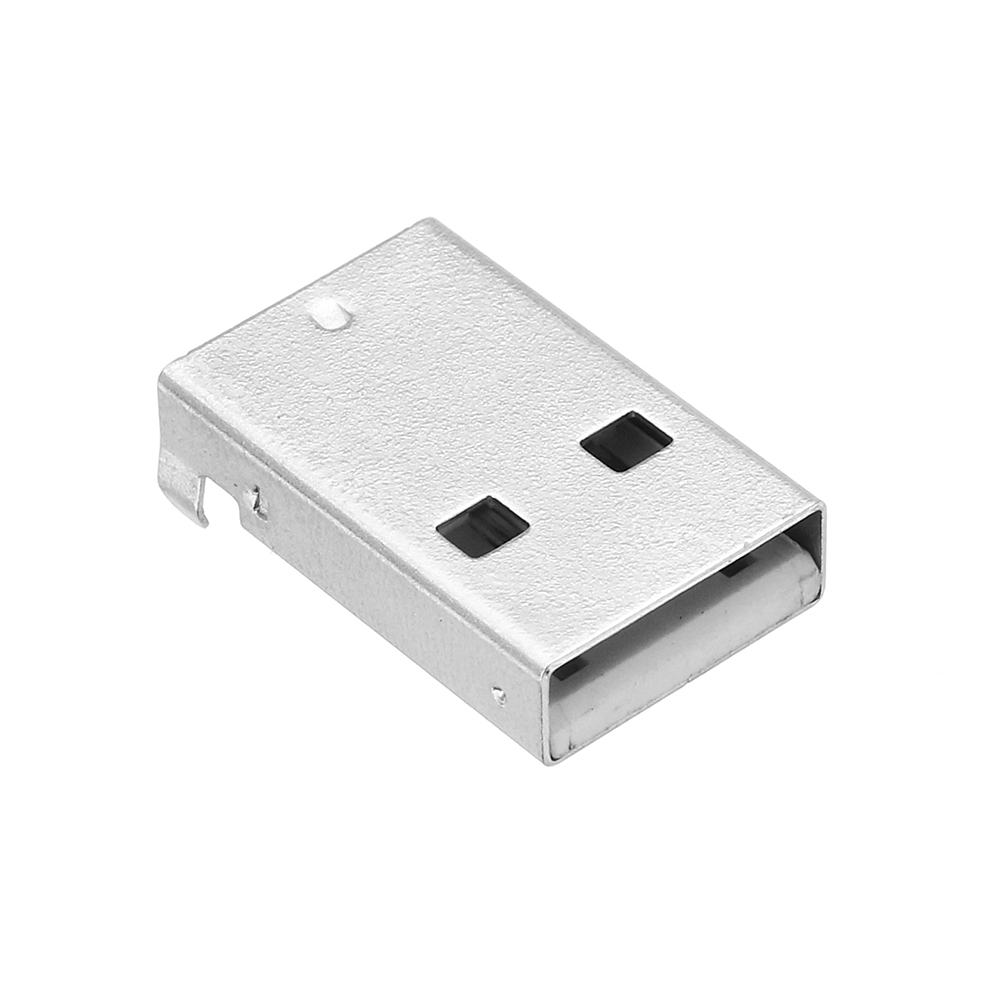

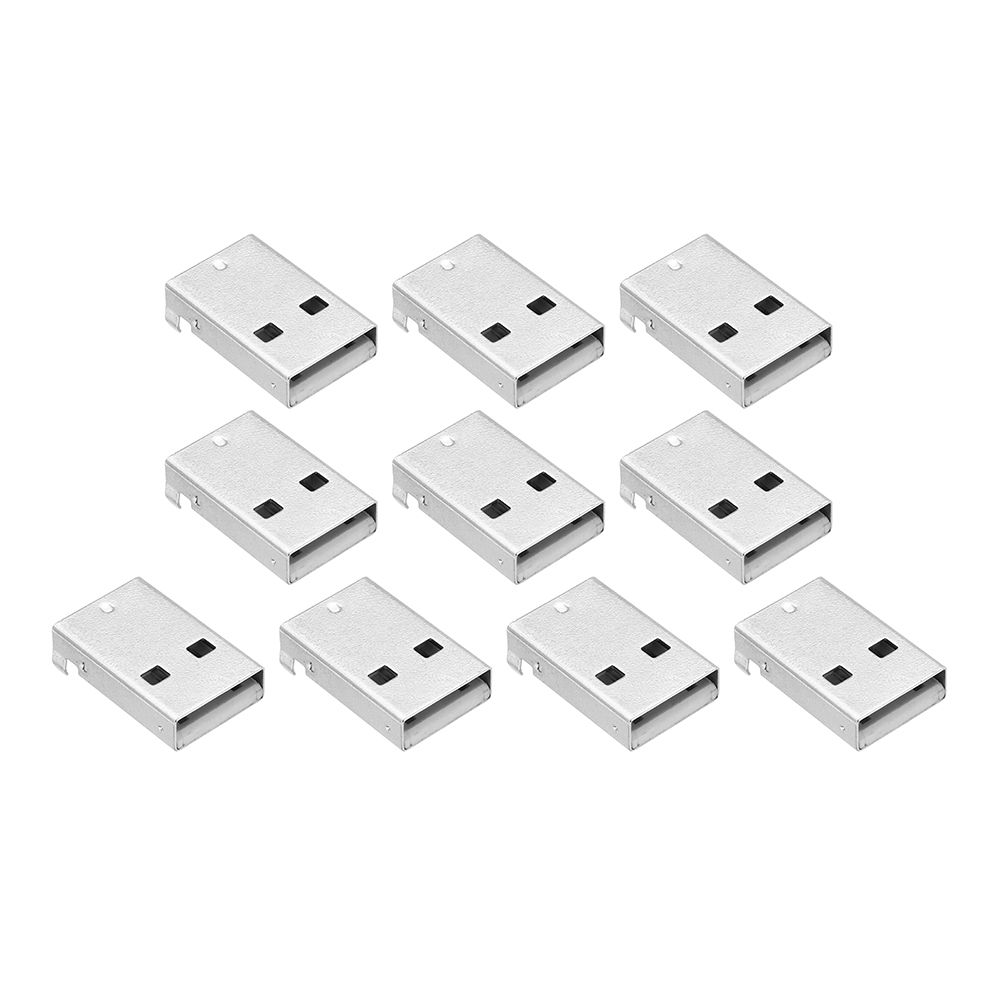

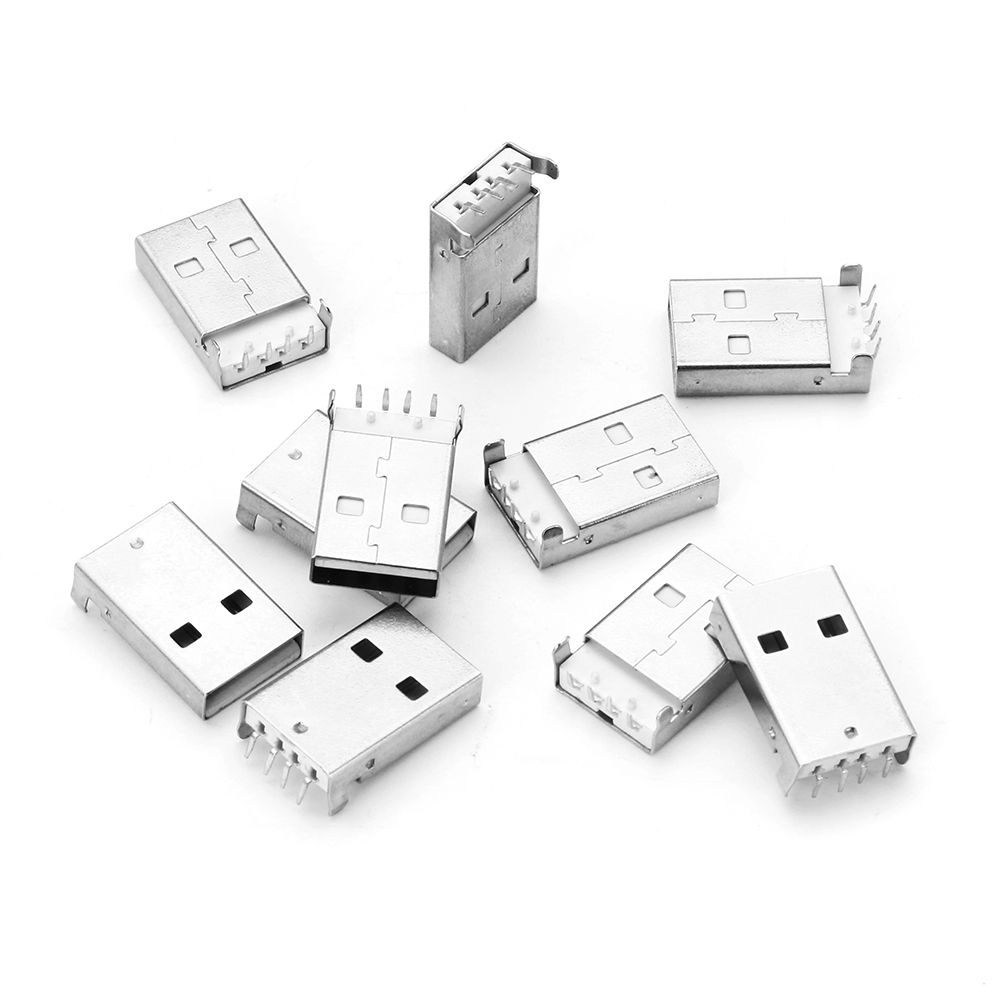

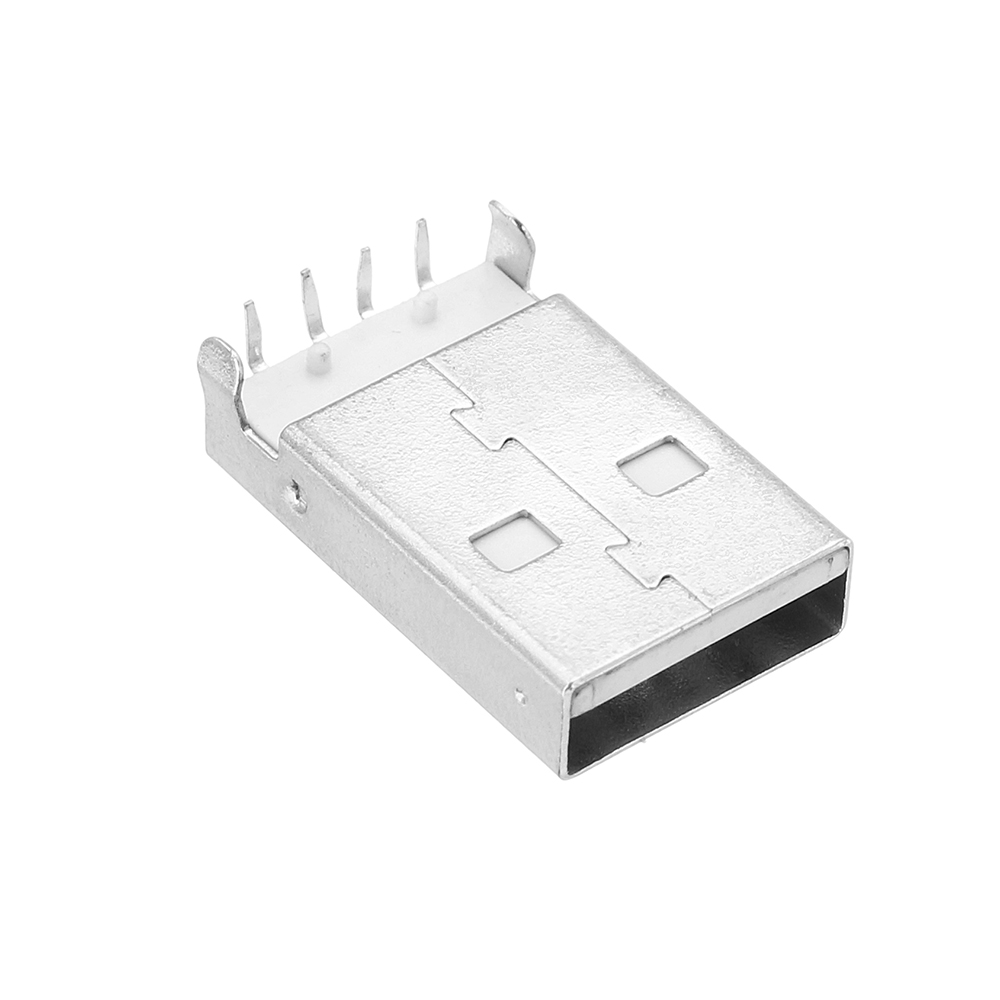

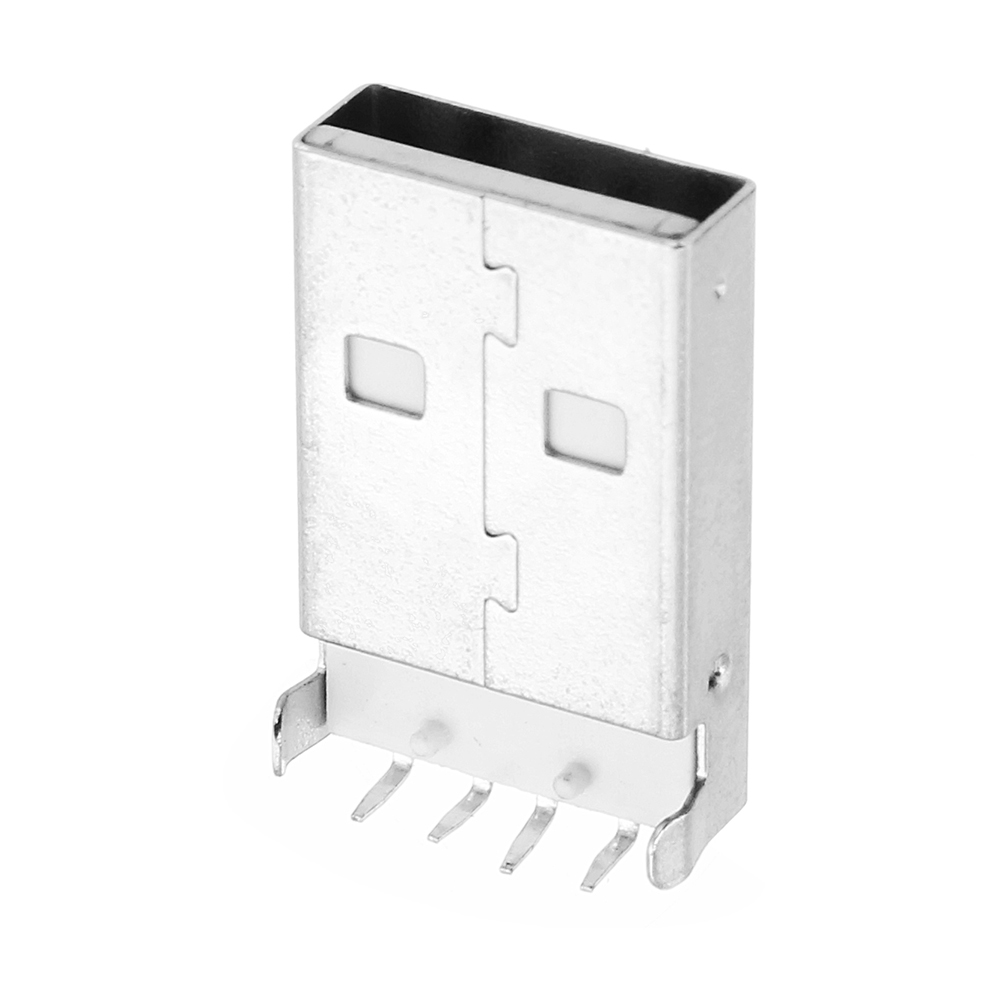

10pcs 90 Degree Type A female Socket DIP Connector USB Charging Socket USB Socket Interface
- Stock: In Stock
- Model: EB006949
- SKU: EB006949
| Color | Sliver |
| Rated Current | 1.5A |
| Rated Voltage | 30V |
| Insertion Force | 35N Max |
| Durability | 3000 Cycles Min |
| Rubber Core | PBT / Icp Ul94V-0 |
| Resistance To Voltage | 500V Ac Min. |
| Insulation Resistance | ≥1000MΩ |
| Pull-Out Force | 10N Min.Initial 8-20N After |
| Working Temperature | -20 Degrees To 60 Degrees |
| Contact Impedance | ≤30mΩ |
| Terminals | Brass C2680,Nickel Base,Gold-Plated 1 u, |
Package included:
