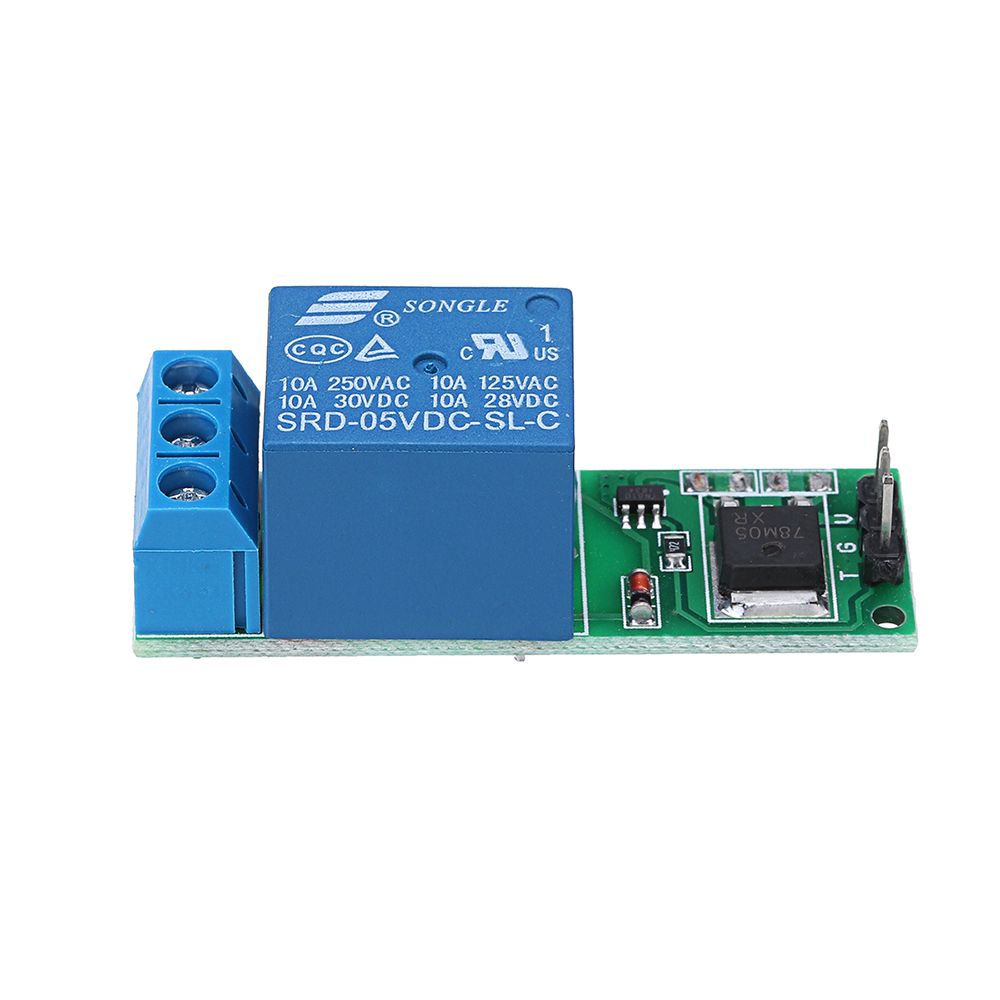

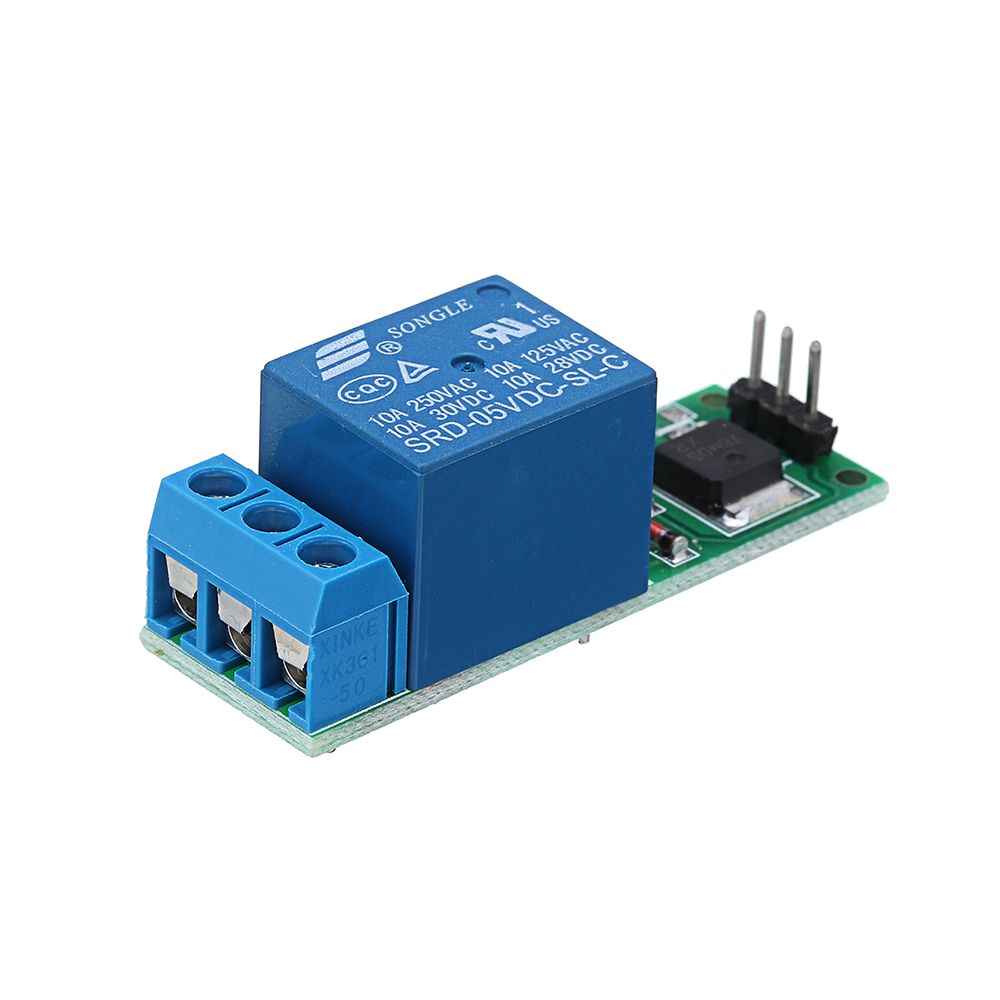

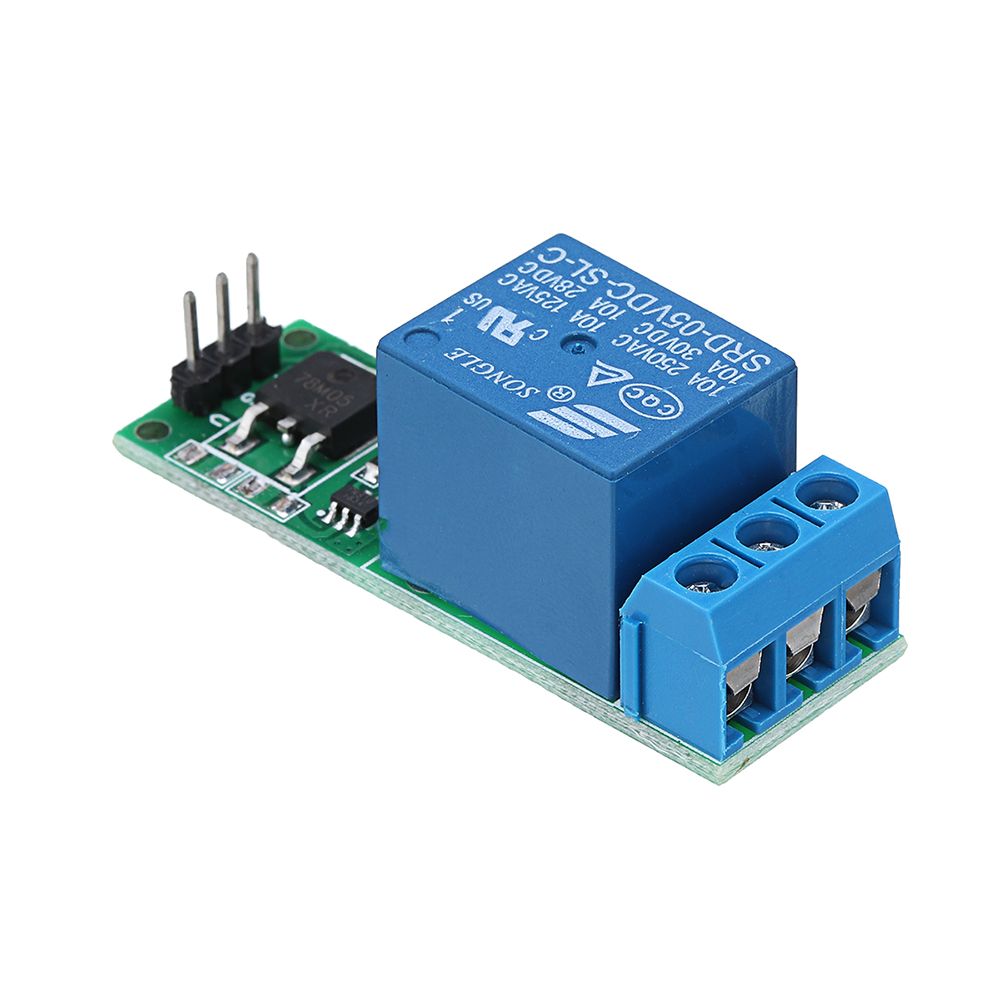

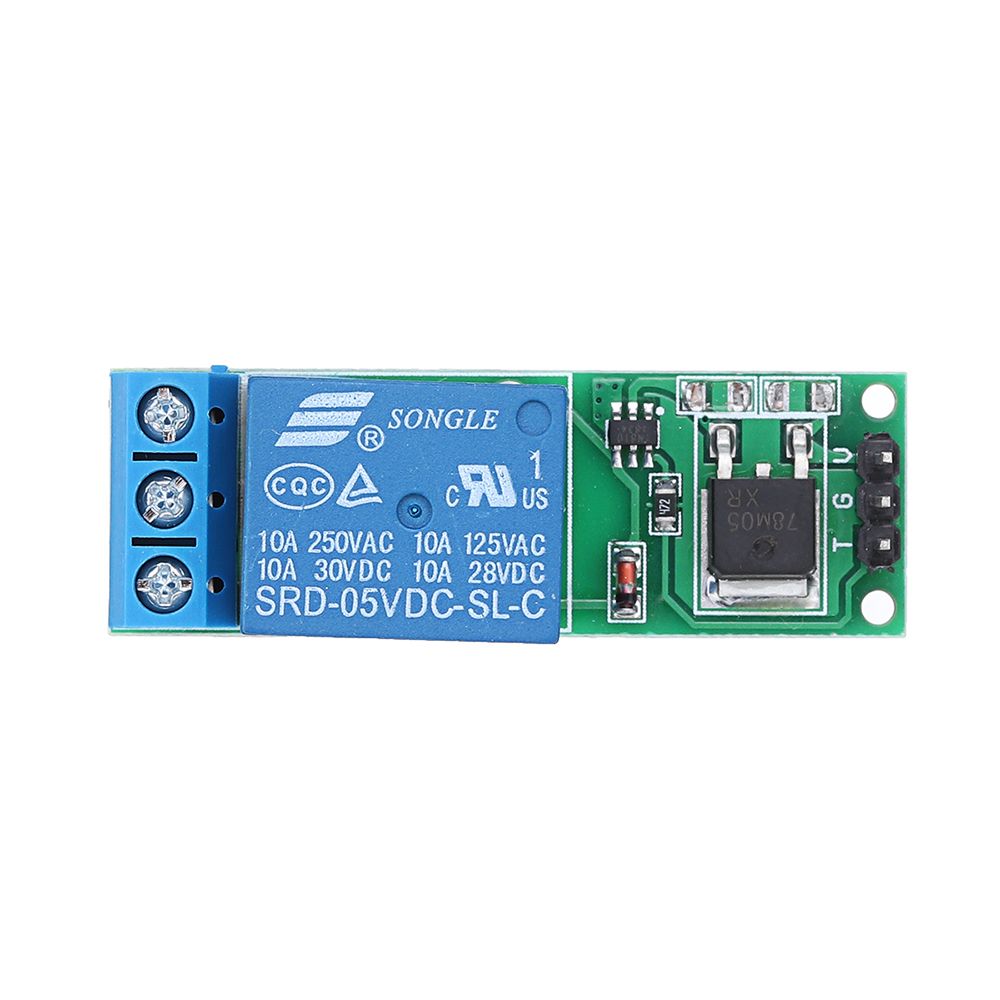

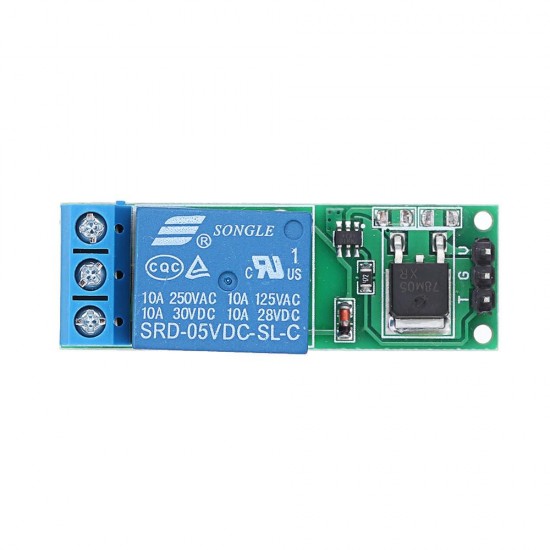

10pcs 1CH Channel DC 12V 60-70MA Self-locking Relay Module Trigger Latch Relay Module Bistable

Based on 0 reviews. - Write a review

$28.99

Ex Tax: $28.99

Stock: In Stock
Model: EB0046511
SKU: EB0046511

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description:

Working voltage: DC 6-24V

Working current: 60-70MA

Standby current: 1UA

Load current : AC 250V/10A, DC 30V/10A

Trigger mode: Low pulse trigger

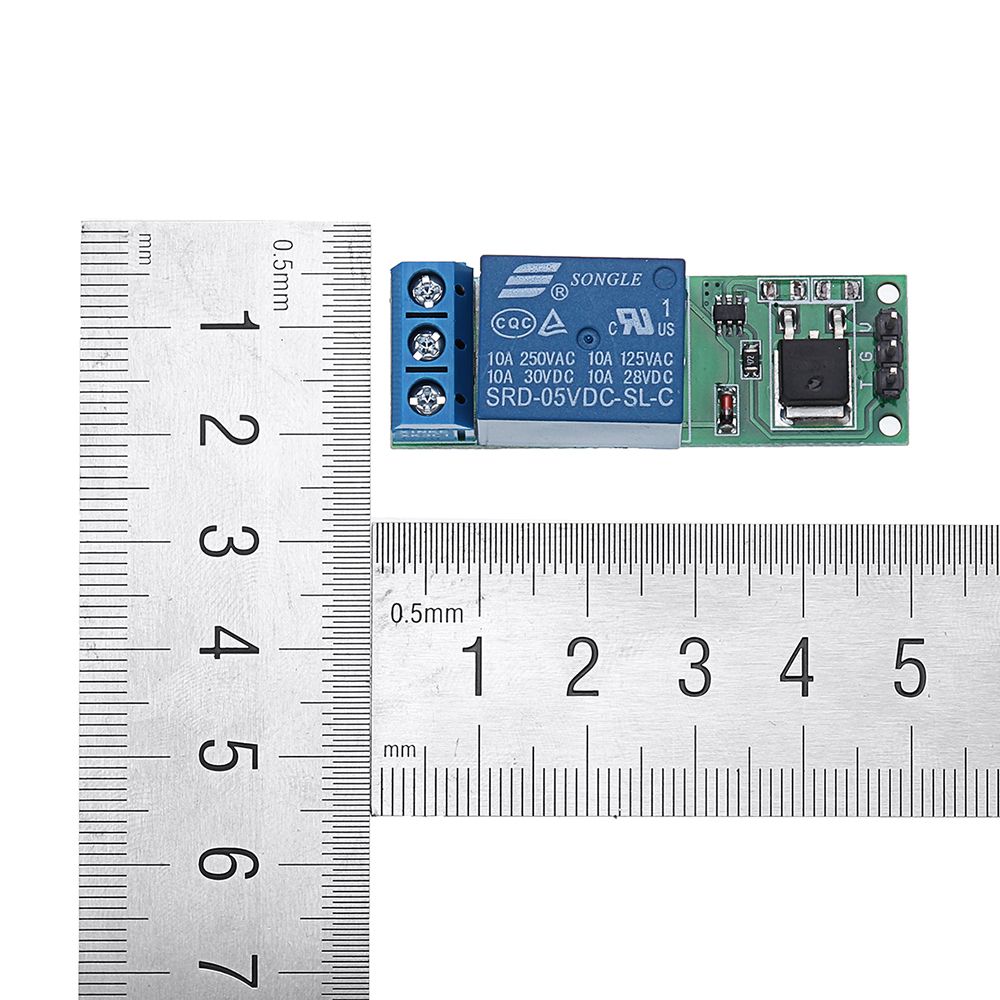

Size: 48mm * 16mm * 18.5mm (L * W * H), Very small size

Weight: 14.3 g

USE 1:

By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on.

USE 2:

By default, the relay is release, MCU output low-pulse(0.3-1seconds), the relay pull, low-pulse again, the relay release, the third low-pulse, the relay pull, and so on.

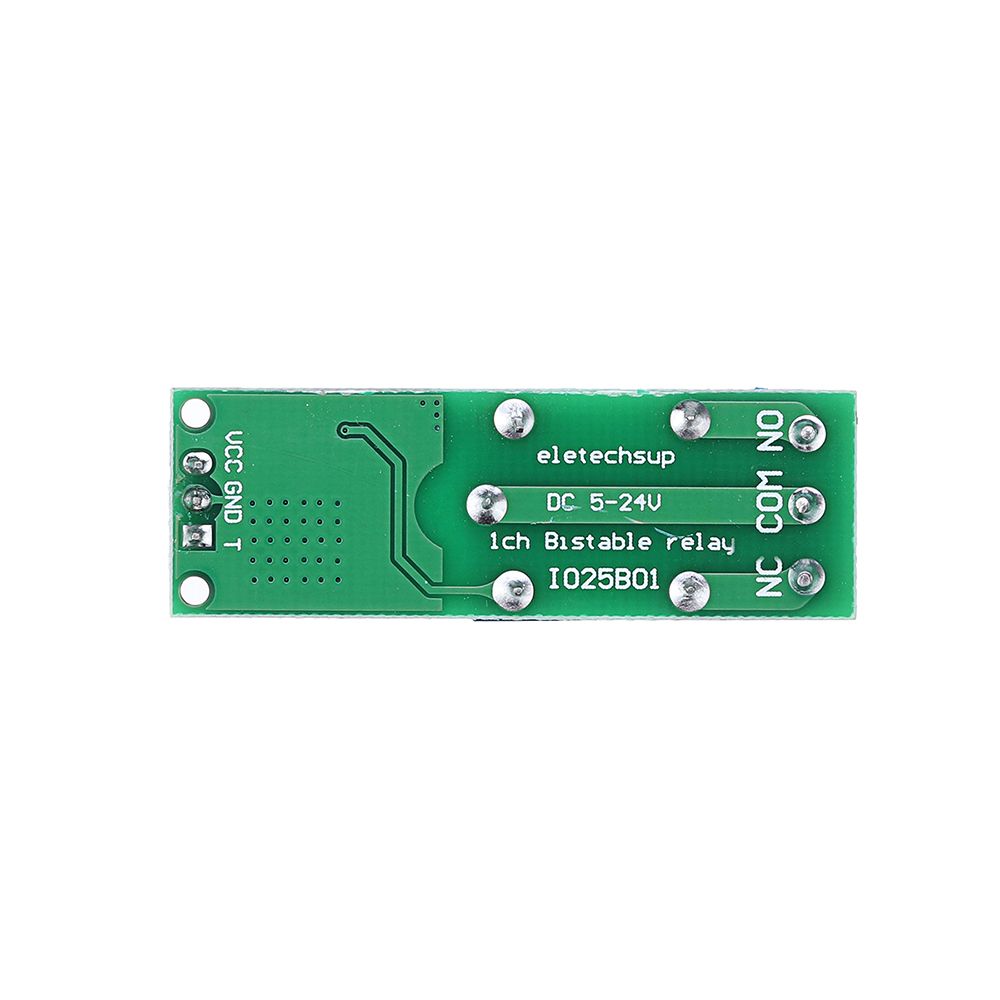

Module interface:

1. VCC: positive power supply (VCC)

2. GND: negative power supply (GND)

3. T: Low pulse trigger

Relay outputs:

1. NO: normally open relay interface

2. COM: Common Interface Relays

3. NC: normally closed relay interface

USE: By default, the relay is released, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on

Typical applications:

Automotive electronics

Motor

LED

Smart Home

Emergency lighting

MCU development board

Toy car

Package includes:

10 x Relay module

10pcs-1CH-Channel-DC-12V-60-70MA-Self-locking-Relay-Module-Trigger-Latch-Relay-Module-Bistable-1572821
