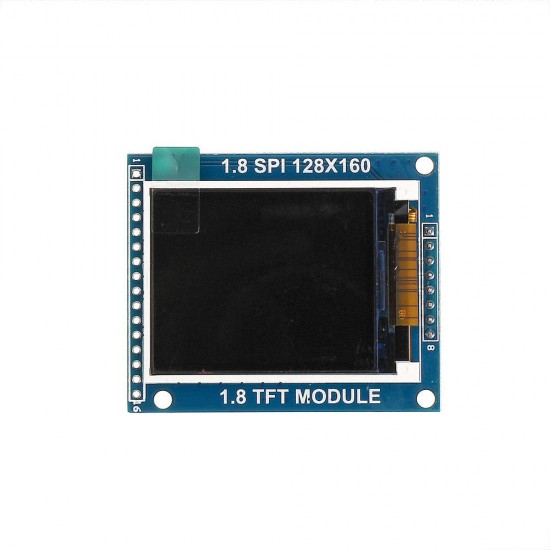

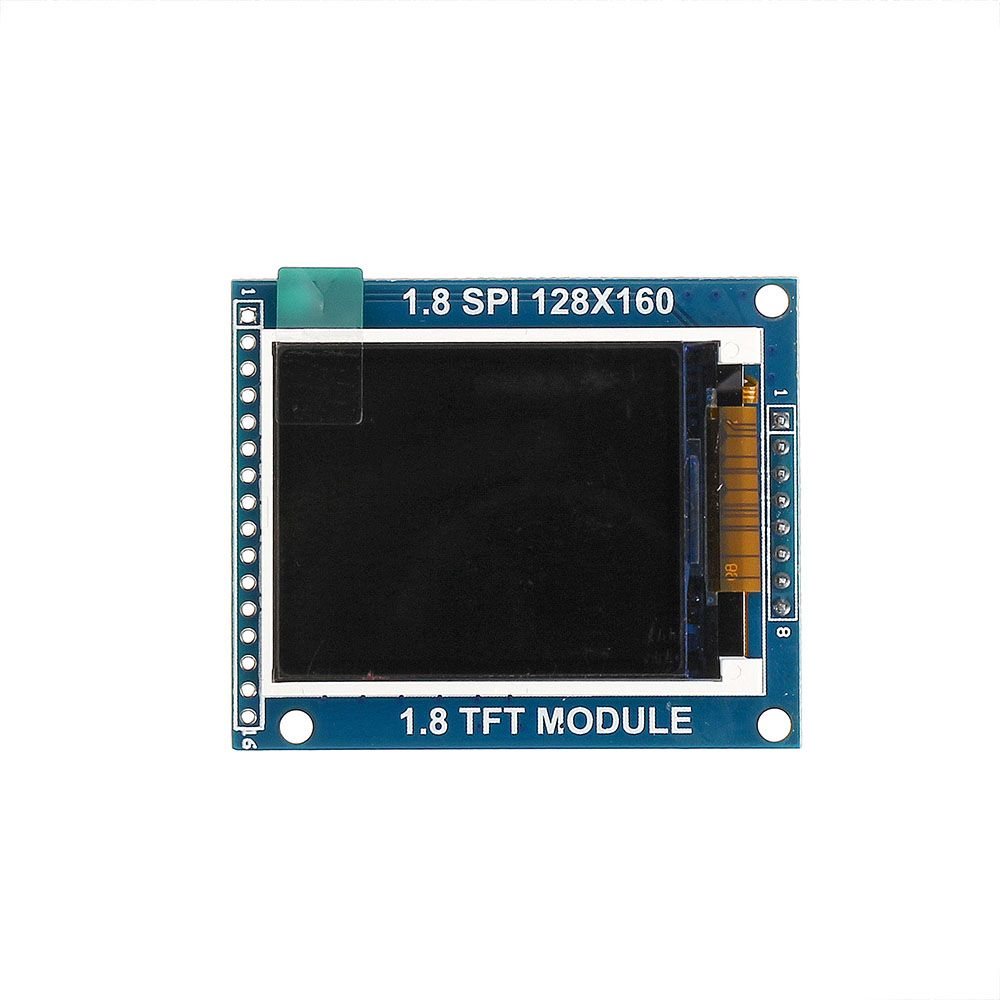

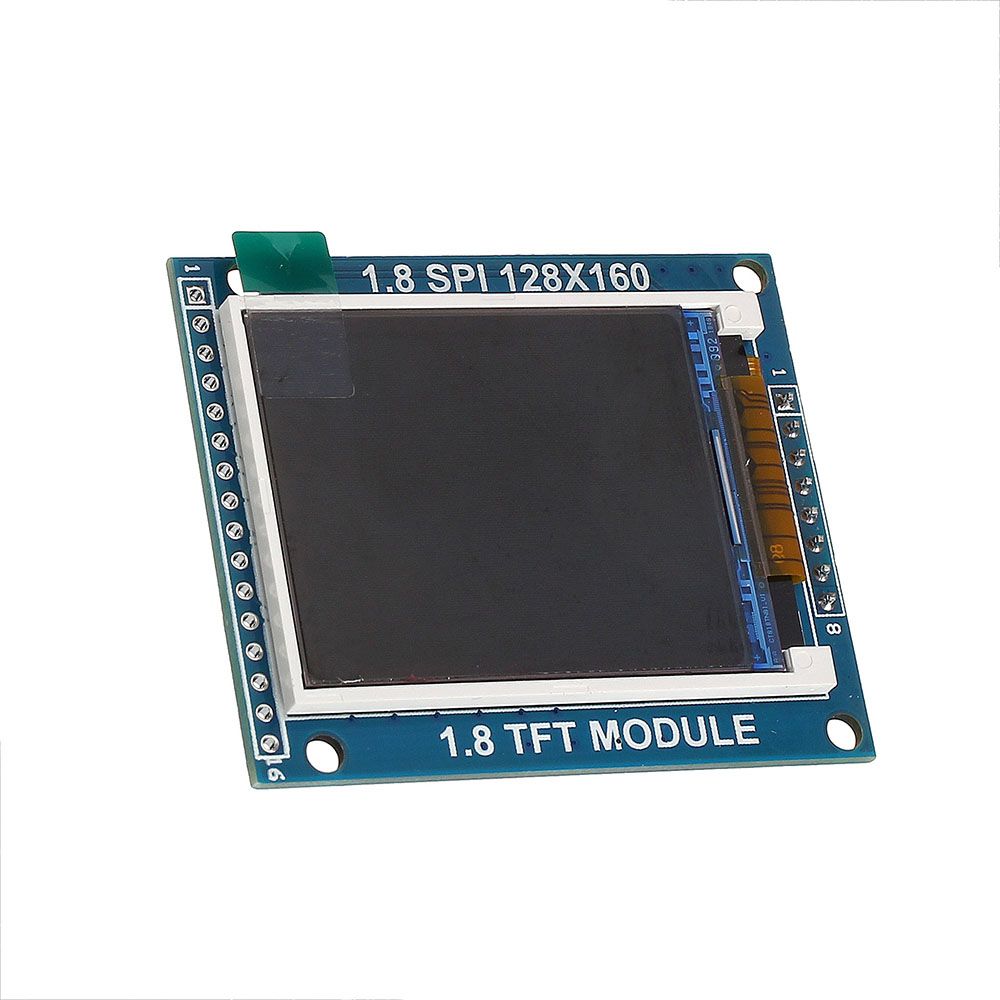

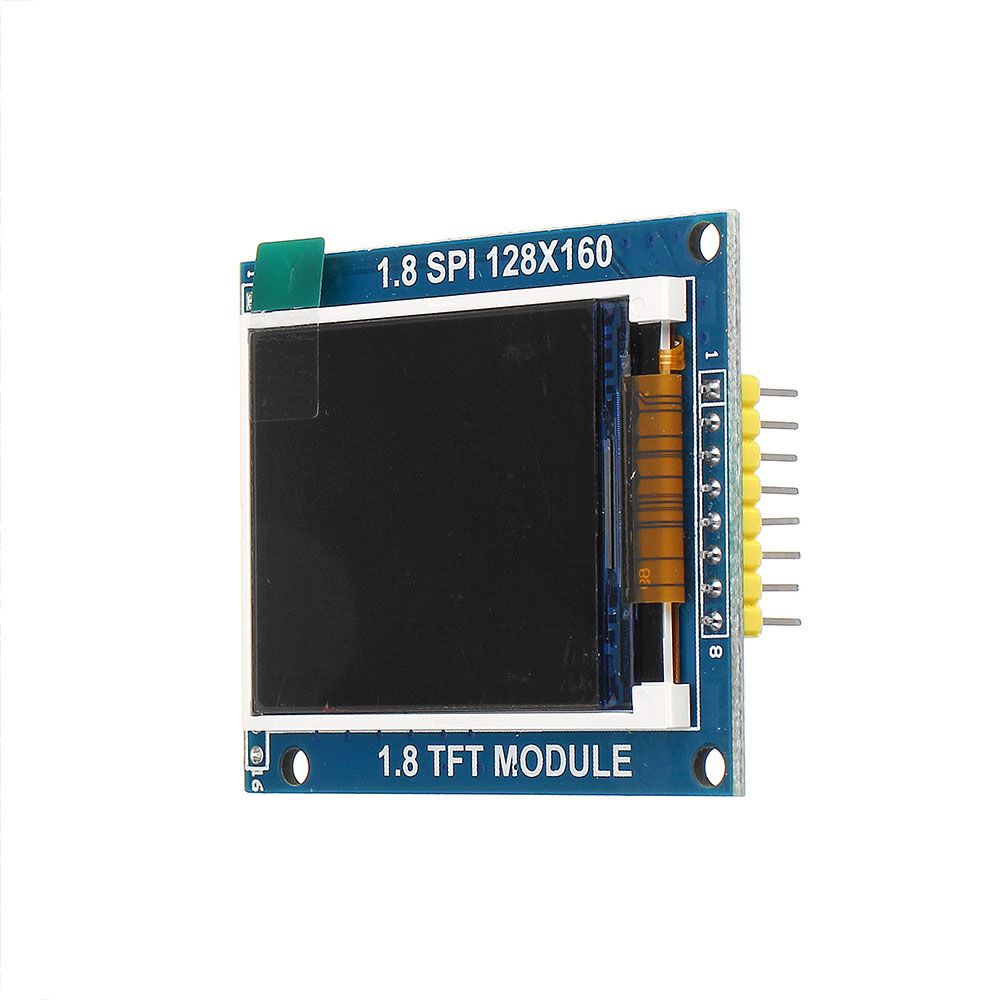

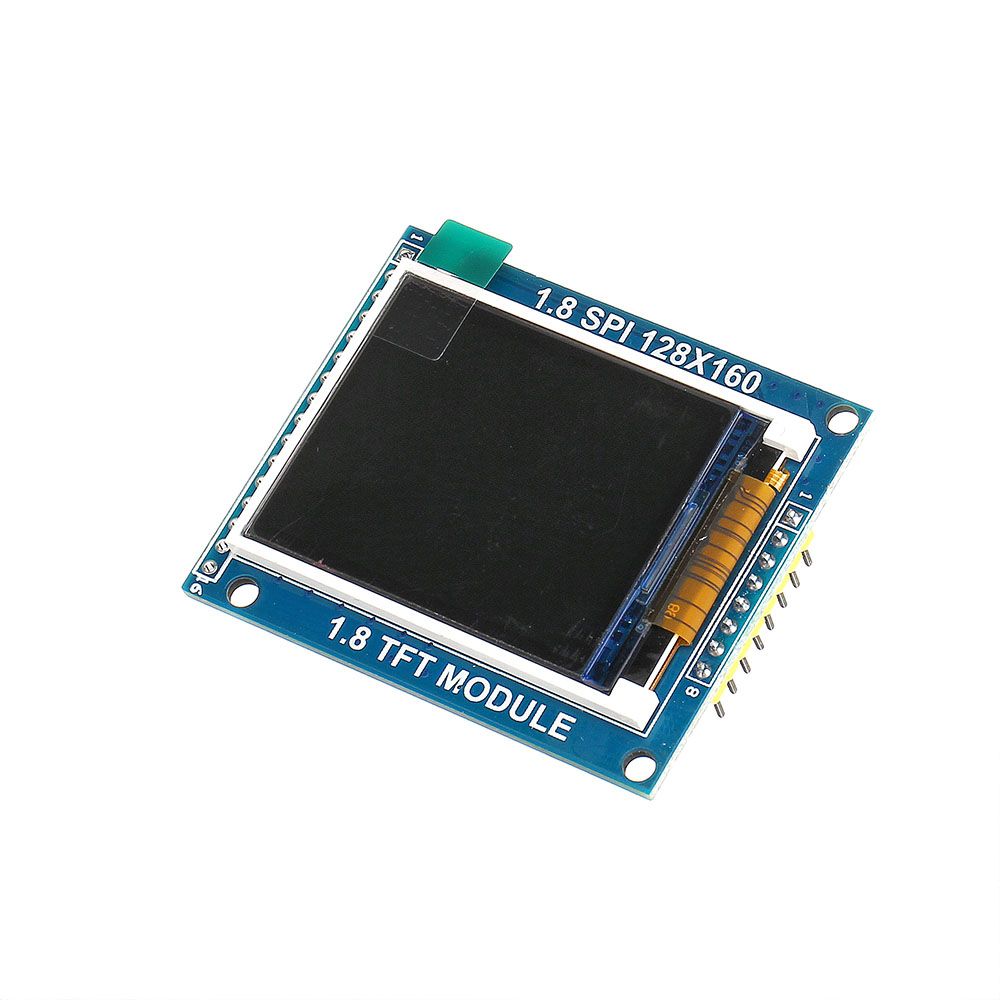

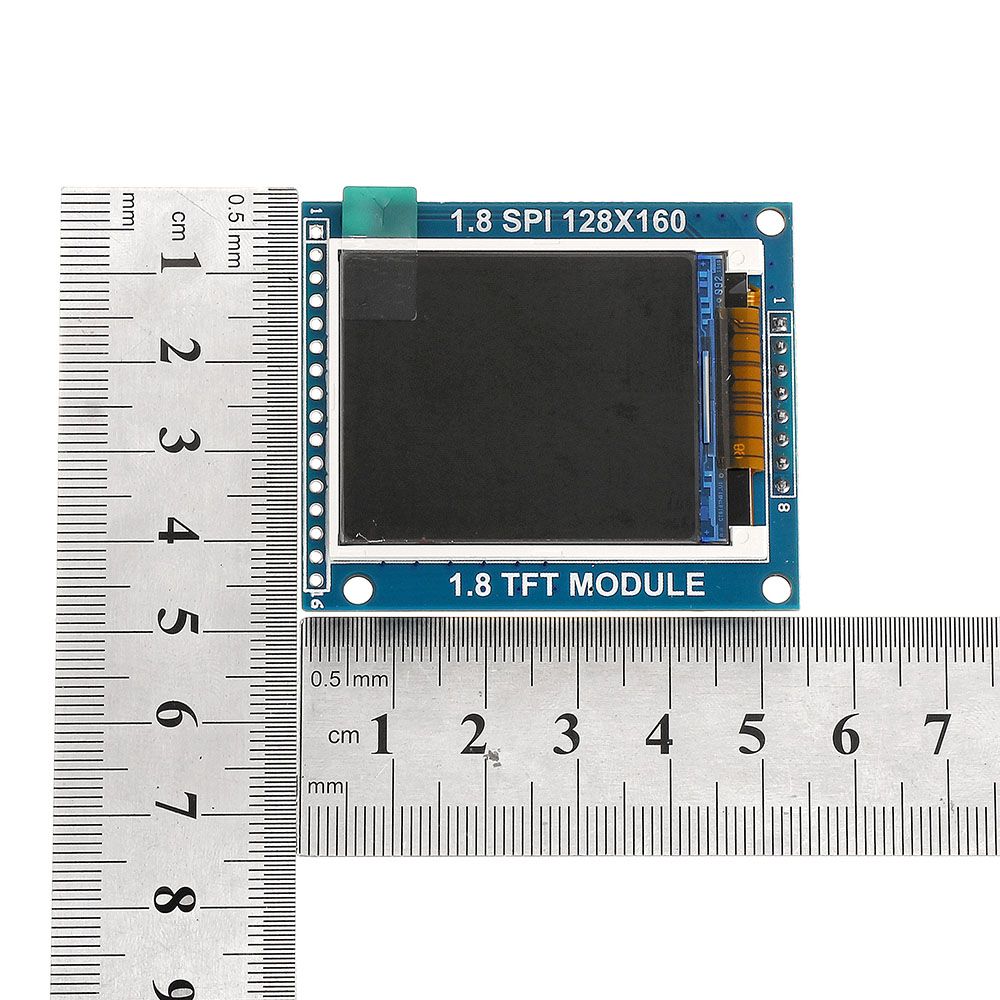

10pcs 1.8 Inch LCD TFT Display Module With PCB Backplane 128X160 SPI Serial Port

10pcs 1.8 Inch LCD TFT Display Module With PCB Backplane 128X160 SPI Serial Port
10pcs 1.8 Inch LCD TFT Display Module With PCB Backplane 128X160 SPI Serial Port
10pcs 1.8 Inch LCD TFT Display Module With PCB Backplane 128X160 SPI Serial Port
10pcs 1.8 Inch LCD TFT Display Module With PCB Backplane 128X160 SPI Serial Port
10pcs 1.8 Inch LCD TFT Display Module With PCB Backplane 128X160 SPI Serial Port
10pcs 1.8 Inch LCD TFT Display Module With PCB Backplane 128X160 SPI Serial Port
10pcs 1.8 Inch LCD TFT Display Module With PCB Backplane 128X160 SPI Serial Port
10pcs 1.8 Inch LCD TFT Display Module With PCB Backplane 128X160 SPI Serial Port
10pcs 1.8 Inch LCD TFT Display Module With PCB Backplane 128X160 SPI Serial Port
10pcs 1.8 Inch LCD TFT Display Module With PCB Backplane 128X160 SPI Serial Port
10pcs 1.8 Inch LCD TFT Display Module With PCB Backplane 128X160 SPI Serial Port
10pcs 1.8 Inch LCD TFT Display Module With PCB Backplane 128X160 SPI Serial Port
10pcs 1.8 Inch LCD TFT Display Module With PCB Backplane 128X160 SPI Serial Port
$52.99
Ex Tax: $52.99
  • Stock: In Stock
  • Model: EB0050396
  • SKU: EB0050396
>
Feature:

Resolution: 128X160
Driver IC: ILI9163/ST7735
Module with regulator IC supports 3.2V/5V power supply
With SD card holder, you can do experiments like digital photo frame

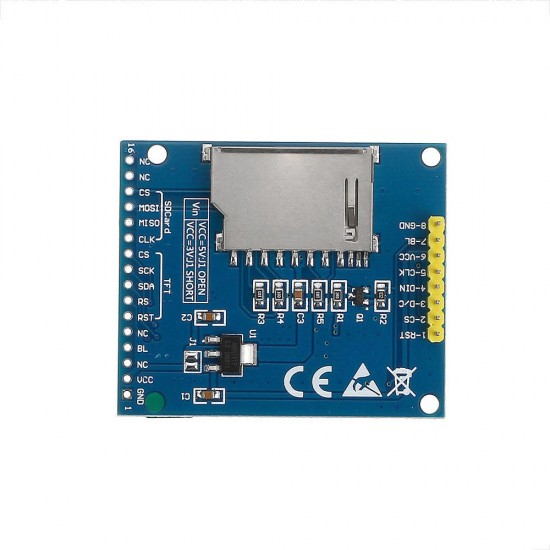

The module reserves the Nokia3310/5110 interface, supports the 1602 interface, and directly plugs in and out.

IO for streamlined wiring: (only 3 IOs after optimization)

1. RST-- directly connected to the microcontroller reset signal terminal, this IO can save
2. D/C-- is connected to low level, and the chip selection is long-term effective.
3. D/C--connected to IO control register selection
4. DIN--connected to IO control data transmission
5. CLK--connected to IO control SPI bus
6. BL--connected to the high-level chip 3.3V backlight is always bright, then this IO can save

IO for standard wiring: (6 IO)

1. RST--connected to IO control LCD reset
2. CE--connected IO control chip selection
3. D/C--connected to IO control register selection
4. DIN--connected to IO control data transmission
5. CLK--connected to IO control SPI bus
6. BL--connect IO control backlight on or off or PWM control brightness

Package includes:

10 x LCD module



10pcs-18-Inch-LCD-TFT-Display-Module-With-PCB-Backplane-128X160-SPI-Serial-Port-1619039

10pcs-18-Inch-LCD-TFT-Display-Module-With-PCB-Backplane-128X160-SPI-Serial-Port-1619039

10pcs-18-Inch-LCD-TFT-Display-Module-With-PCB-Backplane-128X160-SPI-Serial-Port-1619039

10pcs-18-Inch-LCD-TFT-Display-Module-With-PCB-Backplane-128X160-SPI-Serial-Port-1619039

10pcs-18-Inch-LCD-TFT-Display-Module-With-PCB-Backplane-128X160-SPI-Serial-Port-1619039

10pcs-18-Inch-LCD-TFT-Display-Module-With-PCB-Backplane-128X160-SPI-Serial-Port-1619039
