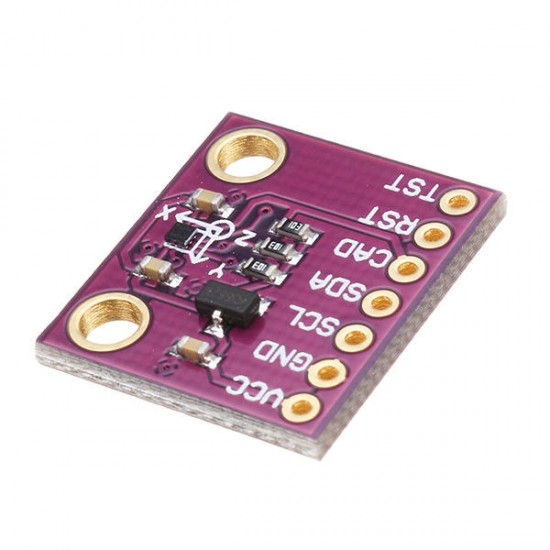

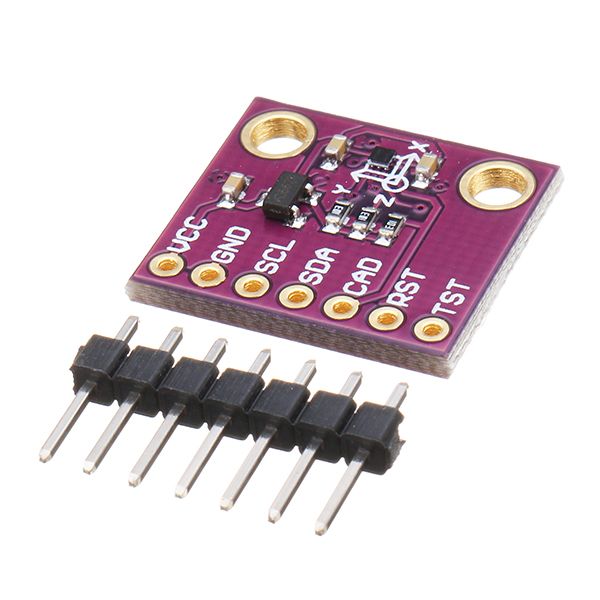

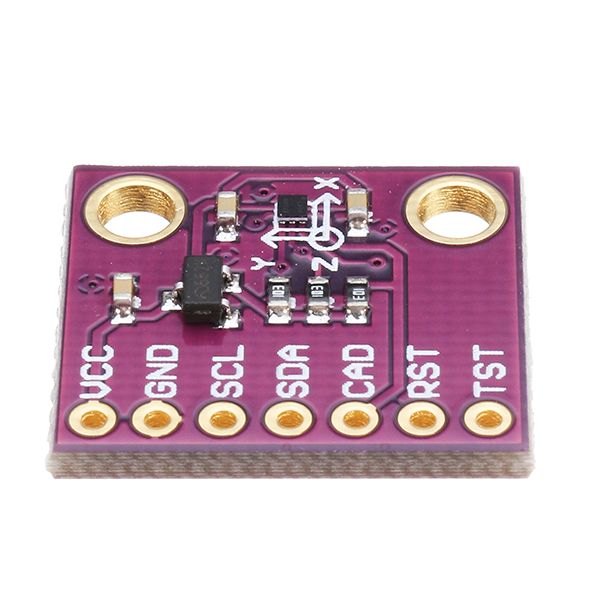

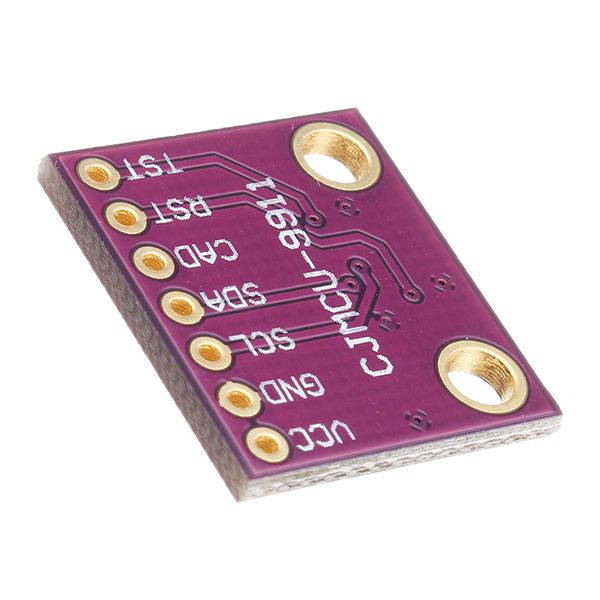

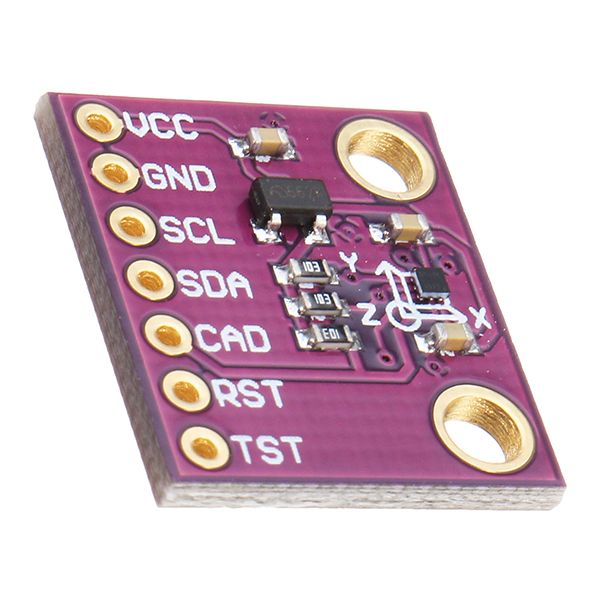

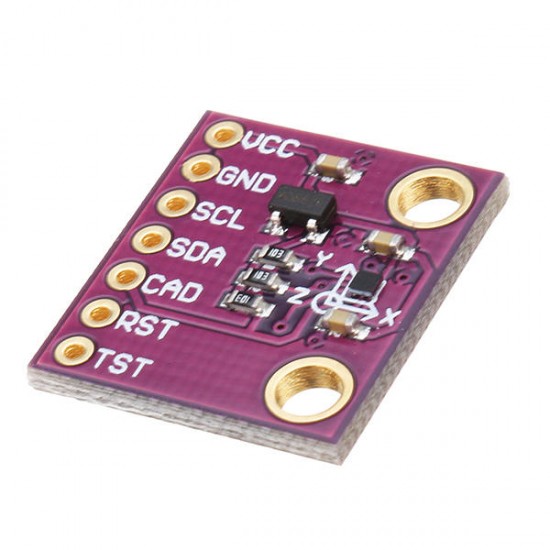

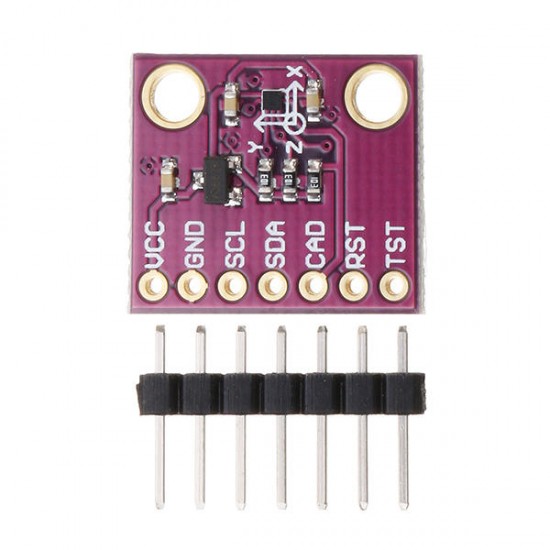

10Pcs -9911 AK09911C Geomagnetic Hall Sensor Three Axis Magnetometer Compass Module
- Stock: In Stock
- Model: EB0046232
- SKU: EB0046232
CJMCU - 9911 high sensitivity of hall sensor technology of triaxial electronic compass.
The most suitable for navigation using cell phones and other portable devices to walk city.
Function:
Three axis magnetometer device for beidou application
Built-in Analog-to-digital converter magnetometer data
14 data for every three axial magnetic components
Sensitivity: 0.6 uT/LSB (typical values
serial interface I2C bus interface
Standard, fast and high speed mode (2.5 MHz) compatible with philips I2C specification version 2.1.
Operating mode:
Power off, a single measurement, continuous measurement, self test and fuse ROM access
Used to measure the data preparation. Functional data ready
Magnetic sensor overflow monitoring function
The built-in internal clock oscillator
No specific technical support
Power on reset circuit
Self-test function of the internal magnetic source
Package included:
10 x CJMCU-9911 AK09911C Geomagnetic Hall Sensor
