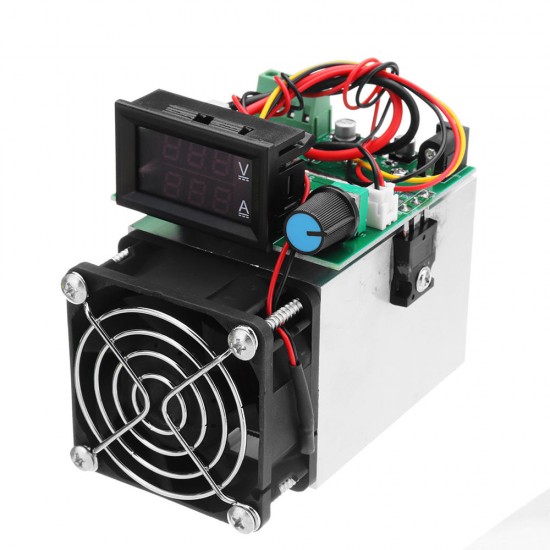

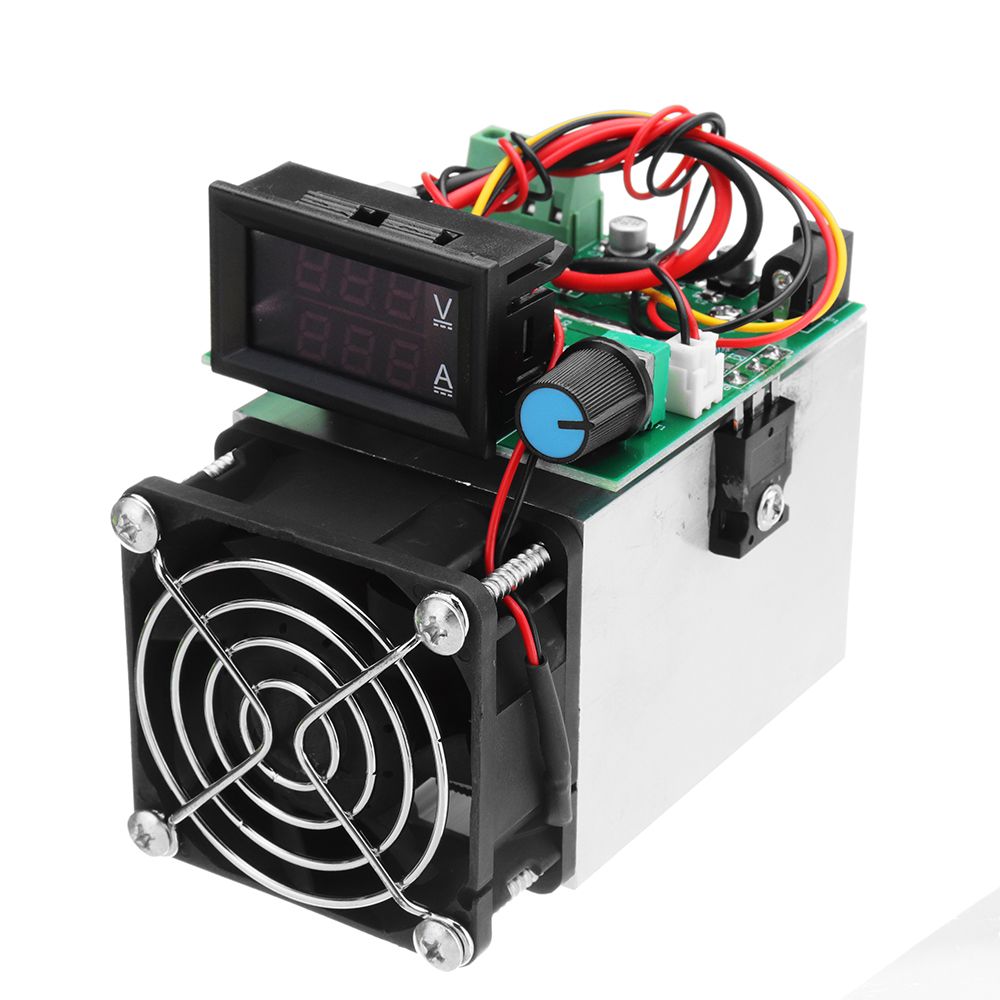

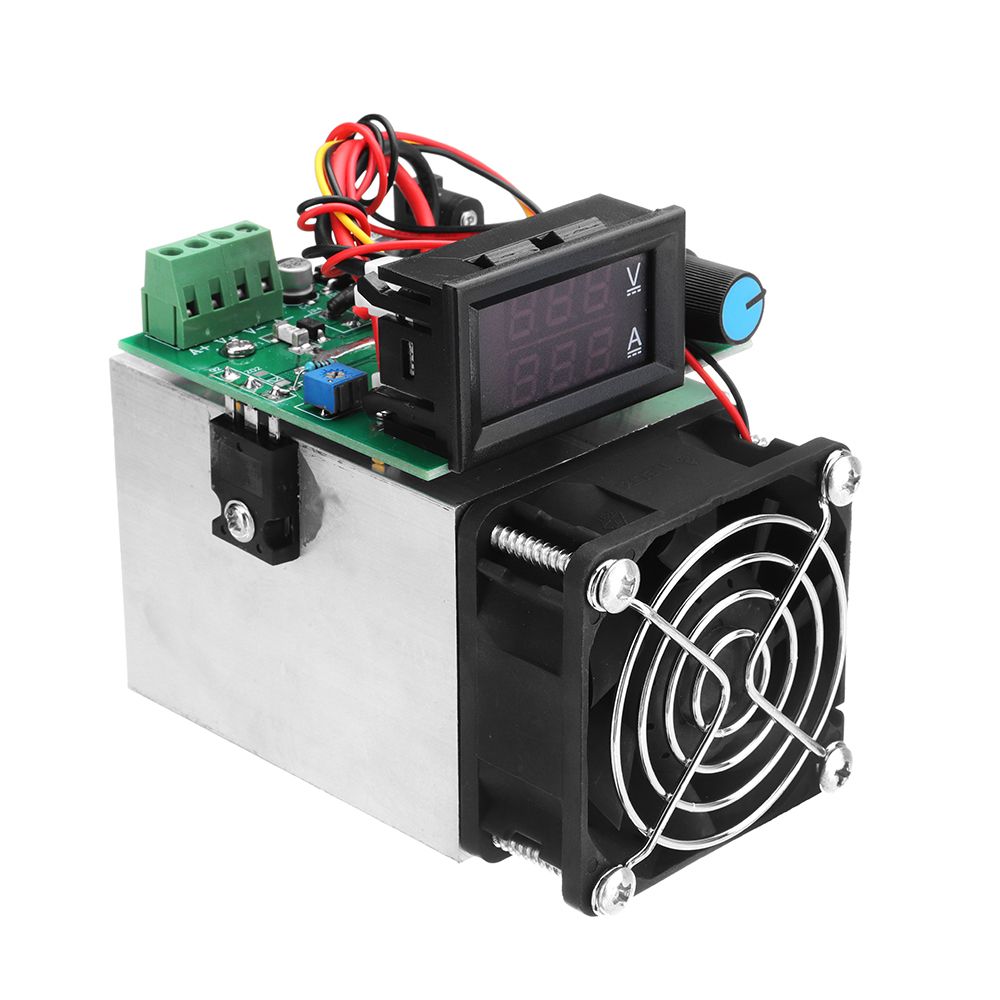

100W DC 12V Discharge Battery Capacity Tester Module With DC Electronic Load Digital Battery Tester

100W DC 12V Discharge Battery Capacity Tester Module With DC Electronic Load Digital Battery Tester
100W DC 12V Discharge Battery Capacity Tester Module With DC Electronic Load Digital Battery Tester
100W DC 12V Discharge Battery Capacity Tester Module With DC Electronic Load Digital Battery Tester
100W DC 12V Discharge Battery Capacity Tester Module With DC Electronic Load Digital Battery Tester
100W DC 12V Discharge Battery Capacity Tester Module With DC Electronic Load Digital Battery Tester
100W DC 12V Discharge Battery Capacity Tester Module With DC Electronic Load Digital Battery Tester
100W DC 12V Discharge Battery Capacity Tester Module With DC Electronic Load Digital Battery Tester
100W DC 12V Discharge Battery Capacity Tester Module With DC Electronic Load Digital Battery Tester
100W DC 12V Discharge Battery Capacity Tester Module With DC Electronic Load Digital Battery Tester
100W DC 12V Discharge Battery Capacity Tester Module With DC Electronic Load Digital Battery Tester
100W DC 12V Discharge Battery Capacity Tester Module With DC Electronic Load Digital Battery Tester
100W DC 12V Discharge Battery Capacity Tester Module With DC Electronic Load Digital Battery Tester
100W DC 12V Discharge Battery Capacity Tester Module With DC Electronic Load Digital Battery Tester
100W DC 12V Discharge Battery Capacity Tester Module With DC Electronic Load Digital Battery Tester
100W DC 12V Discharge Battery Capacity Tester Module With DC Electronic Load Digital Battery Tester
100W DC 12V Discharge Battery Capacity Tester Module With DC Electronic Load Digital Battery Tester
100W DC 12V Discharge Battery Capacity Tester Module With DC Electronic Load Digital Battery Tester
$36.99
Ex Tax: $36.99
  • Stock: In Stock
  • Model: EB0045772
  • SKU: EB0045772
Description:

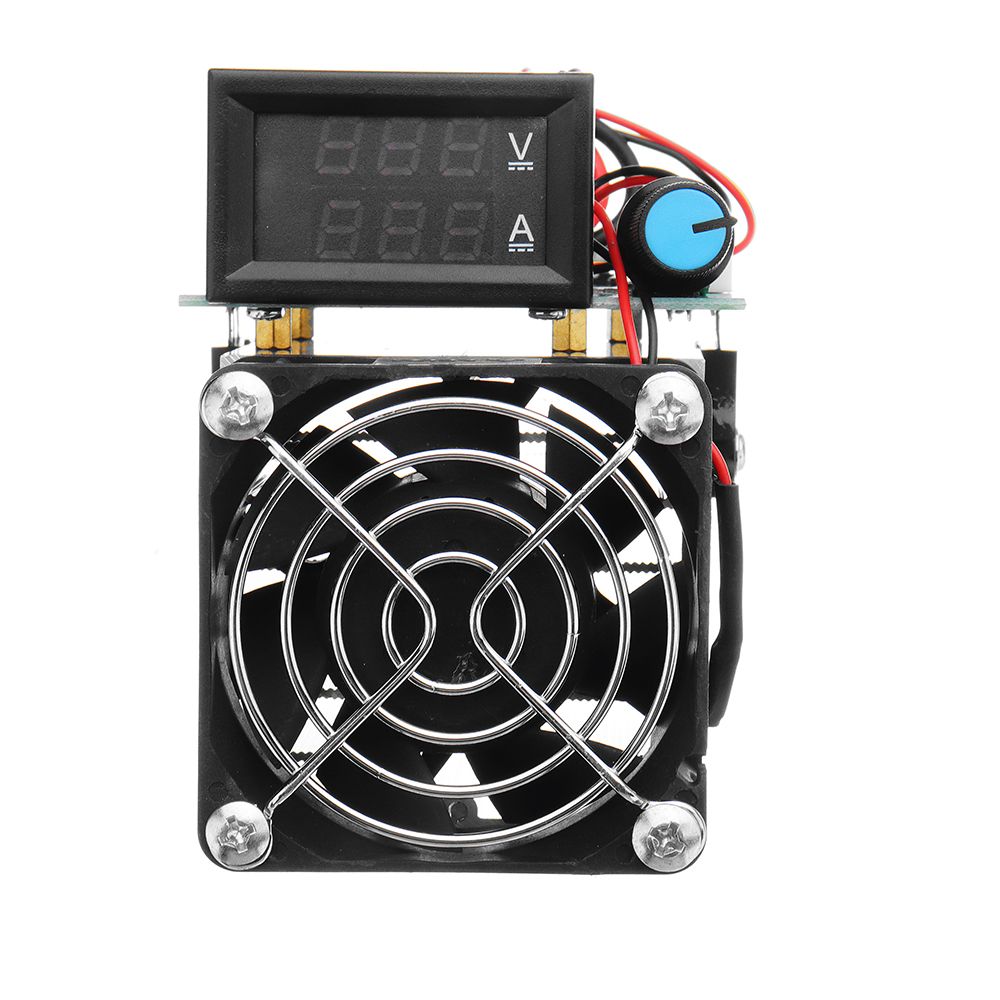

This Electronic Load has the high speed fan, which can automatically change the speed. High quality heat sink can serve a long time performance. It supports multiple protections of overheat, overpower, over-voltage, reserve polarity, and power supply voltage abnormity.

Features:

The high speed of the fan can change according to the heat sink temperature.
Protection of over-heating, overpower, over voltage, reserve polarity, and power supply voltage abnormity.

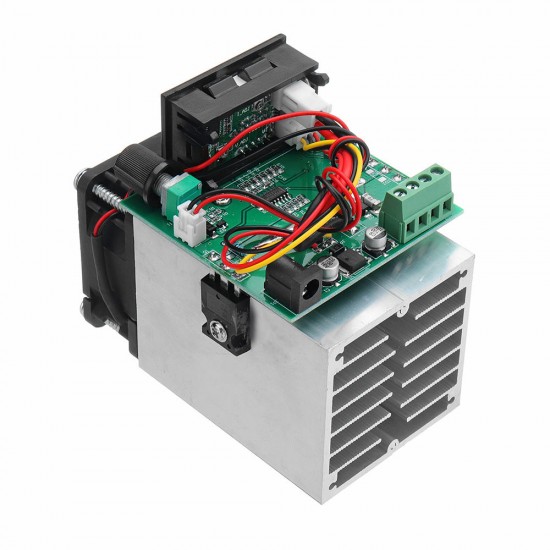

Equipped with industrial large tooth heat sink, dust-resistant, which can run for a long time.
Durable construction for long-lasting performance.
Professional test module for detecting discharge battery capacity.

Specification:

Power Supply: DC12V±5%
Fan Current: 0.72A
Constant Discharge Current Range: 0-10A(whole machine)
Working Mode: Single Mode Constant Current(CC)
Discharge Current Max. Error: 0.7%-0.01A
Max. Capacity Test Error: 0.5A 2.5%, 2A 1.5%, 5A and above 1.2%
Max. Power: 100W
Input Interface: 5.5 x 2.5mm

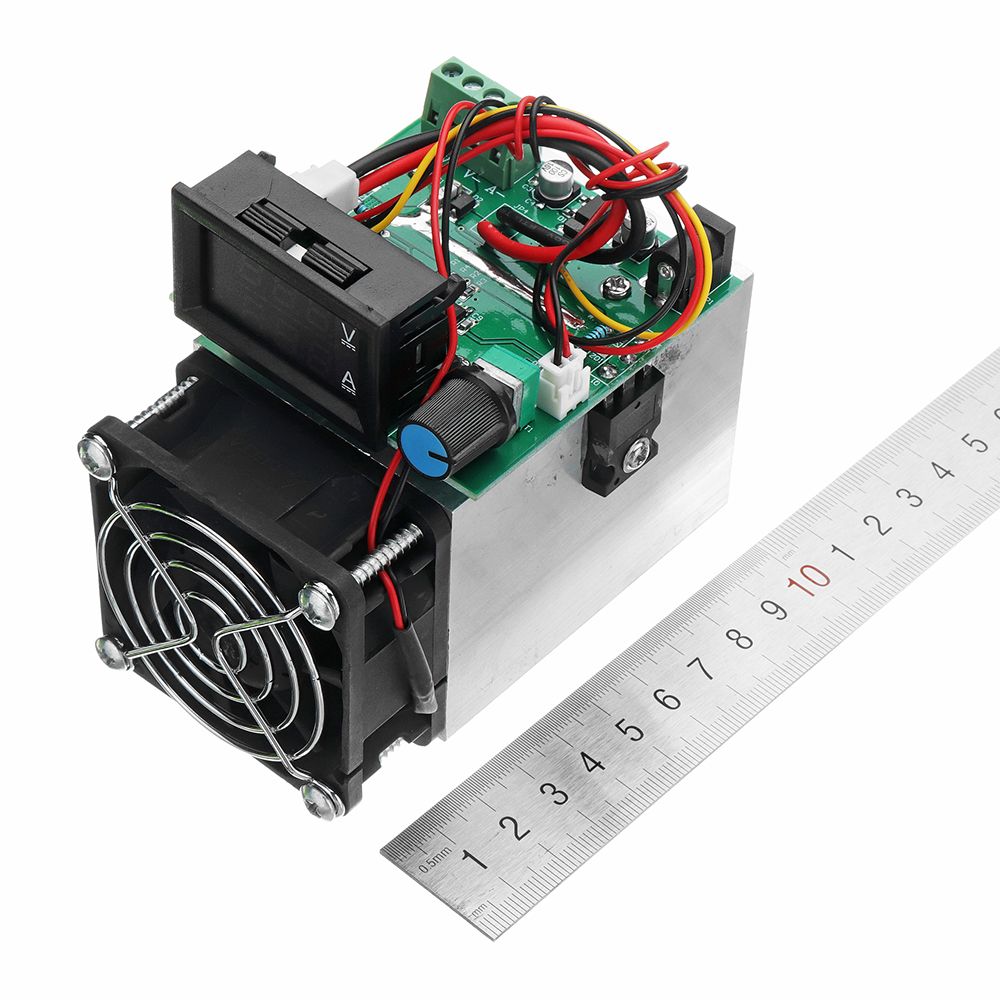

Size: Approx. 11 x 9.5 x 7cm / 4.3 x 3.7 x 2.7inch
Weight: 385g

Operation Instructions:

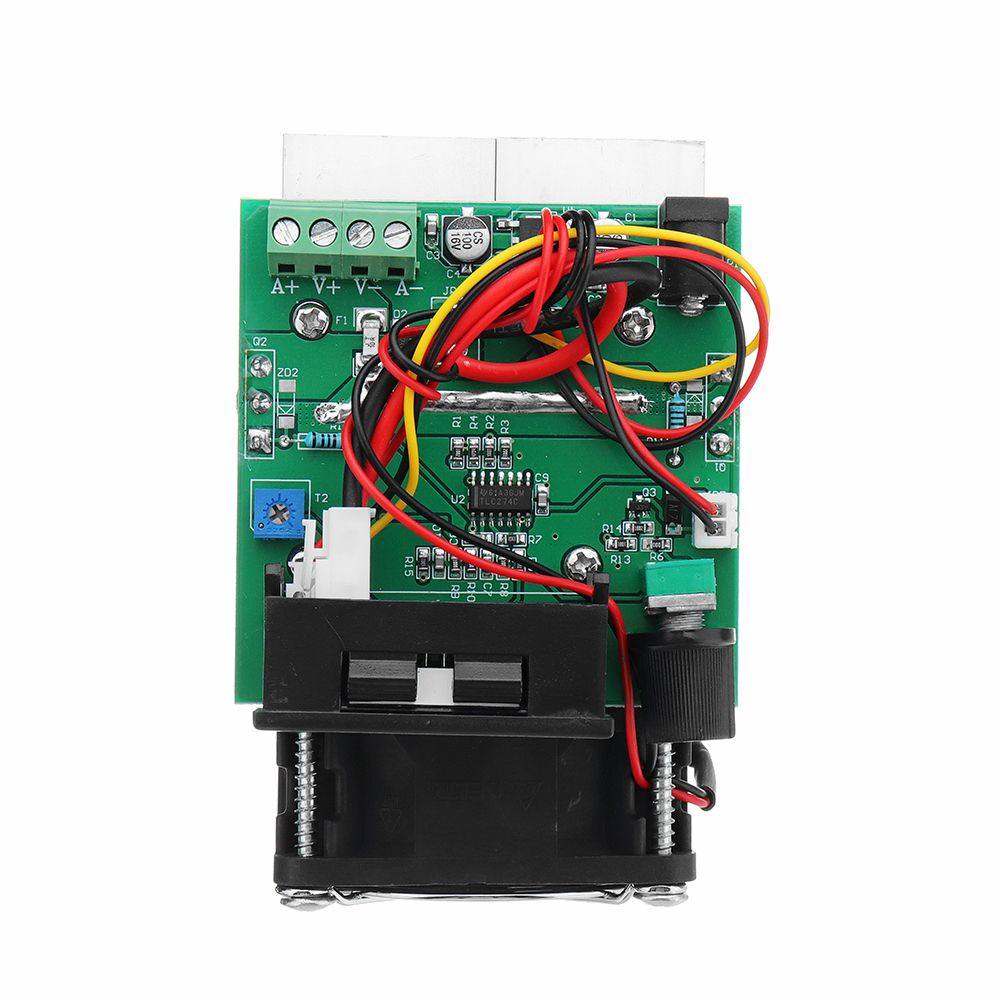

Connect with DC 12V power supply and enter electronic load mode, ensuring in a stopping state, connect the power supply under test to the test input port. Please pay attention to connect the right polarity!

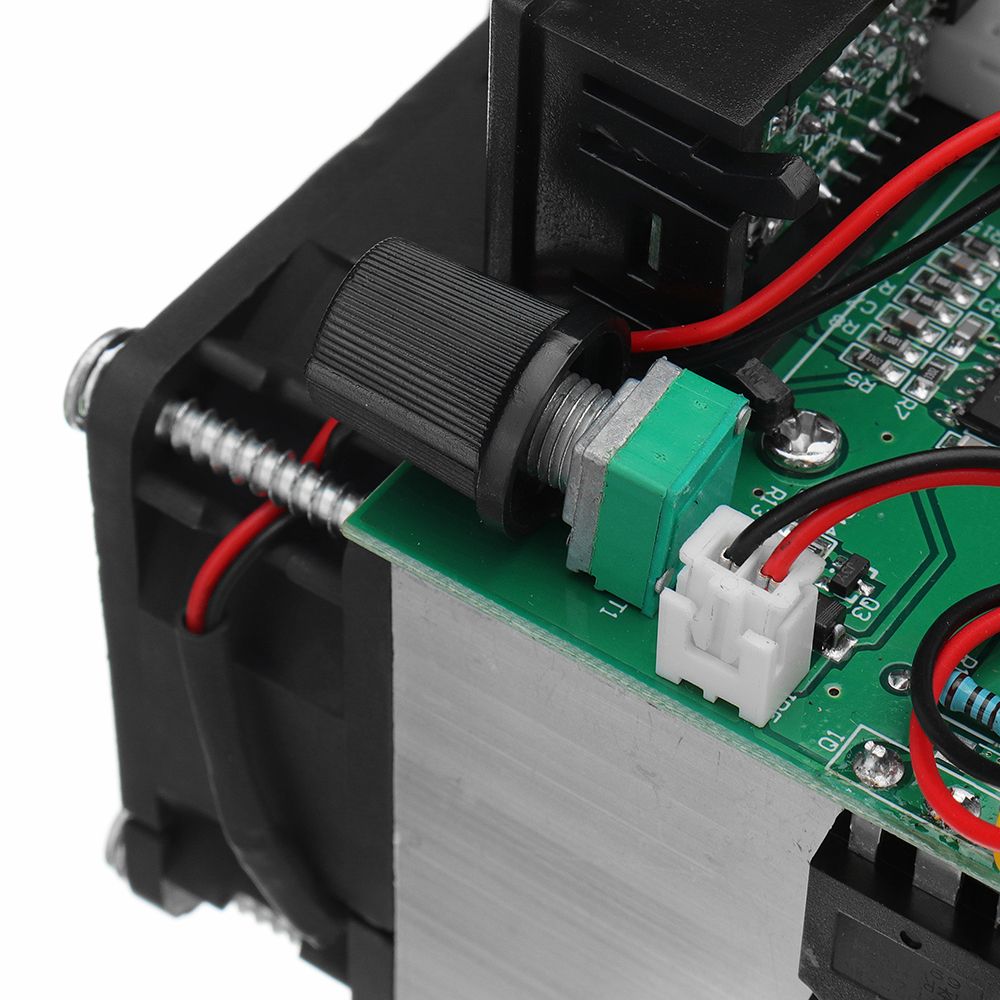

Set constant current through knobs.
Note: Since it works openly, there is no voltage and power limitation, but normal work should be below 100V, 100W.

Package Included:

1 x Battery Capacity Tester Module

Note:

If you are looking for a similar product of 250W, you can search for ID:
1383823
