Product introduction:

8 in 1 measurement: voltage, current, power, battery capacity, impedance, temperature, energy, time,  external waterproof temperature probe.

Should be the majority of customers on the market of the general voltage ammeter can not meet the requirements of testing high voltage and high current, otorch for engineers struggling to develop this can be high voltage, high current built-in shunt DC voltmeter, test voltage range 0-300V , The current range of 0-100A, the test power even up to 30000W, test high-voltage rechargeable battery, battery, or low-voltage 18650 battery pressure, Universal test all batteries.

almost all can take all the DC, no longer have to worry about the voltage range is not enough.

This section of the DC test table current, voltage, capacity accumulation, power accumulation, power, impedance, temperature, time eight data one screen display, equipped with micro-power LCD module LCM black font green backlight in English display large screen for data read At a glance. Output input expansion port in the test is to bring a more convenient, so that the function and design are more intimate. Application process, the majority of users are welcome to make recommendations for the follow-up to optimize the design to collect more information.

Tips:

The back of the product has protective measures, do not tear it off. After tearing up the electronic short circuit caused by the buyer is responsible. If there is necessary to tear it off, re-find a shell can be installed on the. Do not touch the product while testing high pressure.

Note: When testing the voltage less 7.8V to give the product power supply, power supply by the micro usb data line DC4-30V voltage range of power supply.

Specification:

Input/output interface: 100 A Large current Metal post
Voltage range: 0.00 V ~ 300 V Resolution precision: 0.05 V
Current range: 0.00 A ~ 100 A Resolution precision: 0.05 A
Capacity range: 0 ~ 999.999 Ah Resolution precision: 0.01 Ah
Power cumulative range: 0 ~ 99999.9 Wh Resolution precision: 0.01 Wh
Power range: 000.00 ~ 2999.99 W Resolution precision : 0.01 W
Impedance  range: 1 ~ 999.9     Resolution precision: 0.1
Temperature range: 0 ~ 99 ℃ Resolution precision: 1℃
Timing maximum time: 999H59M59S Resolution precision: 1S
Timing remind Settings: the countdown 24 hours of any value
Small current standby alert threshold parameters: < 2 W / 0.5 H
Small voltage power supply requirements: measuring < 7.8V
 low voltage, please supply independent power supply interface
Range of 4 ~ 30V dc power supply voltage to the measurement system
Time to refresh: > 500 ms/time > 500 ms/times
Measurement rate: 0.5 times per second
Over-voltage over-current set the alarm mode: display warning interface
 to alert users
Overpressure to remind the set range: 1 ~ 300V
Low pressure remind set range: 0 ~ 149V
Flow to remind the set range: 0.2 ~ 100A
Display type: micro power consumption of LCD module LCM black font
green backlit display in both Chinese and English
Product size: 118x37x56MM
Since the power flow: < 0.02 A
Working temperature: - 10 ~ + 60 degrees Celsius - 10 ~ + 60 ℃
Working humidity: 10 ~ 80 (dew) undoubtedly 10 ~ 80 (no doubt)
The pressure of work: 80 ~ 106 kpa

Operation method:

Keystrokes using method and the capacity, power, time reset Settings:
1) Reset button long-press all data
  (mAh,Wh,00:00:00)
2) Quickly button twice - capacity Reset (mAh)
3) Quickly button three - power reset (Wh)
4) Quickly button four - time reset (00:00:00)
5) Quickly button five - Set up automatic standby
and Discharge the countdown to remind regularly
6)When no load output no-load, quick seven keys,
and for the current zero to zero in the current
environment temperature for accurate calibration,
so more can do more accurate measurement in
small current.
7)Click the switch interface, in the high voltage
 low voltage when backlit parameter Settings,
by double Strike and three strikes for parameter
adjustment, the adjustment process long press
is a continuous fast speed value adjustment.

Package Includes:

1 x DC Energy Meter
1 x User Manual

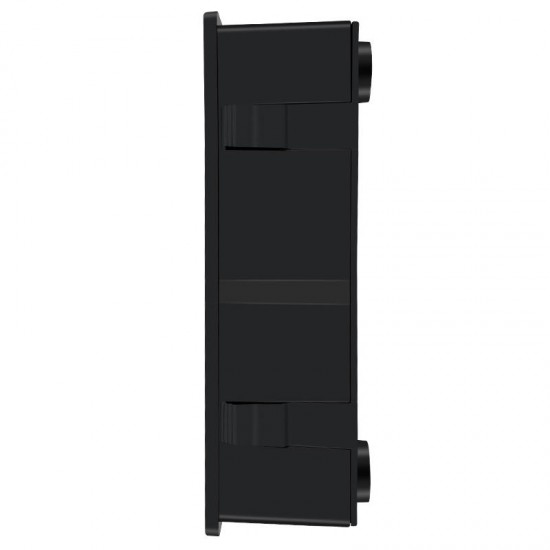

Details Pictures:




100A-300V-DC-Energy-Meter-Energy-Monitoring-8-in-1-Measurement-Voltage--Current--Power--Battery-Capa-1390444
100A-300V-DC-Energy-Meter-Energy-Monitoring-8-in-1-Measurement-Voltage--Current--Power--Battery-Capa-1390444
100A-300V-DC-Energy-Meter-Energy-Monitoring-8-in-1-Measurement-Voltage--Current--Power--Battery-Capa-1390444
100A-300V-DC-Energy-Meter-Energy-Monitoring-8-in-1-Measurement-Voltage--Current--Power--Battery-Capa-1390444
100A-300V-DC-Energy-Meter-Energy-Monitoring-8-in-1-Measurement-Voltage--Current--Power--Battery-Capa-1390444
100A-300V-DC-Energy-Meter-Energy-Monitoring-8-in-1-Measurement-Voltage--Current--Power--Battery-Capa-1390444
100A-300V-DC-Energy-Meter-Energy-Monitoring-8-in-1-Measurement-Voltage--Current--Power--Battery-Capa-1390444
